Reasonable price storage tank welding roller frame horizontal welding roller frame welding roller frame price
- $5500.00 / 1 - 1 sets
$5000.00 / 2 - 2 sets
$4000.00 / >=3 sets - 1 set
- Dalian J&Y Heavy Machine Co., Ltd.
- Liaoning, China
- Mr Liu
PRODUCT DETAIL
| port: | Dalian, Shanghai, Shenzhen, Guangzhou, etc. | Operation method: | Electric control cabinet |
| Core component warranty: | 1 year | Applicable industries: | Clothing stores, building supplies stores, machinery repair shops, manufacturing plants, retail, print shops, construction, energy and mining, advertising agencies |
| Voltage: | 380V three phase 50Hz | Roller material: | eraser |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Main selling points: | automatic |
| Health status: | new | work: | a drive rotator |
| Showroom location: | USA, Brazil, Pakistan, Russia, Chile, Algeria, Romania | Drive mode: | Motor + reducer |
| Carrying capacity: | 1-100 tons | product name: | Welding Roller Stand |
| Packaging Details: | Standard International Package | Warranty: | 1 year |
| Supply capacity: | 10 sets per month | Marketing Type: | 2020 New Products |
| aspect: | 2500*1459*800mm | Origin: | Liaoning, China |
| payment terms: | L/C, Western Union, T/T, Paypal | Function: | welded metal cans |
| Package preview: | Weight (kg): | 1000 kg | |
| usage: | Welding Roller Stand | Video outbound inspection: | if |
| structure: | fixed | type: | welding roller |
| Mechanical test report: | if | brand: | strong sun |
| control method: | Electric control box |
Contact: Lydia Sun Tel: +86-411-82766928 Fax: +86-411-39015062 Email: [email protected] Mobile/Whatsapp: +86 133 9411 0095
Product Description

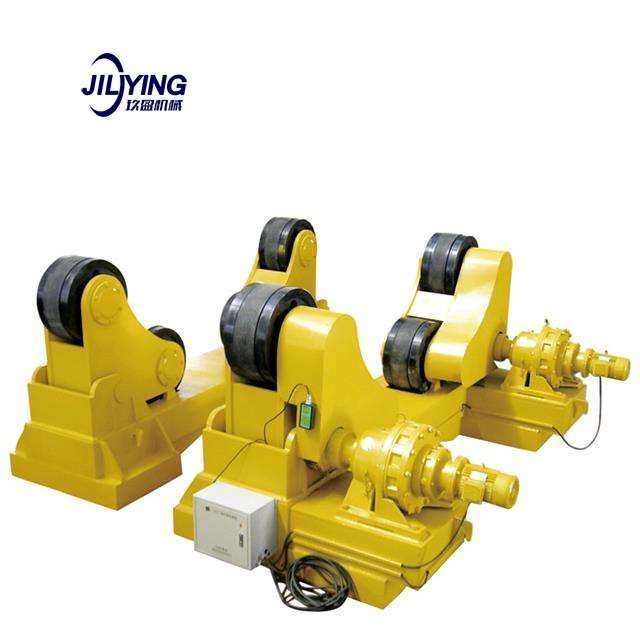

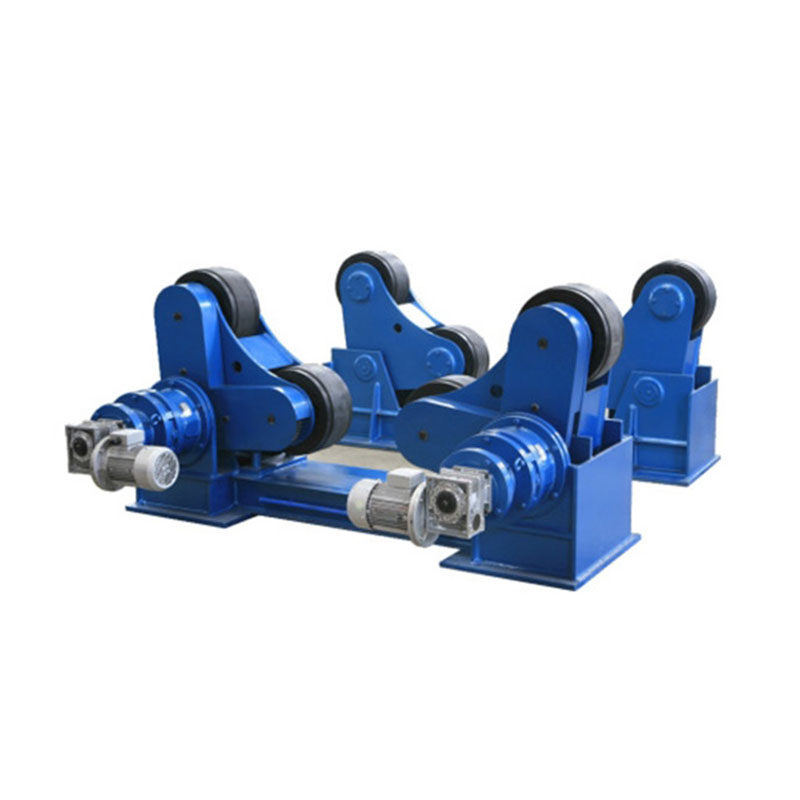

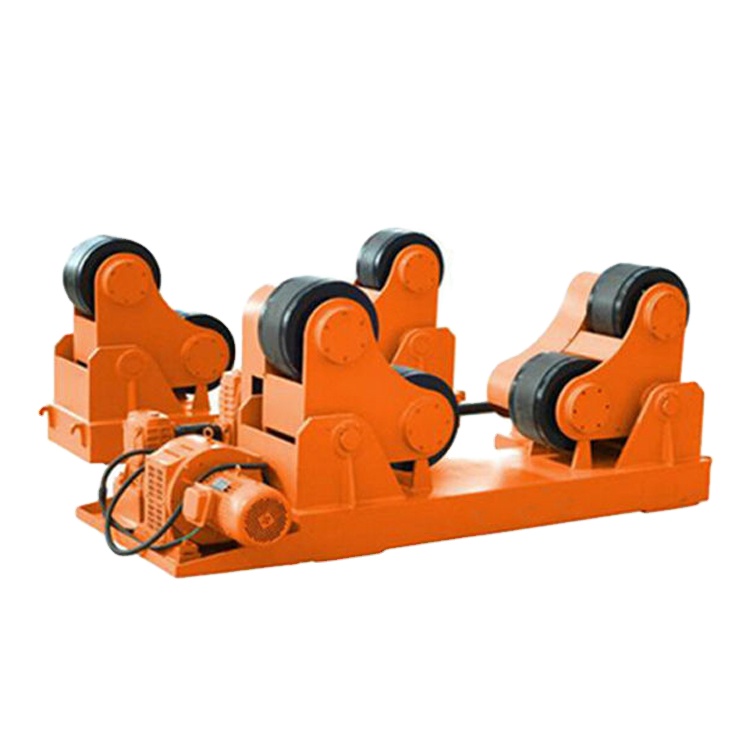

Welding Roller Welding Roller
Welding Rollers/Tanker Rollers offer the most comprehensive line of products sold by any manufacturer.
Our product range includes pipe spinners from 1 ton to 10 tonnes, heavy duty welding spinners up to 1000 tonnes, capable of spinning vessels up to 10m in diameter.
Our product range includes pipe spinners from 1 ton to 10 tonnes, heavy duty welding spinners up to 1000 tonnes, capable of spinning vessels up to 10m in diameter.
Welding Roller StandProduct selling point
1. Polyurethane roller, rubber roller or steel roller
2. Anti-creep function
3. Hydraulic lifting tube
4. Automatic walking or manual walking on the track
5. The swing angle of the roller group can be adjusted automatically according to the diameter and size of the workpiece, and can also be adjusted manually
Calibration is not required.
2. Anti-creep function
3. Hydraulic lifting tube
4. Automatic walking or manual walking on the track
5. The swing angle of the roller group can be adjusted automatically according to the diameter and size of the workpiece, and can also be adjusted manually
Calibration is not required.
Roller stand product selling point
6. We can also design and customize various types of roller frames according to customer requirements
7. Imported frequency conversion speed regulator, wide adjustment width, large starting power, high adjustable speed
accurate.
7. Imported frequency conversion speed regulator, wide adjustment width, large starting power, high adjustable speed
accurate.
Welding Rollers - "What You Want, When You Need".
We are a professional machinery procurement supplier. Our vision is to provide our customers with the best service, quality and price
Customers are all over the world.
Customers are all over the world.
* Whether you need to position and weld small pipe sections, flanges or elbows, large pressure vessels or complex wind towers or twin connection lines, MC has solutions for rotating and positioning workpieces to maximize your productivity And guaranteed to solve your welding and handling requirements.
* To give you the best advice on discussing your project's options with our experienced engineering team. They will advise on the best weld rollers/tank rollers for your application and offer cost effective sales, offering maximum flexibility according to your own schedule.
* To give you the best advice on discussing your project's options with our experienced engineering team. They will advise on the best weld rollers/tank rollers for your application and offer cost effective sales, offering maximum flexibility according to your own schedule.
Specification
Model | HGZ-05 | HGZ-10 | HGZ-20 | HGZ-40 | HGZ-60 | HGZ-80 | HGZ-100 | HGZ-150 | HGZ-200 | ||||||||
Rated load (T) | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 200 | ||||||||
Container diameter range (mm) | 250-2300 | 320-2800 | 500-3500 | 600-4200 | 750-4800 | 850-5000 | 1000-5500 | 1000-6500 | 1000-6500 | ||||||||
PU roller diameter and width (mm) | 250-100 | 300120 | 350*140 | 400-180 | 450-180-2 | 450-200-2 | 500-240-2 | 500-260-2 | 650-325-2 | ||||||||
Metal Roll Diameter and Width (mm) | / | / | / | / | / | / | / | / | 650-250 | ||||||||
Linear speed(mm/min) | 1001000mm/min | ||||||||||||||||
speed control | VFD speed control | ||||||||||||||||
Motor power (kW) | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 | 5.5 | 2-5.5 | ||||||||
Walking speed - optional (m/min) | 2/0.37 | 2/055 | 2/0.75 | 2/1.1 | 2/1.5 | 2/2.2 | 2/3 | 2/3 | 2/4 | ||||||||
Products Recommended
Packaging and Shipping
VIEW MORE
YOU MAY LIKE
Other Products
-

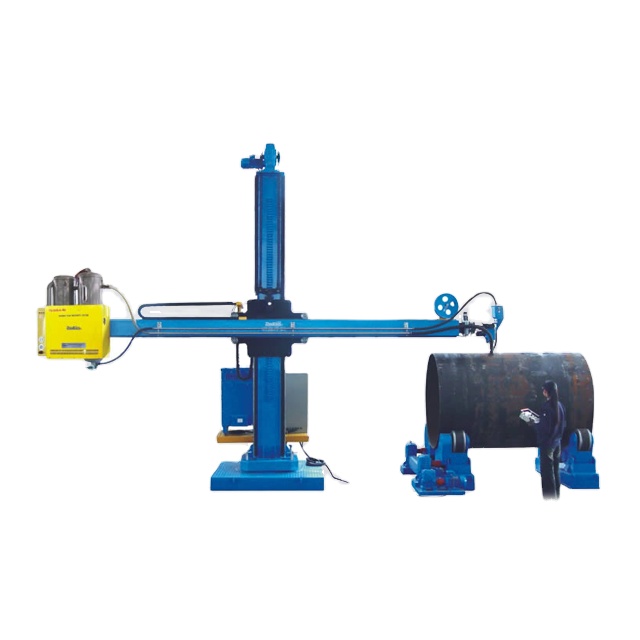

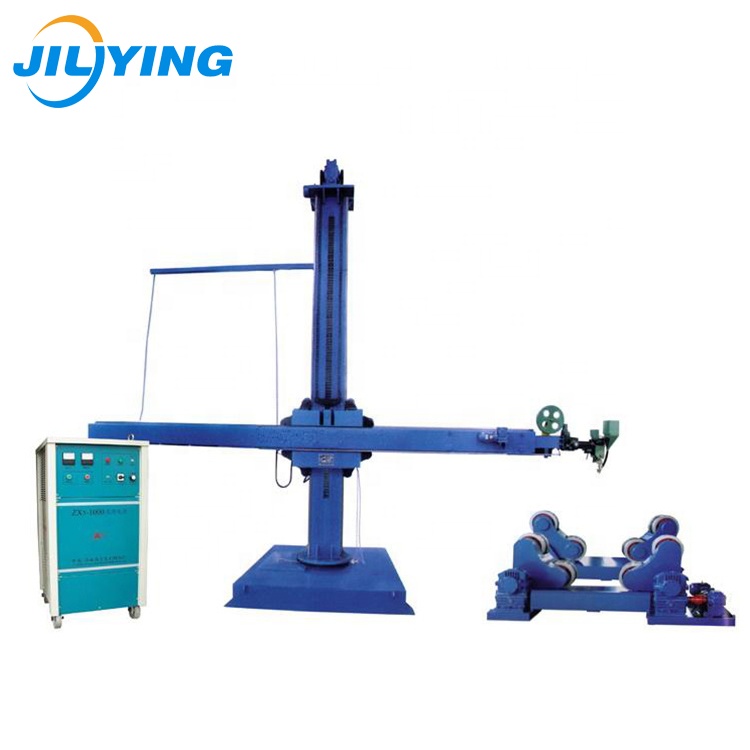

Customized supplier circular seam welding machine steel tank circular seam welding machine automatic$1000.00 - $1200.00 / set
