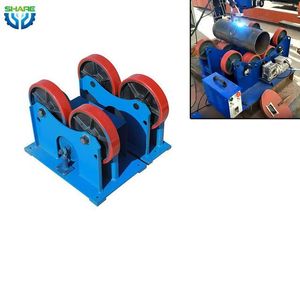

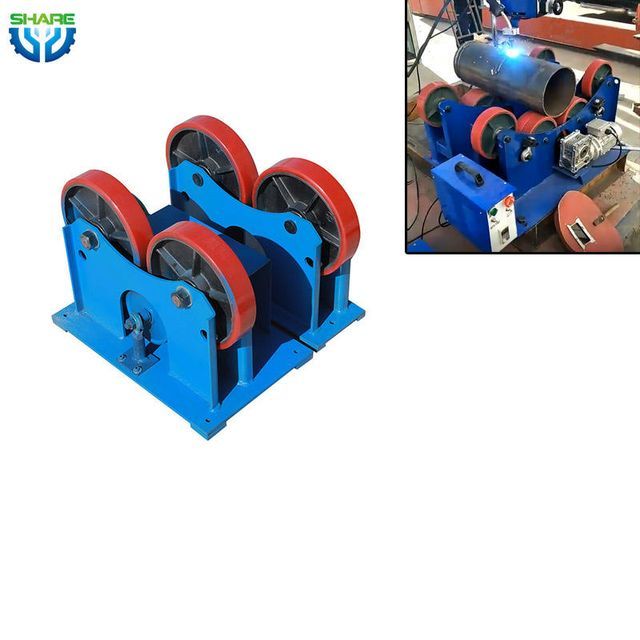

Welding positioner rotator small pipe flip roller rotary welding table

PRODUCT DETAIL
Key words:10t welding roller frameproduct name:Welding roller small pipe flip roller rotary welding table
Video outbound inspection:ifCore components:Gearbox, motor
Mechanical test report:ifport:Shanghai/Guangzhou/Qingdao or seaport as your request. Welding positioner rotator small pipe turning roller rotating welding tower
Warranty:1 yearOrigin:Henan, China
Key words:Roller frame priceDrive size (including control box):580(L)*360(W)*350(H) mm
Marketing Type:Hot Products of 2022Weight (kg):100 kg
Health status:newMain selling points:automatic
Showroom location:not anySpeed ​​range:80~1600 mm/min
aspect:customer requestPackage preview:
Key words:Welding roller frame positioner usedSupply capacity:800 sets per month Welding Positioner Rotator Small Pipe Flip Roller Rotate Welding Seam
Applicable industries:welding roller factorytype:welding roller
Carrying capacity:1000 kgusage:Welding Roller Stand
Packaging Details:Welding Roller Tube Turning Roller Rotary Welding Table will be packed in standard export wooden case.payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance
Core component warranty:1 yearbrand:share
Diameter range:20~700mmName:Welding roller small pipe flip roller rotary welding table
power:Large welding roller frame
Product Description
On the basis of absorbing the advantages at home and abroad, according to the requirements of the pressure vessel factory, the DZG and DKG welding rollers are produced. This product is suitable for the handling and automatic welding of metal round vessels, and is the necessary equipment for the manufacture of pressure vessels. Pressure vessels and piping.

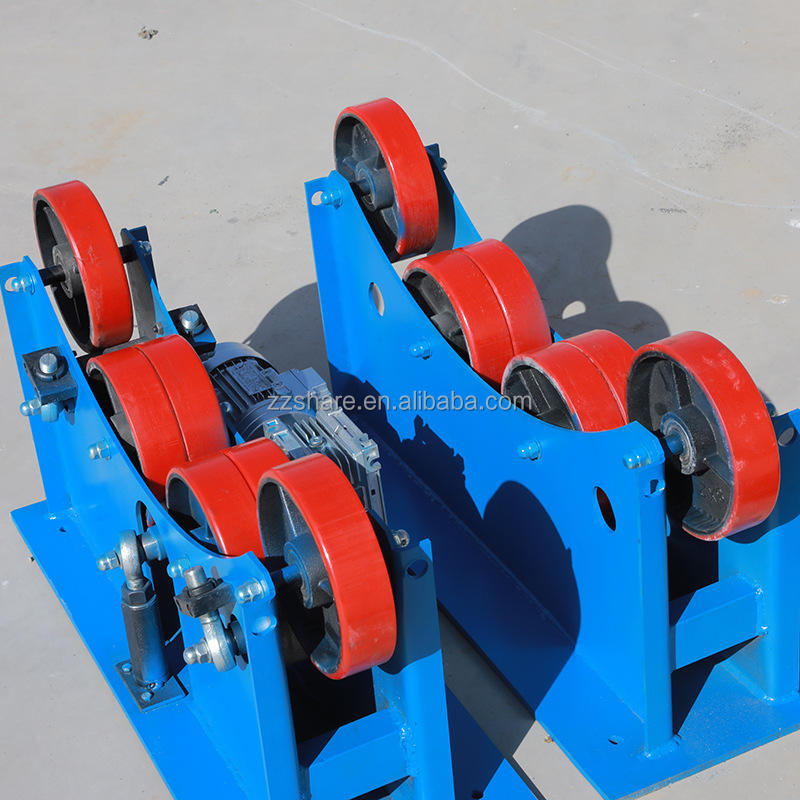

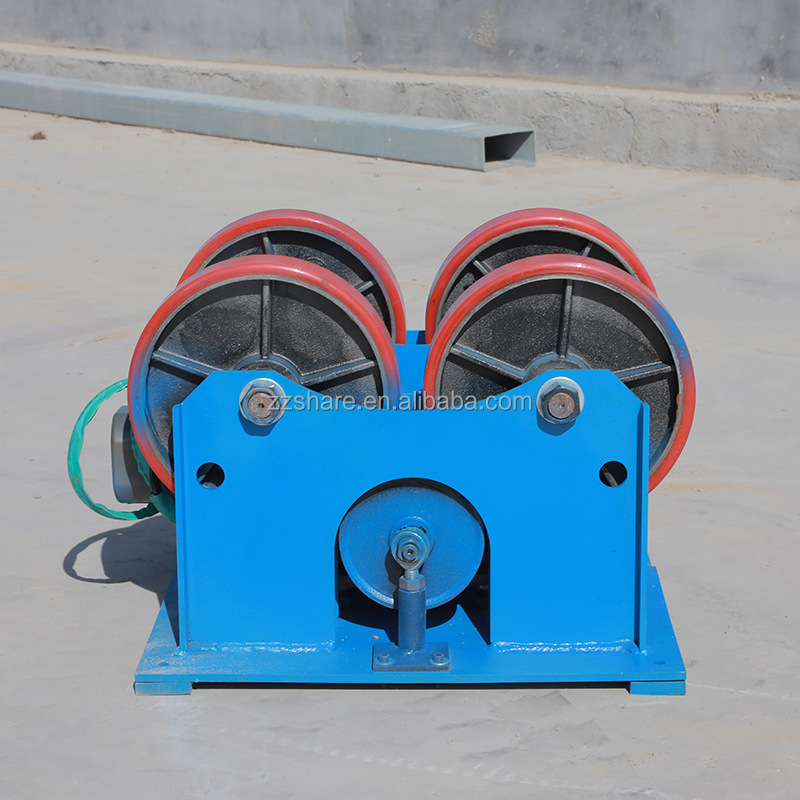

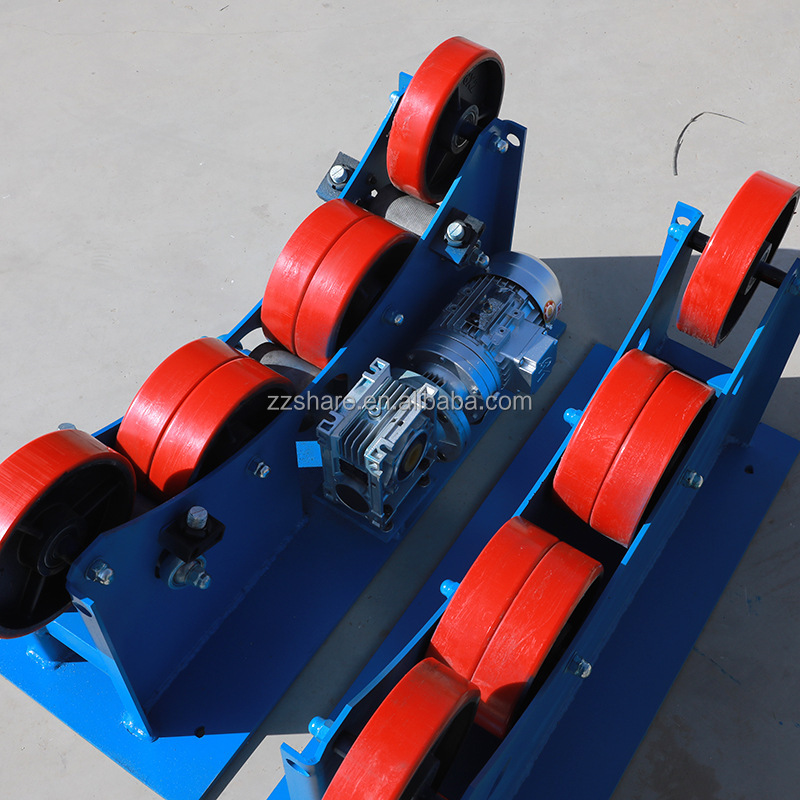

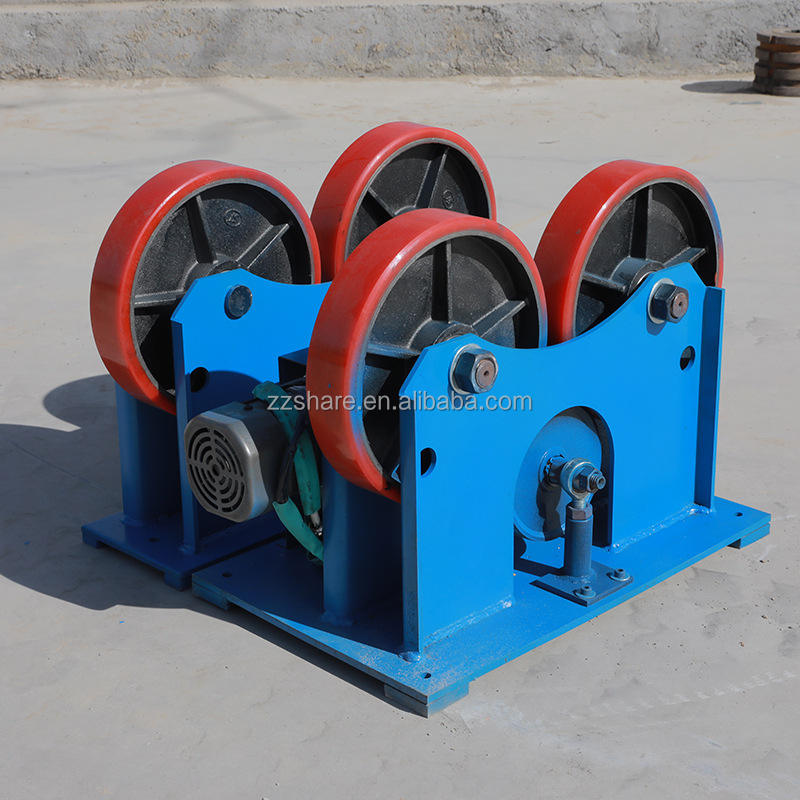

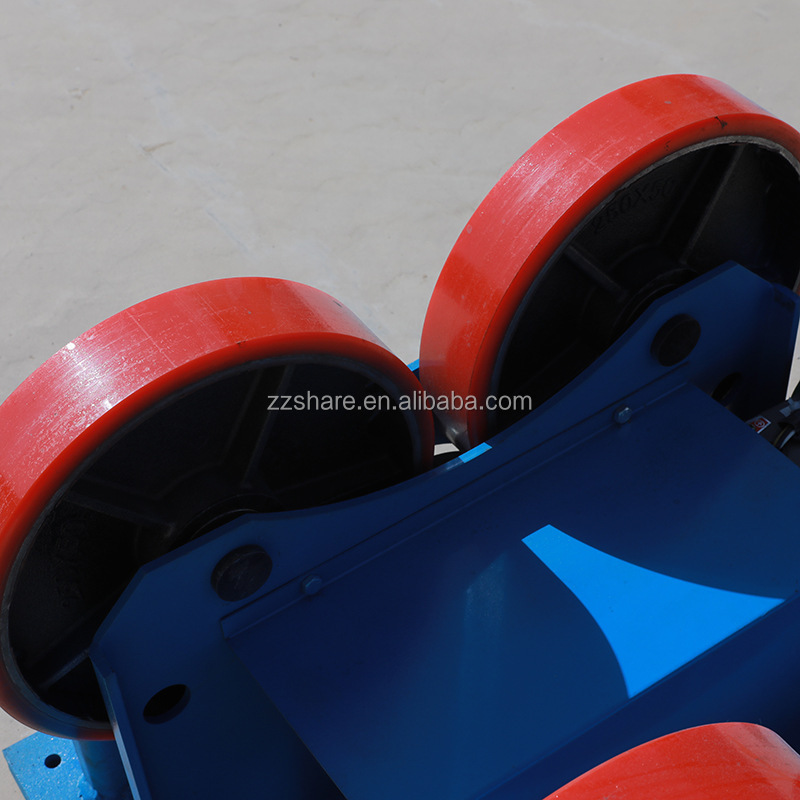

detailed picture
Model
SR-GLJ01
SR-GLJ02
Voltage
AC 220V, 50/60Hz
maximum load
1,000 kg
3,000 kg
Rotating speed
80~1100 mm/min
100~1900 mm/min
Workpiece diameter
Ф20~Ф800mm
Ф30~Ф1200mm
Motor Power
220V, 120W
220V, 370W
wheel size
50mm(width)×Ф250mm
50mm(width)×Ф200mm
Drive roller size
500*300*400mm
850*330*450mm
idler size
500*200*400mm
850*330*450mm
The self-adjusting roller can automatically adjust the roller angle according to the diameter of the workpiece.
The four driving rollers adopt full gear transmission, which can realize four-wheel drive to meet the needs of different diameters

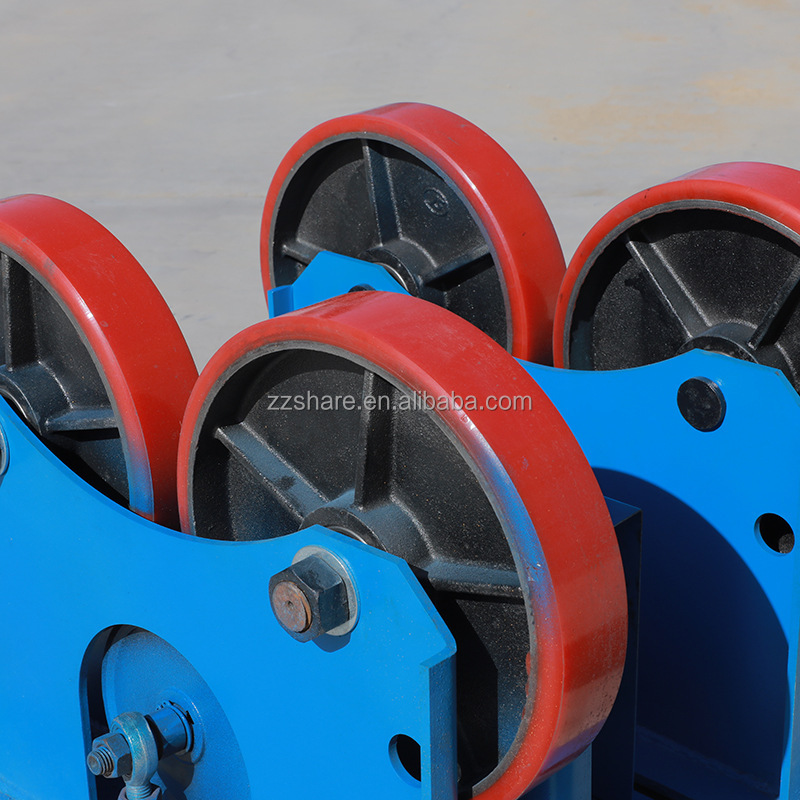

Combination of rubber wheels and steel wheels, large load capacity and strong driving capacity
The speed regulation method adopts frequency conversion speed regulation, with low noise and soft rotation.

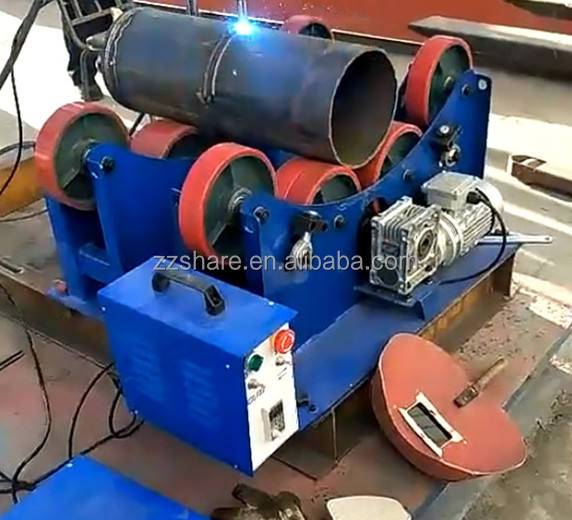

Product Application Scenario

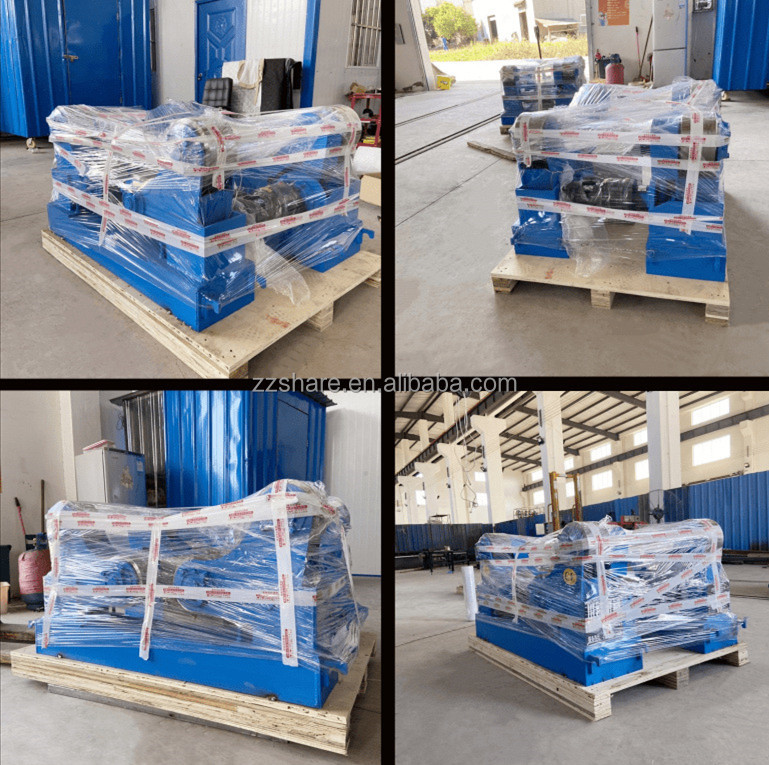

Machines with standard wooden packaging
