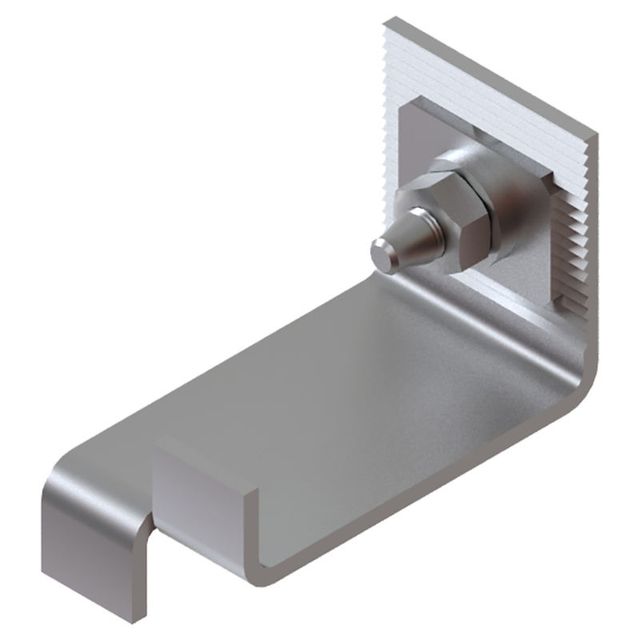

316L Stainless Steel Stone Clad Wall Bracket Fixing System with Anchor
- $0.27 / >=5 pieces
- 5 pieces
- Wisine Fasteners And Metal Import And Export Co., Ltd.
- Guangdong, China
- Mr Henry
PRODUCT DETAIL
| Project Solving Ability: | 3D model design | Warranty: | 5+ years |
| port: | Shanghai, Guangzhou, Ningbo | Packaging Details: | Box + Box + Pallet |
| type: | / | Carrying capacity: | 70000-80000N |
| brand: | Fixed stone mounting L bracket, WISINE | After-sale service: | Online technical support |
| Supply capacity: | 5000000 pieces/month | design style: | modern |
| Product Category: | Natural Stone Anchor L Bracket | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| place of origin; place of origin: | Guangdong, China | application: | Fixed to concrete walls; hollow block solid walls; composite substructure. ,hotel |
| Packaging Preview: | Surface treatment: | bright | |
| product name: | L Stone Cladding Bracket Fixing System | Certificate: | CE, ISO9001 |
| Stainless Steel Type: | 304 or 316 | Material: | Stainless steel |
| model: | / | feature: | The horizontal component of the support load. |
Product Details
brand | withing |
product name | Stone Fixing System Cladding L Anchor |
Material | Stainless Steel 304 316 and Alloy Steel |
Installed | Stone anchoring on the facade of the building. |
surface treatment | clearly |
application | Stone fixed to concrete wall, stone fixed to hollow block wall, stone fixed to solid block, stone fixed to composite substructure |
product quality | High hardness, corrosion resistance, can be used in wet environment without rust |

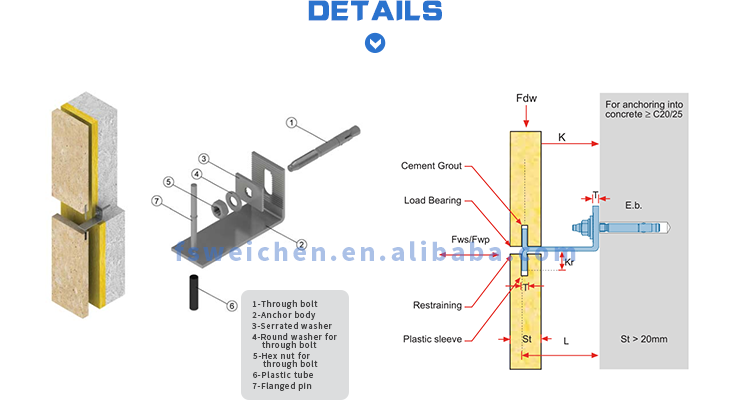

technical details | ||||||||||||||||
WIN-0603 L anchor | projection | static load | wind pressure | suction | Bolt size | pin diameter | Anchor length | Anchor thickness | ||||||||
WIN-0603 | k(mm) | Fdw(N) | Fwp(N) | Fws(N) | Eb(mm) | ø(mm) | Length (mm) | tons (mm) | ||||||||
30 | 200 | 312 | 219 | M8×80 | 12 | 32 | 3 | |||||||||
35 | 37 | |||||||||||||||
40 | 42 | |||||||||||||||
45 | 47 | |||||||||||||||
50 | 52 | |||||||||||||||
55 | 57 | |||||||||||||||
30 | 400 | 624 | 437 | M8×80 | 15 | 32 | 3 | |||||||||
35 | 37 | |||||||||||||||
40 | 42 | |||||||||||||||
45 | 47 | |||||||||||||||
50 | 52 | |||||||||||||||
55 | 57 | |||||||||||||||
Stone Facade L-Anchor
The natural stone support system accommodates all types of concrete walls and is used to hold granite, marble and other tiled walls. Suitable for all kinds of walls, cavity between 40-200 mm. It is directly fixed to the wall with expansion bolts and indirectly fixed in the U-groove system with bolts.
L Stone Fixing System Bracket
C-shaped stone fixed cladding brackets are made of high quality 304 316. The Stone Fixed Cladding Anchor is an innovative natural stone cladding system.The stone fixed cladding bracket is three-dimensionally adjustable, fast and convenient installation, wind pressure resistance, shock resistance.
