Stainless Steel Stone Fixing Cladding System L Anchor for Marble Bracket
- $0.38 / 1 - 499 pieces
$0.30 / >=500 pieces - 1 piece
- Wisine Fasteners And Metal Import And Export Co., Ltd.
- Guangdong, China
- Mr Henry
PRODUCT DETAIL
| Applied Cladding: | Stone; | Surface treatment: | Plain; |
| Brand Name: | WISINE; | Supply Ability: | 50 Tons per Month; |
| Supply Ability: | 50 tons; | Product Name: | Stone Fixing Cladding Anchor; |
| Packaging Detail: | CTN + Box+Pallet; | Bearing Capacity: | 1300N; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Design Style: | Contemporary; |
| After-sale Service: | Online technical support; | Material: | Stainless Steel,Aluminium,carbon steel,alloy steel; |
| Product type: | Body Anchor; | Application: | Hotel; |
| Size: | 30-150mm; | Project Solution Capability: | graphic design,3D model design; |
| Applications: | Stone,marble,tile,ceramics,terracotta,granite; | Place of Origin: | Guangdong, China; |
| Package Preview: | ; | Model Number: | Customized,/; |
| Port: | SHANGHAI , GUANGZHOU ,NINGBO; | Warranty: | More than 5 years; |
Product Details
Brand name | Wisine |
Product name | Stone fixing system cladding L anchor |
Material | Stainless steel 304 316 and alloy steel |
Mounted | Construction buildings exterior wall facade stone anchoring. |
Surface treatment | Plain |
Applications | Stone fixed to concrete wall,Stone fixed to hollow block wall,Stone fixed to solid block,Stone fixed to composite substructure |
Quality of product | High hardness, corrosion resistance, can be used in humid environment without rust |

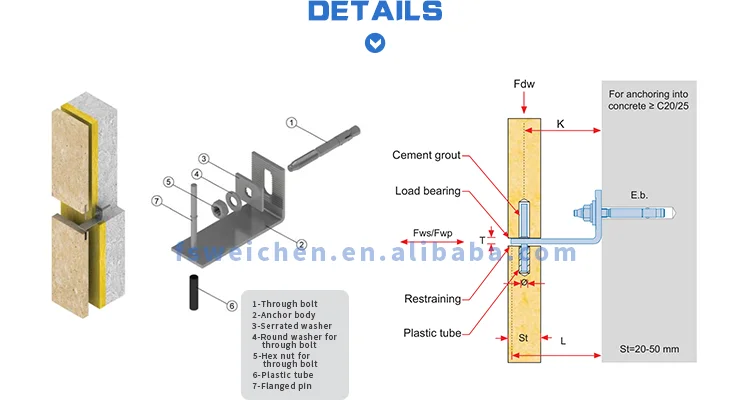

Technical Details | ||||||||||||||||
Win-0602 L Anchor | ||||||||||||||||
Product Code | Projection | Dead Load | Wind Pressure | Wind Suction | Bolt Size | Pin Diameter | Anchor Length | Anchor Thickness | ||||||||
K(mm） | Fdw(N) | Fwp(N) | Fws(N) | E.b.(mm) | ø (mm) | L(mm） | T(mm) | |||||||||
Win-0602 | 30 | 100 | 156 | 110 | M8X80 | 4 | 36 | 2 | ||||||||
Win-0602 | 35 | 41 | ||||||||||||||
Win-0602 | 40 | 46 | ||||||||||||||
Win-0602 | 45 | 51 | 2.5 | |||||||||||||
Win-0602 | 50 | 56 | ||||||||||||||
Win-0602 | 55 | 61 | ||||||||||||||
Win-0602 | 30 | 200 | 312 | 219 | M8X80 | 4 | 38 | 3 | ||||||||
Win-0602 | 35 | 43 | ||||||||||||||
Win-0602 | 40 | 48 | ||||||||||||||
Win-0602 | 45 | 53 | ||||||||||||||
Win-0602 | 50 | 58 | 4 | |||||||||||||
Win-0602 | 55 | 63 | ||||||||||||||
Win-0602 | 30 | 300 | 468 | 328 | M8X80 | 5 | 38 | 3 | ||||||||
Win-0602 | 35 | 43 | ||||||||||||||
Win-0602 | 40 | 48 | 4 | |||||||||||||
Win-0602 | 45 | 53 | ||||||||||||||
Win-0602 | 50 | 58 | ||||||||||||||
Win-0602 | 55 | 63 | ||||||||||||||
Win-0602 | 30 | 400 | 624 | 437 | M8X80 | 5 | 38 | 3 | ||||||||
Win-0602 | 35 | 43 | 4 | |||||||||||||
Win-0602 | 40 | 48 | ||||||||||||||
Win-0602 | 45 | 53 | ||||||||||||||
Win-0602 | 50 | 58 | ||||||||||||||
Win-0602 | 55 | 63 | ||||||||||||||
Stone cladding L anchor
Natural Stone support systems can accommodate all types are concrete walls, used to fix wall cladding of granite, marble, and other tiles.Suitable for all kinds of walls,cavity between 40-200 mm. Directly fixed into walls with expansion bolts and Indirectly fixed into U-channel system with bolts.

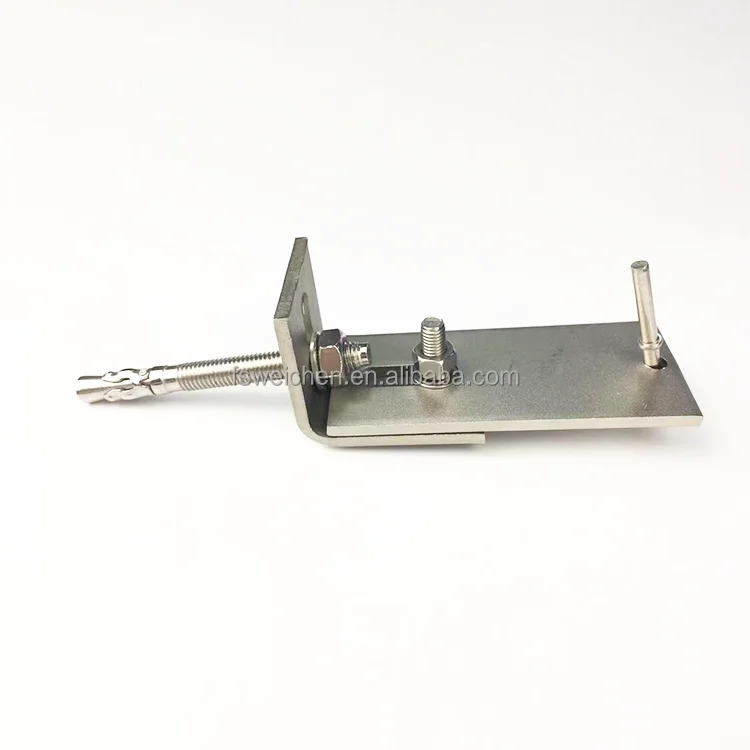

L stone fixing system bracket
L type stone fixing cladding bracket made of high quality 304 316 . Stone fixing cladding anchor is an innovative natural stone cladding system.Stone fixing cladding bracket three - dimensional adjustable allows quick and easy installation to restrain against wind pressure and quake-proof.
Contact Us
Related Products
Stone fixing L anchor
Stone fixing L anchor
Stone fixing C anchor
Stone fixing system Z anchor
Stone fixing Omega anchor
More type stone fixing anchor
Product Display
Buyers praise & Customer Photos
Main Products
Company Profile
Wisine Metal is a professional stainless steel supplier, located in Nanhai District, Foshan City, China. Since 2005, our products have been exported to more than 40 countries, including the United States, Japan, France, Australia, Saudi Arabia, North America and so on.The main products are stainless steel stone cladding fixing system, alloy steel ,stair handrail accessories, railings, fasteners and so on.As a professional supplier of building materials, we are well received by the market with high quality products, favorable prices and the best service.Customer service is critical to us and over 90% of our orders are delivered within 5 working days.Hope to get your recognition and become our long-term partner.Choose Wisine metal as your most trusted friend!
FAQ
1. The stone cladding anchors are stainless steel?
3. What are the shapes of the stone cladding anchor?
We have C natural stone cladding anchor,Z natural stone cladding anchor, Omega natural stone cladding anchor,L natural stone cladding anchor ,body natural stone cladding anchor.
4. Where are these anchors used?
Our products can be used in stone, granite, marble, tile, terracotta, ceramics, glass, aluminum honeycomb boards etc. which widely using in Europe now. The fixing system/bracket can be used for construction buildings exterior wall facade stone anchoring.
5. How to Custom-made (OEM/ODM)?
If you have a new product drawing or a sample, please send to us, and we can custom-made the hardware as your required. We will also provide our professional advices of the products to make the desion to be more realized &.maximize the performance.
Our stone cladding Anchors are made of stainless steel 316 304 201 and alloy steel.
2. Are these stone cladding anchor of good quality?
The anchor made of high quality stainless steel, with high hardness and wear resistance, making it more durable, anti-corrosion and anti-oxidation, can be used in a humid environment.
The anchor made of high quality stainless steel, with high hardness and wear resistance, making it more durable, anti-corrosion and anti-oxidation, can be used in a humid environment.
3. What are the shapes of the stone cladding anchor?
We have C natural stone cladding anchor,Z natural stone cladding anchor, Omega natural stone cladding anchor,L natural stone cladding anchor ,body natural stone cladding anchor.
4. Where are these anchors used?
Our products can be used in stone, granite, marble, tile, terracotta, ceramics, glass, aluminum honeycomb boards etc. which widely using in Europe now. The fixing system/bracket can be used for construction buildings exterior wall facade stone anchoring.
5. How to Custom-made (OEM/ODM)?
If you have a new product drawing or a sample, please send to us, and we can custom-made the hardware as your required. We will also provide our professional advices of the products to make the desion to be more realized &.maximize the performance.
