32 extension
- $25.00 /piece
- 1 piece
- Foshan Ike Science & Technology Co., Ltd.
- Guangdong, China
- Ms Juno Chen
PRODUCT DETAIL
| Supply capacity: | 500 pieces of office communication equipment Pbx per day | brand: | IKEA or OEM |
| type: | extension | Warranty: | 1 year |
| place of origin; place of origin: | China | CO. Line: | 4 |
| model: | TC-432P | color: | off-white |
| application: | office | Certificate: | ISO9000/CE/ROHS |
| Material: | plastic | payment terms: | Western Union, T/T, MoneyGram, PayPal |

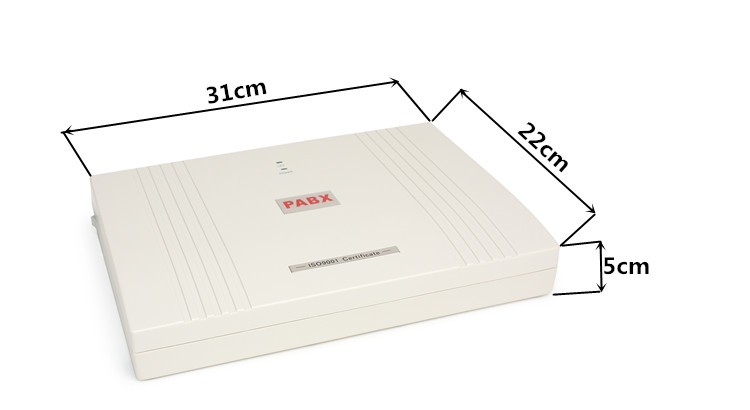

| OGM record time: | 15s | aspect: | 32cm(L)x 22cm(W)x 5cm(H) |
| Package preview: | Packaging Details: | Unit box size: 35*8*29(cm) Unit weight: 2.5KG 12 units/carton Carton size: 51*37*60(cm) | |
| port: | Guangzhou | extension: | 32 |
| product specification |
| TC-432P | Incoming CO line | Local station (extension) | Is it scalable |
| capacity | 4 | 32 | Do not |
| thing | Parameters Table |
| strength | AC110V or AC220V 50-60Hz |
| feed currency | DC48V; 25mA |
| ring currency | AC65v/50Hz |
| DISA | 15 seconds |
| communication path | 7 |
| Extension number length | 2 to 4 digits |
| Caller ID | * Receive: adaptive DTMF, FSK (Bell.202) |
| * Send: FSK (Bell.202) | |
| dialing method | DTMF |
| Imbalance about the earth |
* 300Hz~600Hz≤40dB |
| * 600Hz~3400Hz≤46dB | |
| transfer properties | * Extended to extend ≤ 1.5dB |
| * Extended to extend ≤ 2.0dB |
| Features |
| answer call function | call function |
| * DISA auto attendant | * CO line dial 0 or 9 |
| * operator | * Extension call class |
| * Call forwarding | * Outside (CO) Line Duration Limit |
| * 3-way conference calling | * Dial 9 or 0 to the operator |
| * Call answering | * Allow the extension to use the specified CO line |
| * Unconditional transfer | |
| * External and extension caller ID | |
| System Features | optional features |
| * From extension number confirmation | * UK/US/Australia/Europe power plug |
| *Total 15s OGM | * 110V or 220V power supply |
| * Power failure transfer | |
| * Execute busy override |
| product display |
