MX8G with 8 FXO pbx voip sip gsm gateways for use with IP PBX/Asterisk devices

  • $270.00 / 1 - 4 units
    $162.00 / 5 - 9 units
    $110.00 / >=10 units
  • 1 unit
  • New Rock Technologies. Inc.
  • Shanghai, China
  • Ms Bella Shang
PRODUCT DETAIL
brand:new rockCall Control:SIP/UDP and SIP/TCP (RFC3261), IMS (3GPP), MGCP (RFC3435)
Certification:Federal Communications Commissionnetwork:SSH, HTTP, HTTPS, DHCP/PPPoE client, Radius, DNS (A/SRV records), STUN
model:MX8Gtype:gateway
Codec:G.711 (a/μ), G.729a, G.722, G722.2place of origin; place of origin:China Shanghai
Supply capacity:20,000 units per monthCaller ID:Bellcore/Telcordia, ETSI, BT, DTMF
port:Shanghaipayment terms:L/C, T/T, Alipay
Product Description








8 FXS 8 FXO HX4G/MX8G VoIP gateway ata access gateway



Developed for low port count applications such as fax terminal connections, small business, SOHO and residential IP telephony applications, the HX4G/MX8G gateway is an integrated VoIP-FoIP device that provides a reliable and cost-effective access method for deployment Network-oriented Converged communication solutions for operators and enterprises.

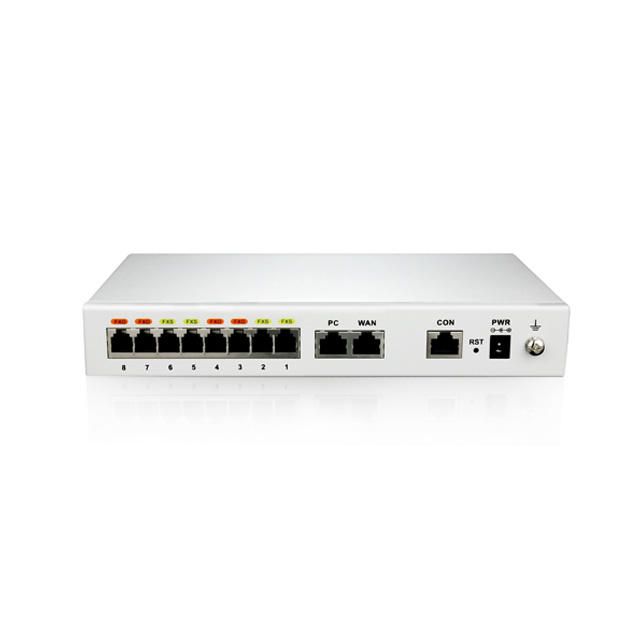

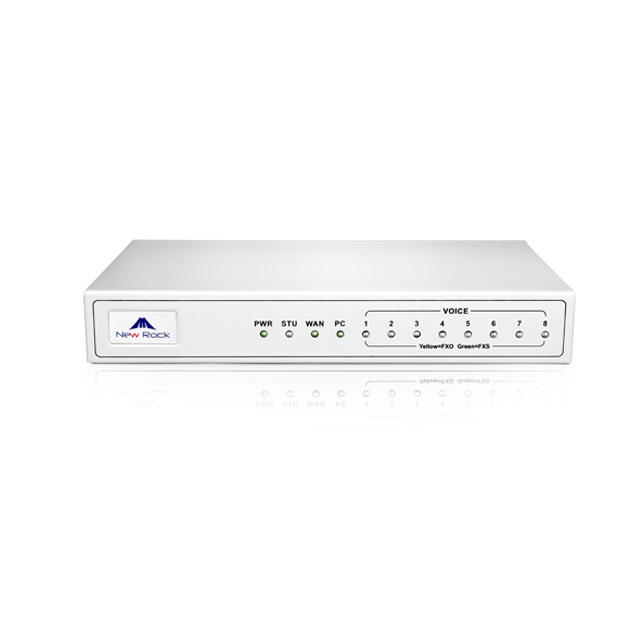

The HX4G/MX8G is designed as a compact unit with 2, 4 or 8 FXS/FXO ports, 1 WAN port and 1 PC port (both 10/100/1000Mbps Ethernet ports) allowing users to use it as an all-in-one The system can provide a variety of solutions by connecting analog phones, fax and POS machines, IP phones and PSTN.



Comprehensive feature set with intelligent engine


As an intelligent gateway running on embedded Linux operating system, HX4G/MX8G is compatible with many prominent features such as call forwarding, call forwarding, three-way conference, caller ID, DND, CRBT, bifurcation, auto-routing, digital map, PSTN failover, and more, to provide a complete and highly reliable VoIP solution for almost any application scenario.

High reliability


The hardware design of the HX4G/MX8G, from architecture to component selection, is all about optimizing reliability.
In addition, high availability with active/standby, active/standby, load balancing, and PSTN failover to handle SIP proxy server, power, and network failures provides users with carrier-grade availability and minimizes potential downtime.



Powerful intrusion protection


The HX4G/MX8G provides a rich feature set to support perimeter protection against malicious intrusions, such as brute force logins and SIP attacks, ensuring high security for your IP telephony environment.



Remote management and NAT traversal


The HX4G/MX8G includes the New Rock Cloud Client for easy access to endpoint devices and value-added applications via NAT traversal for remote, real-time monitoring, maintenance, software upgrades, troubleshooting, data analysis, alert notifications and remote packet capture.



feature



1.IMS/SIP/MGCP protocol



2. Unmatched FXS and FXO port configurability



3. TLS/SRTP



4. L2TP/OpenVPN client



5.500 Routing and Numbering Rules



6. Configurable whitelist of SIP ports and IP addresses



7. Pass-through high-speed fax with a maximum rate of 33,600 bps via T.38 or G.711



8. Polarity reversal/busy tone detection


9. High Availability and PSTN Failover


10. Automatic configuration


11. Remote access via New Rock Cloud


12. Manage with New Rock or a third-party element management system (TR-069, SNMP)


13. Interoperate with popular SIP servers such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), Huawei IMS, Asterisk/Elastix


14. Class I lightning protection










Specification

protocol

call control

SIP/UDP and SIP/TCP (RFC3261), IMS (3GPP), MGCP (RFC3435)

network

SSH, HTTP, HTTPS, DHCP/PPPoE client, Radius, DNS (A/SRV records), STUN

media processing

Caller ID

Bellcore/Telcordia, ETSI, BT, DTMF

codec

G.711 (a/μ), G.729a, G.722, G722.2*

*Roadmap feature

DTMF

In-band audio, RFC2833, SIP-INFO

flash hook

Local processing, RFC2833, SIP-INFO

IP Fax

T.38, G.711 pass-through

Group 3 Fax Relay per T.38

Maximum fax rate 33,600 bps (T.38)

disconnected mode

Polarity Reversal, Busy Tone Detection, Loop Current

service quality

DiffServ, TOS, 802.1P/Q VLAN tagging

Voice quality enhancement

Echo Cancellation (G.168-2004), Jitter Buffer, Silence Suppression (VAD, CNG), PLC

voice

call forwarding

Blind transfer, consultation transfer

call forwarding

Forward All Calls, Forward No Answer Calls, Forward Busy Calls

Call recording storage

Remote recording server for storage

call settings

Routing based on calling or called number, digit map, three-way calling, speed dial, do not disturb, call splitting, CRBT, hunt group, ring cadence, message waiting indication (MWI)

Safety

protocol

HTTPS, SSH, TLS, SRTP

encryption

Encryption Password/PIN

Intrusion Prevention

Brute force login protection, access lists, firewalls, SIP allowed IP addresses, alerts and notifications*

VLAN

Automatic discovery via DHCP, manual configuration

VPN client

L2TP, OpenVPN

high availability

redundancy

Active-standby, active-standby, load balancing

PSTN failover

Power failure, network failure
