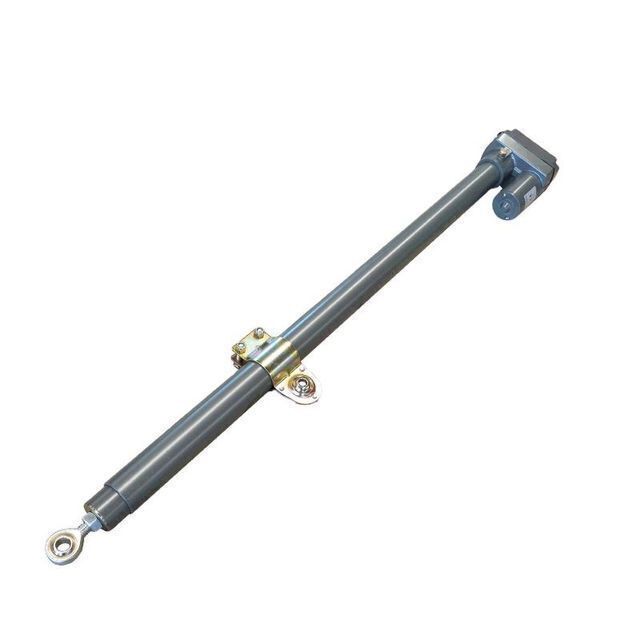

36 inch high torque linear actuator for solar tracker system

PRODUCT DETAIL
Rated Voltage:12/24/36v;Work Time (h):24 Hours;
Brand Name:G-ROCK;Certification:CE;
Place of Origin:Guangdong, China;Sample delivery:7 days;
Packaging Detail:Standard Carton packing;Output Frequency:240g;
Tube material:2.0 mm stainless steel;Supply Ability:3000 Pieces per Month;
Warranty:1 year;Port:Shenzhen or Guangzhou;
Waterproof level:IP65;Payment Terms:L/C,Western Union,D/P,D/A,T/T;
Stroke:12/18/24/36inch;Load Power (W):5000w 10kw 15KW;
Controller Type:IC;Output Voltage (V):24v;
Model Number:GRA-1500;

Feature of linear actuator for solar tracker system

G-ROCK solar tracking linear actuator greatly improves the performance of the PV system,

it drives the PV panel to follow the course of the sun, so that the panel surface is alays in an

optimum angel to su ray, as the testin data shows, can increase the amount of power by 30%-50%,

and G-ROCK solar tracking actuator character list below;



1. DC12v to 48v optional.
2. Limit switch built-in. The cam-operated limit switches form part of the actuator body

and is contained within a robust metal housing.

3. Kinds of options on sensor. For machines that require accurate positioning,

it is possible to replace the third switch with a single-turn geared potentionmeter to control the position of the actuator throughout the stroke.
4. Lubricated with longlife grease, armed with tube boot and motor boot,

the linear actuators offer unbeatable reliability and virtually maintenance-free operation.
5. Anti-rust quality.
6. Self-locking function.Especially, we utilize below element:
7. Industrial grade rod end, which guarantees smooth tracking through the years
8. Super-grip heavy duty bracket: No more slipping tube, hold up to more than 8000lbs.
9. -30℃ cold resistance.
10. Bronze nut, super-hold high static load capacity.



+

Solar Tracking Linear actuator Parameters



+

Drawing & Dimension




Parameters



+

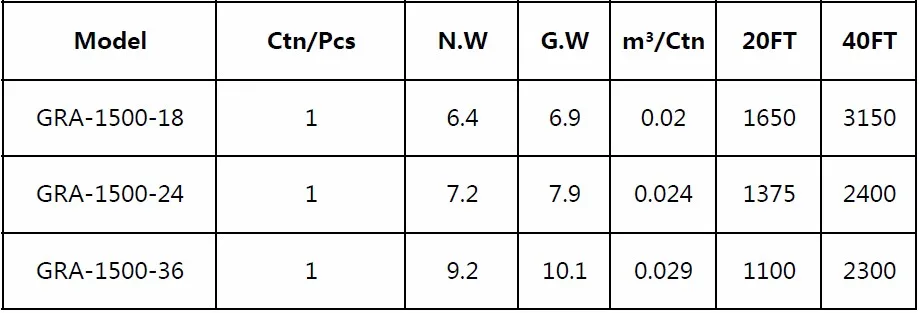

Packaging Detail





+

CE certification







+

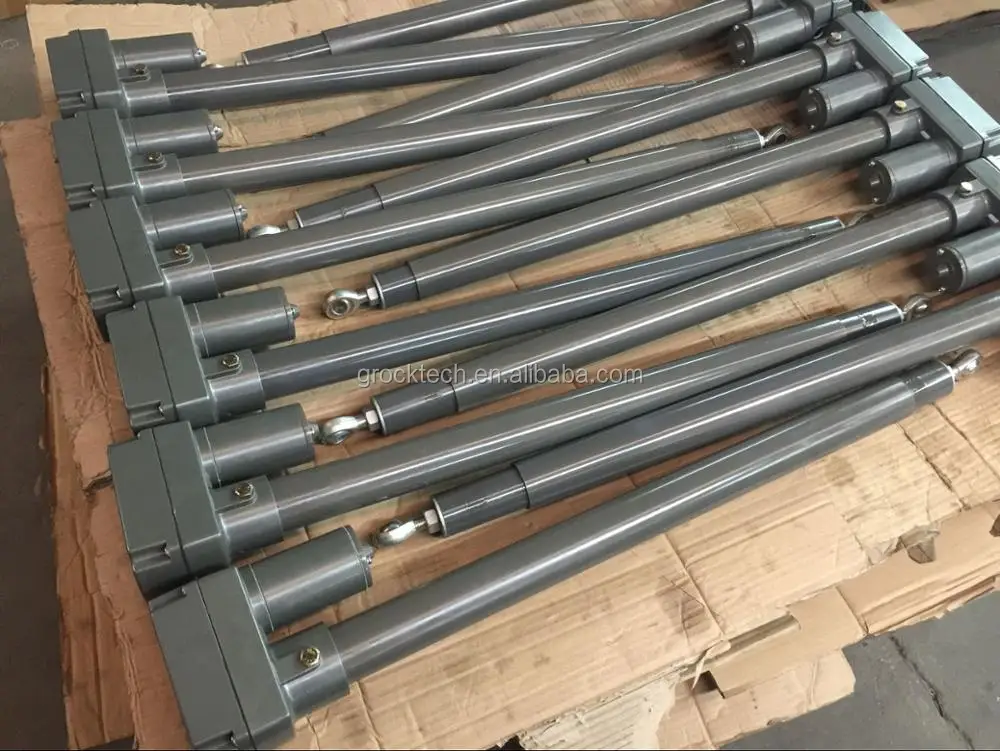

Photos View











+

Why choose G-Rock

1, 10 years manufacturing experience in linear motion.

2, Professional R&D team, can meet non-standard design at any time.

3, Gold supplier for well-known enterprise.

4, A number of large-scale of solar power station project success at home and abroad.





+

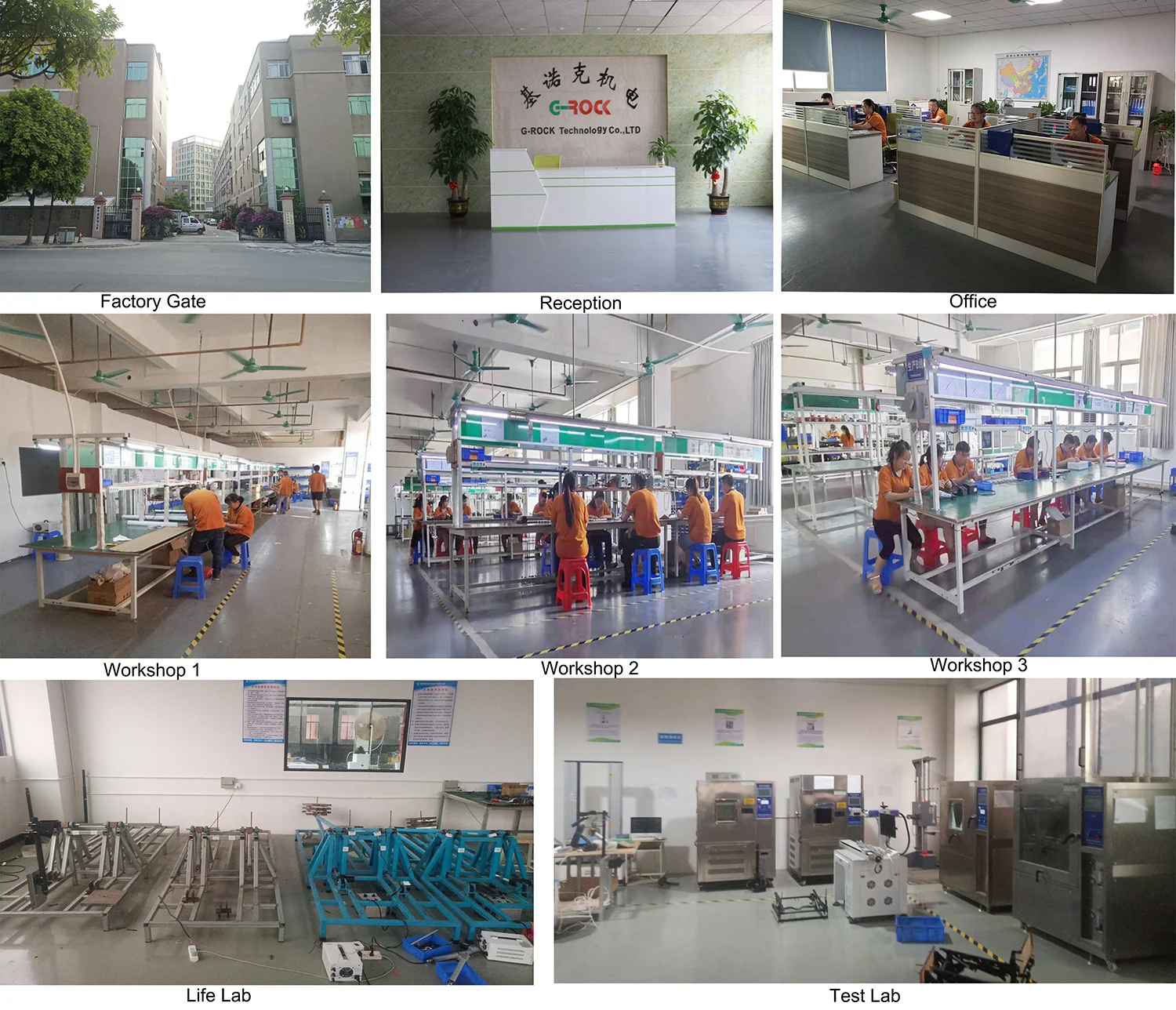

G-ROCK Factory
