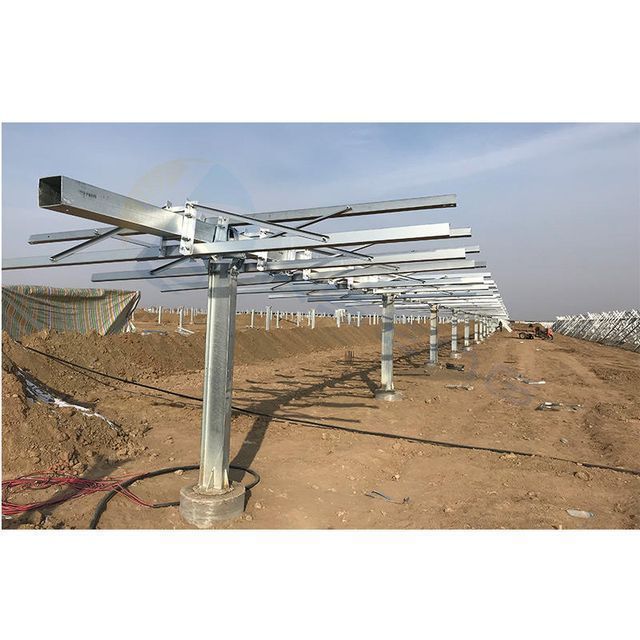

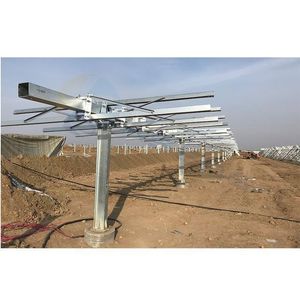

one axis solar tracker ground mount solar panel tracking systems
- $95.00 / 500 - 999 pieces
$90.00 / 1000 - 4999 pieces
$85.00 / >=5000 pieces - 500 pieces
- Xiamen Kseng Metal Tech. Co., Ltd.
- Fujian, China
- Mr
PRODUCT DETAIL
| Snow load: | 1.4kn/m2 | Wind load: | >=18m/s |
| brand: | Dry | product name: | Single Axis Solar Tracking System |
| Origin: | Fujian China | model: | Korean time until 2:00 pm |
| port: | Xiamen | Driving power: | 150w |
| payment terms: | L/C, T/T, PayPal | power supply: | 24DCV |
| Package preview: | Supply capacity: | 10000 kW per month | |
| Packaging Details: | According to customer needs or company standard packaging. | Warranty: | 10-year structural warranty, 5-year electrical appliance warranty, and 10-year structural warranty |
| Control System: | single chip microcomputer | Data feed: | RS485/Wireless Zigbee |
| Tracking scope: | 60 - +60 | Drive System: | Solar track bausatz slew drive |
| Tracking Accuracy: | <1° | Control algorithm: | Astronomical algorithm + closed loop (AI control) |
One Axis Solar Tracker
describe
Kseng's KST-2PM Tracking System adopts a distributed drive architecture, and through the "astronomical algorithm + closed-loop control" tracking method, each row is independently controlled by its own motor. Make the system accurate and reliable, real-time closed-loop feedback tracking angle, automatic tracking, without manual intervention.
Specification
Trace Structure Parameters | ||||||||
tracking technology | Two-portrait horizontal plane single-axis tracking system | Maximum capacity per row | 72KWp (3 strings or 4 strings of 210 type modules) | |||||
Quantity of photovoltaic modules per row | 45PCS (2Px45) or 60PCS (2PX60) | tracking range | ±45° to ±60° | |||||
Tracking accuracy | ±1° | terrain adaptability | 10° north and south, east and west are not limited | |||||
wind speed protection | 18 m/s | Foundation form | Concrete (customizable all-steel foundation) | |||||
Track Controller Parameters | ||||||||
Control System | single chip microcomputer | communication type | RS485 or wireless Zigbee | |||||
night storage mode | have | backtracking algorithm | have | |||||
prevent overload | have | Troubleshooting Function | have | |||||
system voltage | DC24 | Drive System | Linear Motor | |||||
Power collection method | External power supply/self-powered power supply | control algorithm | Astronomical multi-point algorithm + closed loop (AI control) | |||||
advantage

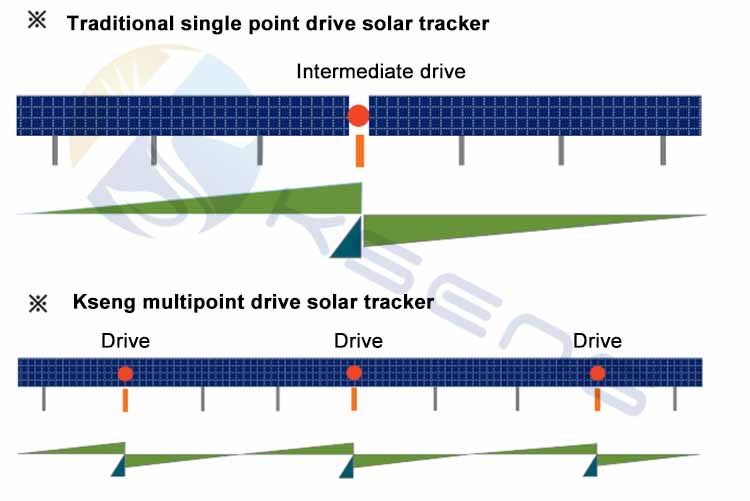

Advantages of Kseng Solar Tracking System
1. The damping ratio of the system is larger, which can reduce the component amplitude by 50%. 2. The force on the spindle can be reduced by 40%. 3. Reduce the force on the drive column by 50%. 4. The torsion angle of the spindle is reduced by 60%. 5. Better system wind resistance.

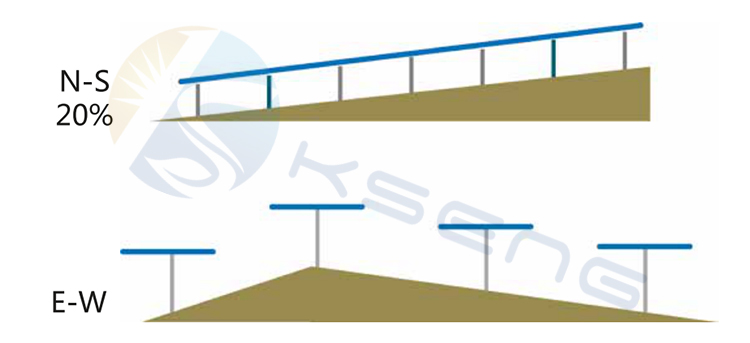

terrain adaptability
1. Flexible layout, make full use of irregular land, and improve land utilization rate.
2. Both north and south can adapt to a slope of 20%.
3. East-west to infinite slope.
3. East-west to infinite slope.

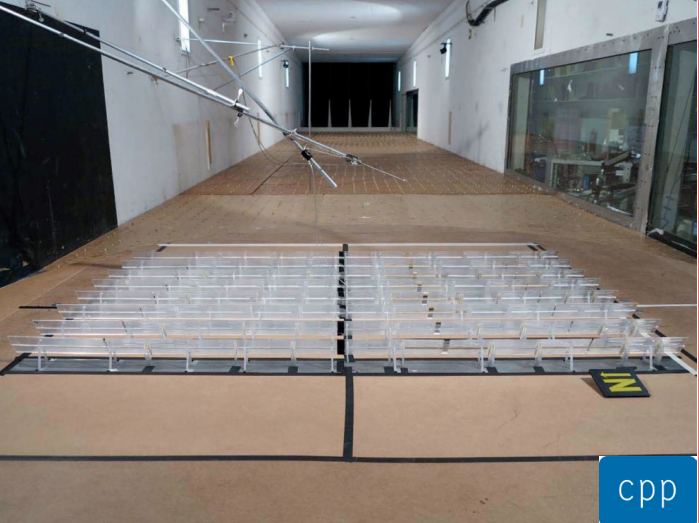

CPP wind tunnel test
Kseng entered into a partnership with CPP WIND ENGINEERING, the first US firm to offer wind engineering services to architects and engineers. Combining the frequency and damping ratio characteristics of the KS-tracker tracking system, the results caused by the KS-tracker system under the action of aerodynamics are studied, and the influence and instability during the operation of the system are analyzed.

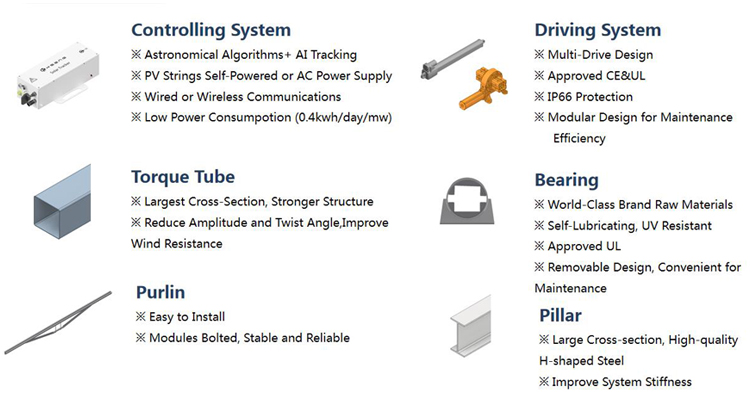

main structural parts

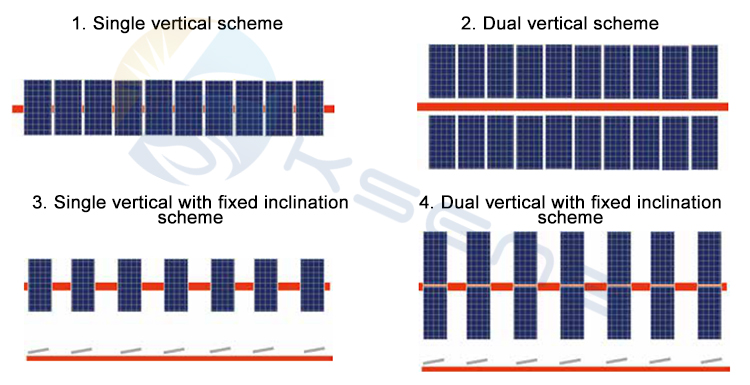

Component Arrangement Scheme
We have different schemes to meet the requirements of different customers.
Certificate
Kesheng tracking series products have passed SGS, CPP, TUV, UL, IEC and other international standard certifications.
