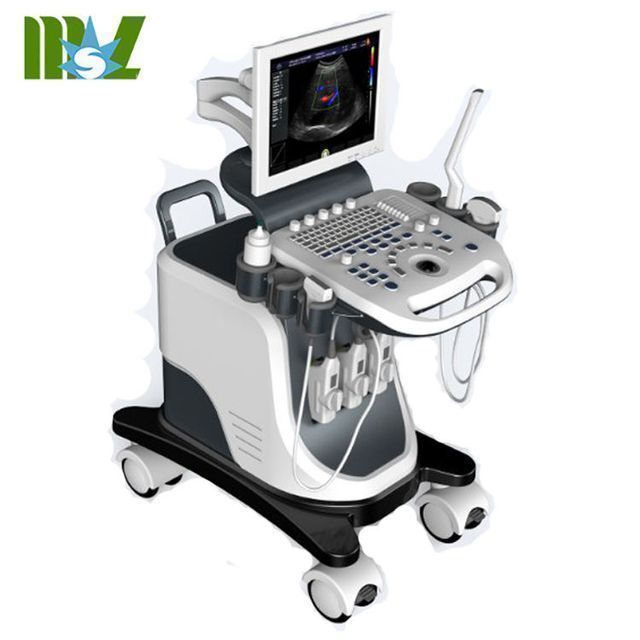

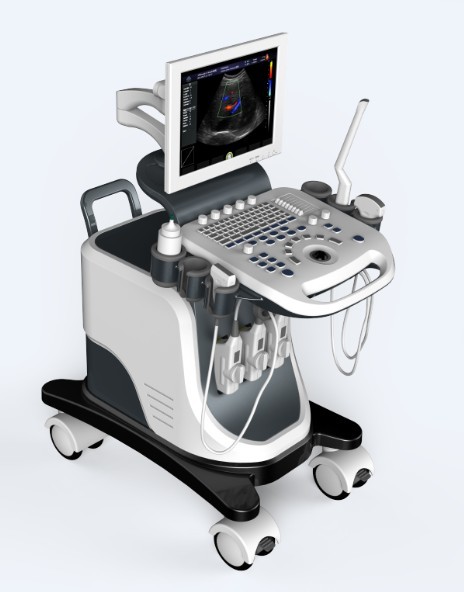

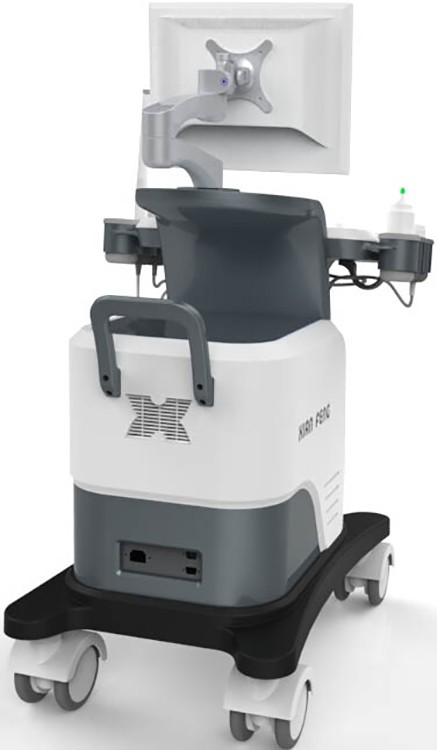

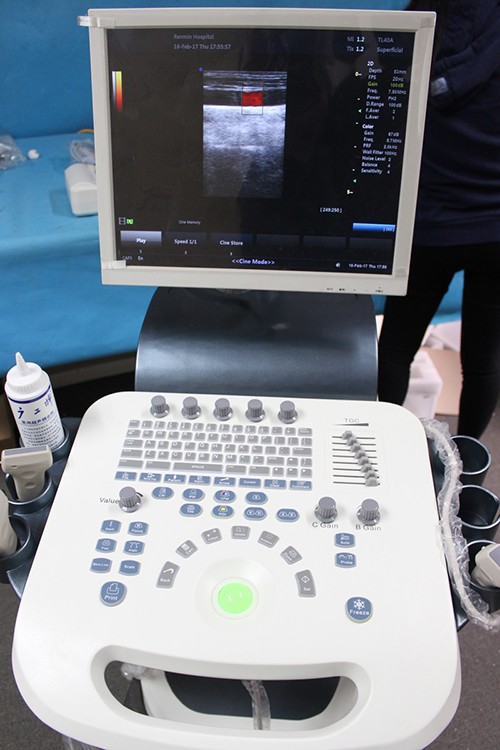

3D 4D Full Digital Cart Color Doppler Ultrasound Scanner

3D 4D Full Digital Cart Doppler Ultrasound Scanner/Scanner

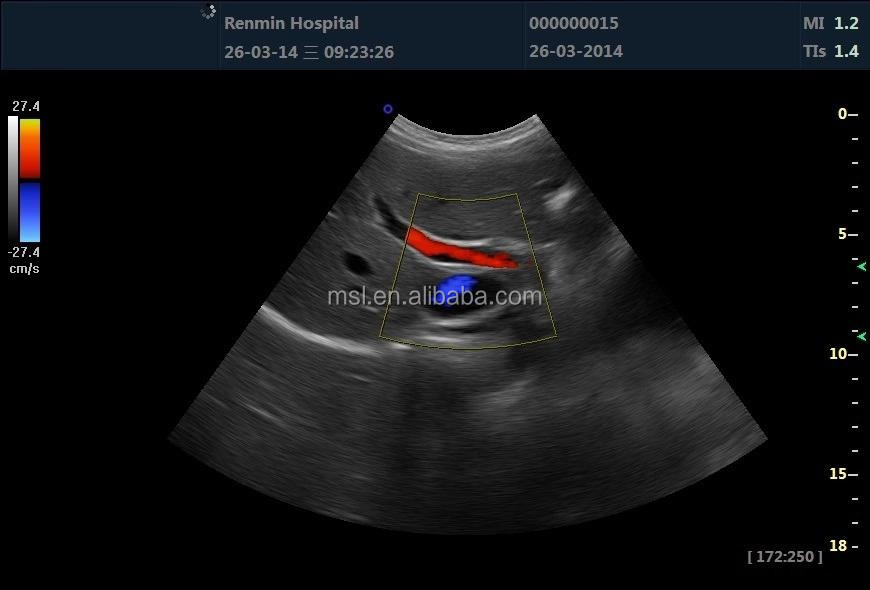

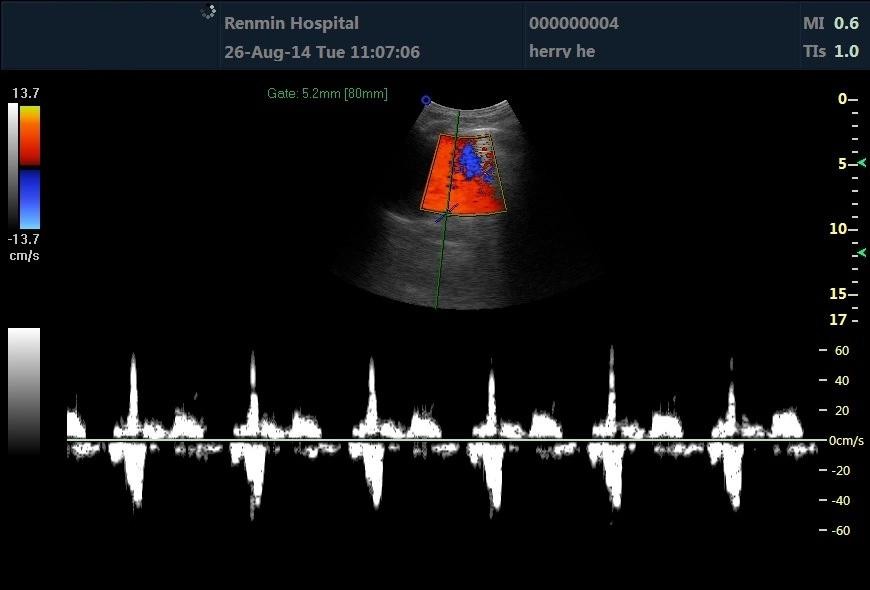

Color Doppler ultrasound uses Doppler signal processing and technology related to autocorrelation technology to superimpose the color-coded blood flow signal on the two-dimensional image in real time to form a color Doppler ultrasound blood flow image. The main advantages are:

1). It can quickly and intuitively display the two-dimensional plane distribution of the blood flow state;

2). Show the flow of blood;

3). Easy to identify arteries and veins;

4). Helps to understand the nature of blood flow;

5). It is easy to understand the blood flow velocity;

6). Can reliably detect shunt and reflux;

7). Quantitative analysis can be performed on the beam, width, length and area of ​​blood flow;

How to apply: Abdomen, gynecology, obstetrics, superficial organs, urology, heart and user-defined models 1-4, ten models in total

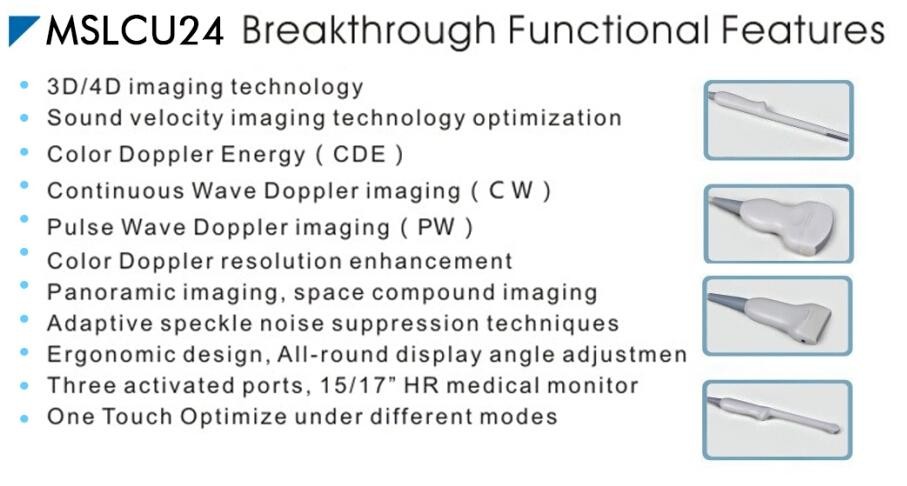

The main function

With full digital beamforming technology

Scanning method: convex array, lumen, high-frequency linear array, phased array, 3D software (optional);

Dynamic range: 0~120dB adjustable;

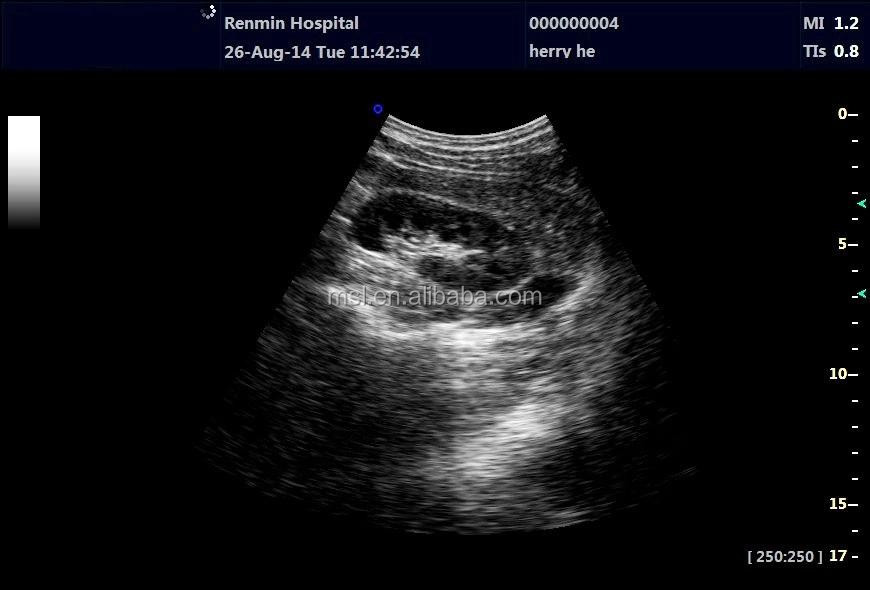

Display mode: B, B/B, M, B/M, CFM, CMF/B, PDI, B/PW a total of eight modes;

Application modes: abdomen, gynecology, obstetrics, superficial organs, urology, heart and user-defined models 1-4, a total of ten models;

Image method: digital beamforming, tissue harmonic imaging;

Sound wave output: real-time display of mechanical indicators and thermal indicators;

Sound power: step adjustable, real-time display;

Gray scale: 256 levels;

Depth display: ≥250mm;

B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;

Pseudo-color processing: 16 kinds of pseudo-color codes are optional;

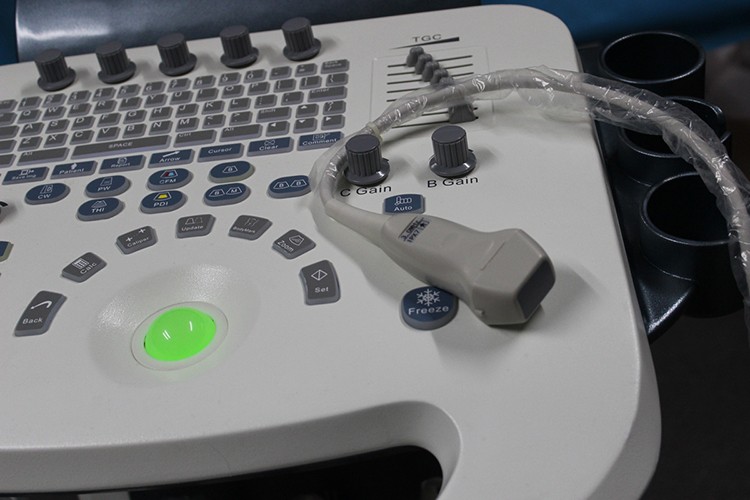

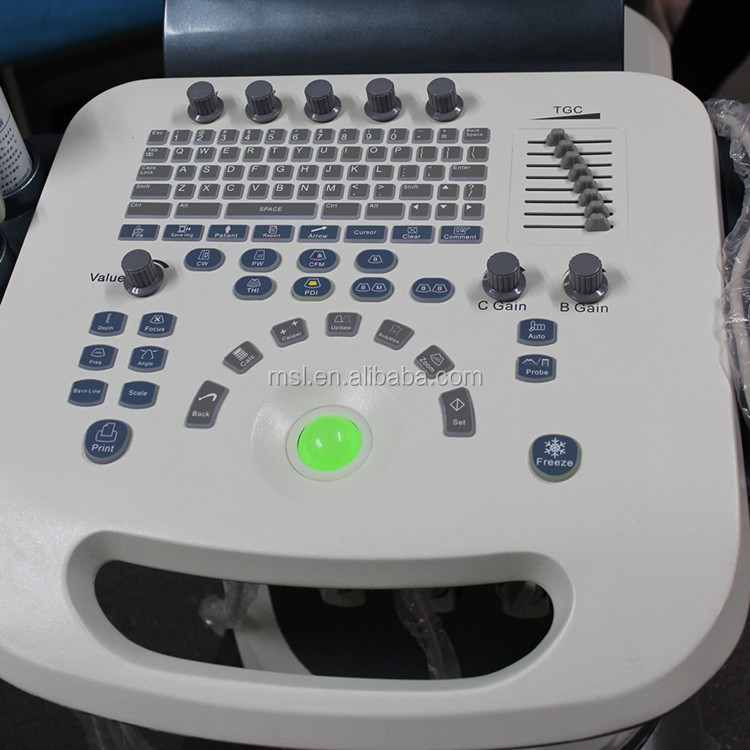

Gain adjustment: 8-segment TGC, B/M/D/C independently adjustable; TGC curve is automatically displayed and hidden;

Image magnification: picture-in-picture magnification and partial magnification;

Image processing: edge enhancement: multi-level adjustable

Average number of frames: multi-level adjustable

Line average: multi-level adjustable

Focus optimization: multi-level adjustable

Gray suppression: multi-level adjustable

Gamma correction: multi-level adjustable

Contrast: adjustable

Brightness: adjustable

Image processing: edge enhancement: multi-level adjustable

Average number of frames: multi-level adjustable

Line average: multi-level adjustable

Focus optimization: multi-level adjustable

Gray suppression: multi-level adjustable

Gamma correction: multi-level adjustable

Contrast: adjustable

Brightness: adjustable

Automatic optimization function: built-in multiple inspection types, according to different inspection institutions, preset the best image inspection conditions, and reduce adjustment operation keys;

One-key optimization function: One-key preset multiple parameters for focusing, one-key to achieve rapid image optimization

operating environment

Working environment temperature: +5℃~+40℃

Relative humidity: ≤80%

Atmospheric pressure: 700hPa-1060hPa

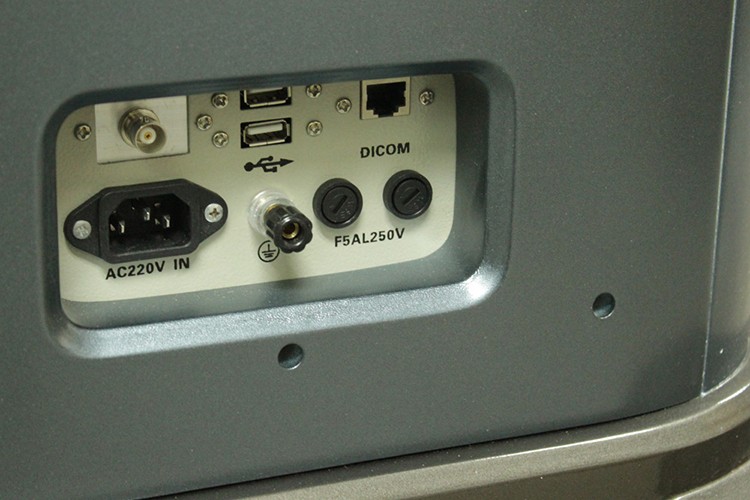

Power supply: AC220V±22V, 50Hz±1Hz

The plug socket should have an independent power supply.

Keep away from strong electric field, strong magnetic field equipment and high voltage equipment

Reporting system

Report system: automatic report generation system,

And characters can be displayed in full screen in Chinese and English editors;
