Digital x-ray system with two columns DR / x-ray machine / equipo de rayos x

  • $8000.00 /set
  • 1 set
  • Medsinglong Co Ltd
  • Guangdong, China
  • Ms Tina Lau
PRODUCT DETAIL
After-sales service:online technical supportInstrument classification:Secondary
Output nominal electric power:50kW (500mA,100kV,0.1s)Warranty:1 year
Supply capacity:3000 sets per monthproduct name:Digital X-ray System
Loading time:1ms~6300ms, meeting the R'10 numerical value in ISO 497payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal
model:MSLHX18Material:Metal
brand:MSLsafety standard:GB15979-2002
frequency:50 HzTube current/mA:10mA~630mA
Energy source:electricalCurrent Time Products:0.1mAs~630mAs
Quality Certification:ceVoltage:AC380V/400V±10%
Origin:Guangdong, ChinaShelf life:1 year
port:Guangzhoucharacteristic:High energy ray medical equipment
Tube voltage/kV:40kV~150kVColumn lateral movement distance:1730mm (error: ±5%)
Packaging Details:Standard wooden case export packing Double column DR digital x-ray system/x-ray machine/equipo de rayos x with flat panel detector
Product Description

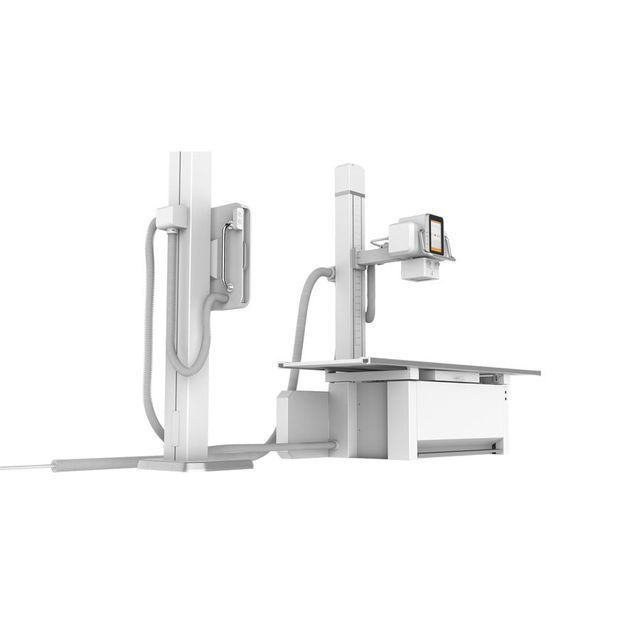

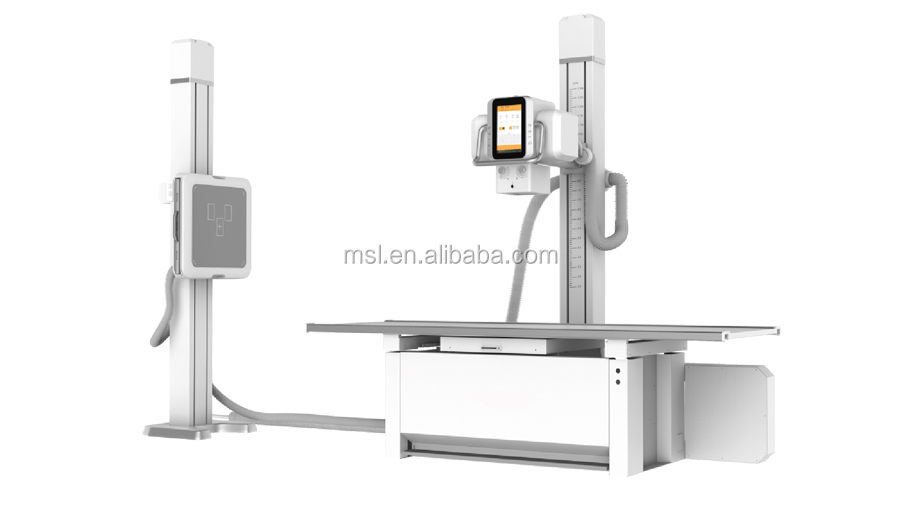

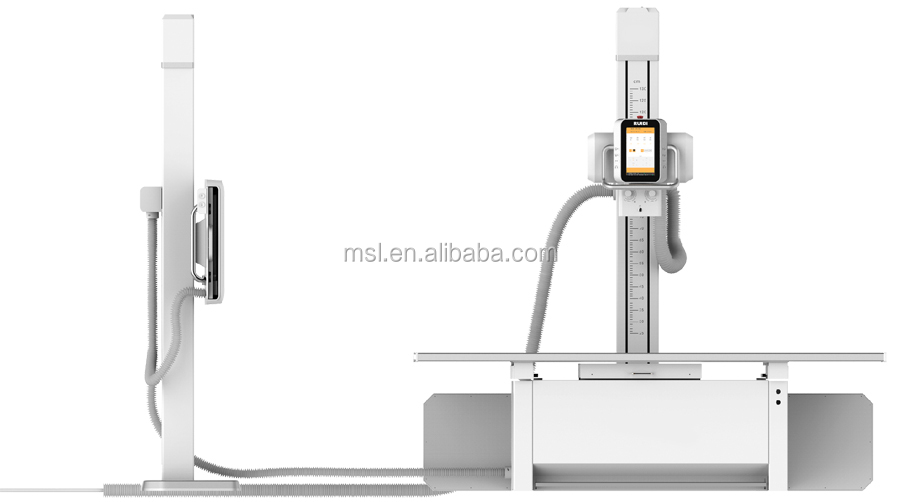

Digital X-ray System MSLHX18
Classic interpretation, all-round application
Meet the needs of clinical departments
MSLHX18 digital X-ray system is a self-developed electric double-column DR. Combined with the actual clinical needs of the hospital, digital medical imaging products with high-level design concepts, professional manufacturing techniques, and strict testing procedures are launched.
Flexible and reliable rack design
●Reliable frame shape, in-line guide rails ●Integrated design, flexible operation ●Power assist, easy to operate with one hand ●Sturdy design of wearing parts ●Ensure the mechanical life of the equipment ●Various models and specifications, single detector, double detector configuration can be Arbitrary collocation to meet various clinical needs of customers

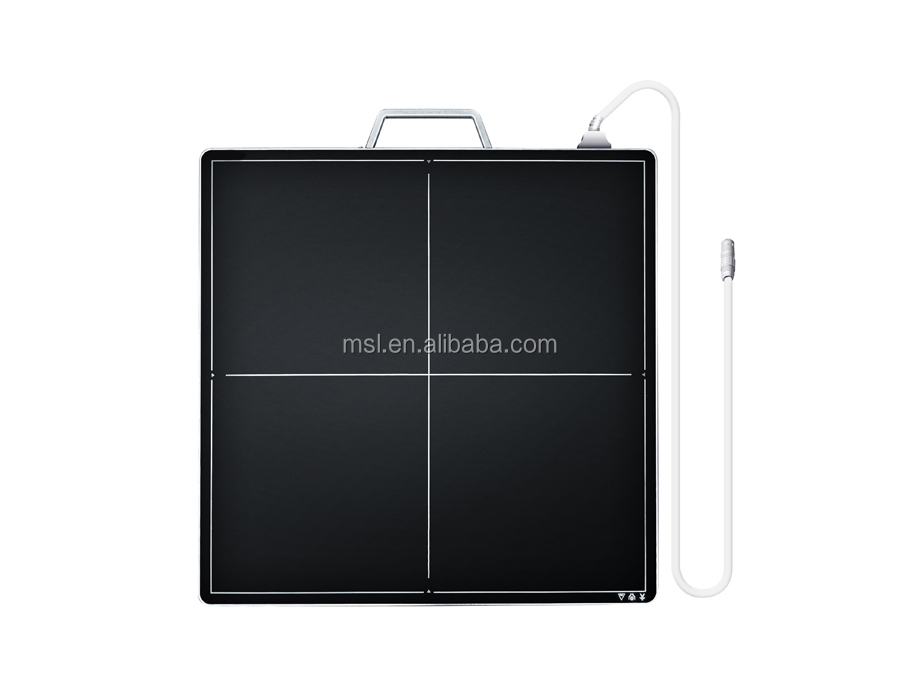

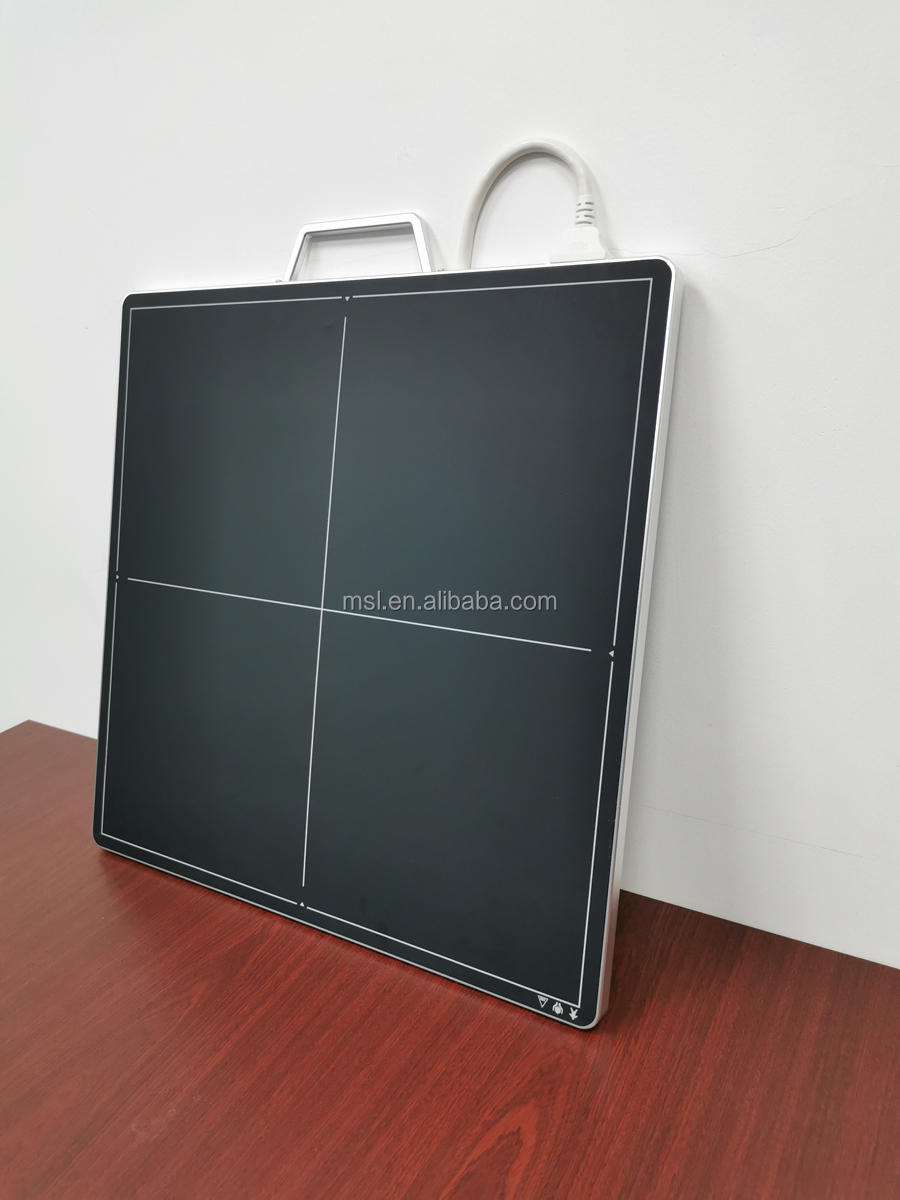

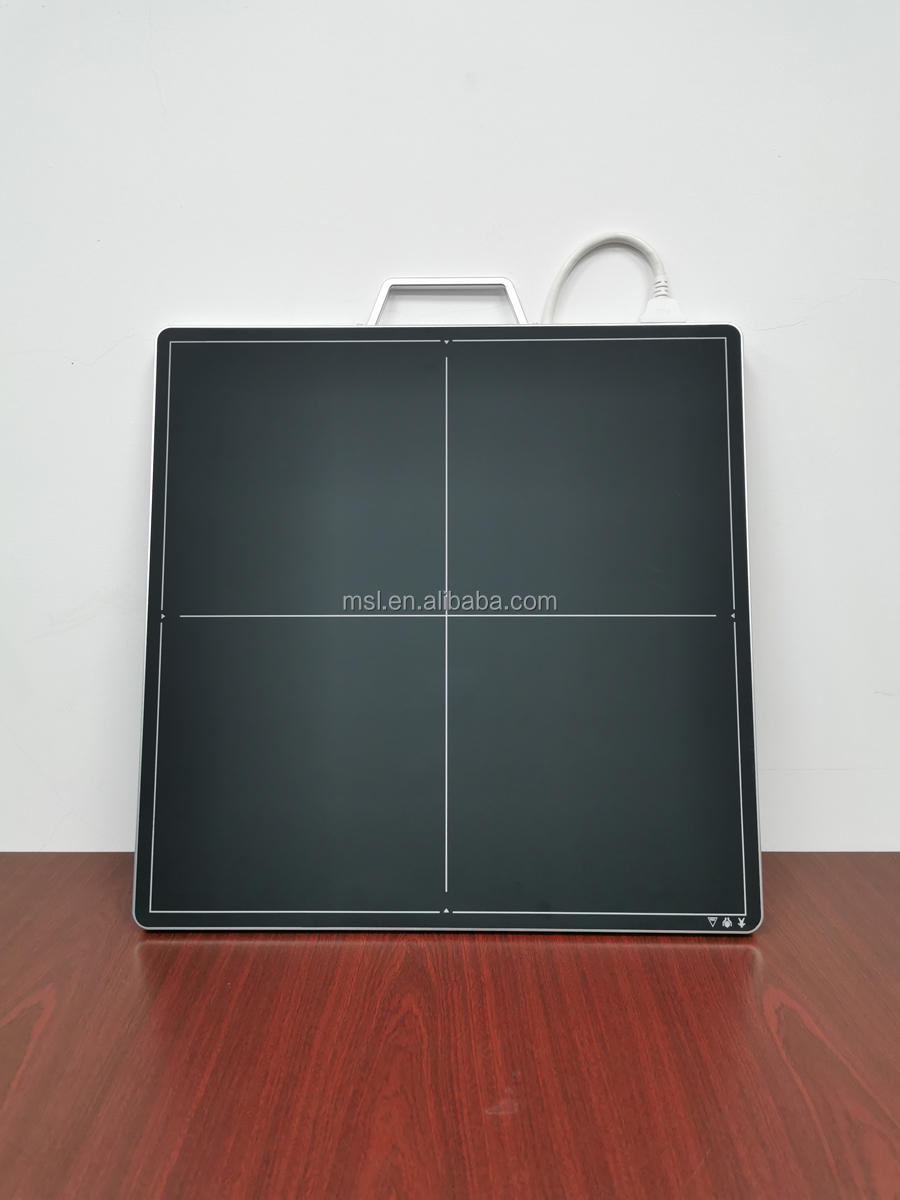

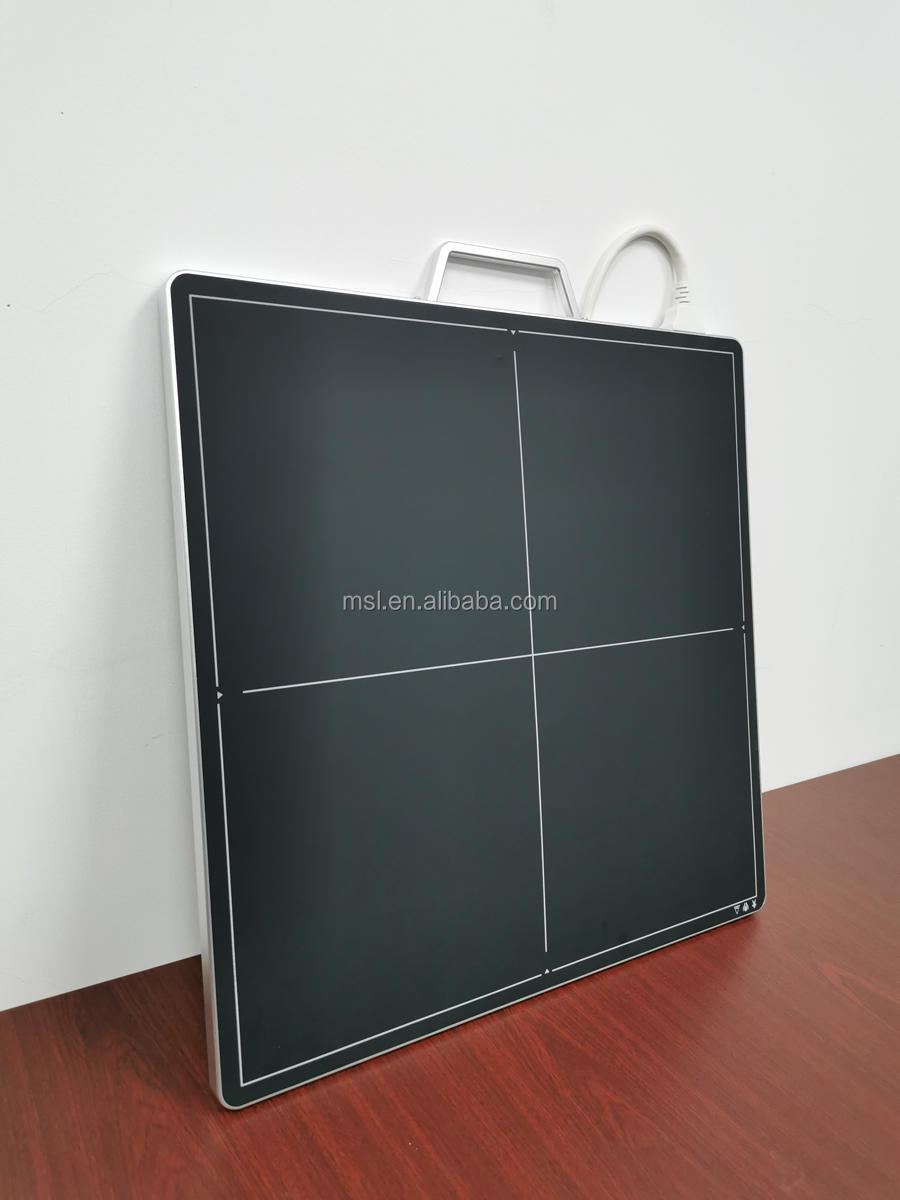

HD Digital Large Detector
Amorphous silicon large detector, extreme resolution, will not miss any image details.
High performance high voltage generator
●500KHZ UHF inverter frequency, KV rise time <500 microseconds, ripple coefficient <1%, clearer image, network voltage fluctuation +30%, the machine can work stably ●Optional AEC function, to ensure that the picture of each part of the film is even Stable, greatly simplifying the doctor's operation process
Efficient tube
●Double focus, 0.6/1.2MM, fully presenting lesion details, clear image, accurate diagnosis ●High heat capacity tube assembly heat capacity, more patients, no need to worry about tube overheating and strike
Technical Parameters
power requirements
Voltage
AC380V/400V±10%
frequency
50 Hz
resist
≤0.1Ω
capacity
≥63kVA
Mechanical parameters
Column vertical movement distance
1160mm (error: ±5%)
Column lateral movement distance
1730mm (error: ±5%)
Lifting distance of pleura stand
≥1200mm
Tube Assembly Rotation Angle
-90°~+90°, manual rotation
Column rotation angle
-180°~+180°, manual rotation
Bed X-axis moving distance
900mm (error: ±5%)
Bed Y-axis moving distance
260mm (error: ±5%)
Bed size (length x width x height)
2110mm×822mm×656mm (error: ±5%)
maximum. Patient weight (kg)
150 kg
Effective Filtering for Camera Stands
0.2 mm aluminum
high voltage generator
Input supply voltage
AC 380V/400V±10%
frequency
50 Hz
Output rated electric power
50kW (500mA,100kV,0.1s)
Tube voltage/kV
40kV~150kV, digital button adjustment, the minimum adjustment step is 1kV;
Tube current/mA
10mA~630mA, meeting the R'10 digital value in ISO 497, multi-level adjustment through digital buttons;
loading time
1ms~6300ms, satisfying the value of R'10 number system in ISO 497, multi-level adjustment through digital buttons; AEC nominal
Minimum irradiation time: 1.6ms
Current time product/mAs
0.1mAs~630mAs, satisfying the value of R'10 number system in ISO 497, multi-level adjustment through digital buttons;
exposure technology
kV-mA-ms, kV-mAs
What is the maximum load condition?
79kV, 630mA
Maximum load condition kV
150kV, 320mA
X-ray tube
Anode input power
Large focal spot: 50kW;
Intermediate focus: 20kW
focus
0.6/1.2mm
Anode speed
2700RPM (rev/min)
Nominal tube voltage
150kV
Anode heat content
163kJ (230kHU)
Target Radiation Spectral Characteristics
See Appendix 10.4
Heat capacity of X-ray tube assembly
900kJ (1250kHU)
target angle
12°
inherent filter
1.3mm aluminum/75kV
Envelope voltage
See Appendix 10.4
envelope current
See Appendix 10.4
weight
16 kg
beam limiting device
inherent filter
1.5 mm Aluminum
maximum. Tube voltage
150kV
average exposure intensity
﹥100Lux, SID100cm
light field switch
manual
Contact time
30s±5s
input power
DC24V±2.4V,10VA
Minute Irradiation Field
<30mm×30mm at SID 100cm
maximum. irradiation field
430mm×430mm when SID is 100cm
light field deviation
≤2%
Anti-scattering
Grid 1: Ratio 8:1; Grid density: 230lp/cm; Focal length: 130cm
Grid 2: Ratio 10:1; Grid density: 230lp/cm; Focal length: 100cm
detector
CareView1500L
aspect
35cm×43cm
Significant digits
≥14bit
limit resolution
≥3.4lp/mm
detector
CareView1800L
aspect
43cm×43cm
Significant digits
≥14bit
limit resolution
≥3.6lp/mm
image workstation
Hard drive capacity
≥500GB
memory
≥4GB
processor
≥3.2GHz
working environment
Relative humidity
30%~75%
barometric pressure
70kPa~106kPa
temperature
10℃~40℃
Storage environment
Relative humidity
10%~95%
barometric pressure
70kPa~106kPa
temperature
-10℃~50℃

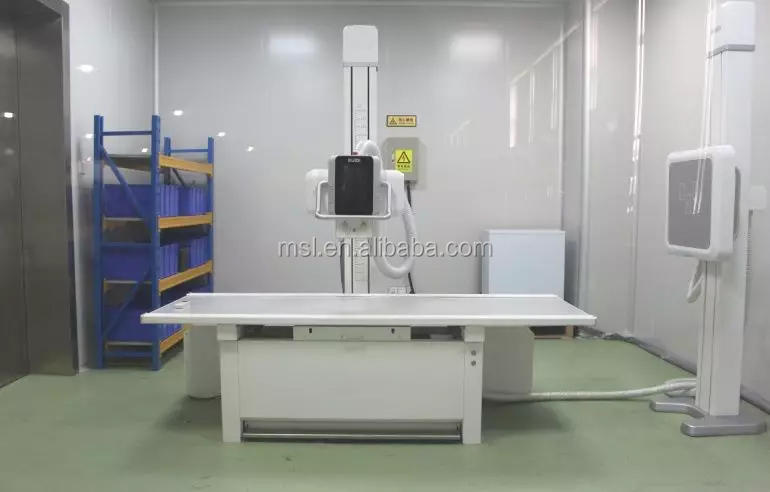

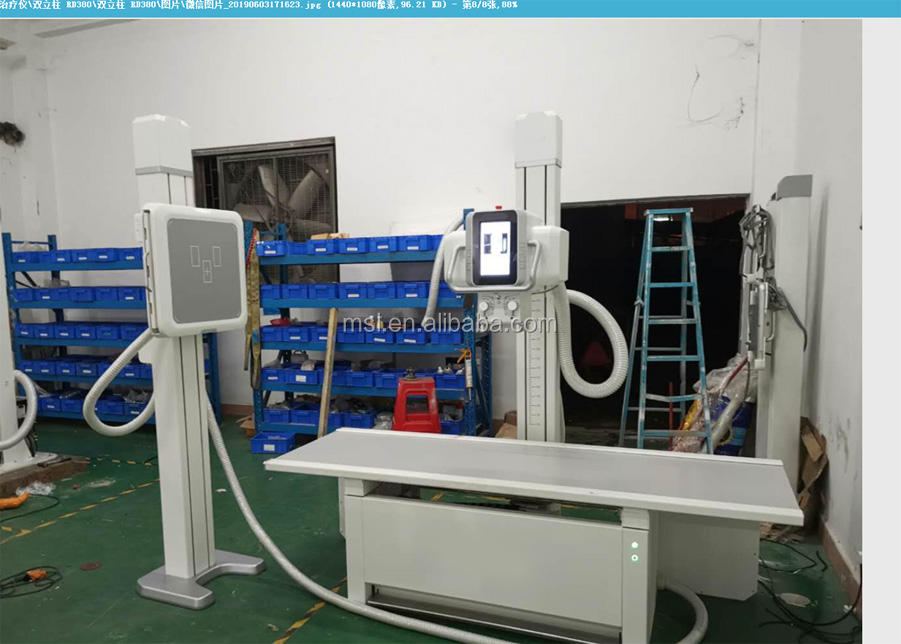

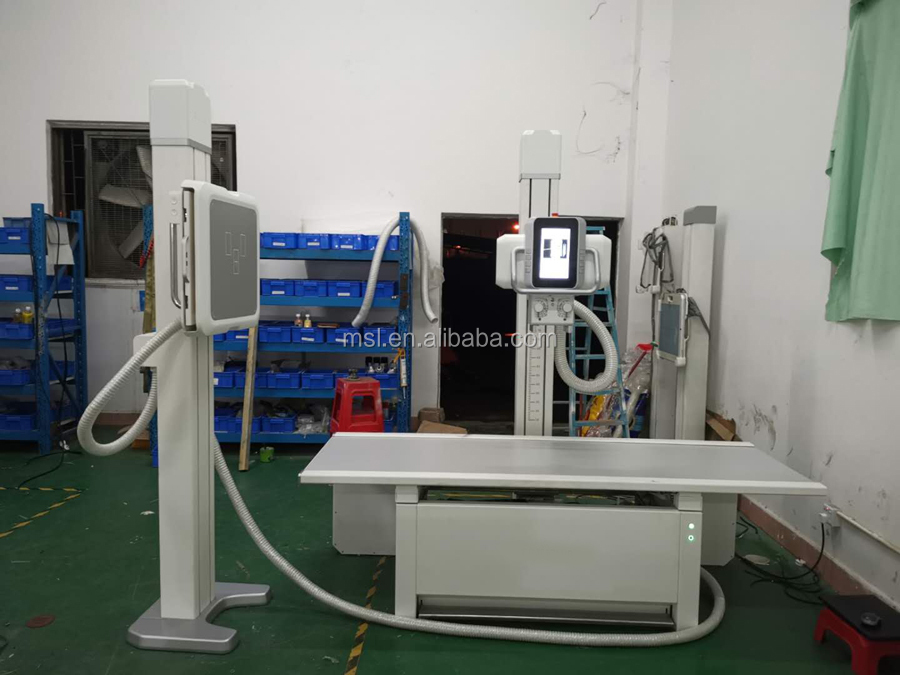

detailed image
