LED x-ray viewer/x-ray observation light box/x-ray observation box professional medical equipment hospital equipment

PRODUCT DETAIL
Name:led x-ray film viewer/x-ray observation light box/x-ray film observation boxmodel:X-LEDIT
Quality Certification:ceEnergy source:electrical
After-sales service:online technical supportsafety standard:not any
Material:Metalbrand:Kolding
Certificate:ISO/ECpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:Kuala LumpurInstrument classification:level one
Supply capacity:100 sets per weekPackaging Details:Cotton
Warranty:1 yearport:Shanghai
characteristic:High energy ray medical equipmentOrigin:Hubei, China
Shelf life:3 years

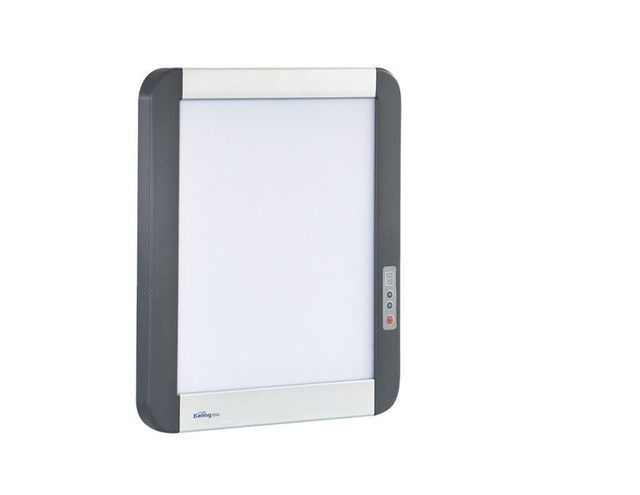

(X-LEDIT) Single X-ray Viewer



Product Description




This product adopts ultra-bright LED with international advanced technology as the backlight source, which is suitable for viewing and diagnosis of high-density mathematical film and mammography film.
It is designed with a thin and vivid three-dimensional layered panel frame. The color matching of the panel frame has chosen moonlight silver and dark gray. Using high-strength electrophoresis aluminum alloy, plastic alloy and other new materials, the thickness of the entire luminous body is only 4cm.
It has the function of automatic power-on after inserting the film. After the film is inserted, the viewing area lights up, and the delay shutdown function is set after the film is removed, which can effectively improve the service life of the product. led x-ray film viewer/x-ray observation light box/x-ray film observation box
The brightness adjustment range is large (300~5000cd/m²), which fully meets the viewing and diagnosis requirements of various density films such as analog, digital, and mammography films.
The LED light source has a service life of up to 100,000 hours.
Imported acrylic transparent panel, high finish, more uniform and soft light. This led x-ray viewer/x-ray viewing light box/x-ray viewing box has a long service life and is not easily deformed and discolored.
Using advanced LED backlight technology, there is no dark area in the viewing area. The brightness uniformity of the screen exceeds 90%.
90V~240V global voltage adaptive built-in power supply, advanced technology, save space.



quick details

characteristic:
Medical X-ray Equipment and Accessories
brand:
Kolding
model:
X-LEDIT
Origin:
Jiangsu, China (Mainland)
Certificate:
equivalent
Warranty time:
3 years
Sales service:
24 hours online
brand:
famous in china

packaging and delivery

Packaging Details: carton
Shipping Details: Two weeks after payment confirmed

Specification

@professional-manufacturer since 1996
@Reliable quality, affordable price, perfect service
@CE and ISO certification
@OEM&ODM available



Specifications:



Dimensions (mm): 470*545*40
Viewing area (mm): 360*440
Backlight Type: LED Color Temperature: 9,300K
Service life: 100,000 hours
Average brightness: 300 cd/m2-4000 cd/m²2
Average illuminance: 900 lux-13,000 lux
Screen brightness uniformity coefficient: ≥90%
Applicable film: ordinary analog X-ray film
High Density Digital X-ray Film
Mammography Medical Film
Power supply: voltage adaptive built-in power supply
Voltage: AC90V-240V Power: 50W±10% Frequency: 50/60HZ
Operating conditions:
Indoor ambient illumination shall not exceed 100 lux



Product advantages:



Insert film automatic boot

Delayed shutdown after film removal

Wall-mounted and stand-mounted (bracket optional)

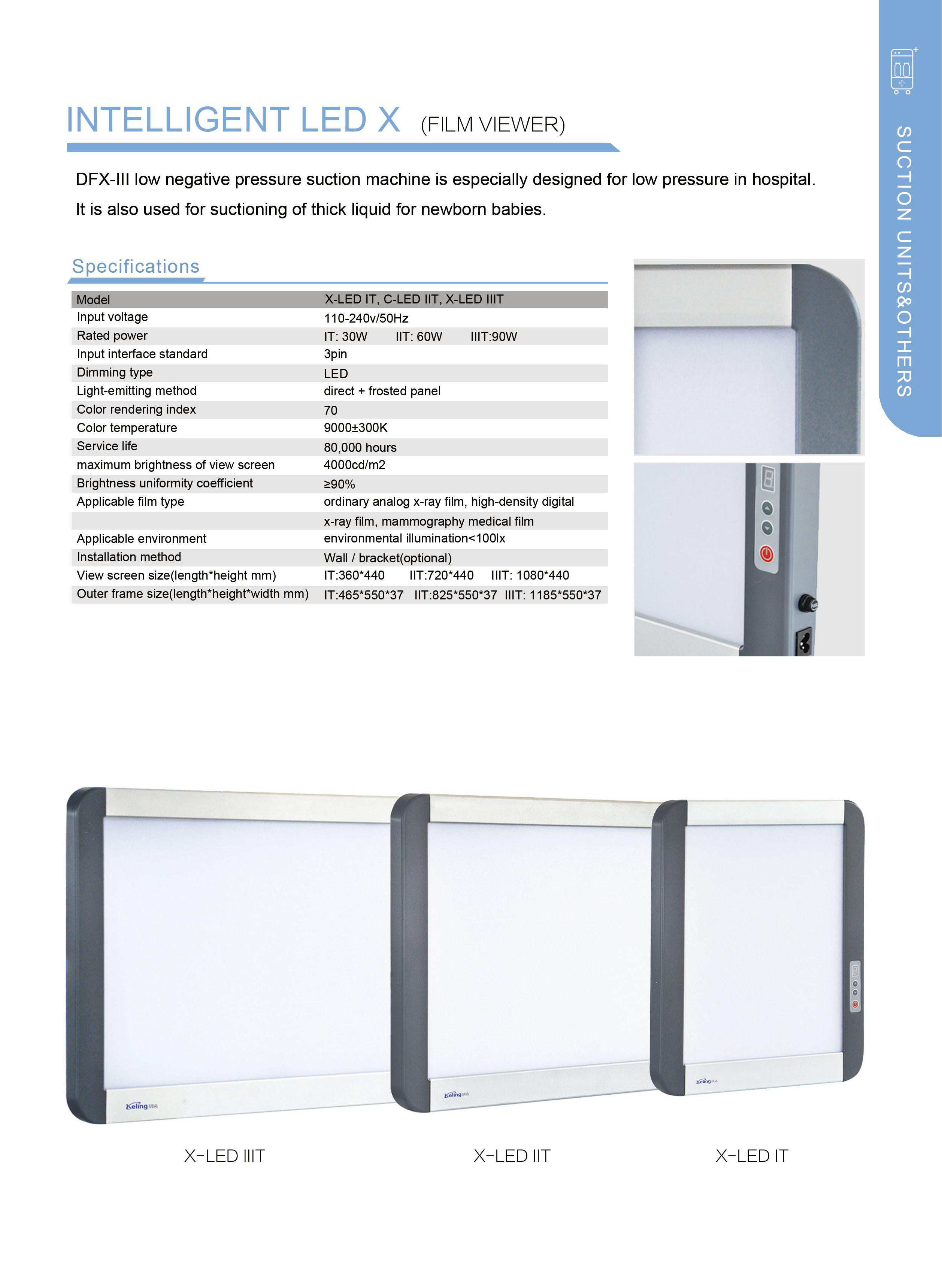

Optical parameters and function table



Technical Parameters

Specification

Power Systems

Dimensions

(length x height x depth)

(mm)±10

screen size

(length × length)

(mm)±10

Lamp brightness adjustment control method

Insert auto-sensing function

Do not operate the automatic flame-off function

Brightness memory function

X-LEDIT

30

465×550×37

360×440

0-9 file adjustable digital display

Insertion induction

30 minutes

Yes

X-LEDIIT

60

825×550×37

720×440

0-9 file adjustable digital display

Insertion induction

30 minutes

Yes

X-LEDIIIT

Post-90s

1185×550×37

1080×440

0-9 file adjustable digital display

Insertion induction

30 minutes

Yes

X-LED IVT

120

1545×550×37

1440×440

0-9 file adjustable digital display

Insertion induction

30 minutes

Yes
