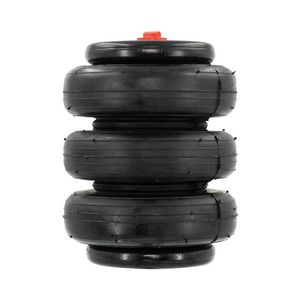

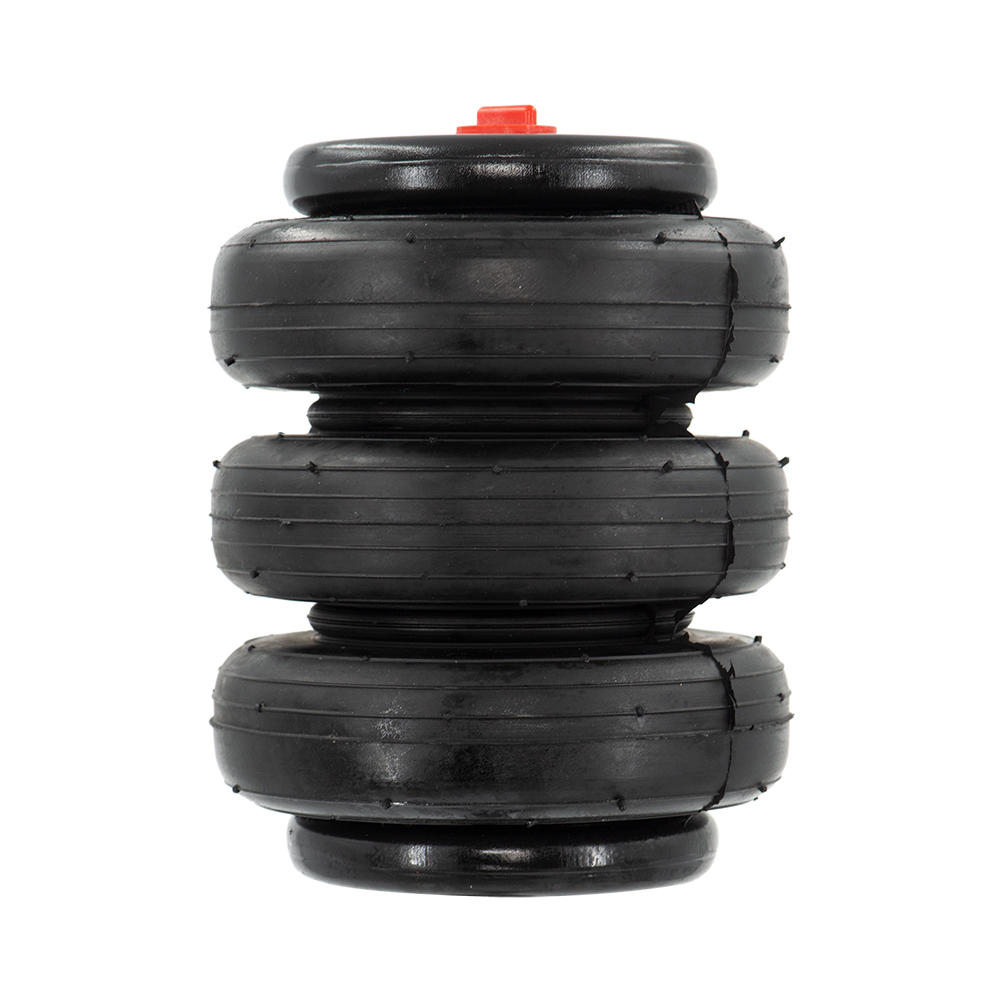

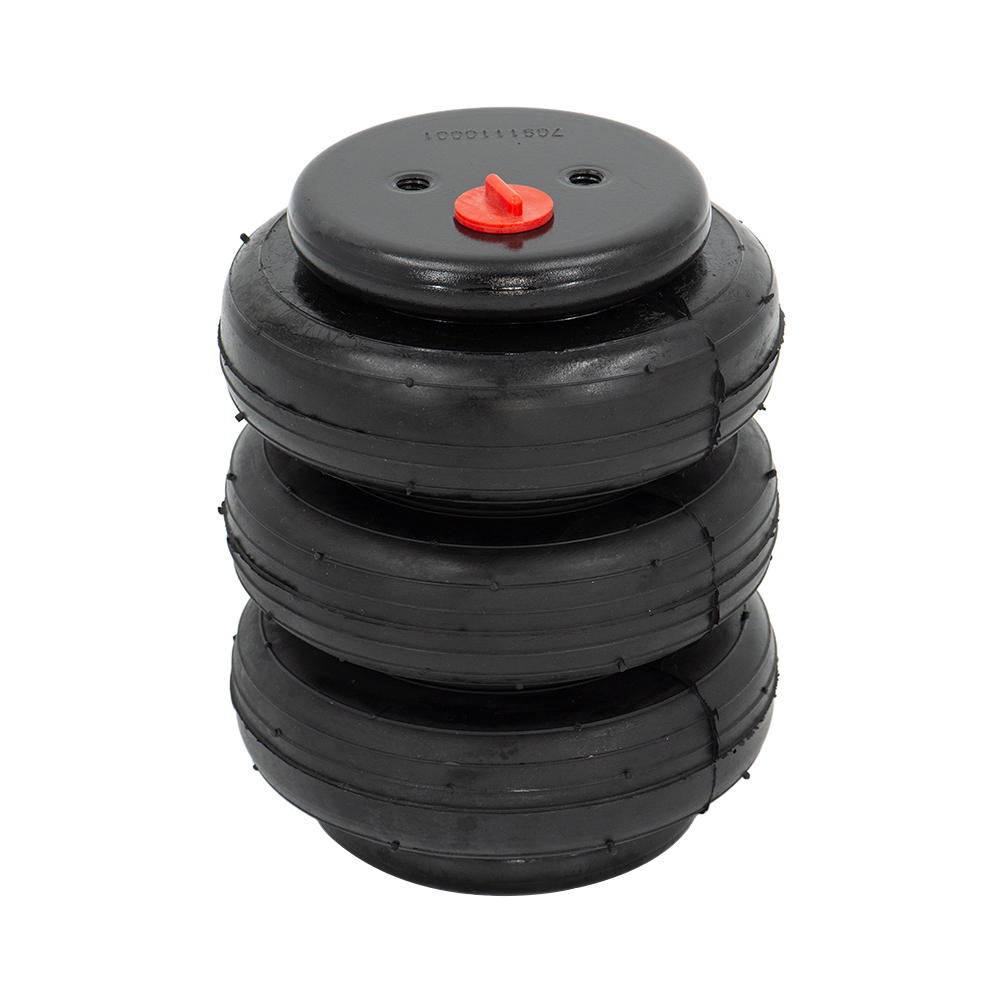

3b2400 w/ 3/8 - 16unc Coil Pickup Truck Air Suspension Parts 146MMx3 Triple Convoluted Air Spring

3B2400 with 3/8 - 16UNC screwdriver forklift air bag/pneumatic suspension components
Main Products: Air Spring, Corrugated Air Spring, Industrial Air Spring, Air Suspension Spring, Air Compressor, Air Valve, Bus Rubber
Bellows, truck and trailer airbags, cabin air shock absorbers, electric water pumps

Operating temperature: 57Cº to -54Cº

Nut/Blind Nut

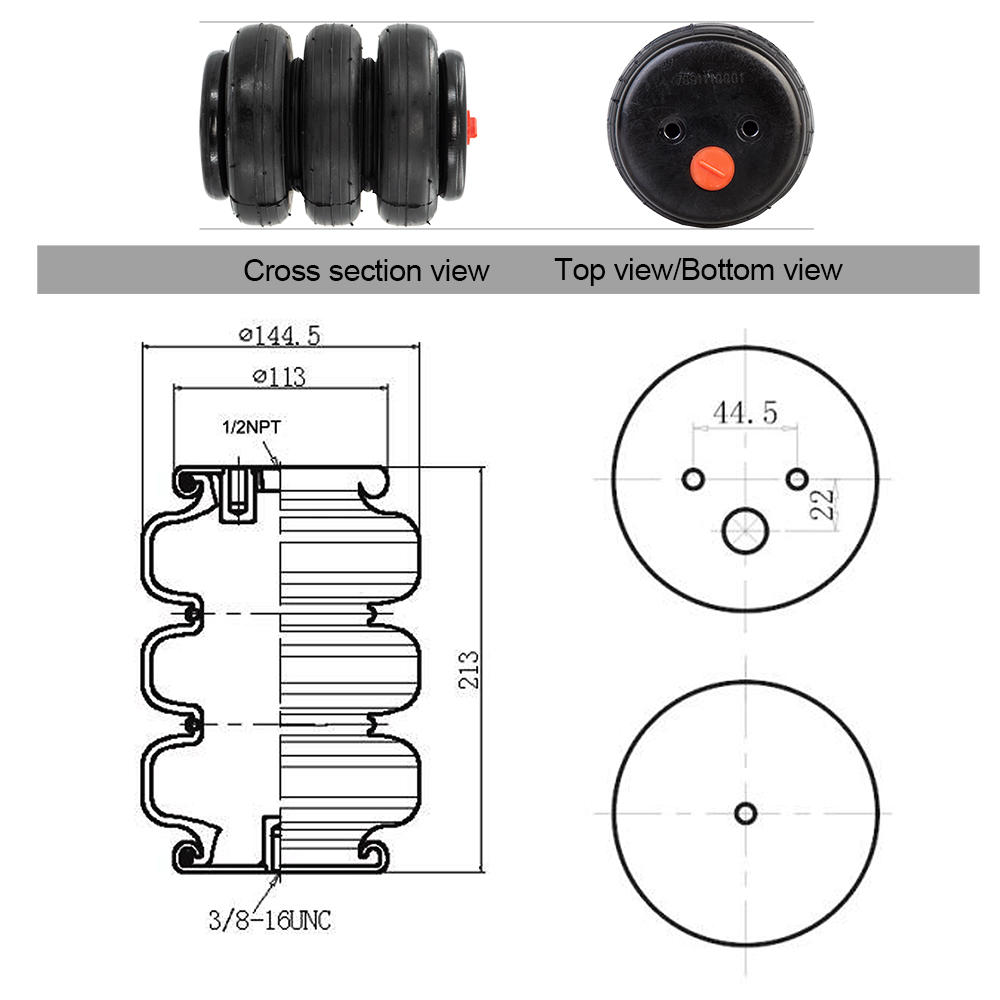

Top cover screw (nut) teeth: 2 pcs X 3/8-16UNC
Top cover screw center distance: 44.5 mm
Bottom cover screw (nut) teeth: 2 pcs X 1/2-13UNC
Bottom cover screw center distance: MIDDLE

Air Holes/Inlets/Air Fittings
Air hole/air inlet: 1/2-14NPT
Air inlet and nut center distance: 22 mm

cover plate
Top Cover Diameter (Width): 113 mm
Bottom cover diameter (width): 113 mm

Rubber bellows
Rubber bellows natural diameter: 144.5mm
Maximum diameter of rubber bellows: 165 mm
Design height: 213mm
Bellows# NO.: 2400

buffer block / buffer block
Without bumper

Waistband/ Waistband
Waistband: two-piece waistband

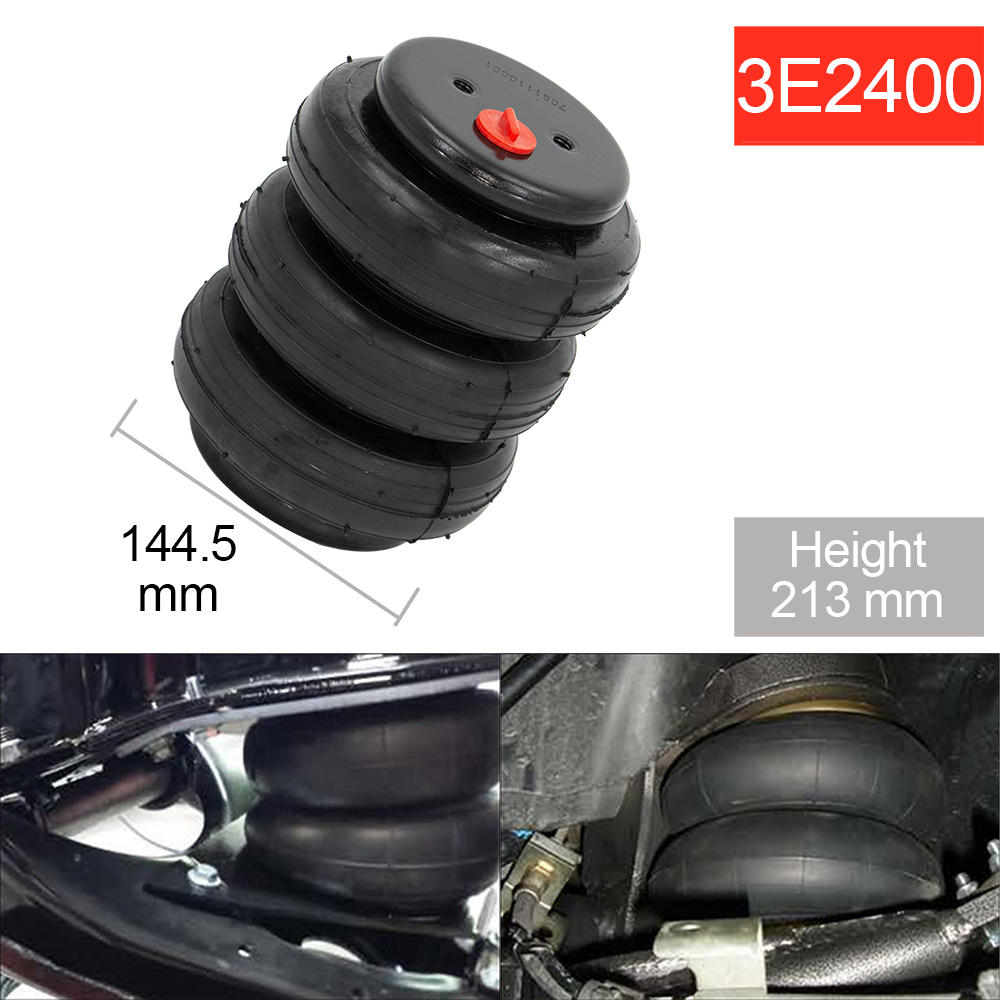

Load Lifter 3B2400 is used to improve the suspension performance of the truck and the towing capacity of the truck. These air springs will help carry the load you're towing. These bags will help carry up to 5,000 pounds of cargo. These springs can help in many ways, including trailer sway, rough rides, body roll, and more. It will help improve performance by making turning and parking your truck easier. These kits install into your vehicle without tools.
