(1) Industrial boilers, waste incinerators. Industrial waste heat recovery device.
(2) Heat dissipation
(3) Forced ventilation: generally used for ventilation in general industries and large buildings.
(4) Gas and material transportation: general air transportation, combustible gas transportation, corrosive gas transportation, mixed gas transportation.
(5) Dust removal and particulate matter: conveying pulverized coal, granular material, powder material, broken material and fiber material.

2. Structure

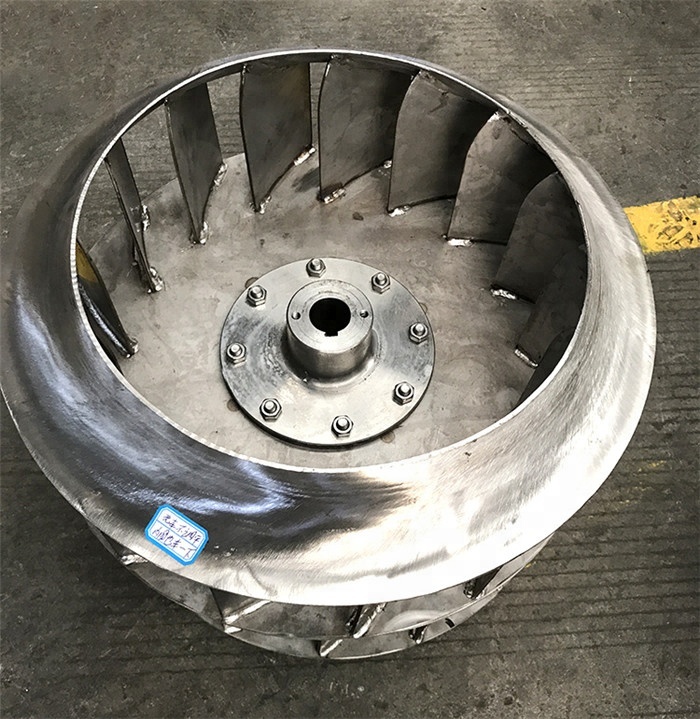

(1) Impeller:

Arc pre-bending design, high pressure, dynamic and static balance test, high efficiency and low vibration.
(2) Case:
Welded into a whole worm housing with ordinary steel plate.

(3) Air inlet:
Make the shrinking streamlined overall structure, bolted to the front cover.

(4) Transmission parts:
Including spindles, bearing housings, belts or couplings, etc.

(5) Motor: The motor brand can be customized according to customer requirements.

(6) Accessories: Adjusting door, muffler, absorber

 3. Features

1. The impeller shaft of the anti-corrosion and explosion-proof centrifugal fan adopts a split structure, which is fully enclosed and fully covered. It is sturdy and easy to install and remove.

2. The anti-corrosion and explosion-proof centrifugal fan adopts oil-bath bearing box to protect the bearing and shaft from being eroded by acid and alkali gas. Combined with the application of American pulleys and imported belts, the service life of the fan is extended and the frequency of failures is reduced. Fan motors and bearings can be imported or domestically produced according to customer needs.

3. There are inspection ports and drainage holes on the outside of the fan, which is convenient for inspection and cleaning of the impeller and avoids impeller immersion.

4. Provide measurement performance and vibration to the factory, provide test reports, prevent problems before they occur, and ensure that the fans are running in good condition.

5. Complete product information booklet, all spare parts, consumables, performance, scope of use, etc. are listed one by one.

6. Provide fan maintenance manual, plan maintenance work, save maintenance records, and facilitate transfer.

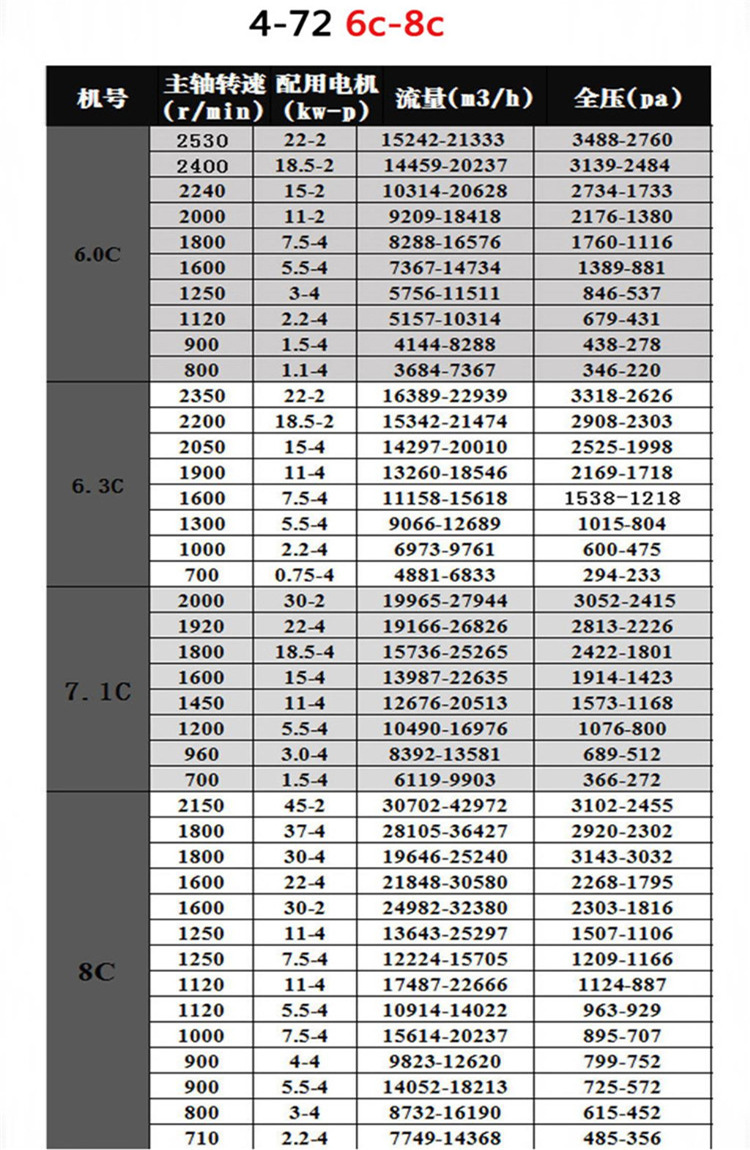

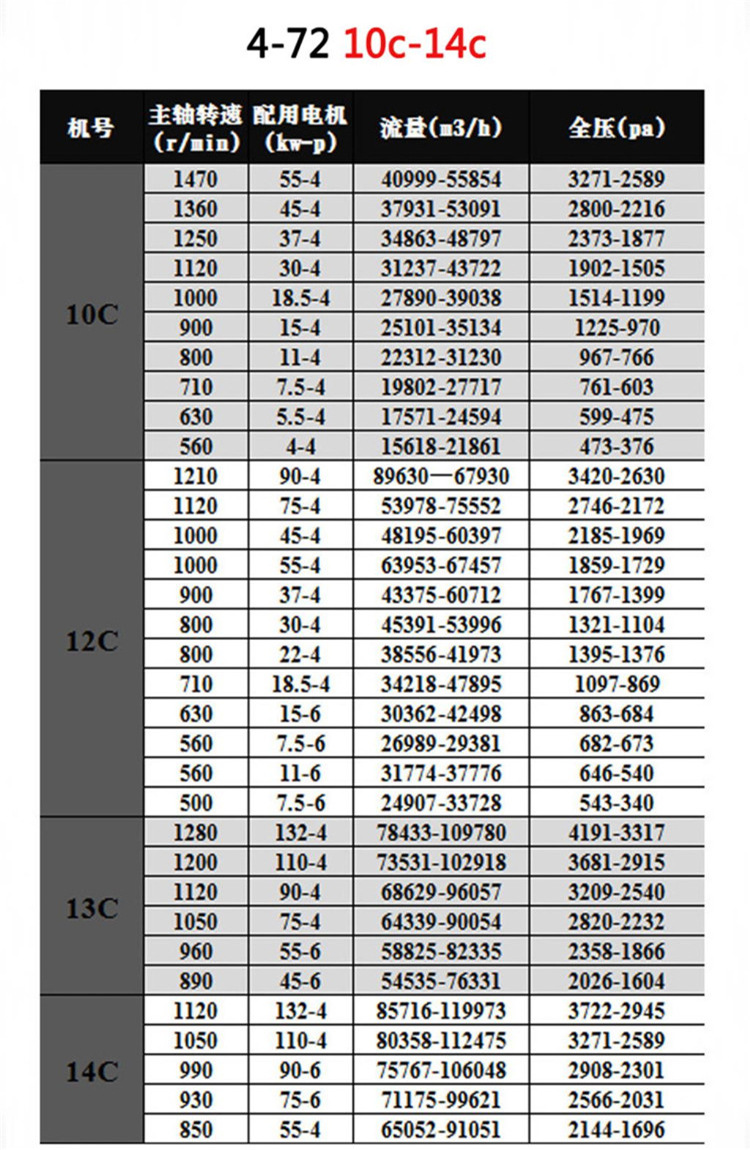

Specification:
