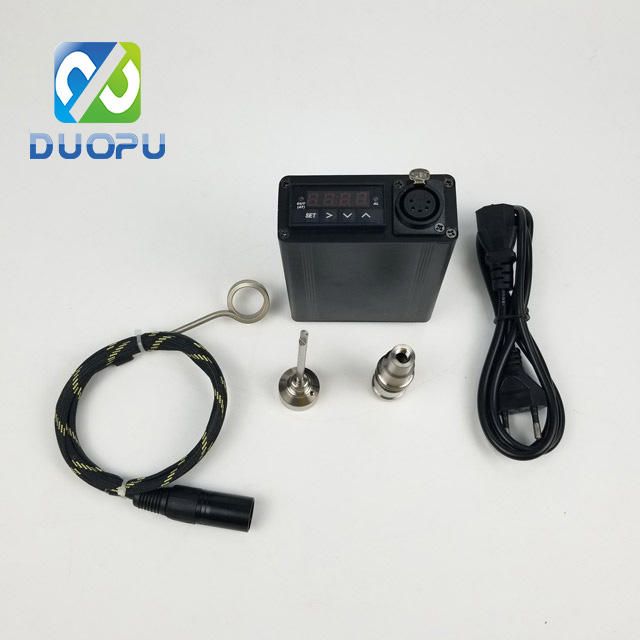

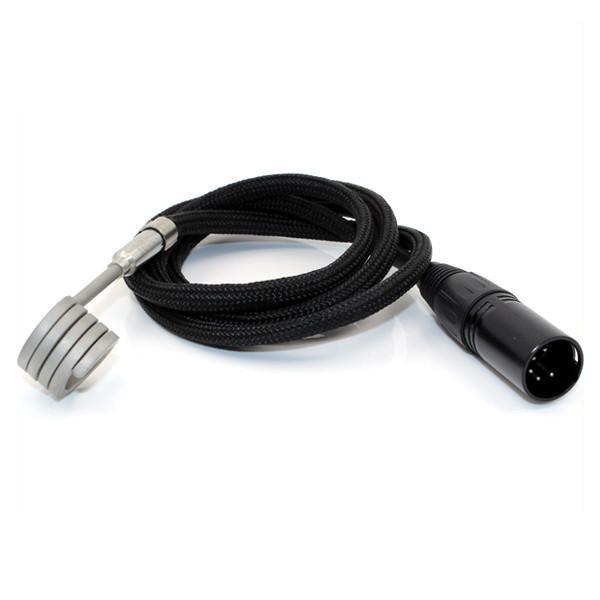

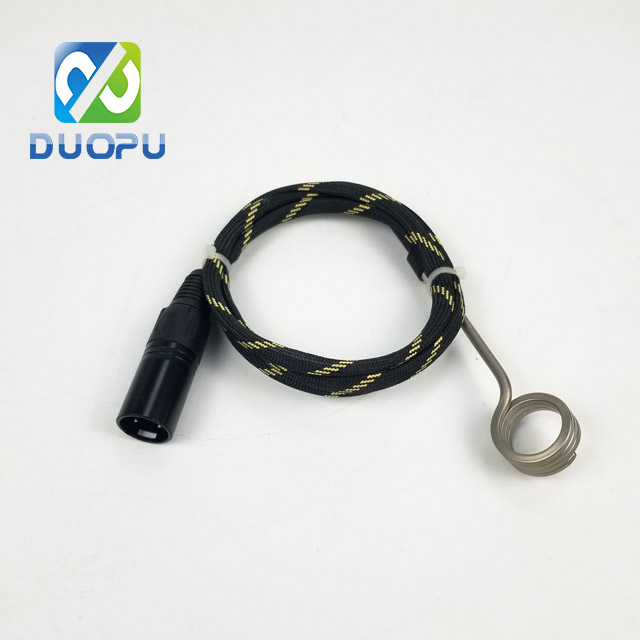

4 Pin Mini Xlr 120v Coil Heater

PRODUCT DETAIL
Dimensions (L*W*H):customer's requestDimensional tolerance:± 3 mm
place of origin; place of origin:Jiangsu, ChinaEnergy source:electrical
Health status:newSupply capacity:2000 spring hot runner coil heaters per week
payment terms:L/C, T/T, Western Union, PayPalport:Shanghai
Warranty:1 yearOperating voltage range:12V - 440V
Power range:5W to 2500Wproduct name:Mini Nail Heater
Power Density:9w/c㎡Cold pressing capacity:1500v/0.5mA/S
Packaging Preview:Power tolerance:+5%, -10%
brand:Doppweight:final size
Certification:CE, ROHSThermocouple:Type K
Hot pressing capacity:1250v/0.5mA/SVoltage:12V-480v (customized)
Maximum operating temperature:700℃After-sales service provided:Video technical support, online support
Packaging Details:Standard export packaging for tape coil heaters with outer jackettype:Hot runner coil heater

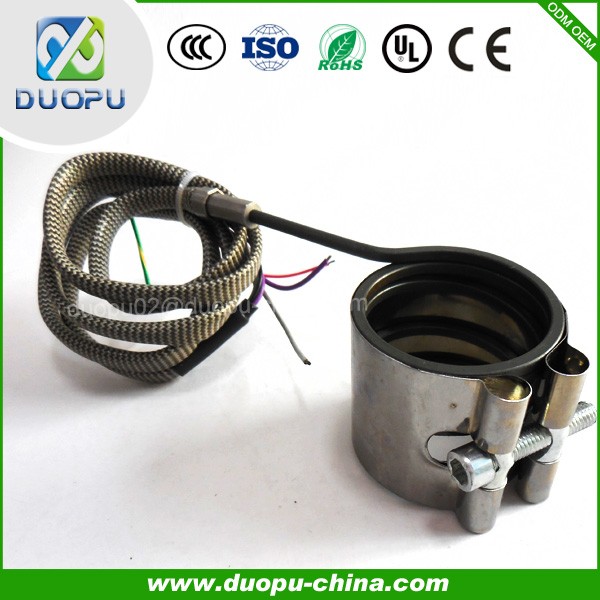

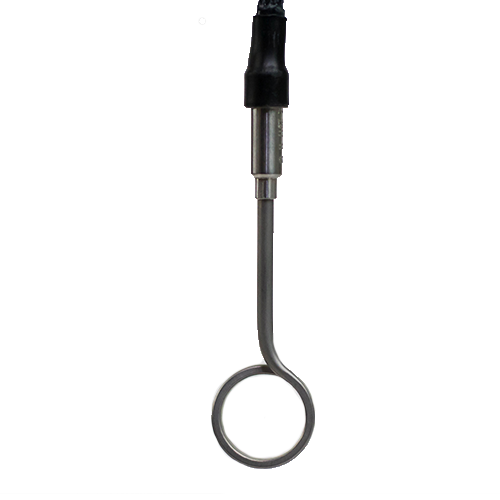

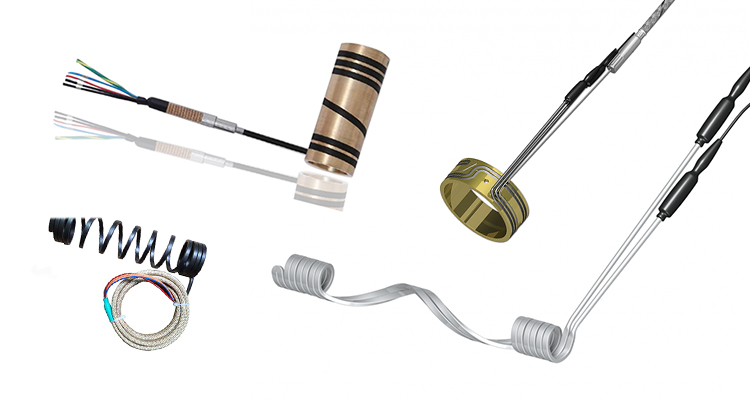

Mini Coil Heaters
Sheath material
High quality 304SS or 316L
Internal magnesium oxide insulating material
99.99% high purity magnesium
Heating element
High durability and high temperature NiCr2080 heating element from Germany
maximum operating temperature
700℃
Withstand voltage test
Leakage less than 0.5mA for 30 seconds under 1000V
Optional cross section
1.8mm, 2.2x1.3mm, 2mm, 2.2mm
Length range of heating length
300mm----1500mm
Length of non-heated zone
40mm standard
TC optional
Types J, K, E and T
Cold Zone Adapter Dimensions
3x30mm (double head small adapter)
8x30mm (single-ended standard adapter)
leakage current
When using rated voltage, the leakage current should not exceed 0.5mA


Design Features

Coil heaters are made from nickel-chromium resistance wire, placed inside a chrome-nickel steel tube filled with MgO powder and compacted for faster and more efficient heat transfer. The heater is annealed for ductility that can be bent into any shape. Hot runner heaters with built-in thermocouples are also available.


application

1. Hot runner and bushing
2. Pipe extrusion
3. Tube forming
4. Hot runner mold

5. Plastic injection machine

6. Plastic extruder
7. Nail Art
