4 ton mini hydraulic 3 knuckle boom floating crane barge for sale with radio remote control
- $3000.00 /set
- 1 set
- Xuzhou Haoyi Construction Machinery Technology Co., Ltd.
- Jiangsu, China
- Ms sunny ji
PRODUCT DETAIL
| Package Preview: | ; | Warranty: | 1 Year; |
| Port: | SHANGHAI/LIANYUNGANG; | After Warranty Service: | Video technical support,Online support,Spare parts; |
| Rated Loading Capacity: | 4000kg; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Farms,Energy & Mining,Advertising Company,marine/harbour/quay/boat; |
| Working environment temperature: | -20℃~50℃; | Color: | Selected; |
| Core Components: | Pressure vessel,Pump; | Supply Ability: | 20 Sets per Month; |
| Showroom Location: | None; | Warranty of core components: | 1 Year; |
| Brand Name: | HAOYI; | Steel construction: | high strength plate; |
| Packaging Detail: | hydraulic telescopic boom marine crane: 1. 20' GP : 2 units (approx) 2. Standard packing for export, container shipping. 3.Waterproof,dampproof; | After-sales Service Provided: | Video technical support,Online support,Free spare parts; |
| Condition: | New; | primer Paint: | Epoxy Zinc-rich Primer : 80μ*2; |
| Payment Terms: | L/C,Western Union,T/T,Alibaba Payment,Credit Card Payment; | Marketing Type: | New Product 2020; |
| Working condition: | vertical 5°; horizontal 3°; | Connection form between crane and deck: | flange; |
| Max. Lifting Height: | 25m; | Application: | 0~7.5m; |
| Rated Lifting Moment: | 8.2Ton.M; | Video outgoing-inspection: | Provided; |
| Finish paint: | Polyurethane top-coat; | Feature: | Floating Crane; |
| Certification: | ISO9001/CCS/BV; | Machinery Test Report: | Provided; |
| Type of Wire rope: | non rotary galvanizing; | Place of Origin: | China; |
| Span: | 0; | Local Service Location: | None; |
| Safety system: | Anti overload valve/Balance valve/Winch brake; |
Product Description
4 ton mini hydraulic 3 knuckle boom floating crane barge with radio remote control for sale
Haoyi 4 tons Knuckle boom marine crane, the main structure of which uses high strength steel plate, the crane adopts double telescopic cylinder, hydraulic winch and integral rotary drive; the operating system uses wireless remote control and bilateral handle to realize remote operation, which is convenient and safe.

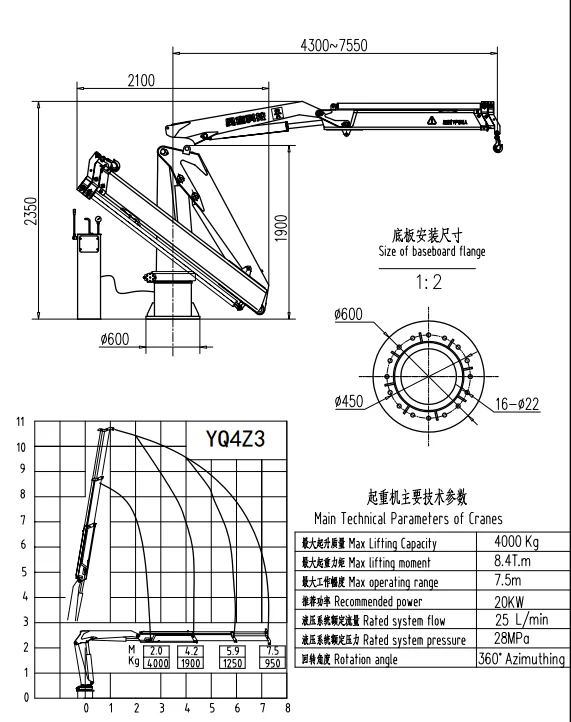

Item | Unit | YQ4Z3 |
Max.Lifting Moment | Ton . M | 8.2 |
Max.Working Radius | M | 7.5 |
Min Working Radius | m | 0.3 |
Max. Height of Windlass | M | 25 |
Slewing Angle | 。 | 400° |
Rated system flow | L/min | 25 |
Rated system pressure | Mpa | 25 |
Crane Self Weight | Kg | 1100 |

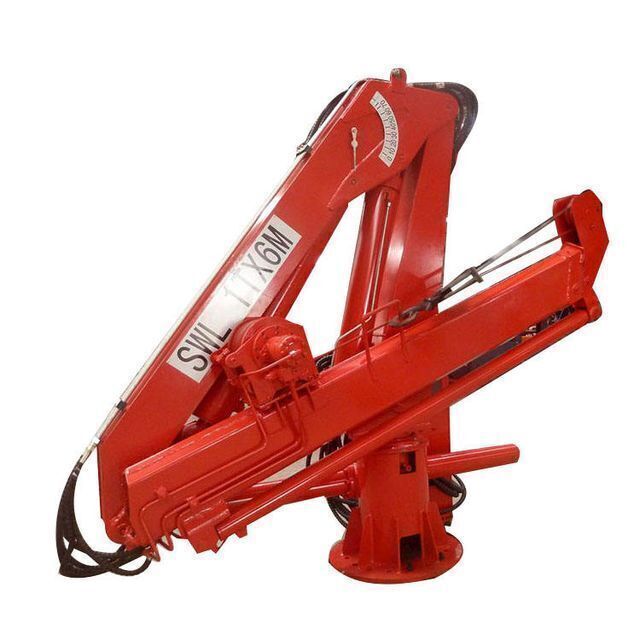

Physical Photos
Our Advantages
Wireless Remote Control
Truck crane can be operated with wireless remote control，it`s safety, convenient and efficient. In addition to lifting operation, it can also install aerial work basket to realize aerial work function, a multi-purpose vehicle!
Related Products

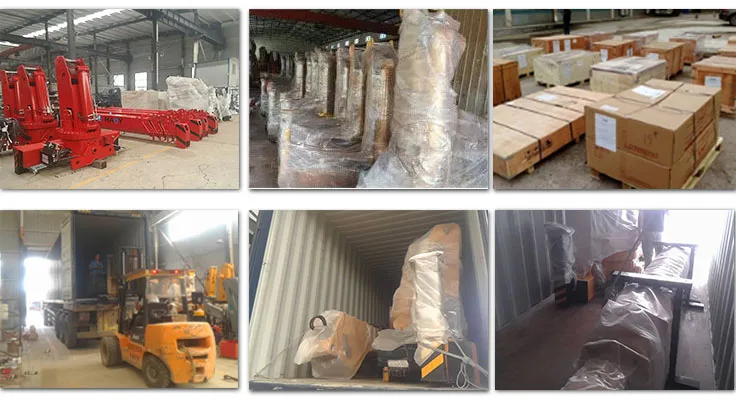

Packing&Shipping
After Sales Service
Promise！！！
we are famous construction machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 10 years experience in this field already.
1)Warranty:Every product issued shall enjoy a one-year warranty period, during which we will offer the defective parts free of charge and guide how to repair by phone or through video if material or process defects occur and spare parts are in normal working condition.
2)Spare parts: We are dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function. we guarantee that your request will be handled quickly and appropriatel.
Company Introduction
FAQ
1.Do you want a better price?
Contact me, I will give you the best price according to your port of arrival, current exchange rate, payment method, and the company's current preferential activities.
2.Is the product performance or style different from what you want?
Contact me and tell me the product requirements you want. We can redesign and custom made the product you want according to your requirements without any design expenses. Don't forget, our company is a high-tech enterprise in China. Our technical ability is first-class.
3.Are you worried about the after-sales service of products in the future?
Contact me, I will make a feasible and thoughtful after-sales service plan for you according to your country, product characteristics and personal requirements.
4.Is the product not what you want? Do you want other products?
Contact me. I am in Xuzhou, China. This is the capital of China's construction machinery. The famous XCMG is next to us. We have many friends and resources to help you. As long as we make friends, I will be very happy to help friends.
Sunny
mobile/whatsapp/wechat+8613655206174
skype:sunnyshine282
email:[email protected]
