45mm Tubular Engine Manual
- $17.00 /piece
- 1 piece
- Huzhou Dp Import & Export Co., Ltd.
- Zhejiang, China
- Ms Jessy Tan
| usage: | home appliances | port: | Shanghai or Ningbo |
| brand: | Experience | shape: | tubular |
| place of origin; place of origin: | Zhejiang, China | Warranty: | 5 years |
| Supply capacity: | 10000 pieces per month | Function: | drive |
| Certification: | Chief Executive | Packaging Details: | carton |
| model: | XP45M | payment terms: | L/C,D/A,D/P,T/T,Western Union |

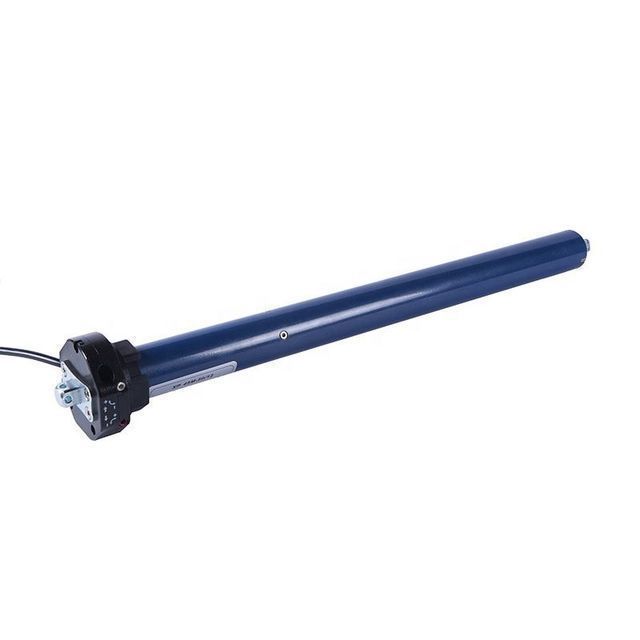

Tubular motor diameter is 45mm, 8Nm~50N.m. manual control type, new type, smaller and thinner chassis, more convenient installation and stable quality. CE, CCC and TUV approved. Perfect for roller blinds and screens, awnings, roller blinds and more.
tubular motor
feature:
1) Voltage: 230V
2) Input power: 270W
3) Current: 1.2A
4) Speed: 17rpm
5) Torque: 20N.m
6) Working time: ≥4min
7) Insulation class: B
8) Protection class: IP44
9) Max. Travel revolutions: 18
10) Minimum. Inner diameter of drive tube: ø46mm
11) Dimensions: ø45 x 560mm
12) Net weight: 2.5 kg
13) Certification: CE, TUV
14) Different colors can be provided according to customer requirements
1. Packaging Details: Ordinary export carton or pallet.
2. Payment terms: 30% TT as deposit, balance and copy of bill of lading.
3. Delivery conditions: 25-30 working days after receiving the deposit.
pre-sale service
1. Samples can be provided by the buyer with sample fee and courier fee.
2. We have sufficient stock, which can be delivered in a short time. A variety of styles are available for you to choose from.
3. High quality + factory price + quick response + reliable service is what we wholeheartedly provide you
4. All our products are manufactured by our professional workers, we have an efficient foreign trade team, you can totally trust our services.
5. We have about 10 years of experience in motor design, manufacture and sales; we cherish every order from our valued customers.
after you choose
1. We will calculate the cheapest shipping and invoice you immediately.
2. Check the quality of the sample again, it will be sent to you 1-2 working days after payment.
3. Email the tracking no to you and help track the package until it reaches you.
After-sales service
1. We are glad that customers have some suggestions for our prices and products.
2. If you have any questions, please feel free to contact us by email or phone.
