Rotary vane air motor HX8AM-HV 5.25hp air motor work
- $390.00 / 1 - 9 sets
$355.00 / >=10 sets - 1 set
- Rudong Hongxin Machinery Co., Ltd.
- Jiangsu, China
- Ms Lynn Zhang
| Supply capacity: | 500 sets per month | model: | HX8AM-HV type |
| strength: | 5.25HP, 3.9KW | Certification: | ce |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | speed: | 2500 rpm |
| Manufacturing model: | HX8AM-HV type | Install: | foot installation |
| Port size: | 1/2 NPT | brand: | Hongxin |
| Warranty: | 1 year | Gast model: | 8AM-FRV-2B |
| port: | FOB Shanghai | place of origin; place of origin: | Jiangsu, China |
| Moment: | 14.4 Nm, 132 lb-in | Package preview: | |
| turn around: | reverse | Building materials: | cast iron |

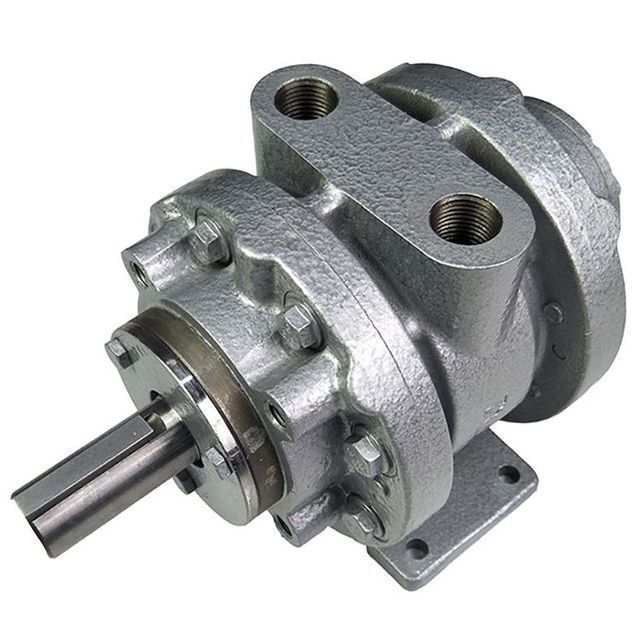

HX8AM-H 5.25hp pedal air motor, rotary vane air motor
Known throughout the industry for their rugged construction and reliability, Hongxin air motors are used in a variety of applications.
Lubricated air motors are available in seven basic sizes up to 9.5hp (7kw); motor speeds vary from 300 to 10,000rpm.
Choose from hub, foot, face, flange mounts and clockwise, counterclockwise or reversible rotation.
Four-blade and eight-blade models are also available.
Why should you know Hongxin air motor?
variable speed
Non-EDM
instant reversible
Parkour
Small and portable
minimal maintenance
won't burn out
low price
operate on all positions
low vibration start
self-sealing blade
installation flexibility
four or eight leaves
Long life accessories
typical application
mixing equipment
conveyor drive
pump drive
food packaging
Pharmaceutical Packaging
Cranes and winches
hose reel
Fiberglass Shredder
Tension device
turntable
Performance overview
|
vane air motor |
||||||||||
|
Model |
operating data |
Maximum torque |
||||||||
|
strength |
torque |
Rotating speed |
Air consumption |
Rotating speed |
torque |
|||||
|
life value |
kilowatt |
cow rice |
pound inches |
Rotating speed |
cubic meter/hour |
cubic meter |
Rotating speed |
cow rice |
pound inches |
|
|
HX1AM |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.60 |
|
HX1UP |
0.45 |
0.33 |
0.58 |
5.25 |
6000 |
47 |
27 |
500 |
0.68 |
6.00 |
|
HX2AM |
0.93 |
0.68 |
2.20 |
19.50 |
3000 |
49.5 |
30 |
350 |
3.05 |
26.10 |
|
HX4AM |
1.70 |
1.30 |
4.10 |
36.00 |
3000 |
132.5 |
78 |
300 |
6.3 |
56.00 |
|
HX6AM |
4.00 |
3.00 |
10.00 |
84.00 |
3000 |
228 |
128 |
300 |
13 |
115.00 |
|
HX8AM |
5.25 |
3.90 |
14.40 |
132.00 |
2500 |
293 |
175 |
300 |
twenty one |
185.00 |
|
HX16AM |
9.50 |
7.00 | 34 | 290 | 2000 | 475 | 275 | 300 | 43 | 372 |

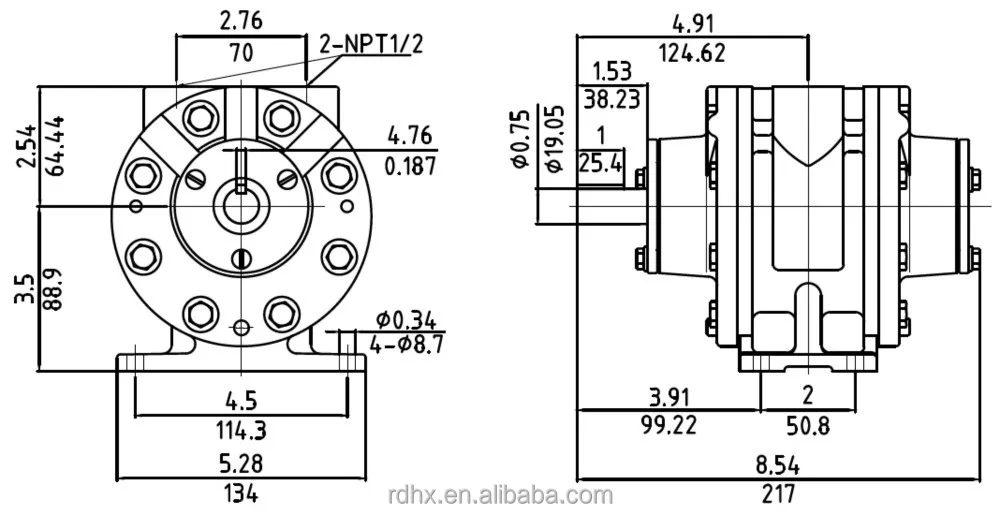

Horizon brand drawingsHX8AM-HVane air motor:

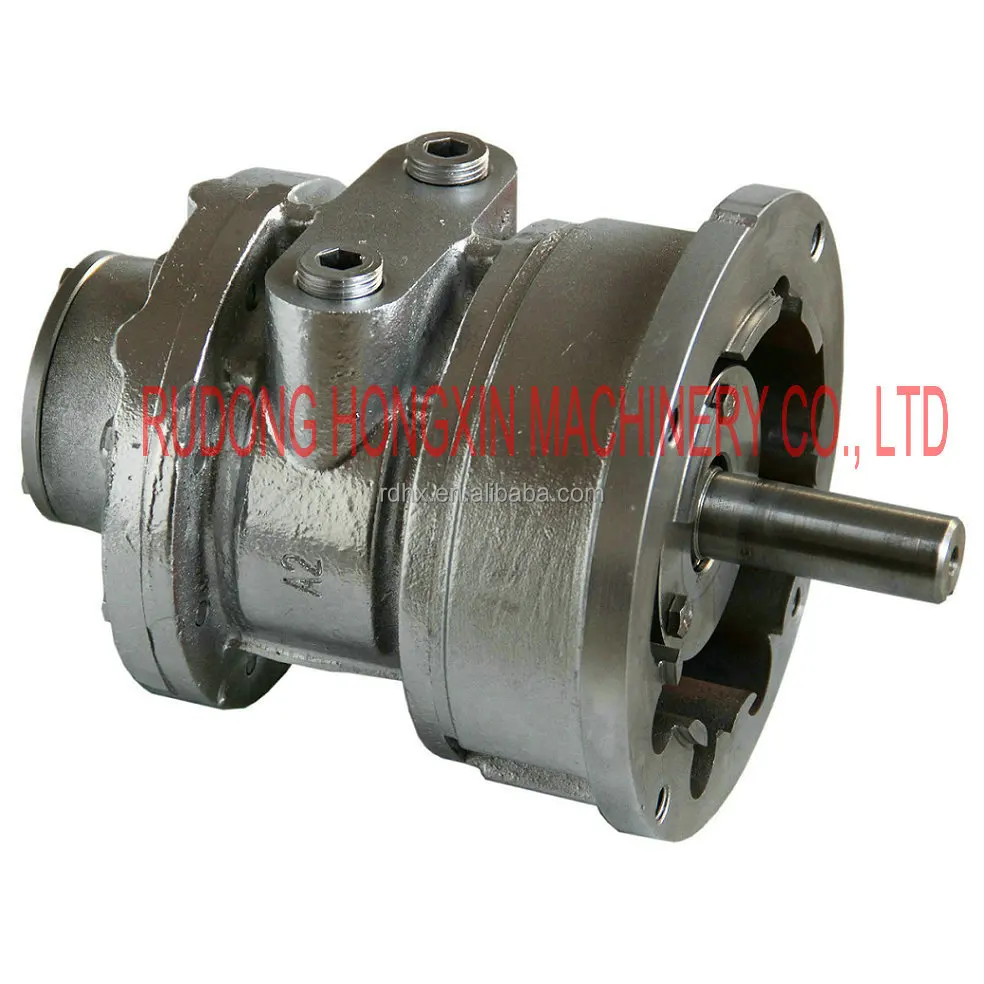

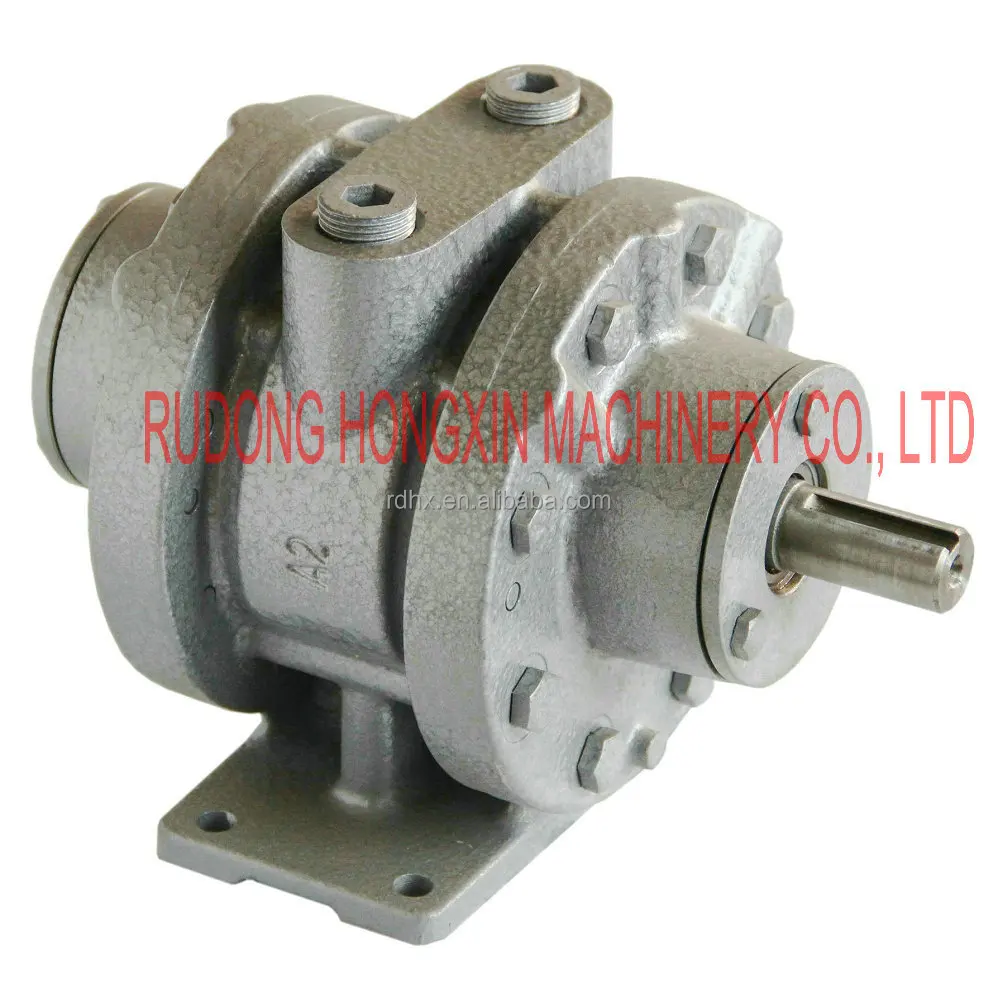

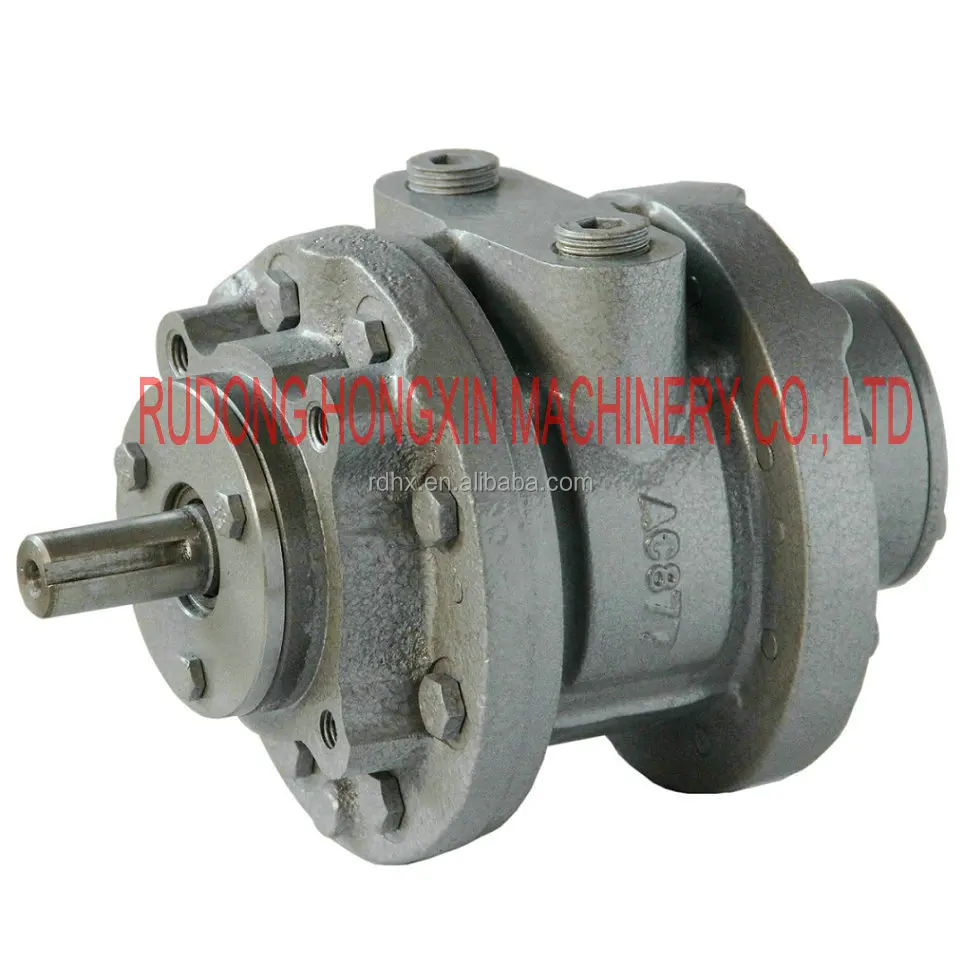

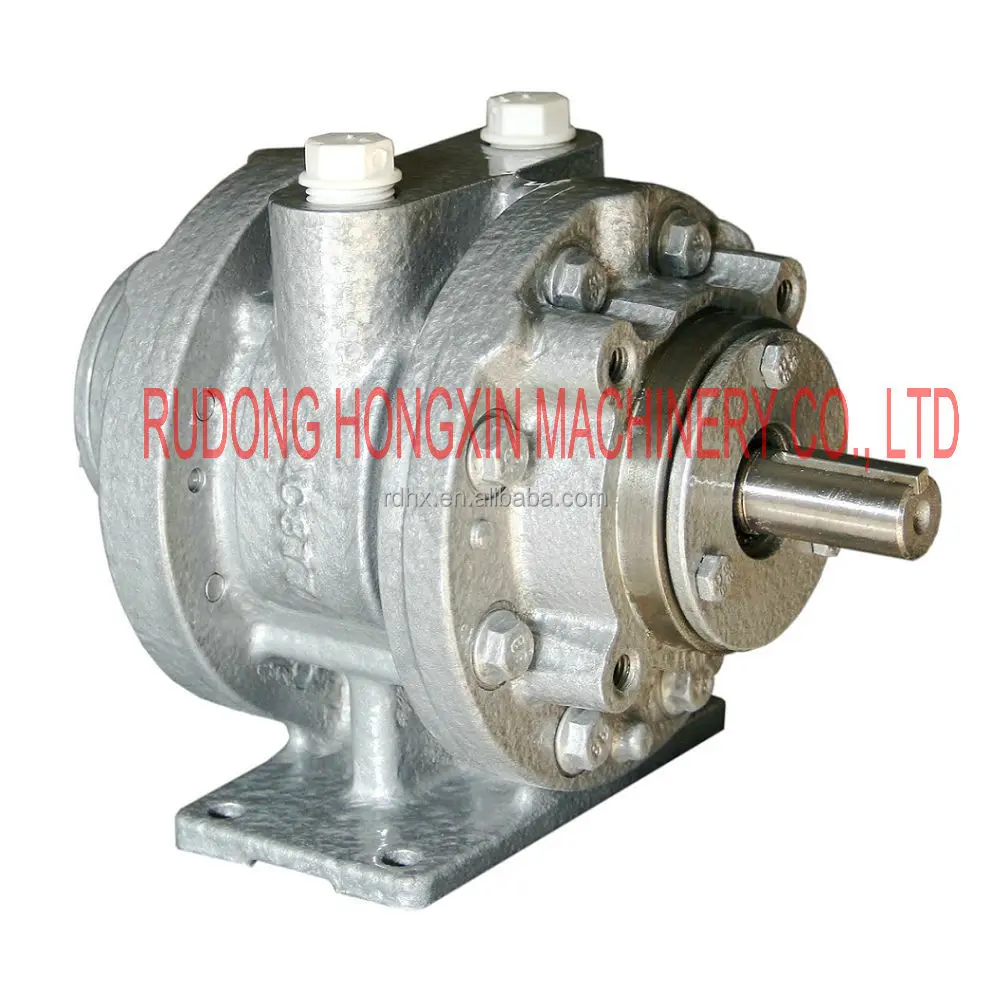

photos and drawings
HX8AM-H(GAST Model 8AM-FRV-2B) HX8AM-V(GAST Model 8AM-NRV-5B) HX8AM-HV
Foot Mount Surface Mount Foot and Surface Mount

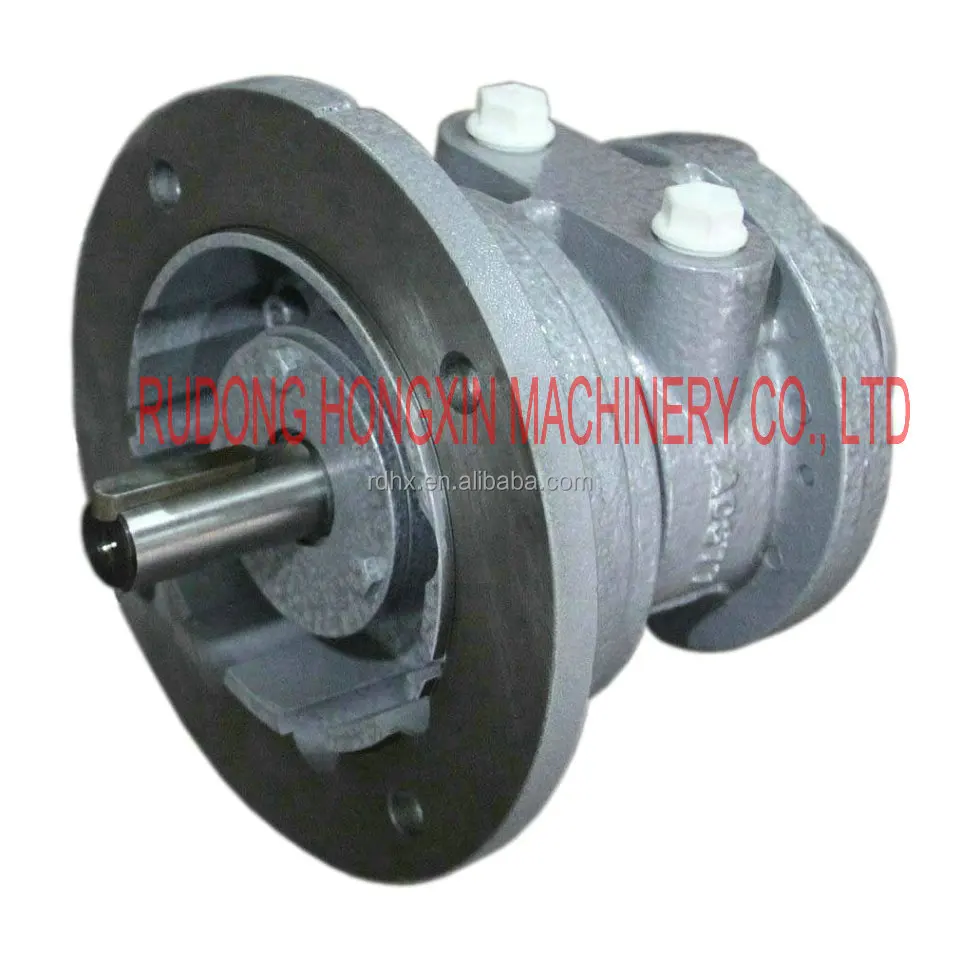

HX8AM-F114.3 (Gast model 8AM-NRV-28A) HX8AM-F130 (Gast model 8AM-ARV-70)
NEMA 145TC mount IEC #72 mount
