4mm carbon steel plate, stainless steel plate fiber laser welding machine welding
- $16800.00 / 1 - 98 sets
$6500.00 / >=99 sets - 1 set
- Wuhan Eeto Laser Equipment Co., Ltd.
- Hubei, China
- Ms Eva Chen
| payment terms: | L/C, Western Union, D/P, D/A, T/T | Marketing Type: | other |
| Applicable industries: | Building materials store, manufacturing plant, machinery repair shop, construction engineering, advertising agency | Packaging Details: | standard shipping packaging |
| Welding materials: | metal and nonmetal | Core component warranty: | 2 years |
| Certification: | StandardCE/ISO | Maximum Welding Depth: | 4mm |
| Supply capacity: | 500 sets per year | aspect: | according to actual specification |
| After-sales service 1: | free spare parts | Transmission fiber diameter: | 50~100um |
| Weight (kg): | 200 kg | Core components: | Motors, PLCs, pumps |
| Health status: | new | port: | Wuhan |
| Main selling points: | easy to operate | Mechanical test report: | not available |
| After-sales service 3: | On-site maintenance and repair services | usage: | metal and nonmetal |
| Video outbound inspection: | if | wavelength: | 1070nm |
| Origin: | Hubei, China | After-sales service 2: | On-site installation, commissioning and training |
| maximum. Output Power: | 1500W | cooling system: | water cooling |
| brand: | Eto | Warranty: | 2 years |
| Laser source brand: | IPG | Fiber Length: | 5, 10, 15m |
4mm carbon steel plate, stainless steel plate fiber laser welding machine welding
describe:

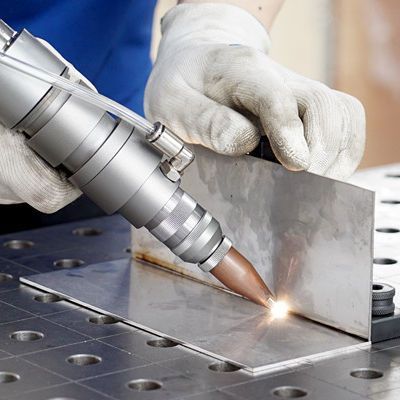

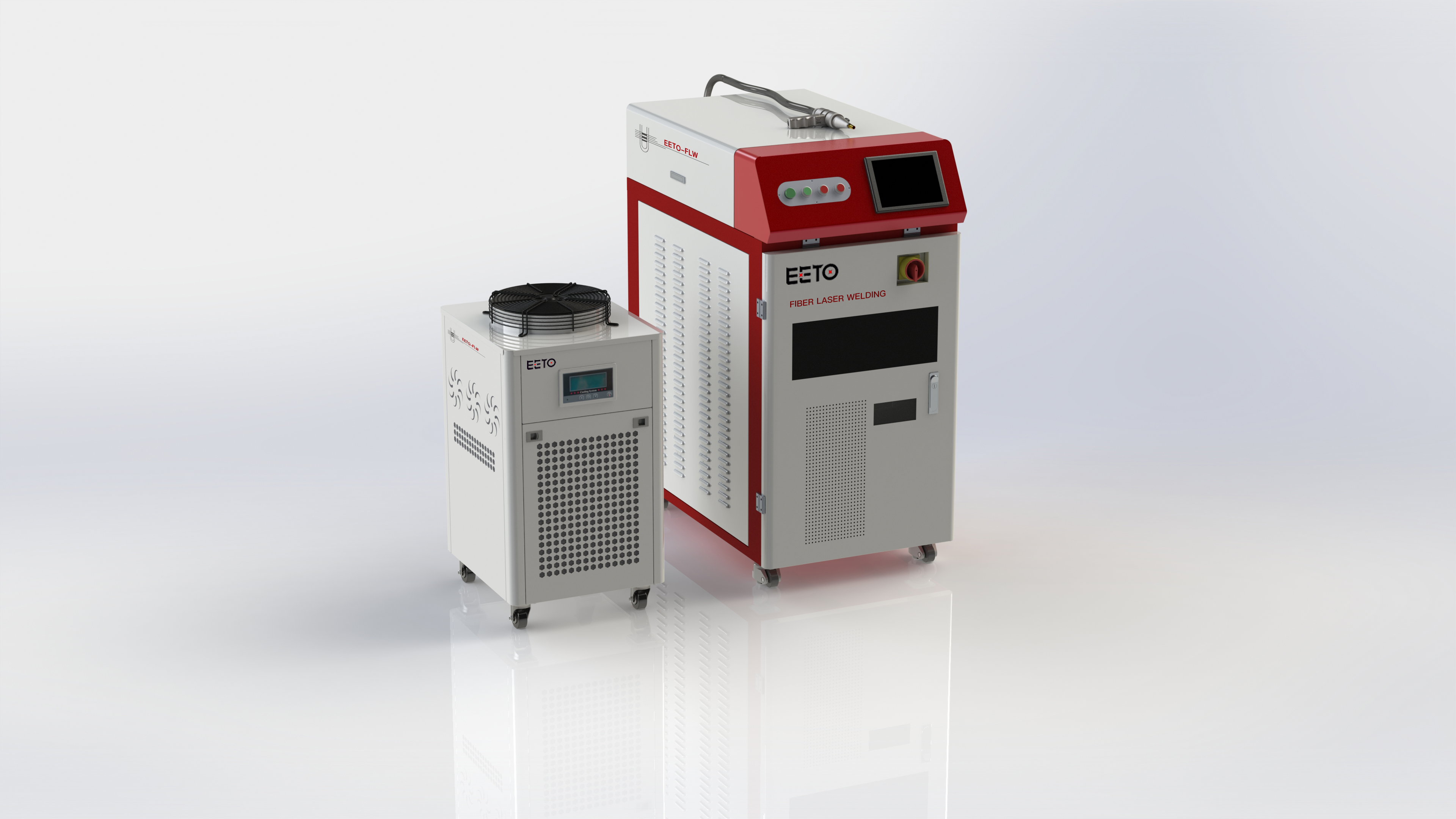

EETO-FLW series machines Hand-held production, easy to operate, suitable for all metal and non-metal materials, with a variety of power options. It features a detachable hand gun.
feature:
High precision, convenient operation, small size, flexible and convenient transportation
High electro-optical conversion efficiency and low energy consumption
Low consumable cost and low maintenance cost
Less heat-affected zone and heat distortion
Excellent human-computer interaction with high level of automation options
Minimal noise, minimal pollution, clean
Stable output power, can work in greenhouse or special conditions
Technical Information:
| Model | EETO-FLW series | ||
| laser source | IPG (Germany) | laser power | 1500W |
| Welding materials | metal and nonmetal | Welding thickness | 4 mm |
| laser mode | multimode | Laser wavelength | 1070nm |
| Operating mode | continuously | Unstable power supply | 3% |
| Transmission Fiber Diameter | 50 microns | Minimum spot | 0.2 mm |
| fiber length | 5, 10, 15m | Power adjustment range | 5~95% |
| cooling method | water cooling | power supply | 220V, 50/60Hz |
Applications and samples:
It is suitable for welding various metal characters, LED luminous characters, customized metal signs, and outdoor billboards.
Welding materials:
Stainless steel, carbon steel, titanium, aluminum, galvanized sheet, gold, silver, brass, etc.
FAQ:
Q: What is the laser power of your fiber laser welding machine?
A: Our laser power ranges from 300-4000w, capable of processing different metals with different thicknesses
1. Small power 300W, 500W, 700W, 750W, 1000W, can weld metal below 2mm
2. Medium power 1500W, 2000W, can weld steel below 4mm
Q: What materials can we weld? What is the welding thickness of the fiber laser welding machine?
A: Fiber laser welding machine can weld metal materials, includingCarbon steel/stainless steel/aluminum/galvanized sheet, but highly reflective materials are limited to fiber laser welding, such asBrass/Silver/Bronze, if you have such materials to cut, please contact us for professional advice
Second: Depending on the laser power, the welding thickness is from 0.5mm to 4mm.
Q: If there is a problem with the machine when the customer uses it, how to provide after-sales service?
A:Guaranteed two-year warranty (except consumables). If there is any problem during the warranty period, you can contact us at the first time, we provide 24-hour online service, professional engineers are at your service, if you need to replace parts, we will send them by free express to ensure the highest efficiency.
