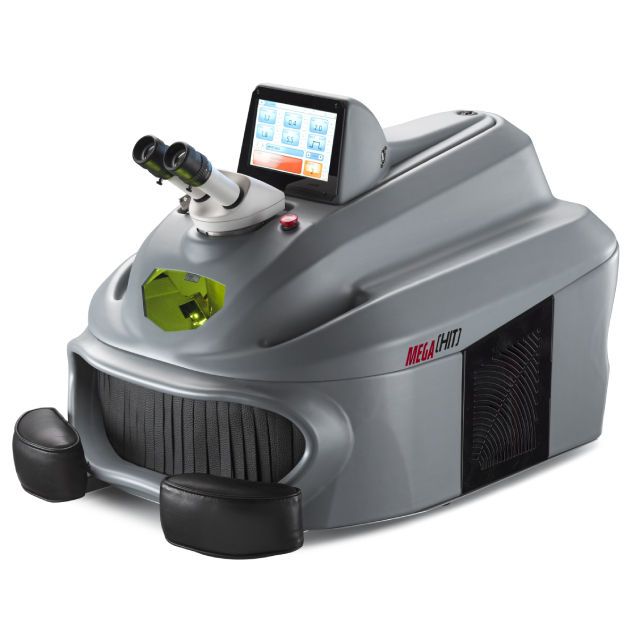

MEGA-HIT 100J Laser Welding Tabletop for Jewelry Goldsmiths Made in Italy and Desktop Workstation for Watches and Jewelry
- $13500.00 /unit
- 1 unit
- Elettrolaser srl
- Verona, Italy
- Mr Murari
PRODUCT DETAIL
After Warranty Service: | online support; | Weight (kg): | 35 kg; |
Focus diameter: | 0,1 (optional) 0,2 to 2 mm; | Showroom location: | Italy; |
brand: | electronic laser; | Main selling point: | easy to operate; |
State of health: | new; | Single pulse energy: | 100J; |
Marketing Type: | normal product; | maximum.Output Power: | 95W; |
payment terms: | wire transfer; | After-sales service provided: | online support; |
Mechanical test report: | if; | Packaging Details: | Wooden box or cartoon box; |
Applicable industries: | Jewelry, Dentistry, Goldsmiths, Orthodontics, Auto, Mould Repair, Mould Repair; | Core Components Warranty: | Not available; |
wavelength: | 1064 nm; | usage: | jewelry industry; |
Certification: | Chief Executive; | Core components: | lamp, pole; |
Laser source brand: | electronic laser; | Warranty: | 3 years; |
Origin: | Italy; | Video external inspection: | Not available; |
aspect: | 50x85x50 widexdxh; | Laser head brand: | electronic laser; |
Pulse Width: | 20ms; | Control system brand: | electronic laser; |
product description
super popular
This machine is suitable for factories and laboratories with medium/large production.Available in 100, 120 and 140 joule versions, it can also be used for welding small and large objects thanks to its large welding chamber.Very attractive design, it is equipped with a dual cooling system that can be used even in hot tropical environments without creating heat blocks.MEGA-HIT can be equipped with a 3D VISION system for a stereoscopic view of the weld zone.In addition to significantly reducing the operator's line of sight, this promotes working posture by optimizing the ergonomics of the system.In the 140J version, even silver soldering is no problem.
Function list
7" Color Touch Screen Display 100 Memory Storage Units Named Leica Stereo Microscope 10x High Brightness Shutter LCD Internal Joystick in Welding Chamber Powerful LED Lights Lightweight and Small Integrated Camera Data Logger Web Interface No Water Filling Required
Human-machine interface display
Dual cooling system
Leica Microscope
Laser source and wavelength | Neodymium: YAG 1064 nm |
average power | 95W |
peak power | 5kW |
vitality | 100J |
pulse time | 0,1 ÷ 20 ms |
Pulse frequency | 0,5 ÷ 30 Hz |
spot diameter | 0,2 ÷ 2,0 mm |
Field setup | motorized |
wave plan | Pulse shaping 6 presets |
memory cell storage | 100 |
Internal room control | joystick |
external control | 7'' color touch screen |
input power | 230 VAC, 50/60 Hz |
