50-630mm R type PVC pipe flare/socket mold

PRODUCT DETAIL
Sales unit:single productGross weight per piece:30.000 kg
Showroom location:Egypt, Mexico, MalaysiaWarranty:1 year
Health status:newPackaging Details:Wooden box or according to customer's requirement
Applicable industries:Building materials store, factoryfacility:CNC, Grinding, Milling, Lathes, EDM
Dimensions (L*W*H):50x30x80cmProcessing type:Pipe Flaring Machine
Formwork:LKM/DME/HASCO/FUTABA etc.Origin:Jiangsu, China
Video shipment inspection:ifweight:30
Single package size:50X40X40 cmMarketing Type:2022 design
Power (kW):20 kWCore components:Flare core
Quality Certification:ISO 9001:2000Applies to:PVC pipe
brand:TairongDrawing file:PROE/UG/AutoCAD/Solidwork, etc.
Core component warranty:1 yearDie steel:P20/H13/718H/impax etc.
Voltage:380VProduct Category:plastic pipe
Main selling points:long lastingMechanical test report:if

Tairong Machinery

Best Quality PVC Pipe Socket Mold





Model Diameter (mm) Total power(kw) Shaped cooling Total weight(kg)
SGK5016 Φ20-Φ63 5 Flat Forming & R Forming

water cooling 3000
SGK2063 Φ50-Φ200 8 Flat Forming & R Forming

air cooling 2500
SGK2063 ΦΦ50-Φ200 10 Flat Forming & R Forming

air cooling 4000
SGK2550 Φ50-Φ250 12 Flat Forming & R Forming

water cooling 4000
SGK4020 Φ160-Φ400 twenty two Flat Forming & R Forming

air cooling 6000
SGK6330 Φ315-Φ630 36 Flat Forming & R Forming

water cooling 8000
SGK5020 Φ200-Φ500 27 Flat Forming air cooling 5500
SGK6725 Φ180-Φ675 36 Flat Forming water cooling 7500
SGK8050 Φ500-Φ800 42 Flat Forming air cooling 6800



feature:


1. Used for flaring of PVC, PE, PP-R pipes, UHMW PE pipes and other plastic pipes.
2. An important auxiliary machine of the pipe extrusion production line, which can work alone or as a part of the extrusion production line.

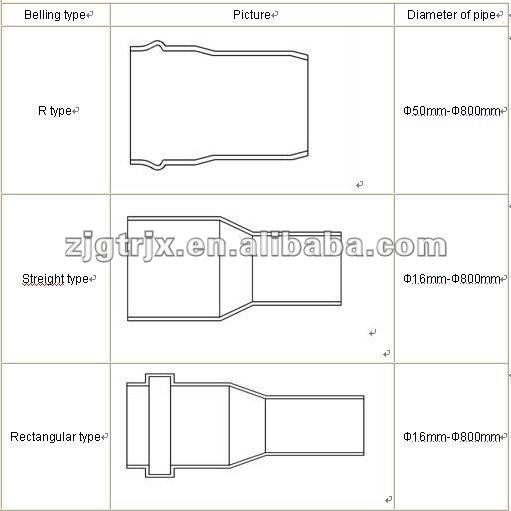

3. Enlarged Solvent Receptacle (Straight Type) and Expanded Stretch Sealed Receptacle (R Type and Rectangular Type)

4. The expansion method is convenient to choose, and the process adaptability is strong. It has the advantages of reasonable structure, beautiful appearance, advanced technology, convenient operation, and full process automation.





U-shaped expansion die

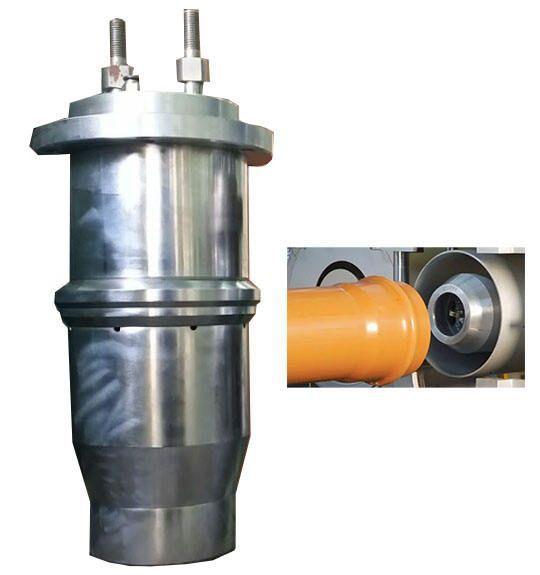

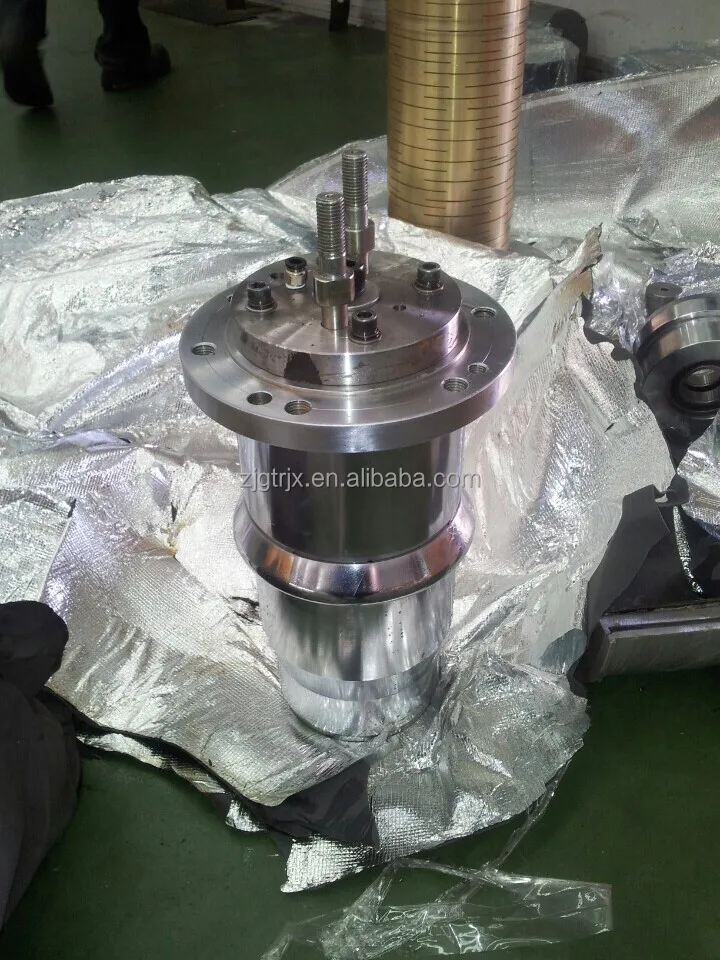

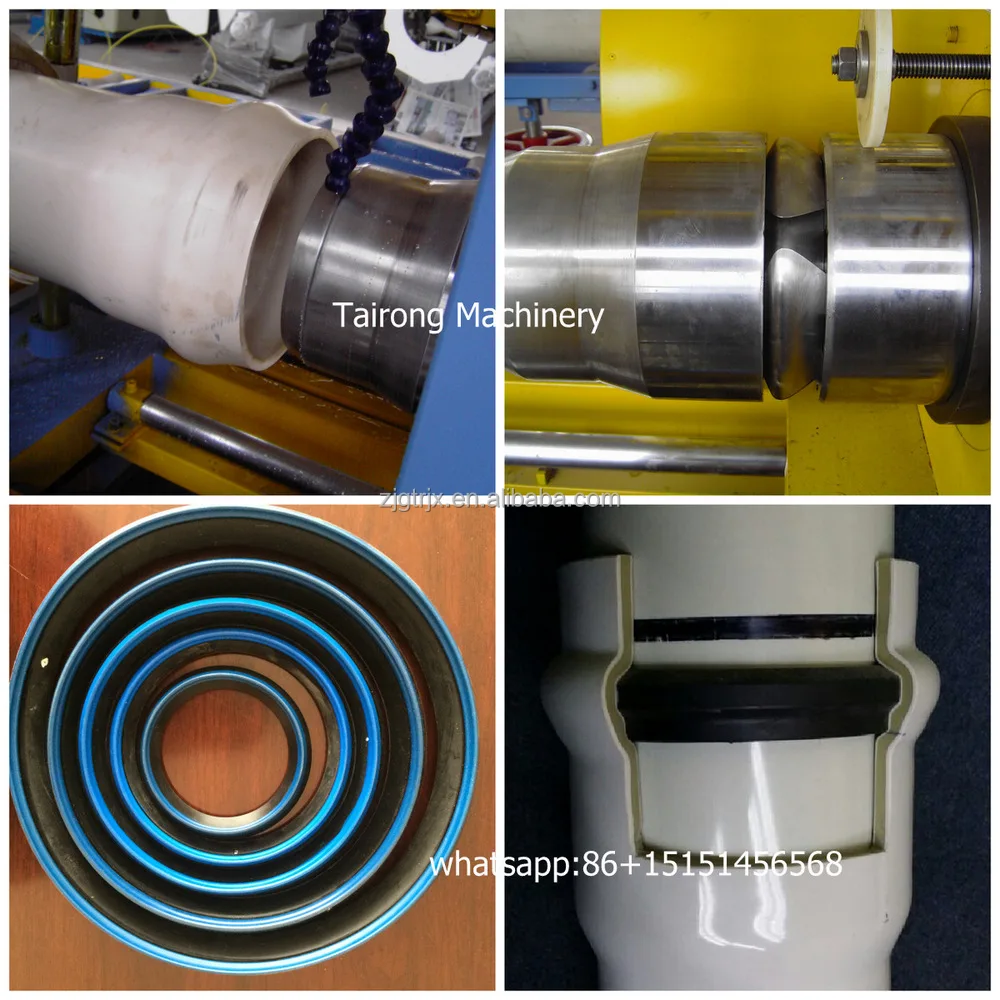

R type expansion die

andR type O type seal

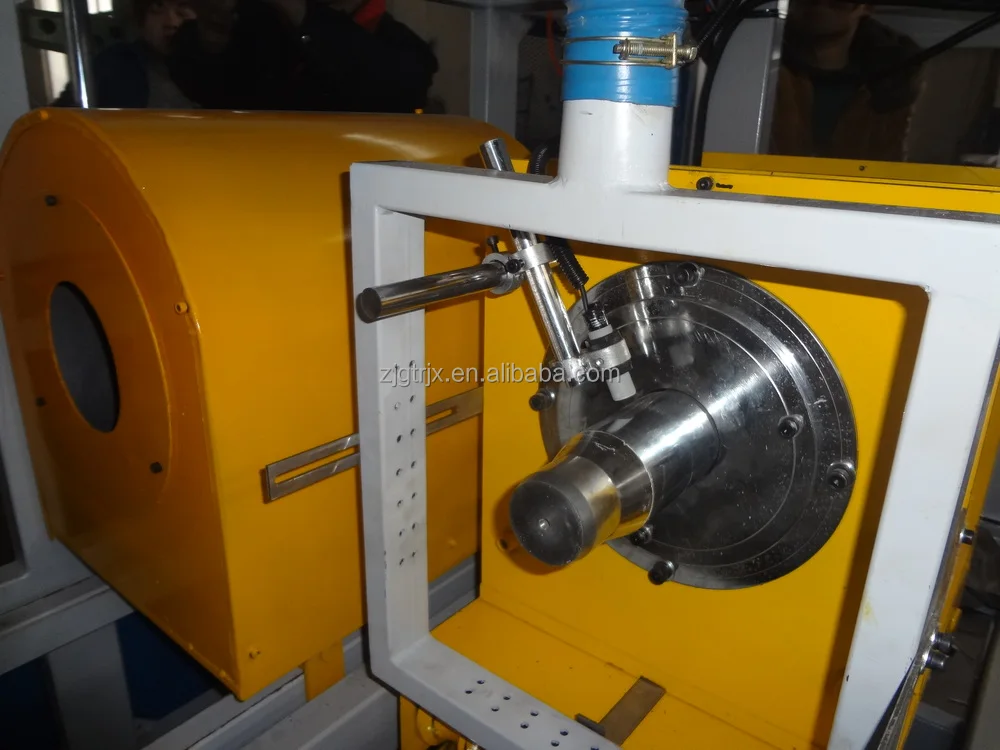

 Square flaring die test

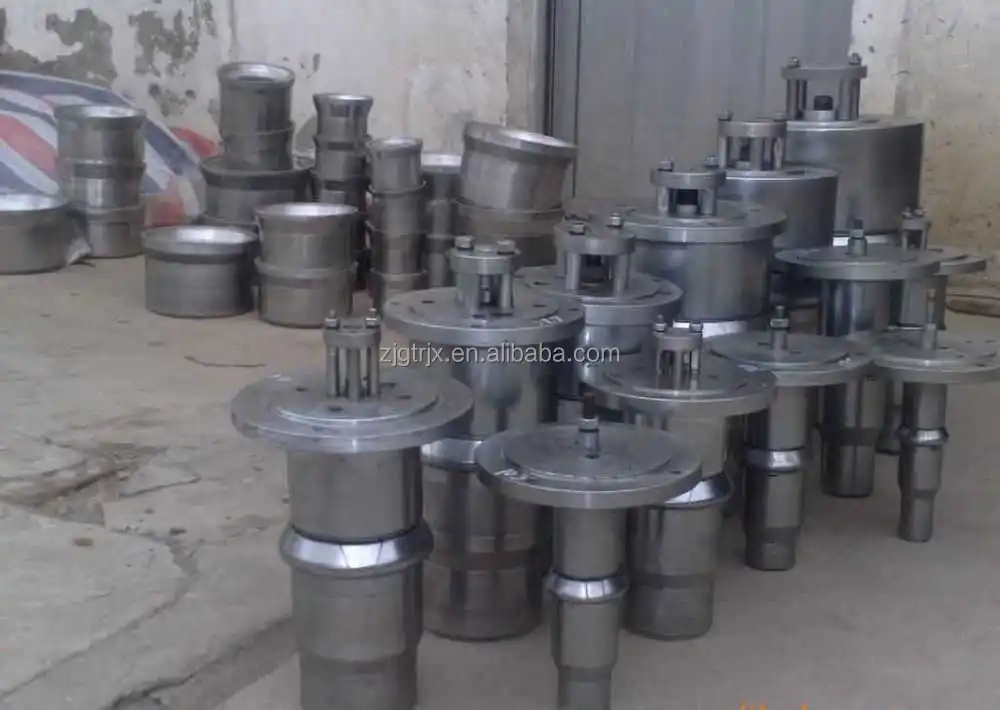

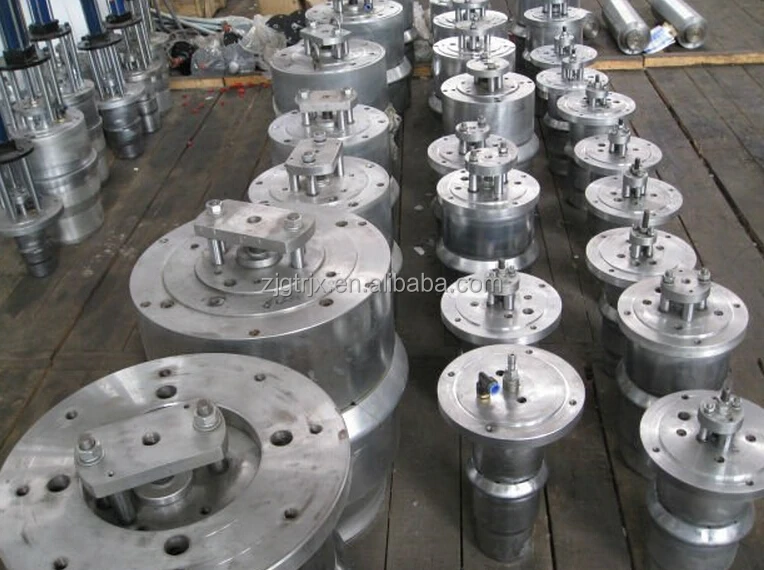

Factory ready mold



If you have any questions, welcome to contact us as soon as possible. Thanks.
