Plastic pipe flaring machine PVC pipe flaring machine
- $3500.00 /set
- 1 set
- Zhangjiagang Huaming Machinery Co., Ltd.
- Jiangsu, China
- Mr Steven Chen
| Main selling point: | long lasting | Marketing Type: | normal product |
| Health status: | new | payment terms: | wire transfer |
| Local service location: | not any | weight: | to see |
| place of origin; place of origin: | Jiangsu, China | Supply capacity: | 100 sets per year |
| After Warranty Service: | Video technical support, online support | Applicable industries: | manufacturing plant |
| Packaging Details: | Standard export packaging | Product Category: | Tube Flaring Machine |
| Core Components Warranty: | 1 year | Dimensions (L*W*H): | to see |
| Mechanical test report: | if | Core components: | motor |
| Certification: | ce | Voltage: | 380v/50hz/3 phase |
| brand: | Hua Ming | Processing type: | Flaring machine |
| Warranty: | 1 year | Showroom location: | not any |
| strength: | 15-32kw | After-sales service provided: | Video technical support, online support |
| port: | Shanghai | Video external inspection: | if |

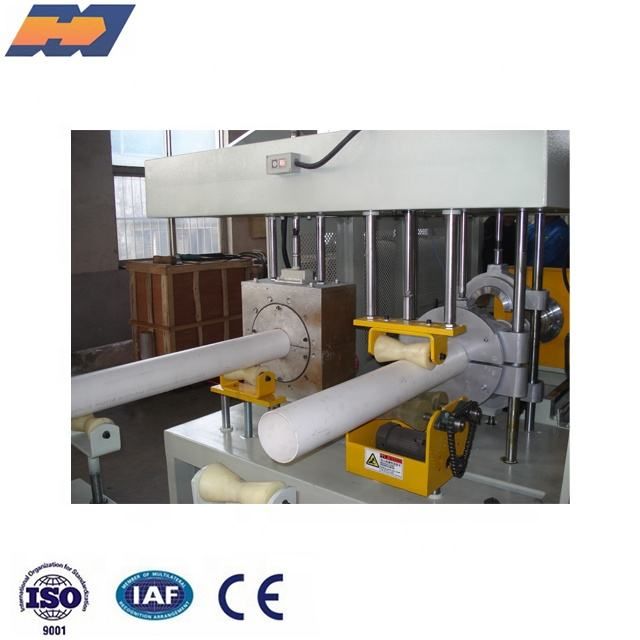

Plastic pipe flaring machine PVC pipe flaring machine
| introduce: |
The PVC pipe expander is used to expand the plastic UPVC pipe. The machine can be used for the entire production line after auxiliary machines such as conical twin-screw extruders. The flaring machine can flaring pipe into two types: R-type and U-type pipe. It can be used for flaring drainage and water supply pipes of various sizes. After the PVC pipe is formed, it is cooled by strong wind or water, and the pipe shape is not easily deformed. The entire processing process requires no manual operation.
Advantages of PVC Pipe Expander:
1) Suitable for R-type and U-type plastic pipes. The flaring range is 50-630mm.

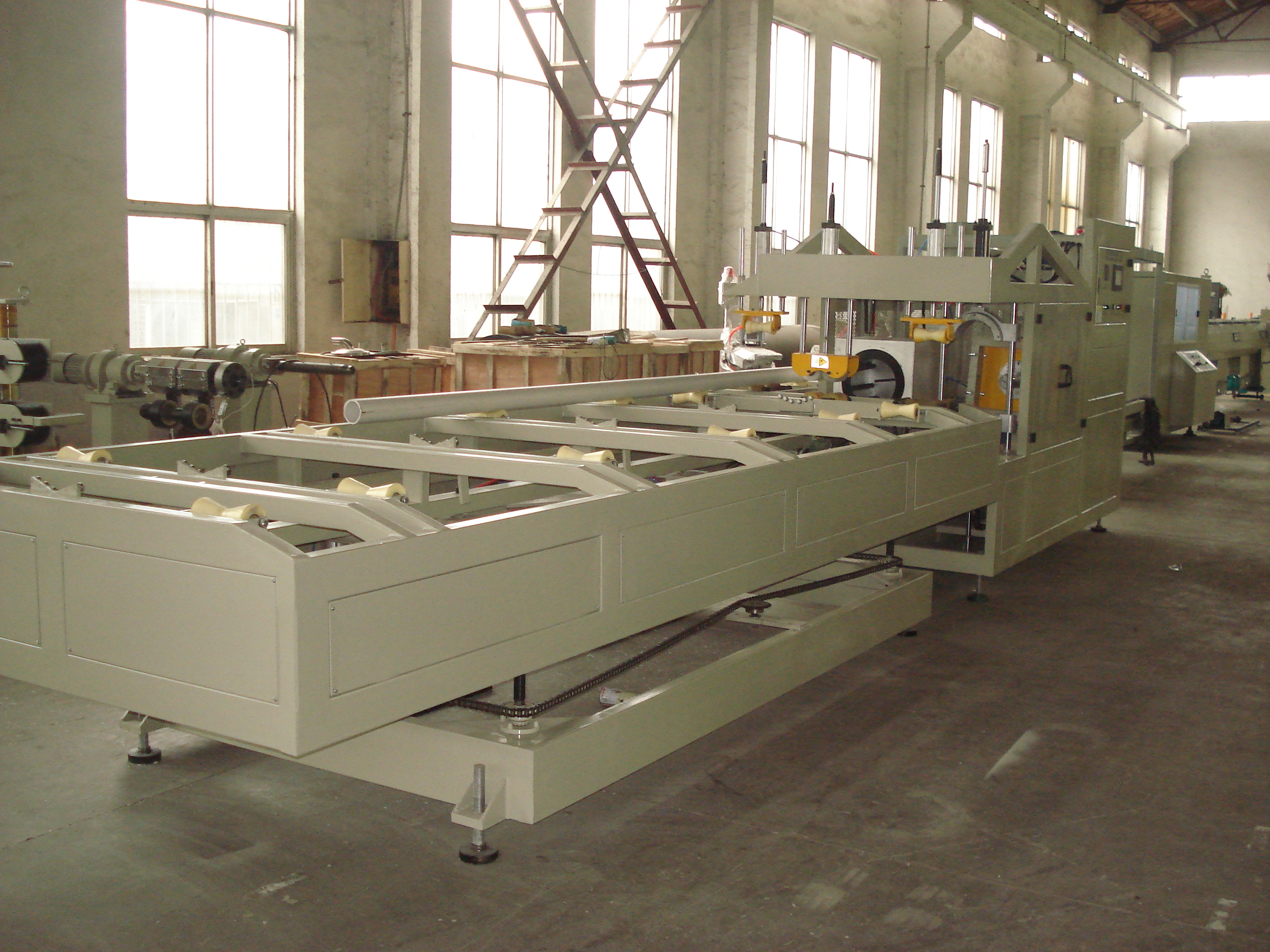

2) It can be used together with the pipe production line or alone.
3) The characteristics of this machine are fully automatic, stable and reliable, and easy to operate.
4) The inside of the mold is calibrated with vacuum, and the outside is forced air cooling/water cooling.
Technical parameters of PVC pipe expander:
|
Model |
SGK75 |
SGK160 |
SGK250 |
SGK315 |
SGK630 |
|
Pipe range (mm) |
16~75 |
50~ 160 |
50~250 |
110~315 |
315~630 |
|
Total Power (kW) |
15 |
18 |
18 |
20 |
32 |
|
Expansion way |
R type or U type |
R-shaped or U-shaped |
R type or U type |
R-shaped or U-shaped |
R-shaped or U-shaped |
|
Dimensions (mm) |
7460*1950*1900 |
6900*1420*2000 |
7300*1660*1920 |
8200*1750*1850 |
8420*2970*2650 |
