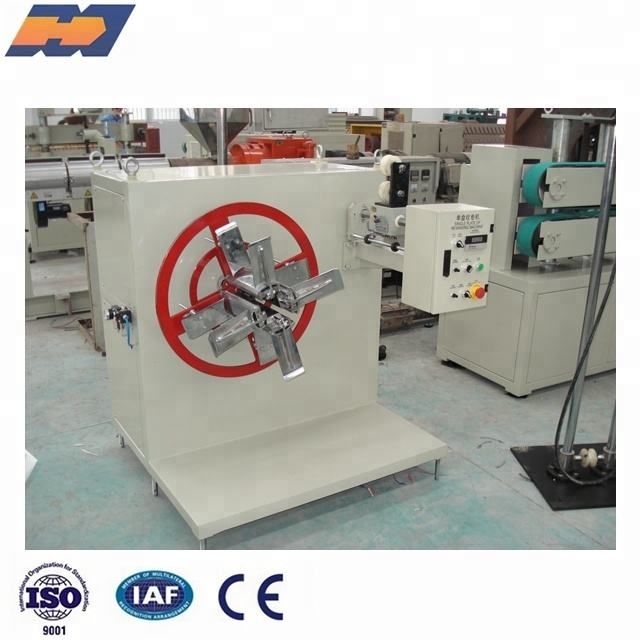

Single Coil Winding Machine Coiler Motor Winding Machine
- $4000.00 /set
- 1 set
- Zhangjiagang Huaming Machinery Co., Ltd.
- Jiangsu, China
- Mr Steven Chen
Warranty: | 1 year | brand: | Hua Ming |
Health status: | new | Spool capacity: | Diameter 110mm |
Supply capacity: | 5 sets of pipe winding machines per month | payment terms: | Western Union, T/T, MoneyGram |
Packaging Details: | Standard Packing - Wooden Case | strength: | 11kW |
Applicable industries: | other | Video external inspection: | if |
port: | Shanghai Port | place of origin; place of origin: | Jiangsu, China |
Core components: | motor | application: | Pipe winding |
Inner diameter range: | 30-60mm | Voltage: | 220V/380V/415V |
Showroom location: | not any | Marketing Type: | normal product |
Arrange width: | 360-560mm | category: | Other plastic processing |
Outer diameter range: | 10-250mm | After-sales service provided: | Video technical support |
Core Components Warranty: | 1 year | Dimensions (L*W*H): | 2800*900*1000mm |
Main selling point: | easy to operate | weight: | 600 |
Mechanical test report: | Not available |

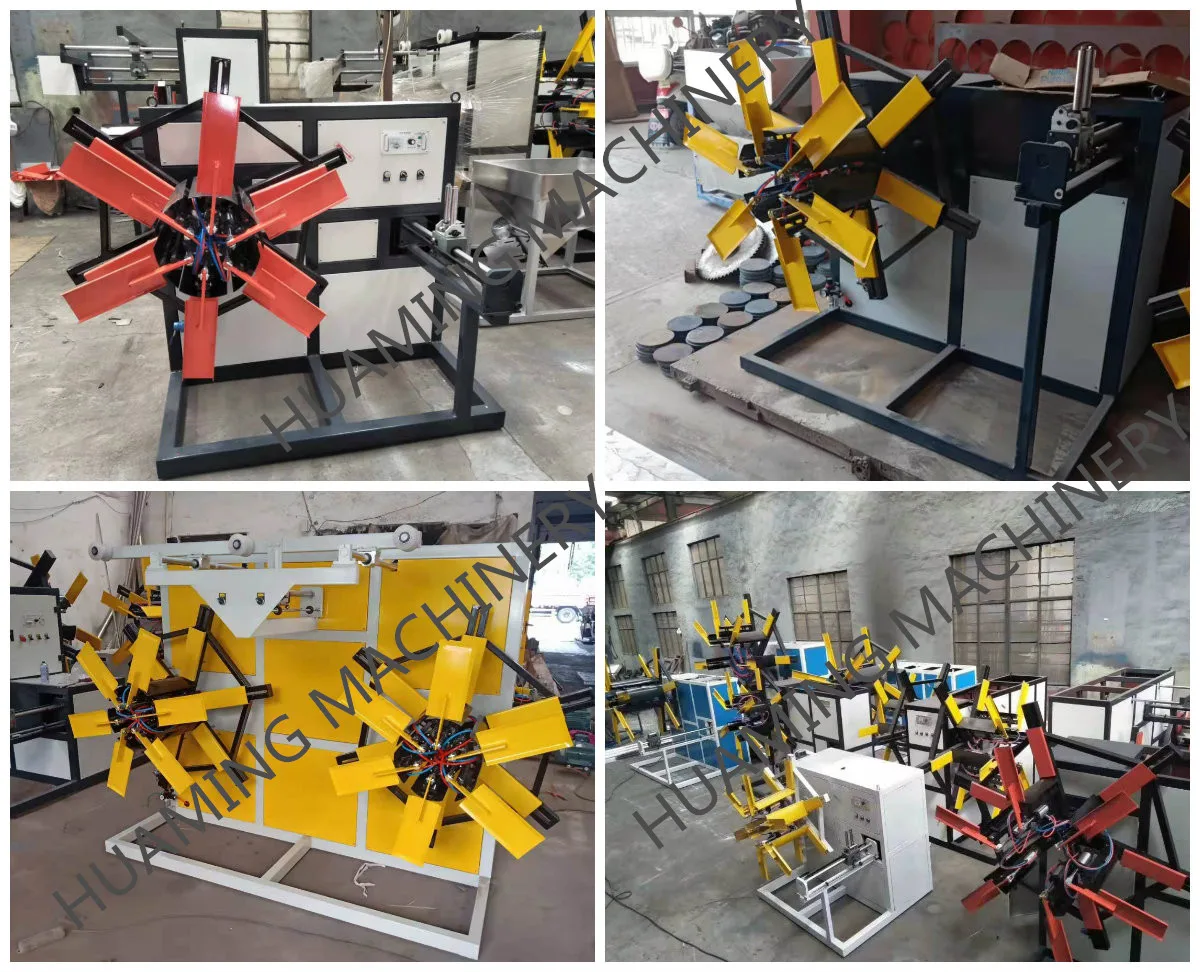

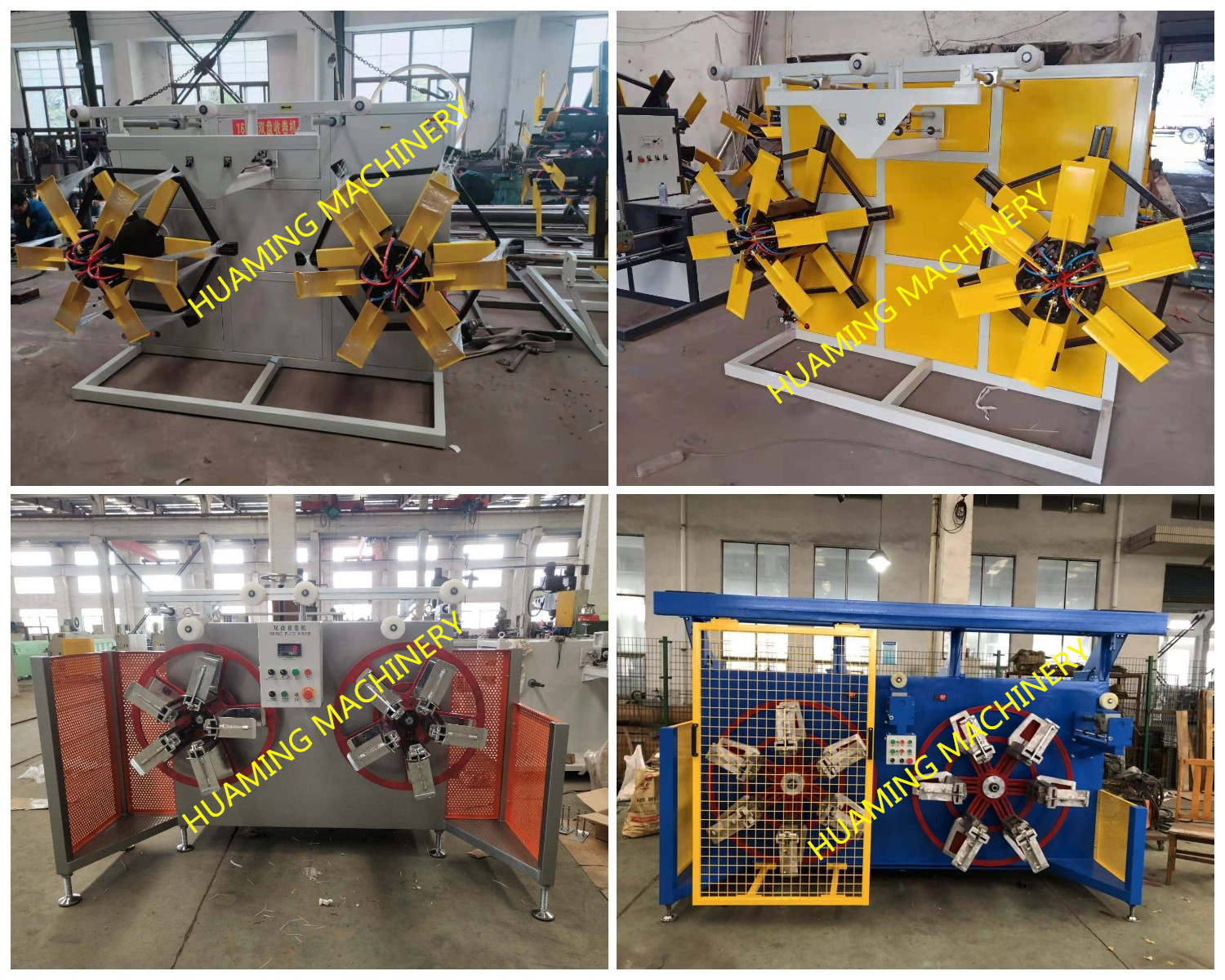

This machine is mainly used for winding and packaging of aluminum-plastic composite pipes, cross-linked composite pipes and other plastic hoses. Automatically adjust the winding speed and winding method. It has two disks for continuous winding. Pneumatically. The rib of the rewinding wheel adopts pneumatic opening and closing. It is equipped with a ray creel holder for automatic ventilation. It winds up methodically. The machine is compact. high degree of automation. Beautiful appearance and easy operation.Main technical standards:
Model | SPS280 | SPS400 | SPS700 |
winding diameter | 280mm | 400mm | 700mm |
Winding speed | 0.5-15m/min | 0.5-15m/min | 0.8-8m/min |
Winding width | 220mm | 300mm | 500mm |
Coiled Pipe Specifications | 12-16mm | 14-32mm | 14-63mm |
air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
physical dimension | 2100x1000x1400mm | 2500x1150x1450mm | 4350x2100x2315mm |
weight | 7000kg | 1000kg | 1500kg |
we can alsomanufacture variousWinding machineAccording to customer requirements.
Other machines you might like:
You can click on the image for more information.
PS Frame Profile Extrusion Line |

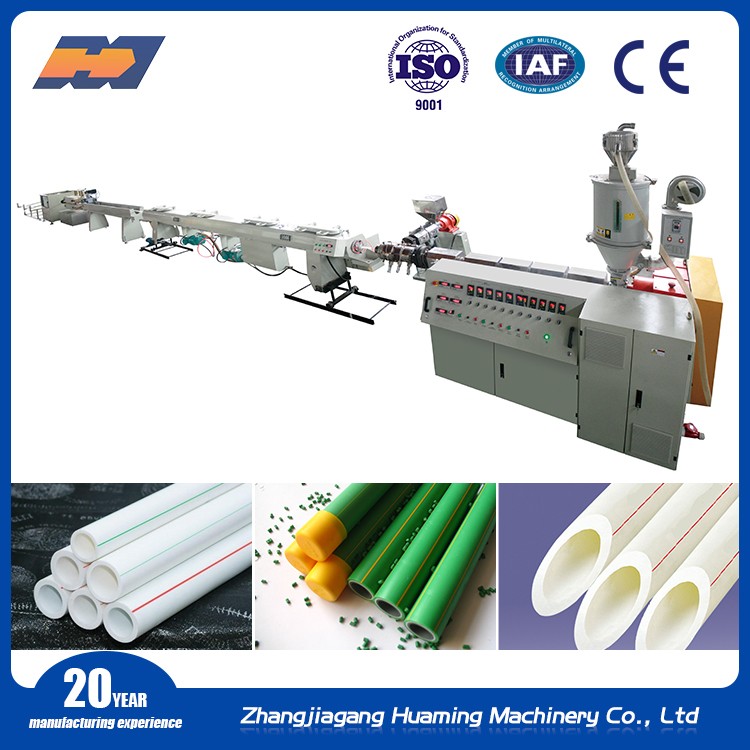

PPR Pipe Extrusion Line |
