50 liter, 100 liter batch milk pasteurizer

PRODUCT DETAIL
Sterilization time:20-50 minutesMain selling points:easy to operate
Core component warranty:1 yearDimensions (L*W*H):Based on product capacity
brand:Chun NobelOrigin:Jiangsu, China
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramcapacity:50L-2000L
weight:200 kgKey words:50L Milk Pasteurizer
Voltage:380V/50HZ/3 phaseport:Shanghai Port
Warranty:1 yearShowroom location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
product name:50 liter, 100 liter batch milk pasteurizerstrength:Based on product capacity
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpPackaging Details:wooden box
Marketing Type:New Products 2020Health status:new
Package preview:Mechanical test report:if
Video shipment inspection:ifSterilization temperature:65-99 (adjustable)
Function:Water-cooled milk pasteurizerApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Food and Beverage Factories, Farms, Home Use, Retail, Food Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
heating method:Steam heating/electric heatingKey words:100 liter milk pasteurizer
Material:304 stainless steelapplication:Pasteurization of milk and other liquids
Supply capacity:50 sets per month
Product Description
50 liter, 100 liter batch milk pasteurizer
The small batch pasteurization machine is mainly used for the sterilization and disinfection of dairy products such as fresh milk, yogurt, goat milk, camel milk, fruit juice, beverages, etc. It can also be used for the sterilization of beer, egg liquid, honey and other liquids. The main principle is the principle of pasteurization, that is, low-temperature sterilization, that is, the milk is sterilized at no more than 100°C, and the pasteurization retains the beneficial bacteria in the milk while killing harmful bacteria such as E. coli.
detailed image

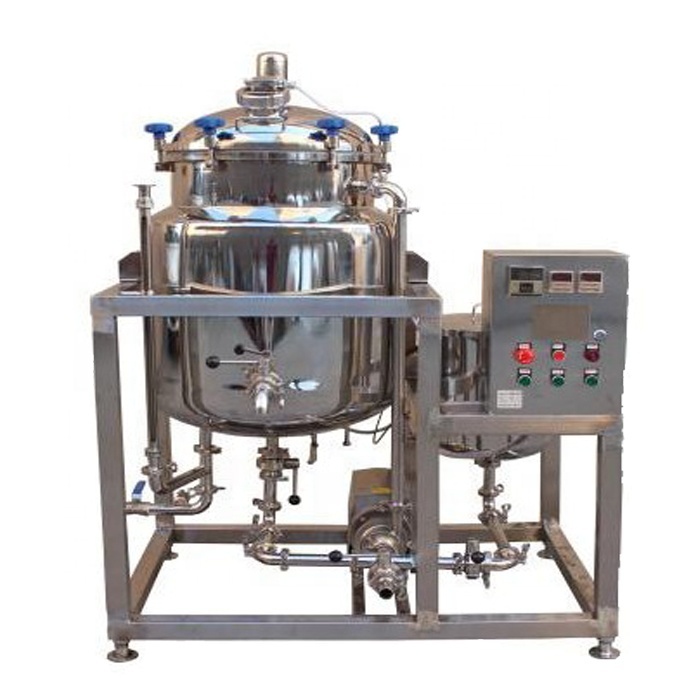

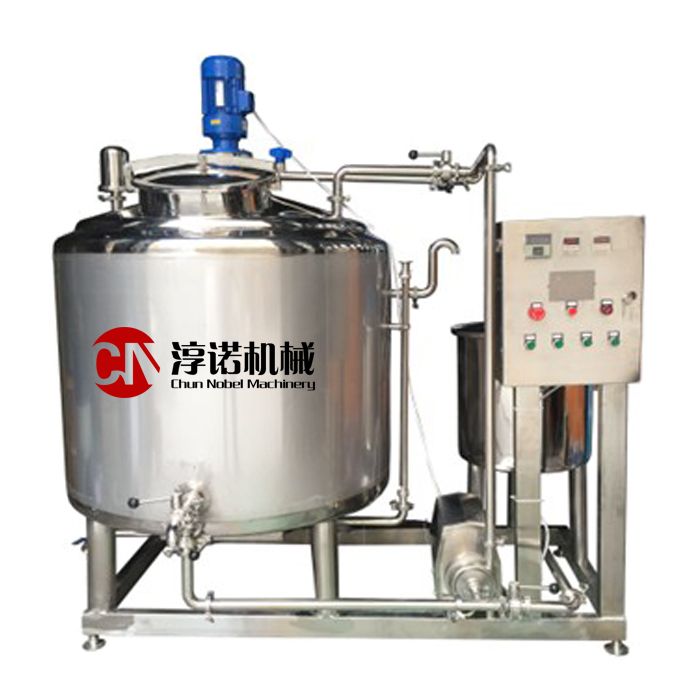

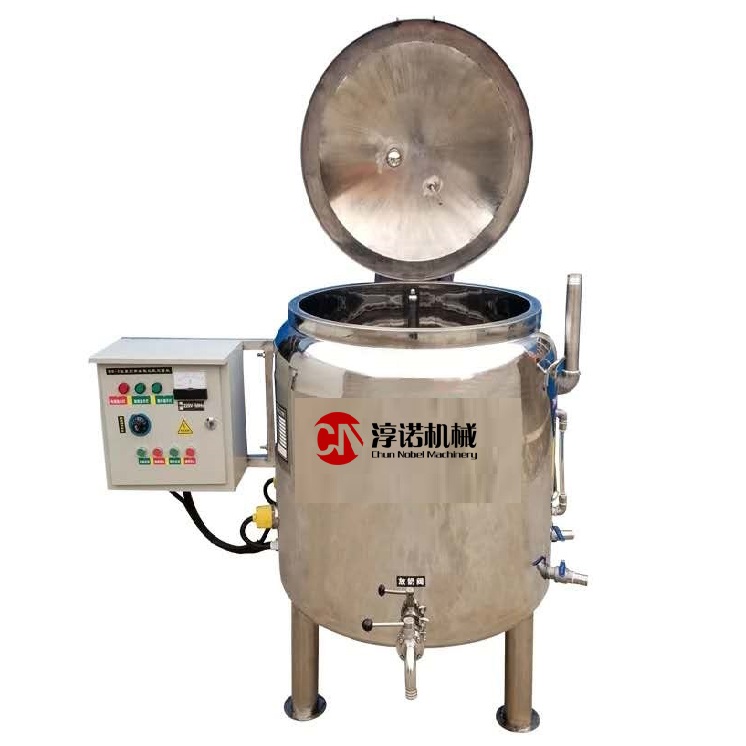

1.50L, 100L milk pasteurization machine is composed of tank body, agitator, heating jacket, supporting transmission device, shaft seal device, etc. The tank body, agitator, shaft seal, electric heating device, etc. are all made of 304 stainless steel.
2. The tank body is connected with the tank cover; there is a feeding hole at the bottom of the tank body, and a stirrer is installed in the machine.
3. The heating jacket has feeding, temperature measurement, vent valve, electric heating rod, etc.
Size Information
This design size chart
Model
BSG-50L
BSG-100L
BSG-150L
type
water cooling
Cooling system
Cooling system
capacity
50L
100L
150L
strength
6KW
6KW
9KW
Voltage
380V/50HZ/3 phase
380V/50HZ/3 phase
380V/50HZ/3 phase
thickness
1.5mm
1.5mm
1.5mm
heat source
gas/electricity
gas/electricity
gas/electricity
Sterilization time
20-50 minutes (adjustable)
20-50 minutes (adjustable)
20-50 minutes (adjustable)
Sterilization temperature
65-99 degrees Celsius
65-99 degrees Celsius
65-99 degrees Celsius
size
580*580*1100mm
650*650*1200 mm
730*730*1250mm
stirring speed
30 rpm
30 rpm
30 rpm
