small tunnel pasteurizer / milk pasturizer / batch pasteurizer machines and prices

PRODUCT DETAIL
Local Service Location:None;Key Selling Points:High Productivity;
Certification:CE;Temperature:65-90°C;
After-sales Service Provided:Online support;Dimension(L*W*H):1400*800*1550;
Video outgoing-inspection:Provided;After Warranty Service:Online support;
Packaging Detail:Tube Milk Pasteurization Machine for Milk Machinery Industry Packed in wooden case packing case.;Warranty of core components:2 years;
Showroom Location:None;Product name:milk pasturizer / batch pasteurizer machines and prices;
Function:milk pasteurizer;Machinery Test Report:Provided;
Warranty:2 years;Marketing Type:Hot Product 2019;
Supply Ability:300 Sets per Month;Applicable Industries:Hotels,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Retail,Food Shop,Food & Beverage Shops,Other;
Place of Origin:China;Port:Qingdao,Tianjin,Shanghai,Guangzhou;
Heating method:Electricity;Condition:New;
Core Components:Engine;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade assurance;
Package Preview:;
Application of Hot selling milk pasteurizer.
1. For certain foods, especially milk, whole eggs, egg whites and egg yolks, pasteurization is mainly to destroy possible pathogenic bacteria, such as Mycobacterium tuberculosis and Salmonella. 2. Most foods, such as beer, fruit wine (wine) and fruit juices, are pasteurized for the purpose of extending the shelf life of products from the perspective of microorganisms and enzymes. 3. Pasteurization technology is not only used for liquid foods (juice, milk), acidic foods and canned jams, etc., but also penetrates into other areas. For example, steam treatment when processing shelled oysters will reduce the bacterial count of oysters.
Product Description

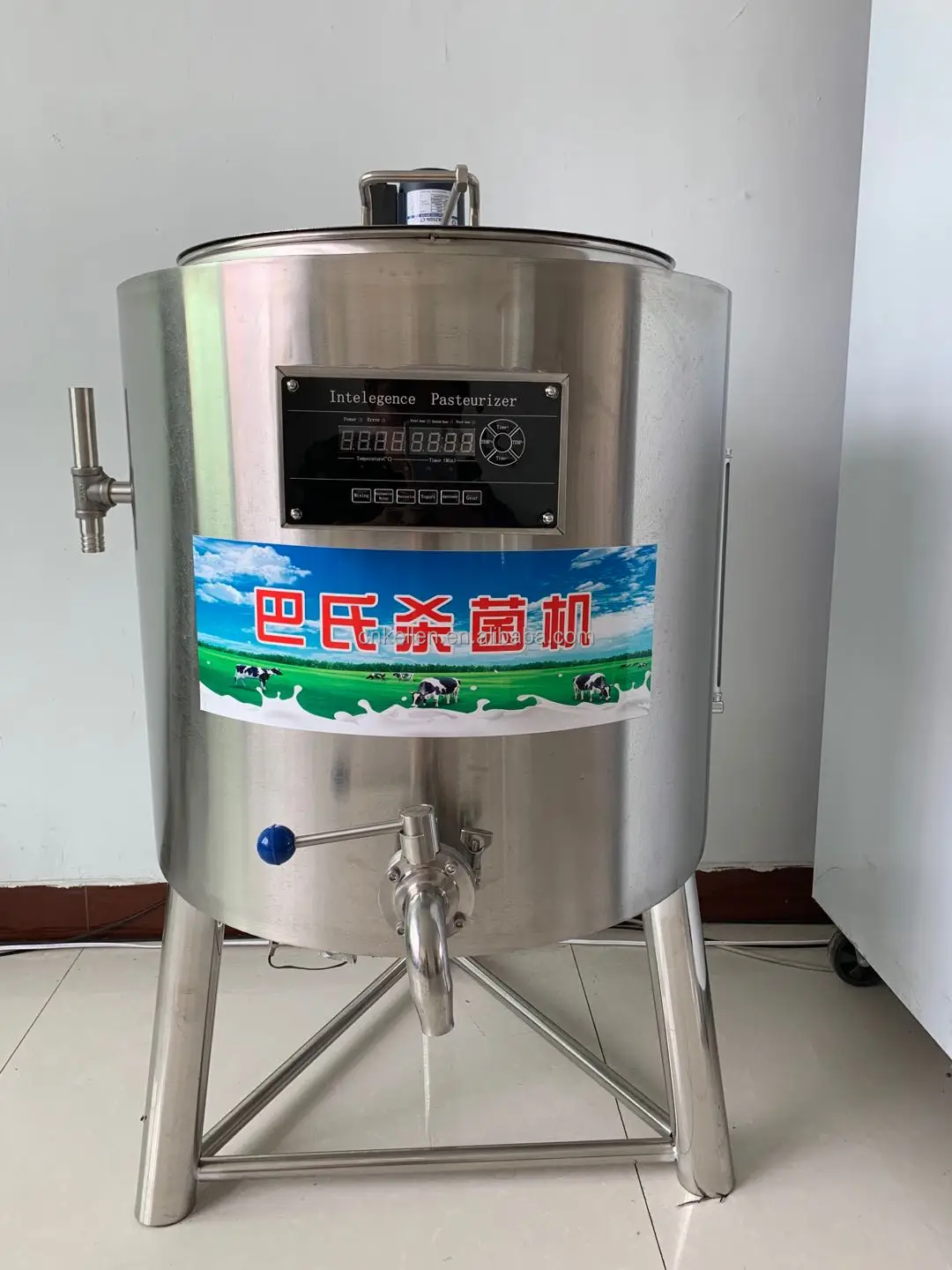

Type 1:Model KE/The control panel is on the machine
Model
KE-50
KE-100
KE-150
KE-200
Size(mm)
500*500*1000
600*650*1250
650*700*1000
670*720*1300
Capacity
50L
100L
150L
200L
Power
220V/6kw/50HZ
220V/9kw/50HZ
380V/12kw/50Hz
380V/12kw/50Hz
Weight
80kg
90kg
100kg
100kg
PS:This type has 30L,50L,100L,150L and so on,It can be customized as customers needs!

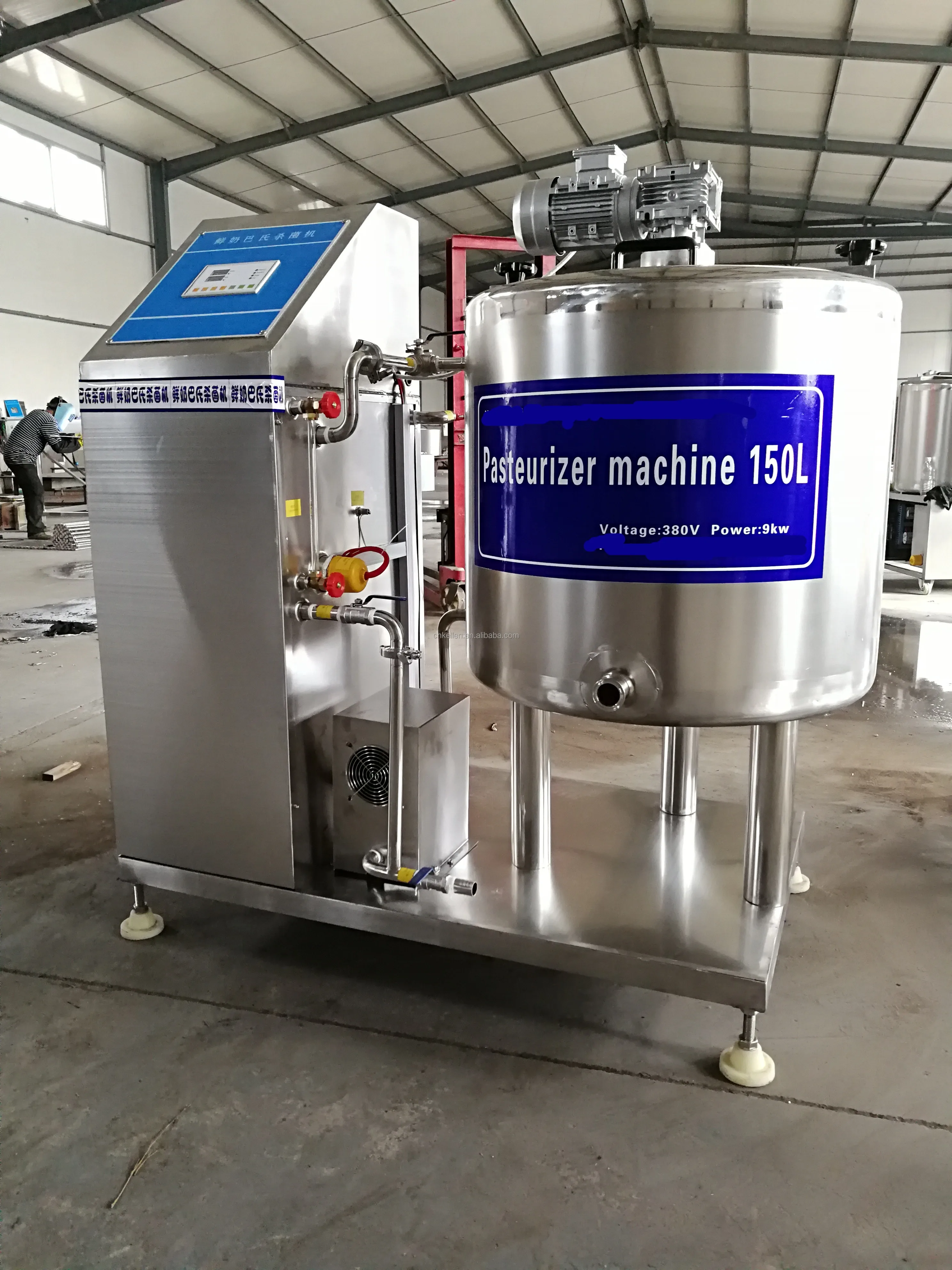

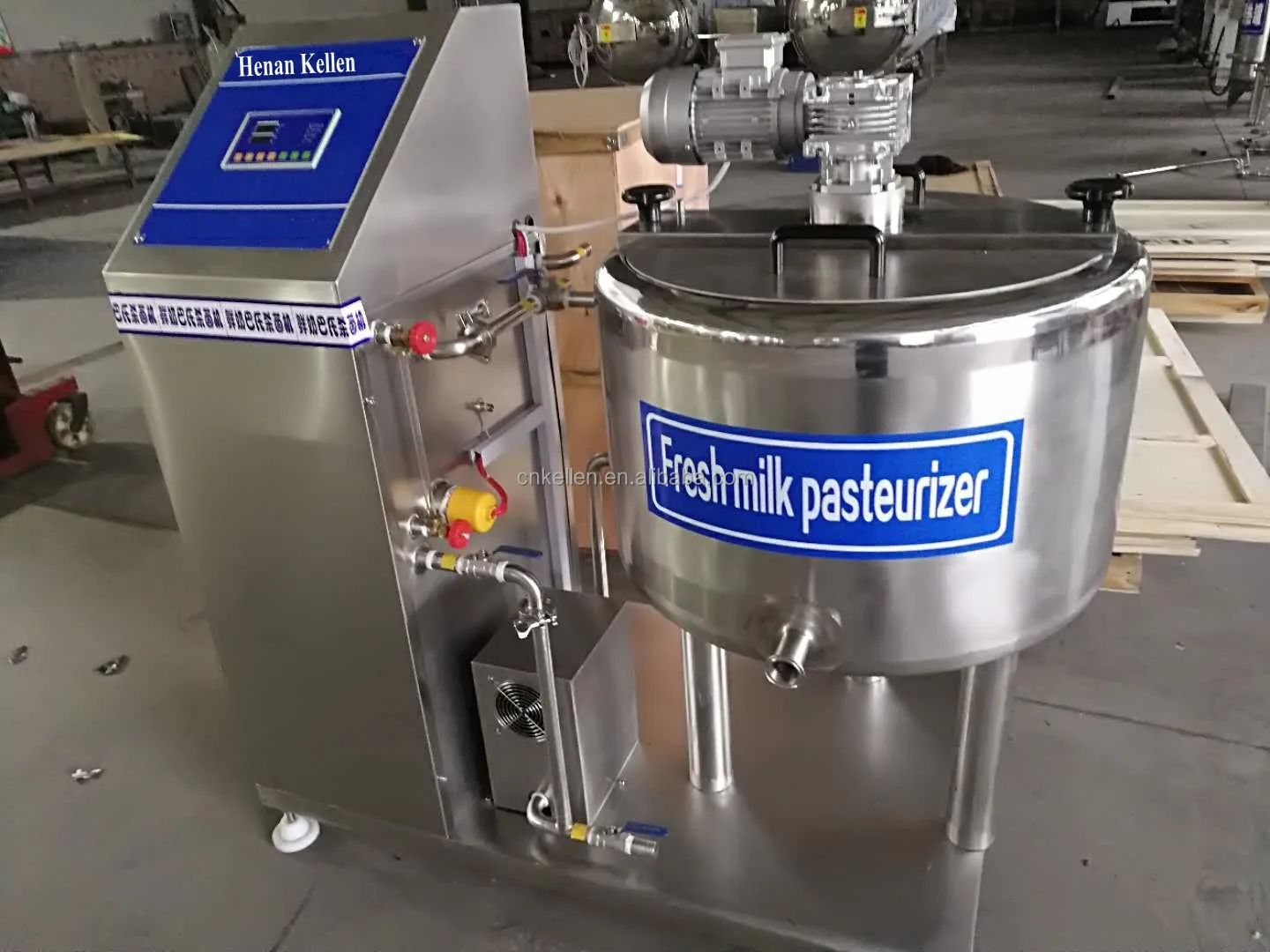

Type 2: Model KD/ The machine has a storage cabinet under the control panel
Model
KD-50
KD-100
KD-150
KD-200
KD-300
Size(mm)
1300*700*1400
1300*700*1450
1400*800*1550
1400*850*1650
1400*800*1550
Capacity
50L
100L
150L
200L
300L
Power
220V/6kw/50HZ
220V/9kw/50HZ
380V/12kw/50Hz
380V/12kw/50Hz
380V/12kw/50Hz
Weight
100kg
110kg
120kg
150kg
180kg
PS:This type has 30L,50L,100L,150L and so on , It can be customized as customers needs!

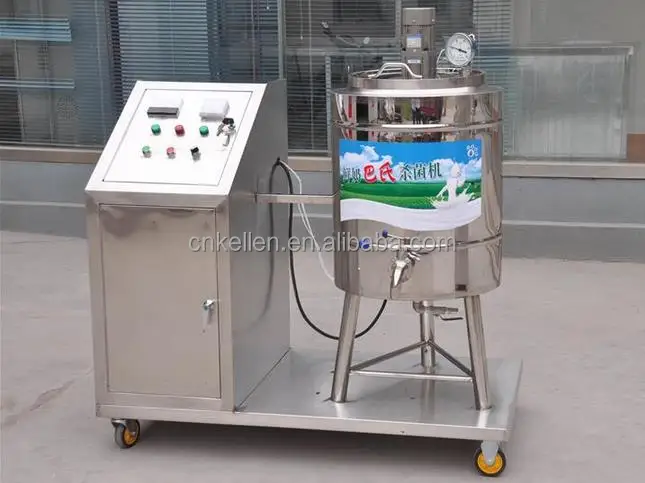

Type3: The machine has a separated control panel, and heat-preservation water tank that is connected to the sterilizing tank.
Model
KL-100
KL-150
KL-200
Size(mm)
1400*780*1530mm
1400*780*1550mm
1640*1050*1730 mm
Capicity
100L
150L
200L
Power
220V/6kw,380V/9kw
220V/6kw,380V/9kw
220V/6kw,380V/9kw
Weight
170kg
200kg
230kg
Detailed Images




Butterfly Valve Type Milk Control Mouth.


Butterfly valve type milk control mouth, accurate control of milk volume, no milk dripping.

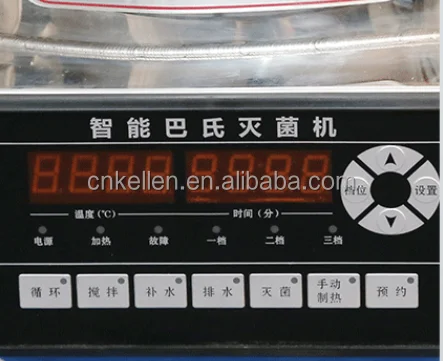

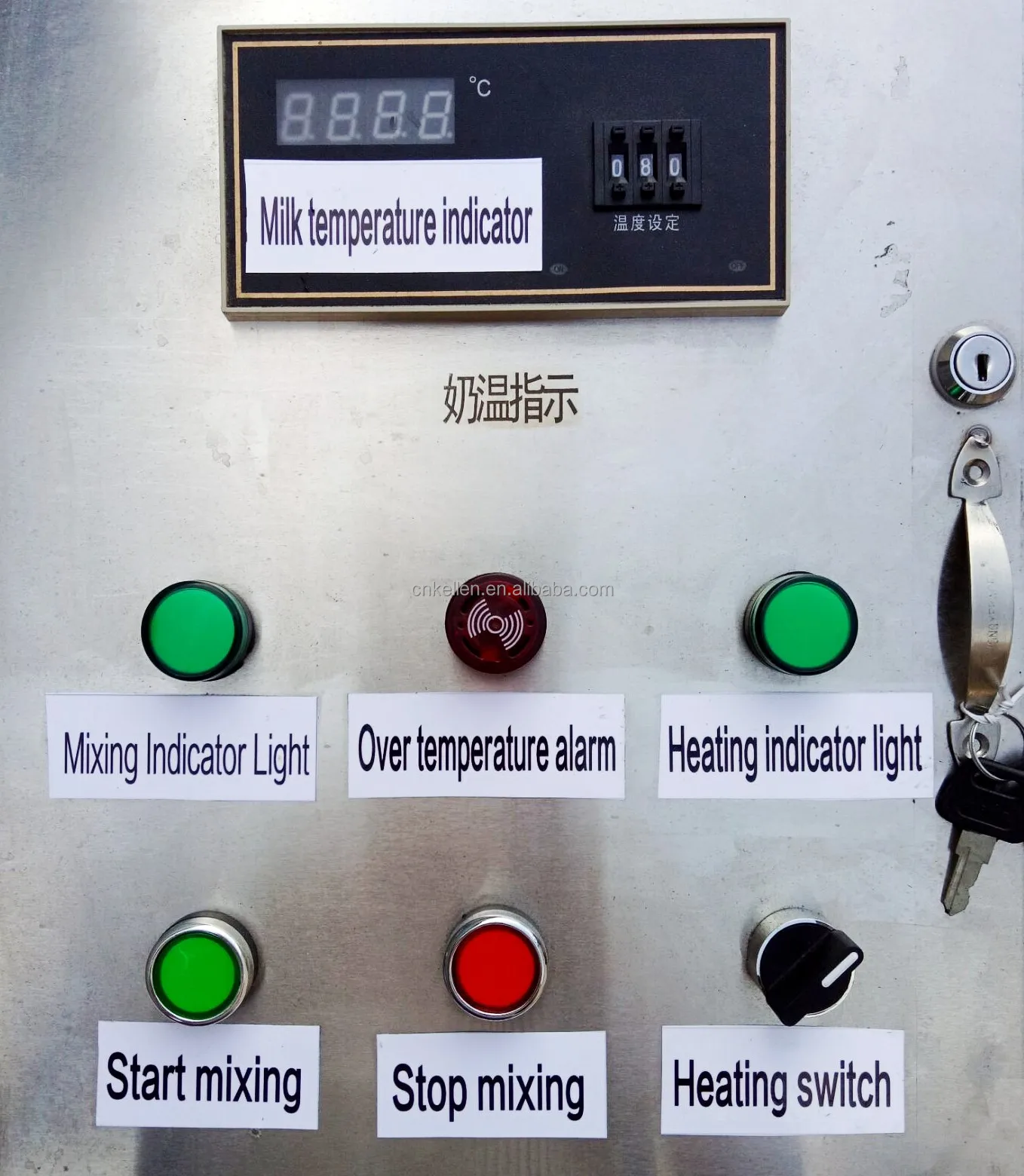

Intelligent Controller.TYPE1

Intelligent controller, number table display is more accurate.

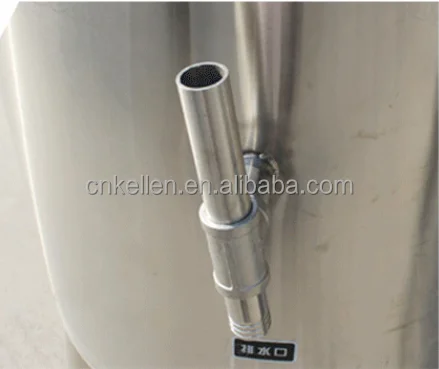

Decompression Outlet.
Remove the air pressure in the bucket and prevent the pressure in the bucket from being too high.




Water Quantity Viewer.

It is convenient and quick to check the quantity of water in the bucket at any time.

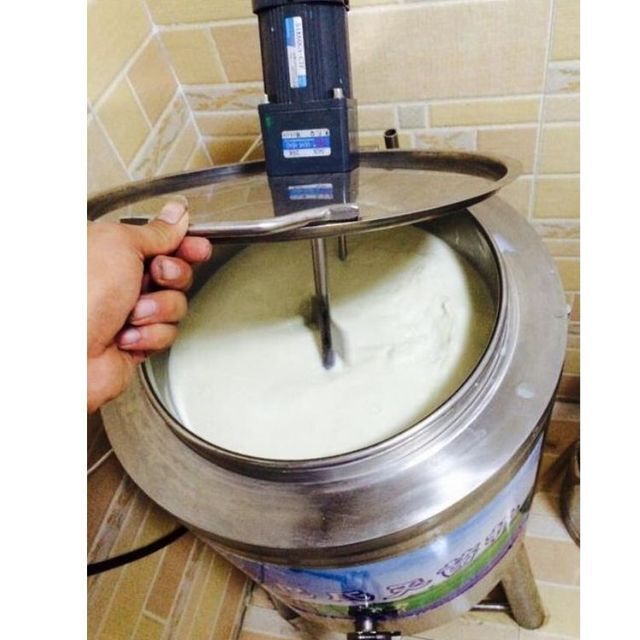

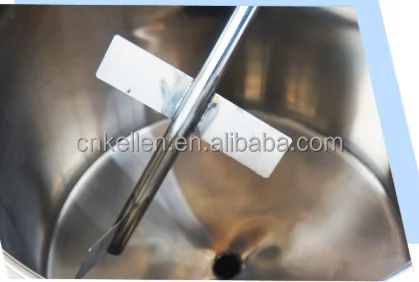

Thickened and lengthened mixing shaft.

High quality stainless steel, mechanically sealed blade stirring, automatic circulation system.






Intelligent Control Panel.TYPE2

It is easy to understand and easy to operate. There is also an emergency stop button to ensure safety is play is more accurate.

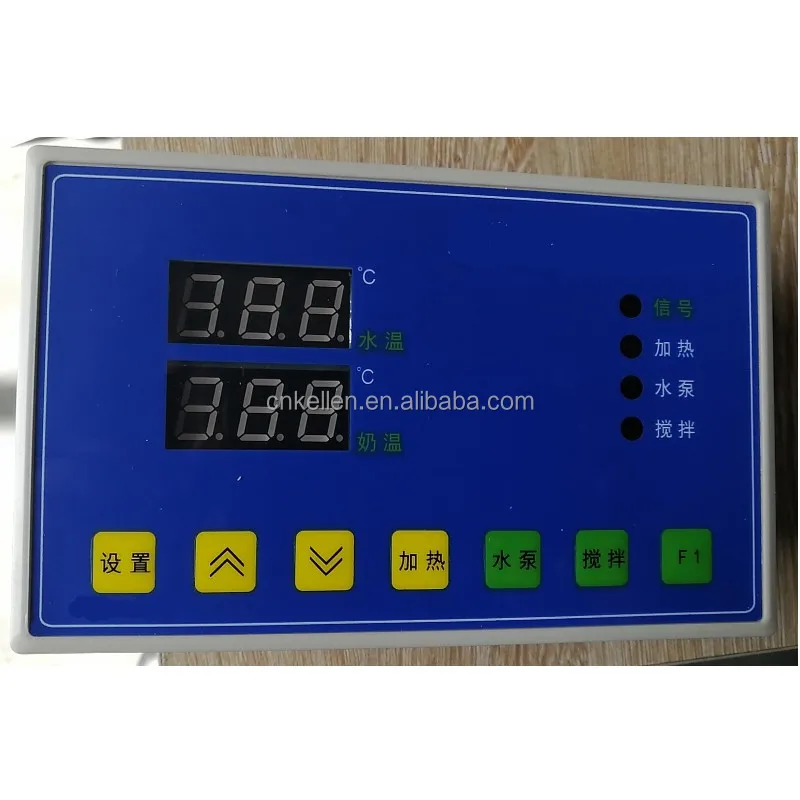

Intelligent Control Panel.TYPE3
Intelligent controller, number table display is more accurate.

Product Display
Related Products

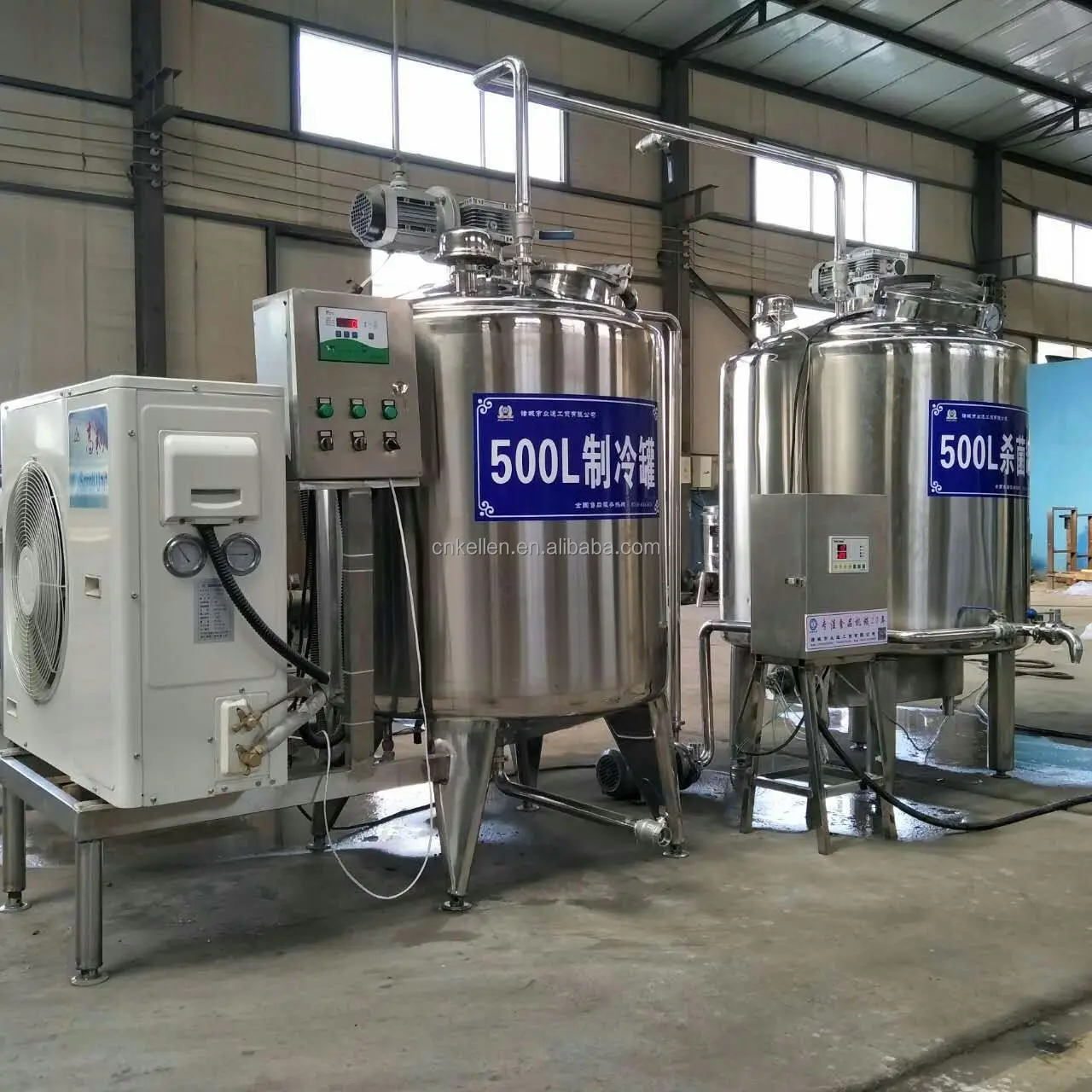

Our factory can produce a Complete Milk Production Line.
Please feel free to contact us for more details.
Milk processing line include:
1.Storage tanks 2.Duplex filter 3.Preheating milk 4.Homogenizer 5.Milk pasterizer 6.Cooling 7.Filling and capping machine 8.Cleanin in palce

Yogurt milk processing line include:
1.Storage tanks 2.Duplex filter 3.Preheating milk 4.Homogenizer 5.Milk pasterizer 6.Cooling 7.Ygurt fermentation tank 8.Filling and capping machine 9.Cleanin in palce
Company Introduction
Henan Kellen Machinery Equipment Co.,Ltd
Henan Kellen Machinery Equipment Co.,Ltd mainly manufactures the fruit and vegetable juice machine, vegetable dicingmachine, ice cube making machine, popcorn machine, dumpling maker machine, straw crushers, peanut shellers, dryer machine,flower refrigerator displayer, oil fryer and so on. We adoptthe advanced technology and our machines are complied with international standard. These machines are made of high qualitystainless steel with competitive price. Many products are exported to America, Australia, France, Netherlands, Ireland andother 20 countries and regions. We have gotten a lot of good feedbacks from clients. Our principle is "High Reputation,Competitive Price, Efficient Delivery Speed and Good After-sellService".
We are looking forward to cooperating with friends from all over the word. Welcome to contact us at any time! We will be here all the time!

FAQ

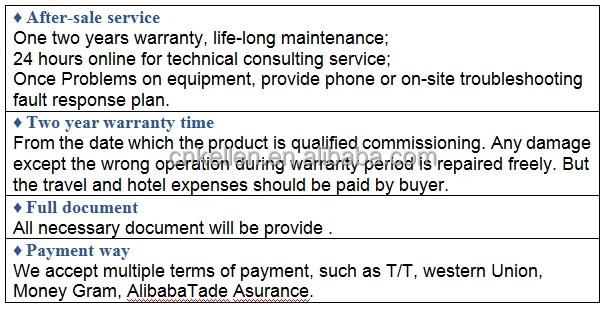

After-sale services for all the customers
