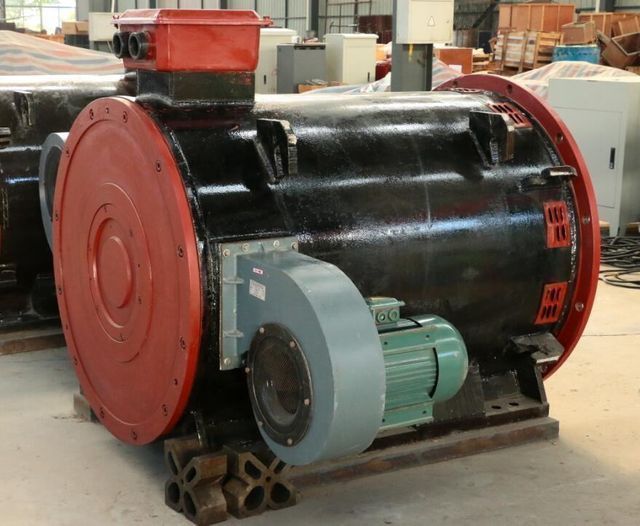

5000kw 5MW low speed alternative energy no energy Permanent Magnet Generator/Alternator
- $500.00 /set
- 1 set
- Qingdao Greef New Energy Equipment Co., Ltd.
- Shandong, China
- Ms Christina Lei
| Rated torque: | 12-1000 nautical miles | place of origin; place of origin: | Shandong China |
| Packaging Preview: | brand: | Griff | |
| Generator Material: | Aluminum body + copper wire + NdFeB | Rated rotor speed: | 20-900RPM |
| rated power: | 500W-5000KW | Supply capacity: | 400 sets per month |
| Packaging Details: | Low speed alternator uses foam + plywood enclosure | payment terms: | T/T, Western Union, Alibaba Trade Assurance Order |
| Artist: | NdFeB | Generator Type: | alternating current |
| Model: | Permanent magnet generator alternator | Phase type: | three phase |
| port: | Qingdao | model: | GDF |
| Install: | Horizontal and vertical | Warranty: | 3 years |
| Certification: | Chief Executive | Proxy Type: | NdFeB |

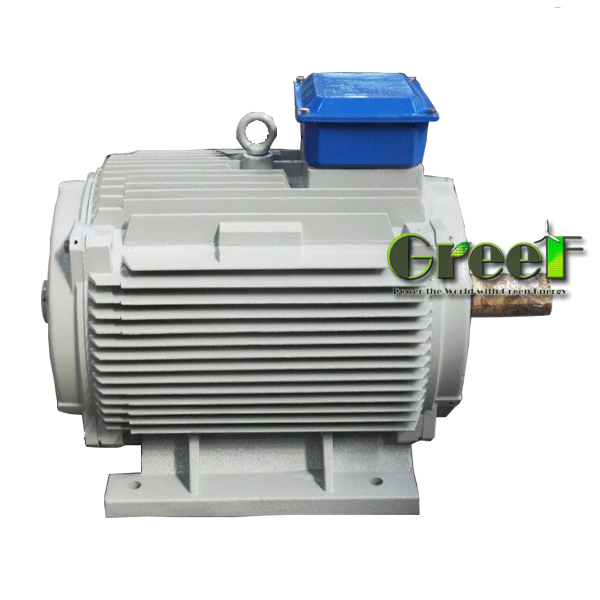

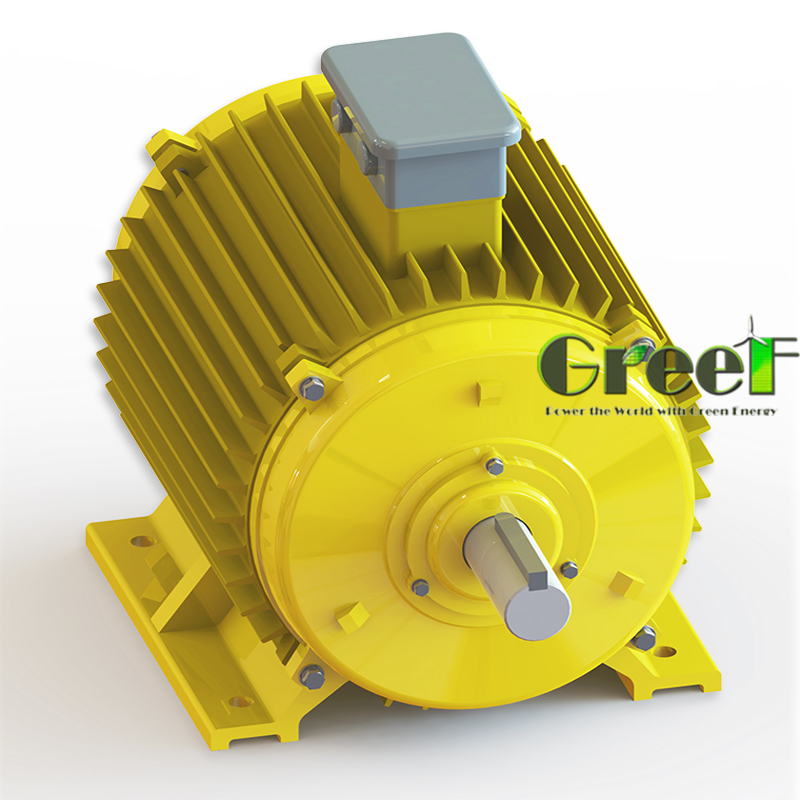

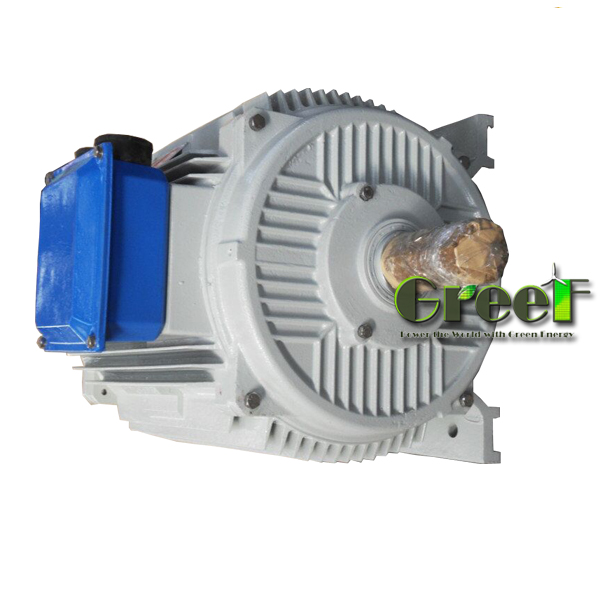

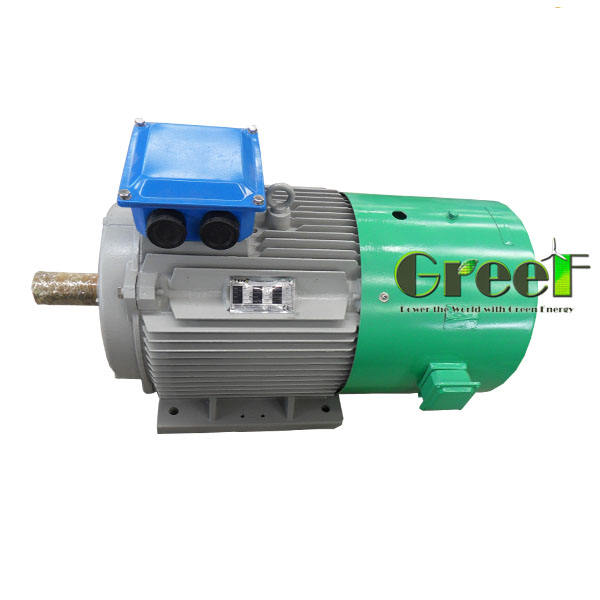

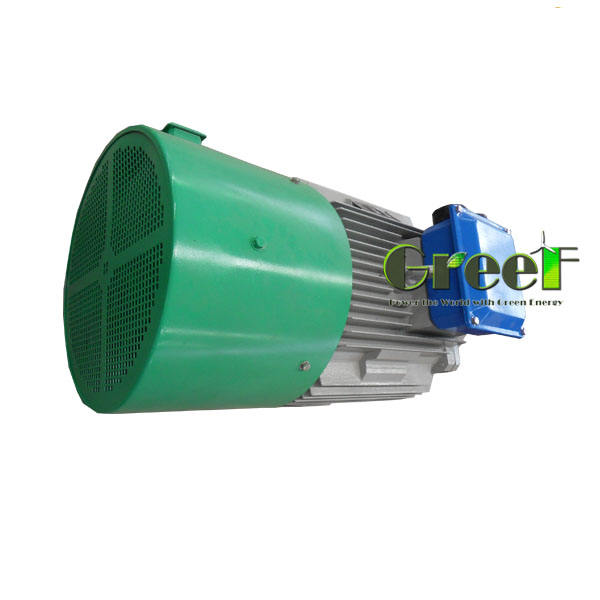

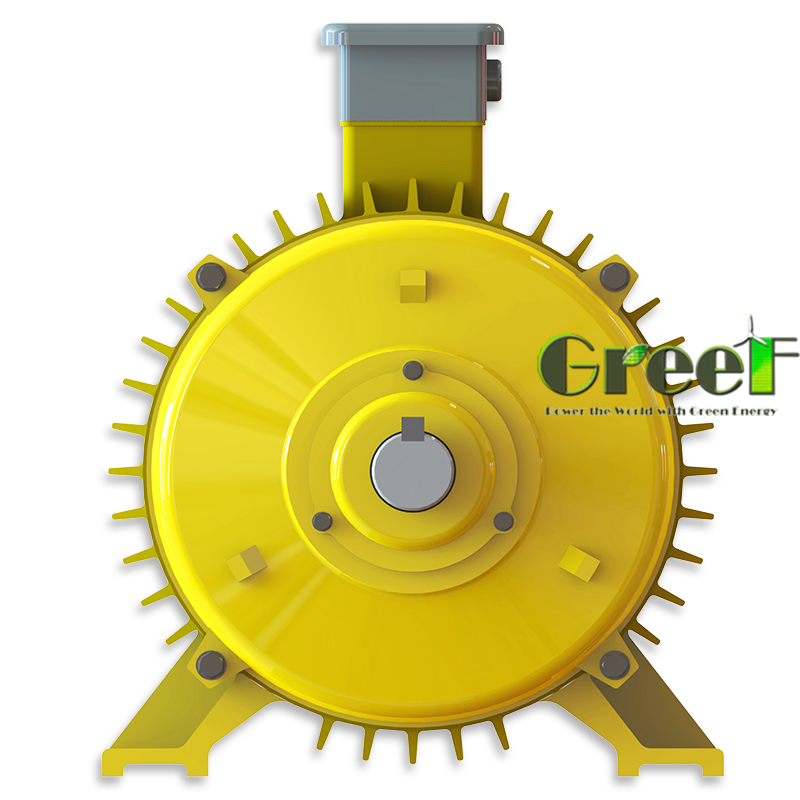

Permanent magnet generator
PMG parameters
|
rated power |
0.5KW-5000KW |
|
Rated speed |
20-3000 rpm |
|
Rated voltage |
48VAC -1140VAC |
|
written law |
Yes |
|
Generator type |
Permanent magnet alternating current |
|
Phase |
three phase |
|
Degree classification |
IP54 |
|
Generator Housing Material |
steel |
| 1 | Rare Earth NdFeB Permanent Magnets |
| 2 | low speed |
| 3 | Direct drive without gearbox |
| 4 | bearing |
| 5 | Power factor close to 1 |
| 6 | Maintenance free and usable in all environments. |
| 7 | Long life > 20 years, high-speed operation 24 hours 365 days. |
| 8 | Multi-pole design to improve frequency and efficiency of rectifiers and inverters. |
| 9 | Customization: voltage, speed, power, frequency, etc. |
| 10 | Class H insulation, vacuum pressure impregnation. |
| 11 | Good heat dissipation, you can also add a fan to dissipate heat |

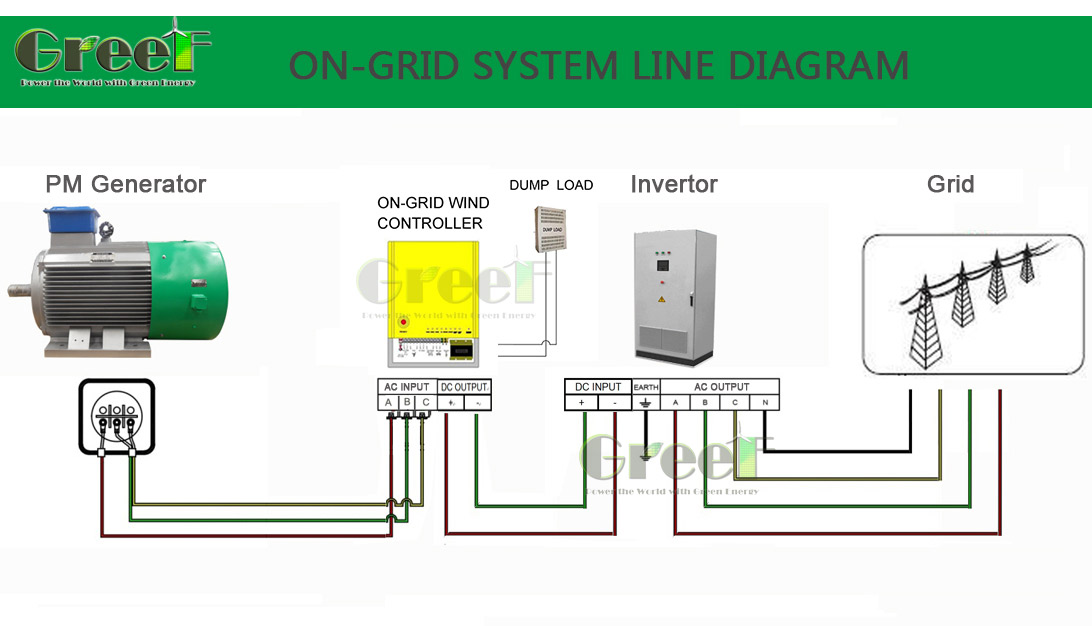

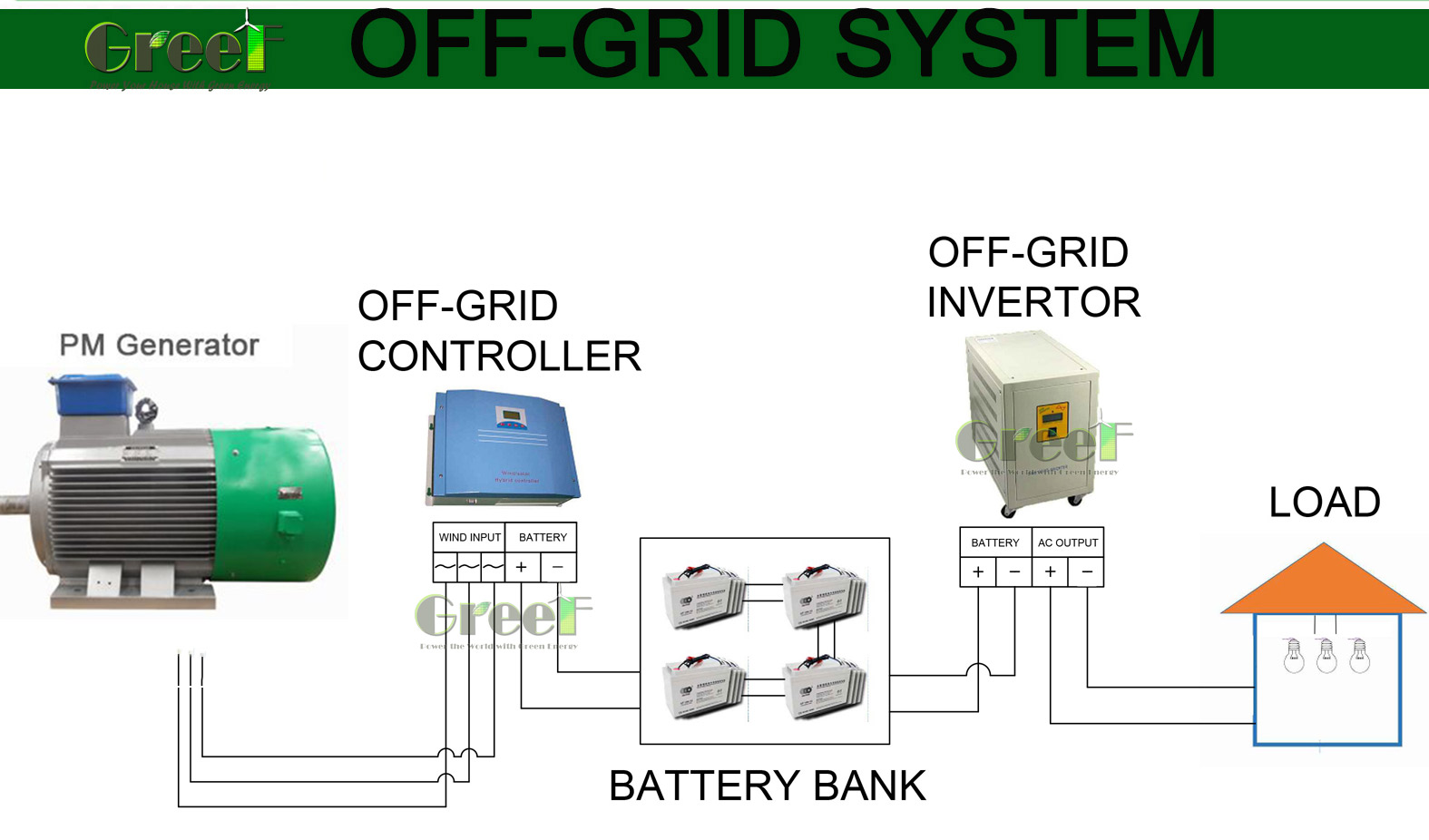

The GREEF technical team can provide complete on-grid and off-grid solutions for projects using our permanent magnet generators.
All equipment can be produced according to customer's specific requirements

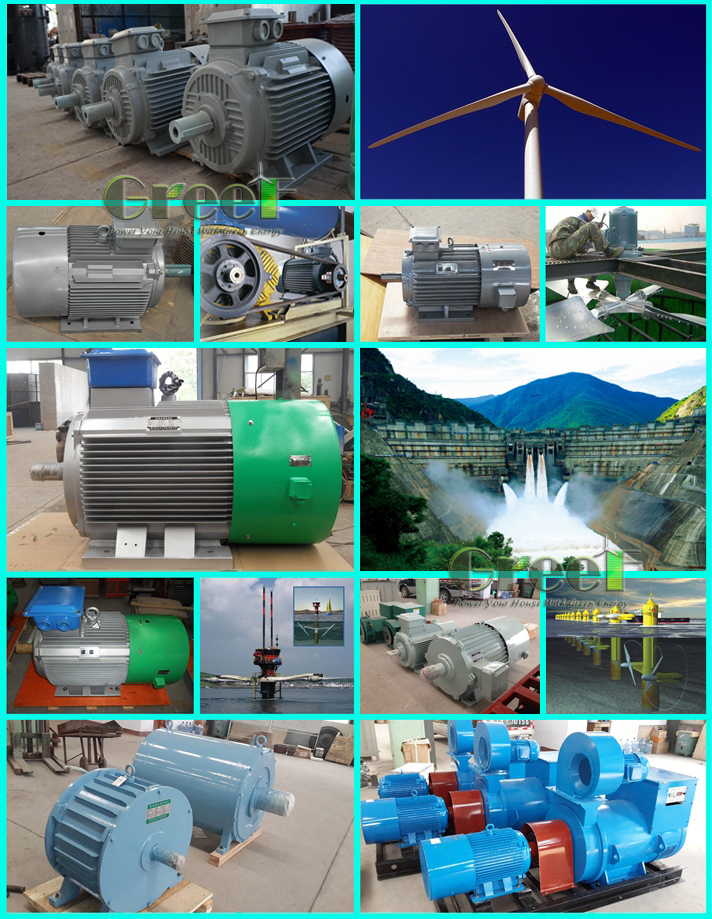

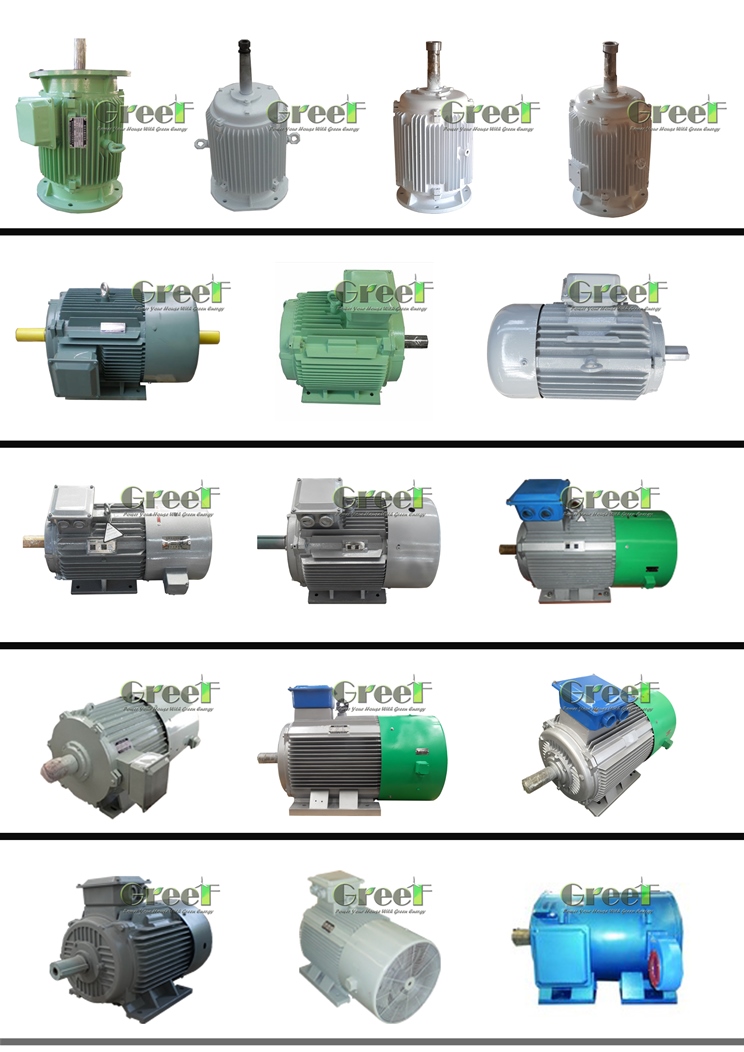

GreeF company offers a variety of permanent magnet generators, suitable for the following equipment drives
| 1 | Wind power drive-------wind turbine |
| 2 | Hydraulic drive--------hydraulic generator |
| 3 | with motor drive |
| 4 | motor driven |
| 5 | powered by perpetual motion |
| 6 | Driven by a test factory |
| 7 | Create by yourself |
| 8 | Drive and spin a permanent magnet generator to generate electricity |

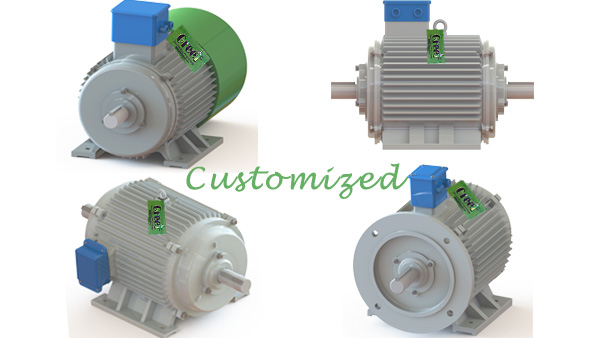

GREEF company provides customized generators according to each customer's requirements.Voltage, speed, power, frequency, etc.
| rated power | Rated speed | Rated voltage | frequency |
| 0.5KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
| 1KW | 20rpm~600rpm | 12V~220Vac | 10Hz~60Hz |
| 2KW | 20rpm~1000rpm | 12V~400Vac | 10Hz~60Hz |
| 3KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 5KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 10KW | 20rpm~1500rpm | 120V~690Vac | 10Hz~60Hz |
| 15KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
| 20KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
| 25KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
| 30KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
| 50KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 80KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 100KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 150KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 200KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 250KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 300KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 500KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 700KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 800KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 1MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 2MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 3MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 4MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 5MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
1. Greef generators use inner foam, outer plywood shell.
2. For packing size and weight, please contact our sales staff.
3. FCL/LCL by sea to your nearest port
or by air to the nearest airport
Or ship to your door via DHL/FedEx/UPS/TNT
If you have any requirements for packing and shipping, please contact us directly.
All GREEF generators are3 yearsfree warranty,All lifetime technical support and parts cost supply.
(1) The warranty period starts from the date of shipment on the shipping note or air waybill.
(2) The cost involved in the free maintenance service during the warranty period shall be borne by the company, and the customer will not be charged for it. The damage outside the warranty period is free of charge, and the company will charge labor and material costs.
(3) During the warranty period, the maintenance cost caused by the quality problem of the company shall be borne by the company. If it is not within the scope of the warranty or man-made damage, the freight shall be borne by the customer.
