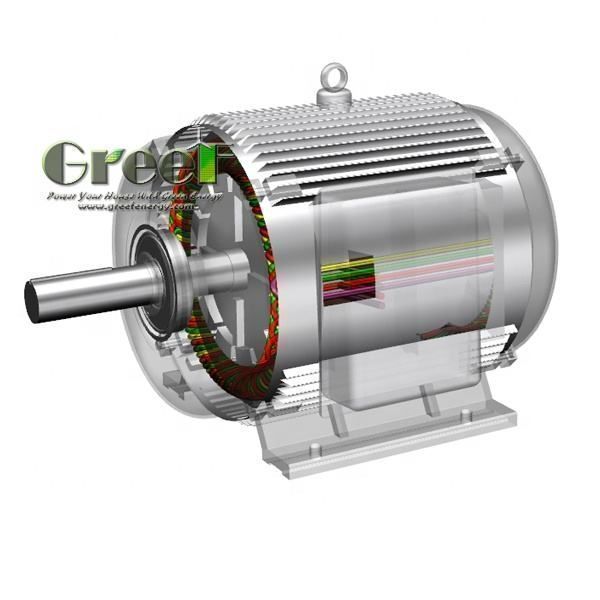

Permanent Magnet Generator Low Speed High Efficiency Three Phase AC 20 Kw6 Permanent Magnet Generator Low Speed High Efficiency Three Phase
- $500.00 /set
- 1 set
- Qingdao Greef New Energy Equipment Co., Ltd.
- Shandong, China
- Ms Christina Lei
PRODUCT DETAIL
| Packaging Preview: | Port class: | Intellectual Property 54 | |
| port: | Qingdao | Generator Material: | 100% copper wire + NdFeB |
| life: | 20 years | Generator Type: | Three-phase AC permanent magnet |
| Supply capacity: | 400 sets per month | brand: | Gree F |
| rated power: | 0.5KW-5000KW | Warming method: | star/Y |
| Warranty: | 3 years, 3 years | application: | Wind/Water Turbine |
| place of origin; place of origin: | Shandong China | Rated rotor speed: | 20rpm-3000rpm |
| model: | Permanent Magnet Group | payment terms: | L/C,Western Union,T/T,MoneyGram,Alibaba Trade Assurance |
| Bearing brand: | SKF | Packaging Details: | Foam + Plywood Shell |

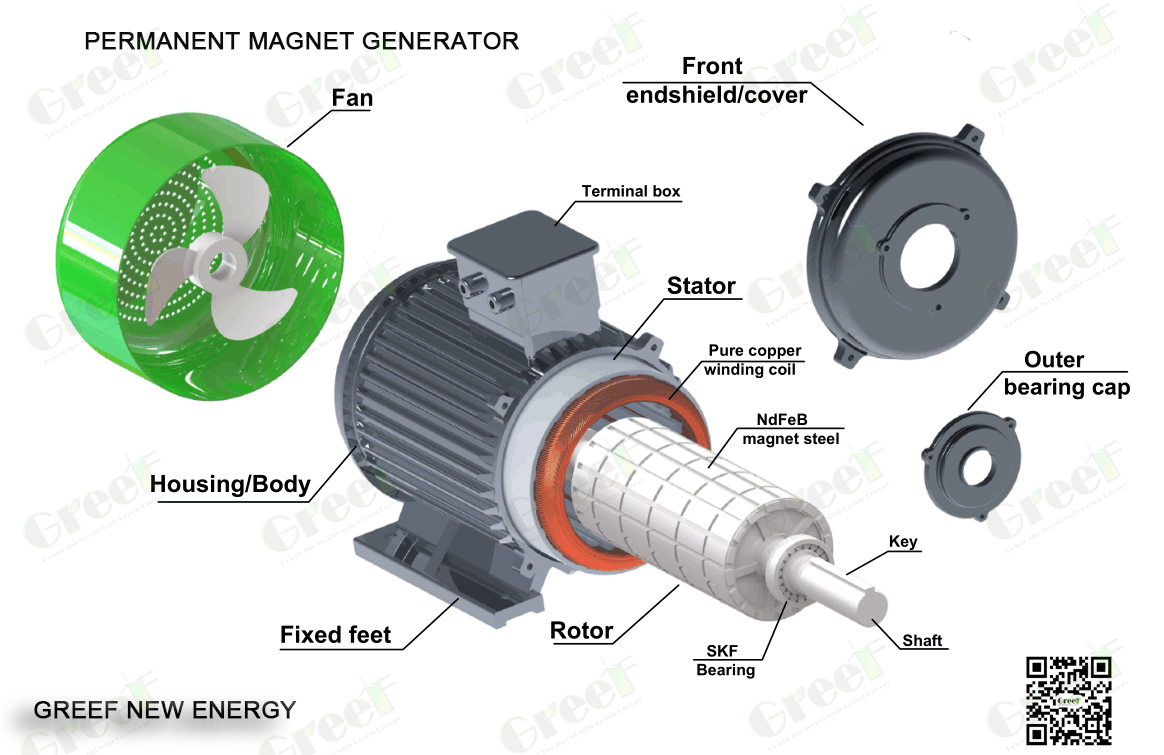

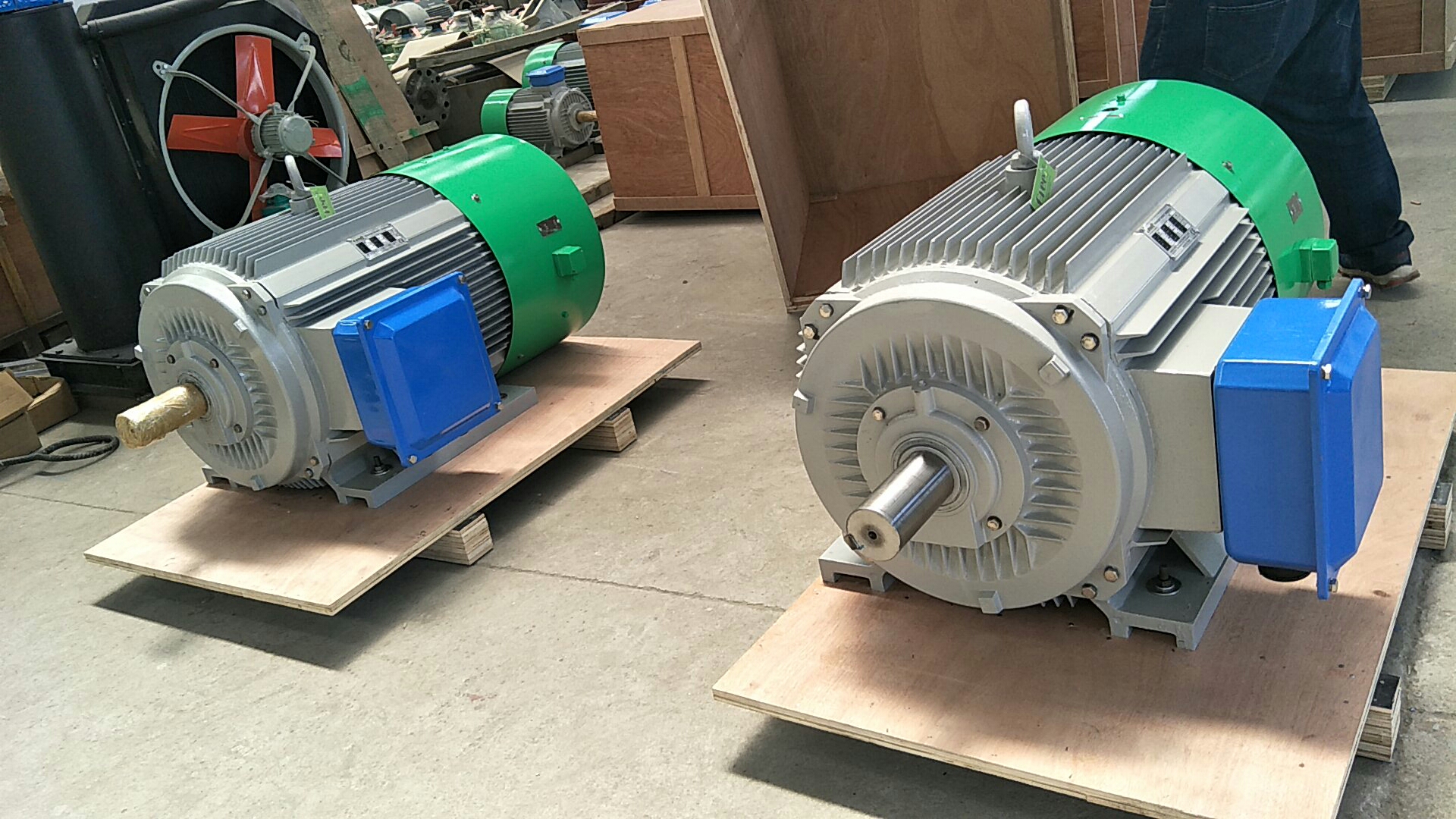

Product Description
Permanent magnet generatorProvides efficient energy conversion, especially at part load, and does not require a separate excitation system. Compared to competing designs, our PMGs are lighter, more efficient, and require less labor for assembly.
Permanent magnet generatorWidely used in applications such as wind turbines, water turbines, electric motors, etc.
Permanent magnet generatorWidely used in applications such as wind turbines, water turbines, electric motors, etc.
1 | Rare Earth NdFeB Permanent Magnets |
2 | low speed |
3 | Direct drive without gearbox |
4 | bearing |
5 | Power factor close to 1 |
6 | Maintenance free and usable in all environments. |
7 | Long life > 20 years, high-speed operation 24 hours 365 days. |
8 | Multi-pole design to improve frequency and efficiency of rectifiers and inverters. |
9 | Customization: voltage, speed, power, frequency, etc. |
10 | Class H insulation, vacuum pressure impregnation. |
11 | Good heat dissipation, you can also add a fan to dissipate heat |

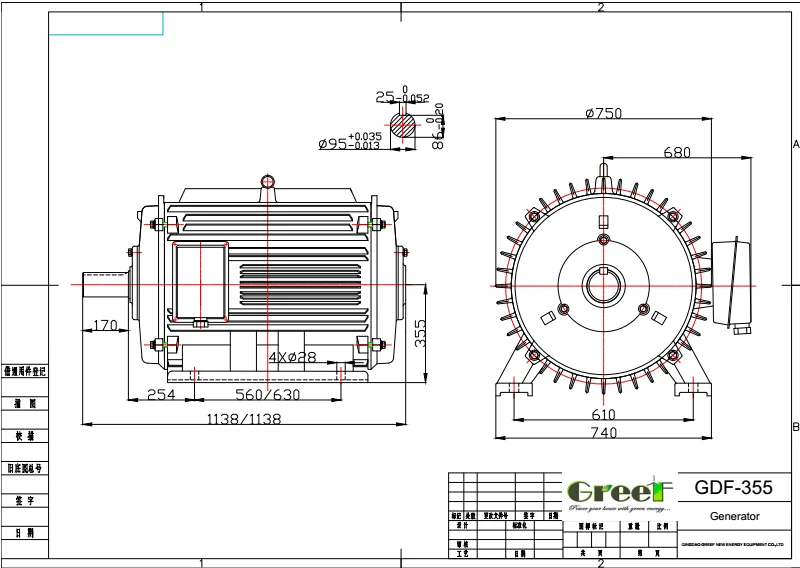

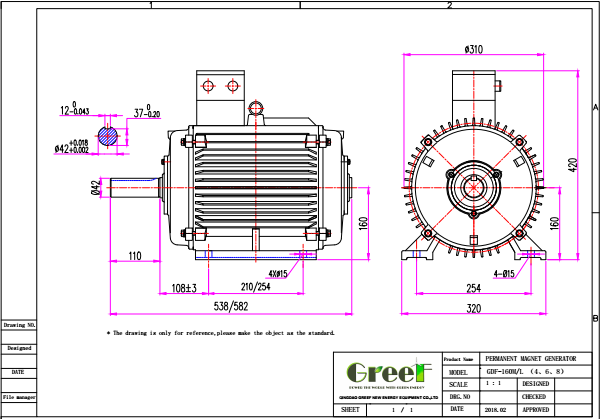

Specification

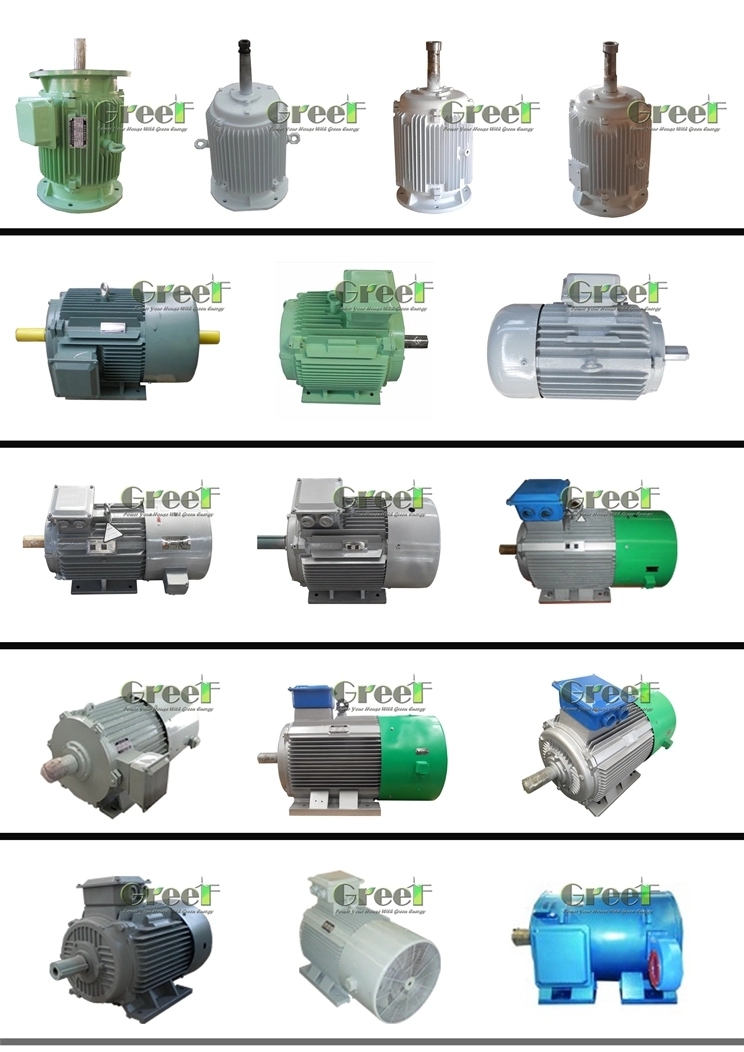

Permanent magnet generator
GREEF provides custom generators according to each customer's requirements for voltage, speed, power, frequency, etc.
rated power | 0.5--5000 | kilowatt | |
Rated speed | 20--3000 | number of revolutions | |
Rated voltage | 48--1140 | vacuum | |
frequency | 60/50 | hertz | |
number of poles | twenty four | ||
Generator type | Three-phase AC synchronous generator | ||
Magnet Type | NdFeB | ||
Winding method | Yes | ||
Magnet temperature class | up to 120°C | ||
Winding temperature class | up to 180°C | ||
efficiency | >95% | ||
Insulation class | H | ||
Insulation resistance | 100Mohm minimum (500Vdc) | ||
Degree classification | IP54 | ||
Generator Housing Material | cast iron | ||
Winding material | 100% Copper | ||
Shaft material | steel | ||
core | Cold rolled silicon steel sheet | ||
Bearing brand | SKF | ||
cooling method | fan cooling | ||
Weight (net weight/GW) | 132kg/152kg | ||
Package dimensions | 870*470*570mm | ||
Install | horizontal | ||
rated power | Rated speed | Rated voltage | frequency |
0.5KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
1KW | 20rpm~600rpm | 12V~220Vac | 10Hz~60Hz |
2KW | 20rpm~1000rpm | 12V~400Vac | 10Hz~60Hz |
3KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
5KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
10KW | 20rpm~1500rpm | 120V~690Vac | 10Hz~60Hz |
15KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
20KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
25KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
30KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
50KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
80KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
100KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
150KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
200KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
250KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
300KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
500KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
700KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
800KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
1MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
2MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
3MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
4MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
5MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |

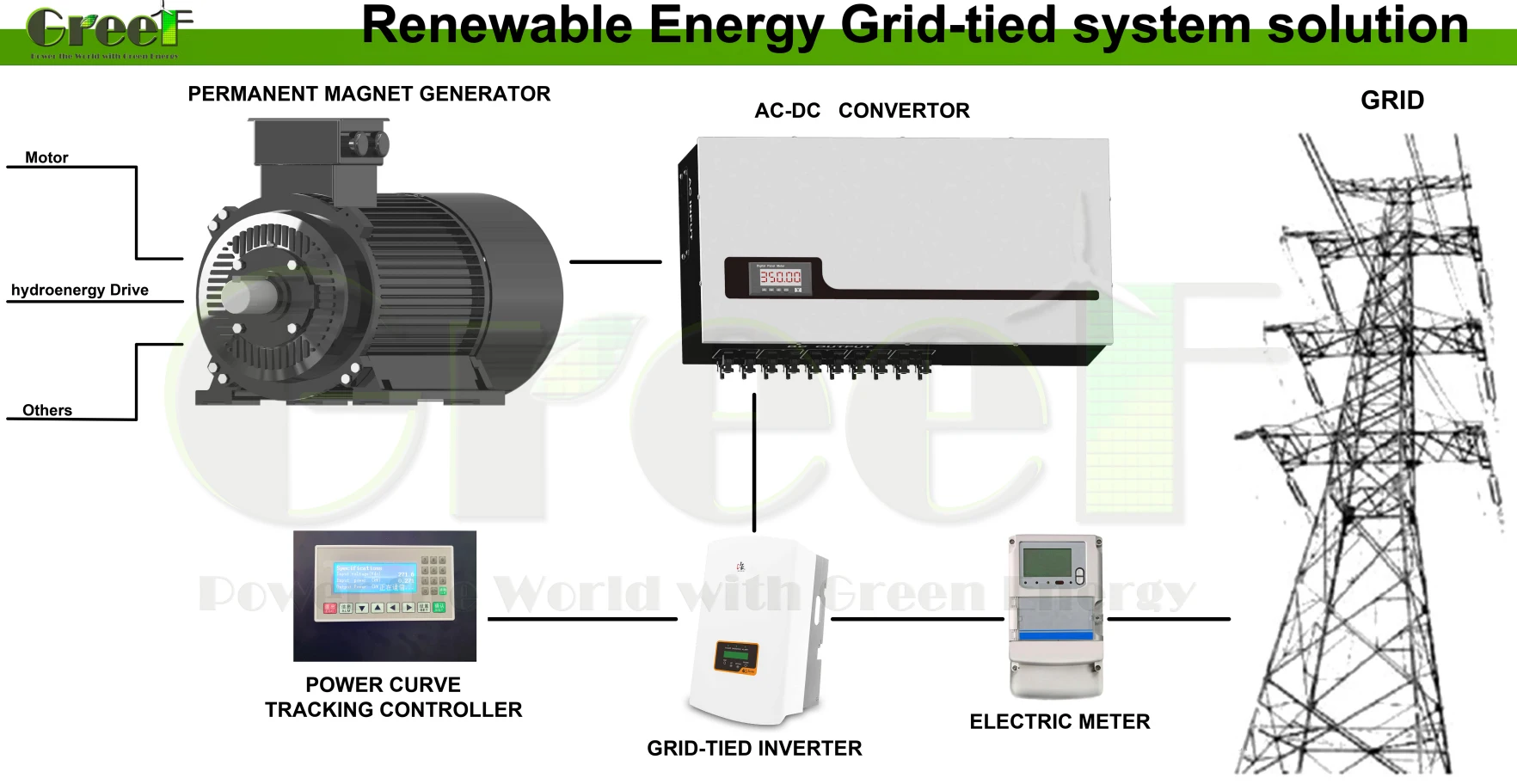

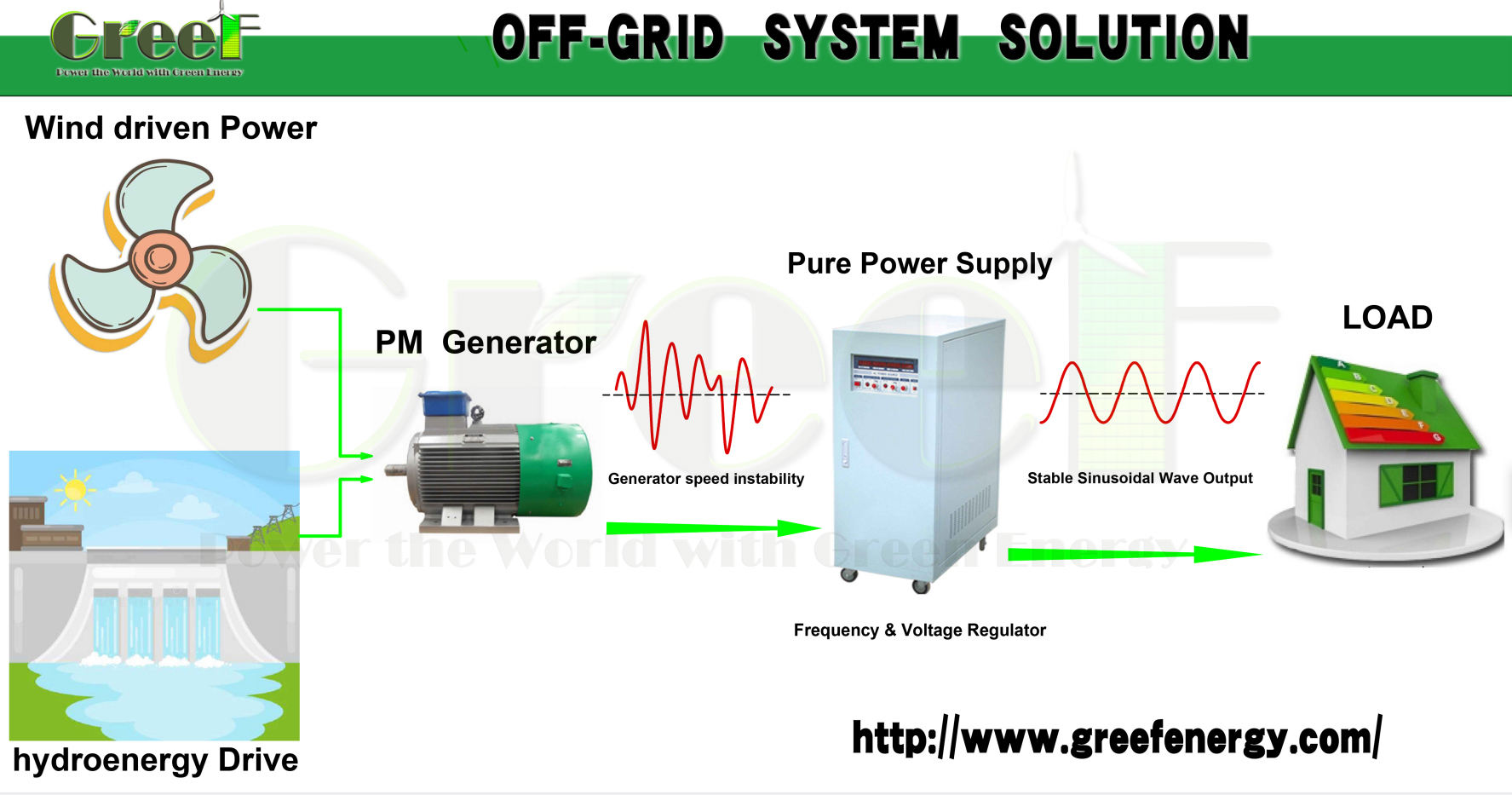

System Solutions
GriffThe technical team can provide complete on-grid and off-grid solutions for projects using our permanent magnet generators. All equipment can be produced according to customer's specific requirements

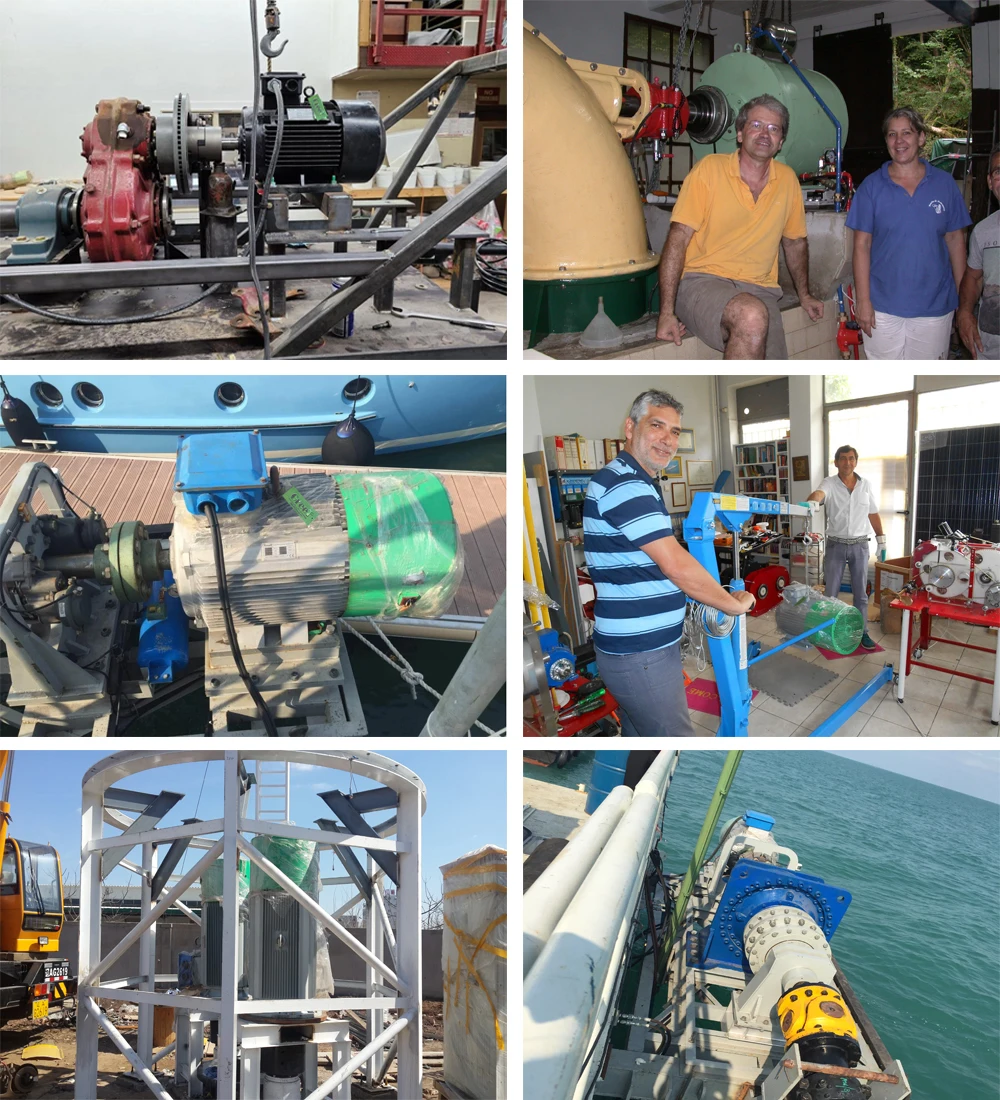

customer photo

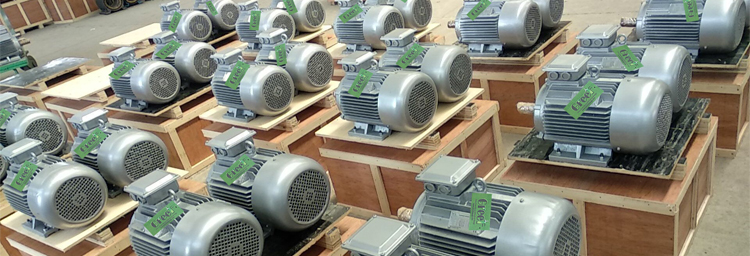

Packaging and Shipping
1. Greef generators use internal foam protection, external plywood casing.
2. For packing size and weight, please contact our sales staff.
3. FCL/LCL by sea to your nearest port
or by air to the nearest airport
Or ship to your door via DHL/FedEx/UPS/TNT
If you have any requirements for packing and shipping, please contact us directly.
2. For packing size and weight, please contact our sales staff.
3. FCL/LCL by sea to your nearest port
or by air to the nearest airport
Or ship to your door via DHL/FedEx/UPS/TNT
If you have any requirements for packing and shipping, please contact us directly.
