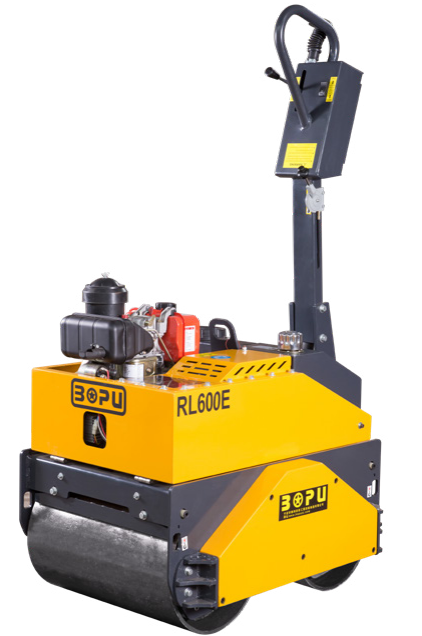

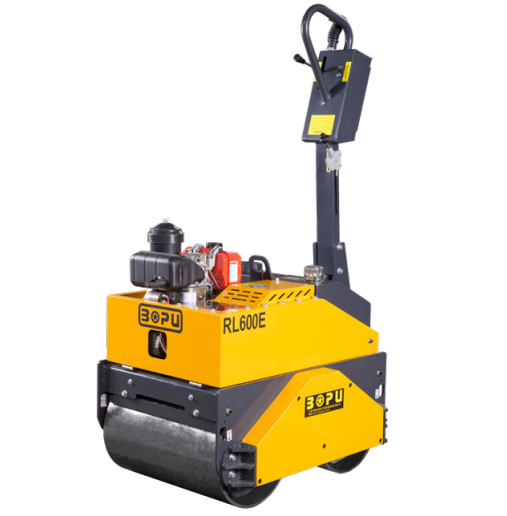

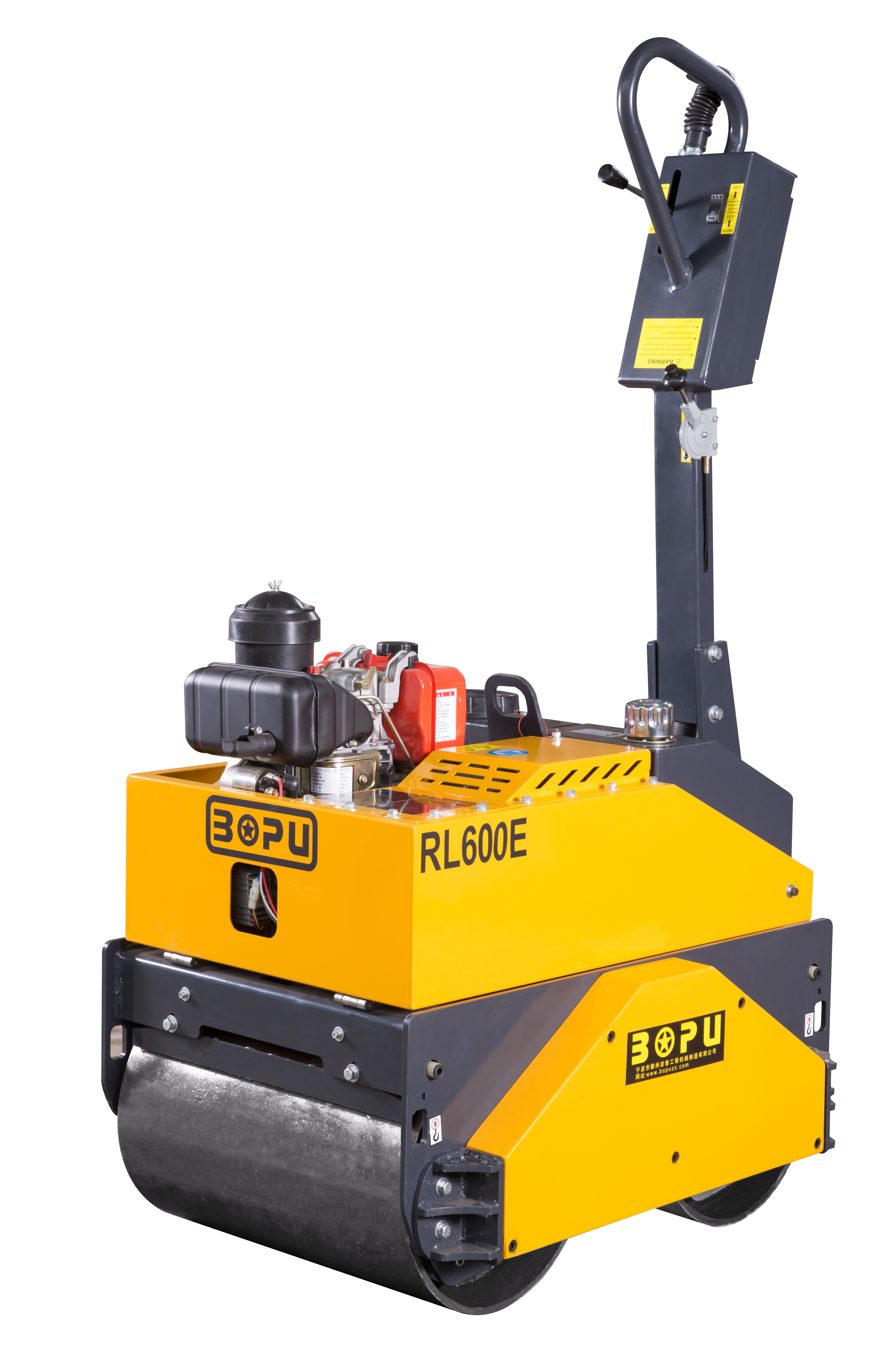

500kg Walk-behind Double Drum Construction Equipment Vibratory Earthmoving Compactor Vibratory Road Roller with Kama 178Fse
- $2099.00 /unit
- 1 unit
- Ningbo Bopu Engineering Machinery Co., Ltd.
- Zhejiang, China
- Ms Zoe Yu
PRODUCT DETAIL
| Centrifugal force: | 20KN | Warranty: | 1 year |
| Hydraulic pump/motor: | Chinese brand | Applicable industries: | Building material stores, machinery repair shops, manufacturing plants, retail stores, construction projects |
| weight: | 500KG | Core components: | Pump |
| Types of: | vibratory roller | Level Ability: | 20% |
| Vibration frequency: | 3300 times/min | Unique selling point: | energy saving |
| State of health: | new | Engine type: | Air-cooled diesel engine |
| Engine brand: | kama | engine model: | Karma 178FSE |
| Driving speed: | 0-2.5km/h | Drum Diameter: | 377mm |
| Water tank capacity: | 35L | Exciting force: | 24KN |
| Roller size: | Diameter 377X600mm | Package preview: | |
| Mechanical test report: | if | Core component warranty: | 1 year |
| brand: | bop | place of origin; place of origin: | Zhejiang, China |
| After-sales service provided: | Video Technical Support | strength: | 5-10kw |
| drum: | Double Drum Roller | Dimensions (L*W*H): | 120X75X113CM |
| spread: | Hydraulic transmission | payment terms: | wire transfer |
| Fuel tank capacity: | 25L | Marketing Type: | New product |
| Video shipment inspection: | if | Showroom location: | not any |
| Packaging Details: | steel frame |
detailed drawing
Model | RL-600E |
Weight (kg) | 500 |
Vibration frequency (times/min) | 3600 |
Centrifugal force (KN) | twenty four |
Maximum driving speed (km/H) | 2.5 |
Gradeability(%) | 20 |
Water tank capacity (L) | 18 |
Fuel tank capacity (L) | 18 |
Vibration wheel width (cm) | 600 |
Package size(cm) | 131 × 82 × 114 |
Drum size(mm) | 600 × 377 |
adjustable handle
The handle can be adjusted according to the user's height and habits

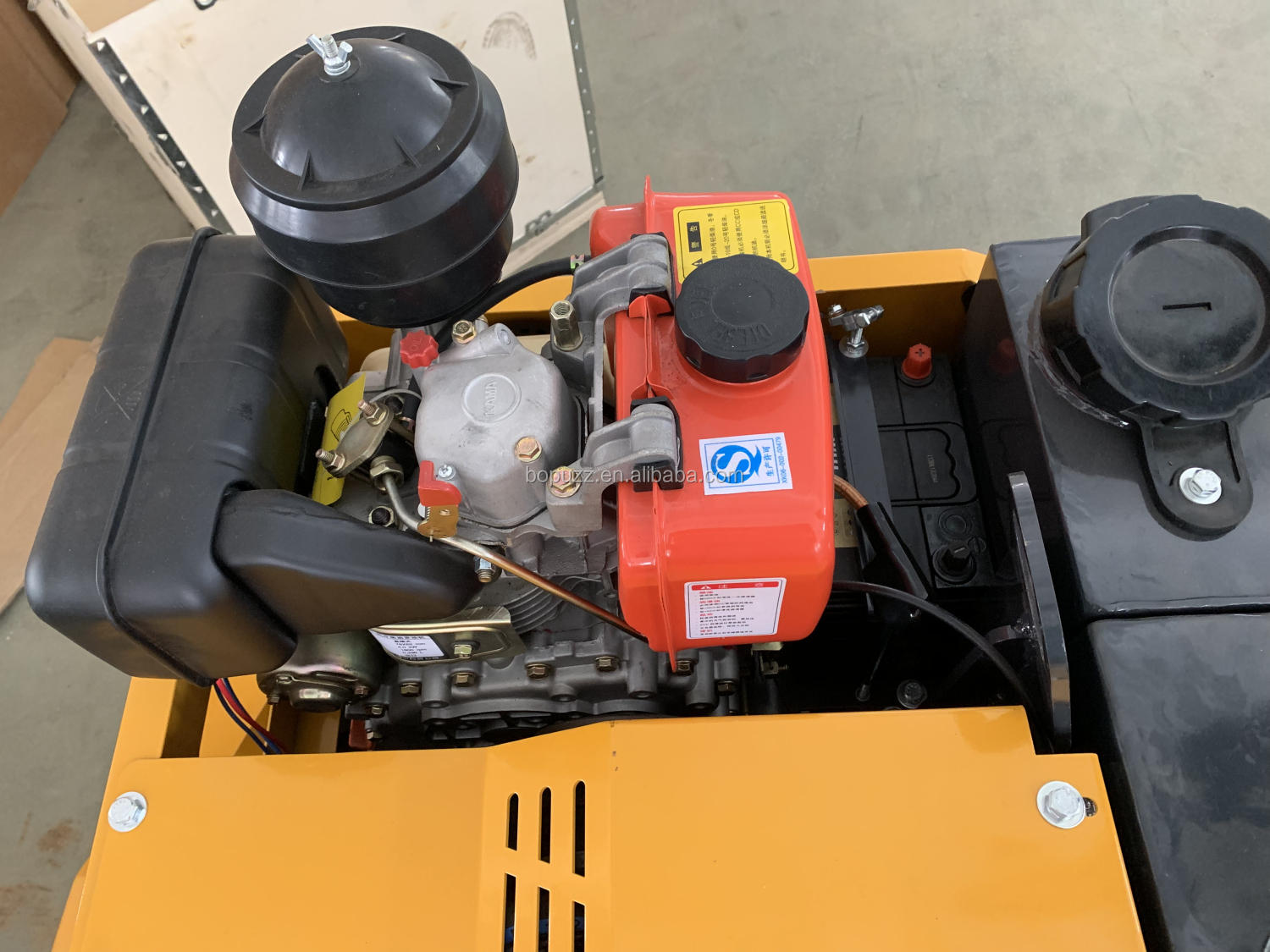

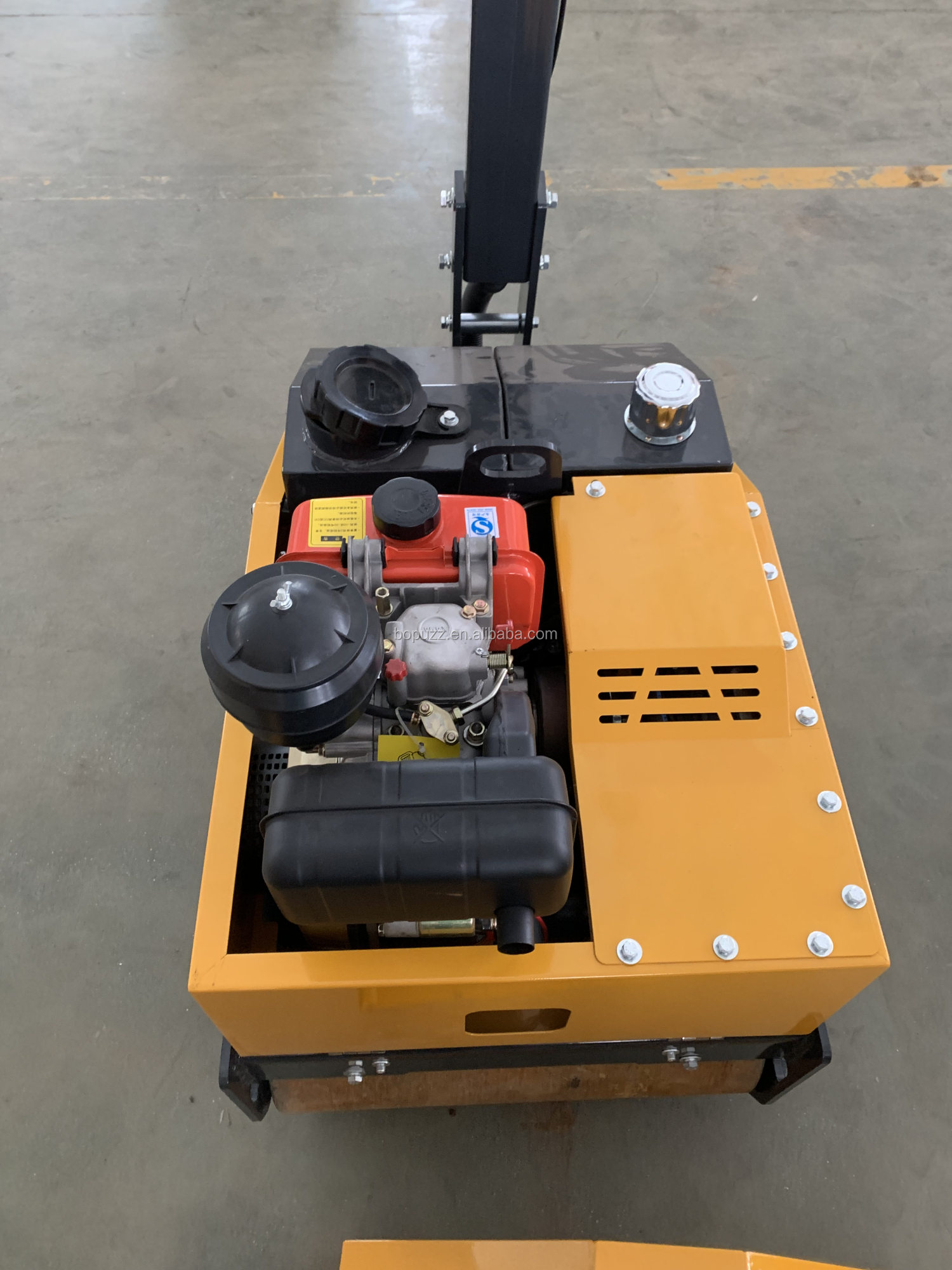

engine
andkamaOr famous brand engine with superior performance, strong power and high efficiency.

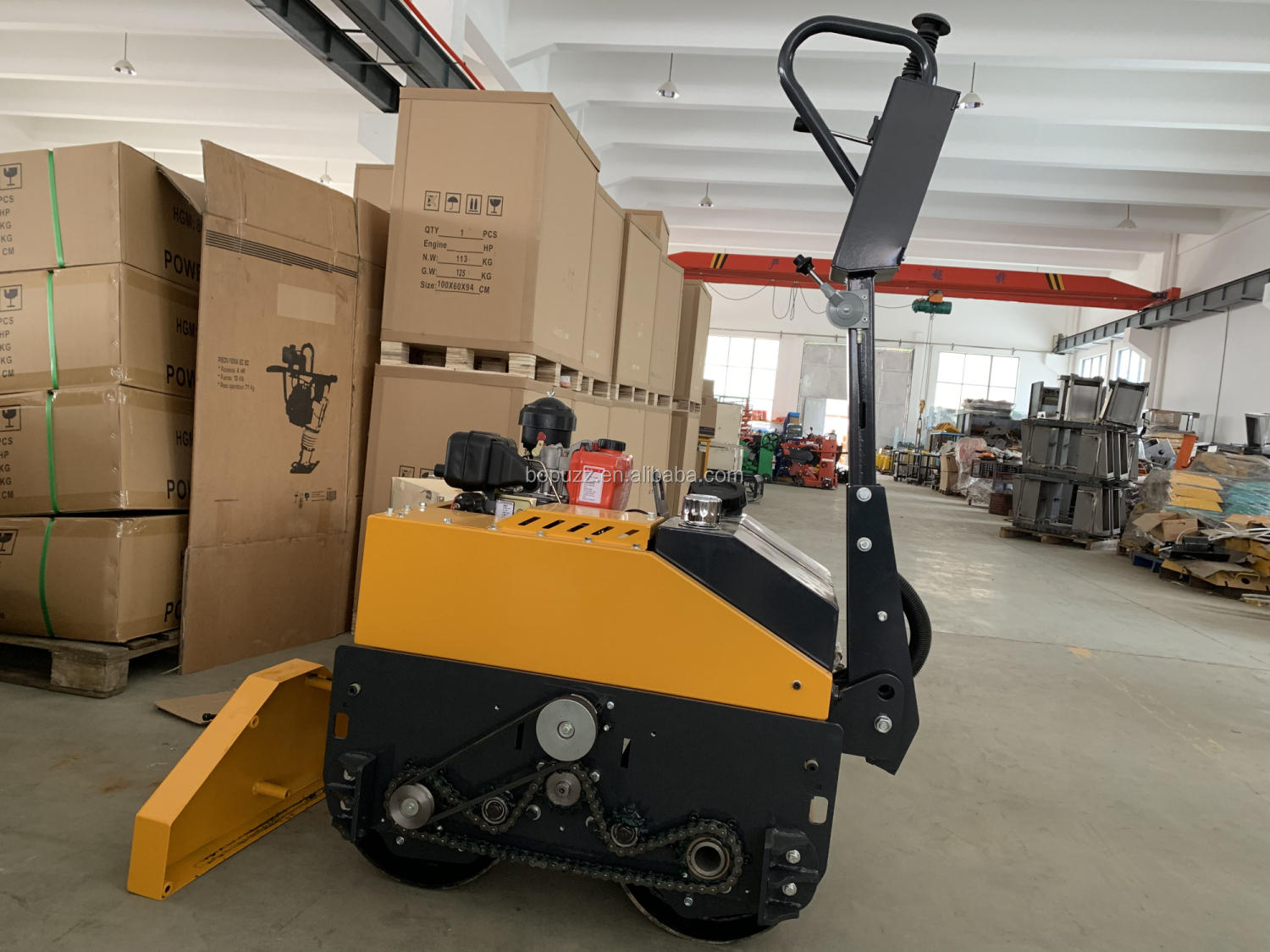

double roller
Heavier and Thicker Steel Wheels Each wheel is made of heavier and thicker steel.
Bearings and Belts
Internationally renowned bearings and high-quality belts ensure the working performance of the machine.
vibration motor
Vibratory compaction Strong and excellent compaction performance

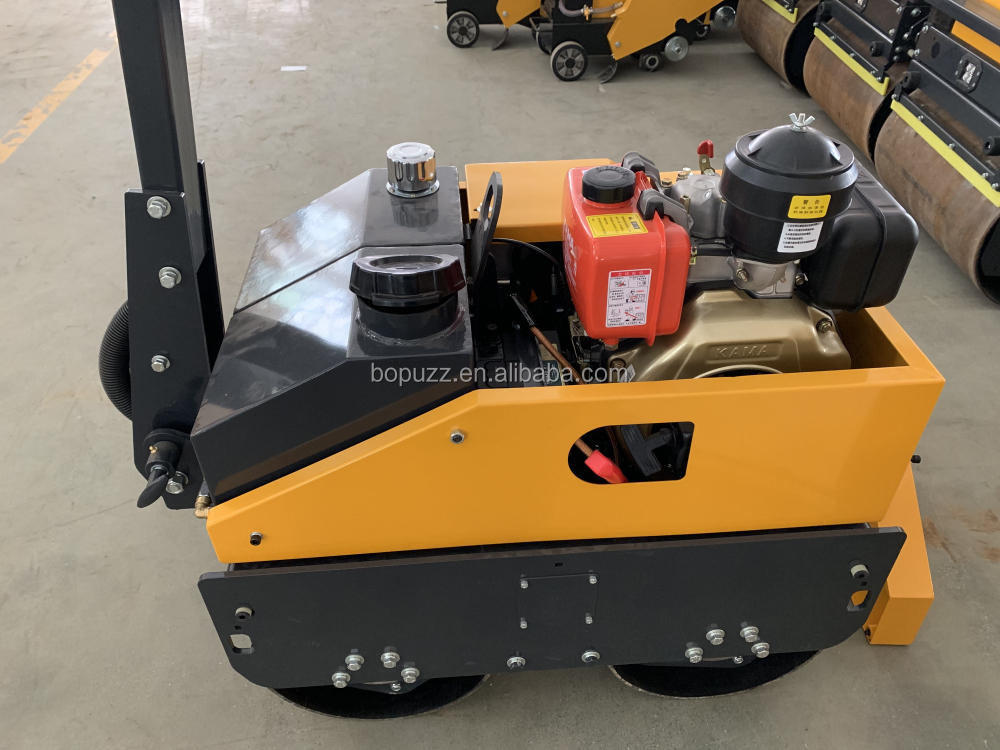

Hydraulic tank
Oil tight, anti-corrosion, oil capacity 18L
