Mini asphalt roller 1ton (FYL-880)
- $1000.00 /set
- 1 set
- Jining Furuide Machinery Manufacturing Co., Ltd.
- Shandong, China
- Ms Jessica Chang
| port: | Qingdao | Warranty: | 1 year |
| Dimensions (L*W*H): | 2100*1000*1650mm | Drive type: | Hydraulic transmission |
| Drum Diameter: | 540mm | Supply capacity: | 100 sets per week |
| brand: | Fude | type: | vibratory roller |
| Vibration Control: | Electromagnetic clutch | Engine brand: | long hair |
| Hydraulic pump brand: | Danfoss | Name: | 1 ton mini asphalt roller |
| Exciting force: | 25KN, 25KN | Start method: | flashlight |
| Level Ability: | 30% | Core components: | Motors, bearings, pumps, engines |
| Steel drum size: | Diameter: 540mm; Front Drum: 740mm, Rear Drum: 800mm | Hydraulic valve brand: | Danfoss |
| payment terms: | L/C, T/T | engine model: | Water-cooled diesel 90N/Cape CF186F/Honda gasoline GX390 |
| Driving speed: | 0-5km/h | drum: | Double Drum Roller |
| weight: | 1000 kg | strength: | 9HP/13HP |
| place of origin; place of origin: | Shandong China | Showroom location: | Vietnam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, Chile, UAE, Colombia, Sri Lanka, Bangladesh, South Africa, Ukraine, Malaysia, Australia, Morocco |
| Video shipment inspection: | if | Health status: | new |
| Hydraulic tank: | 19L | Mechanical test report: | if |
| Unique selling point: | Full hydraulic system | Marketing Type: | Hot Products of 2022 |
| Packaging Details: | Wooden case or according to customer's requirement. | Core component warranty: | 1 year |
| Applicable industries: | construction project | water tank: | 60L |
| Package dimensions: | 2100*1000*1650mm |

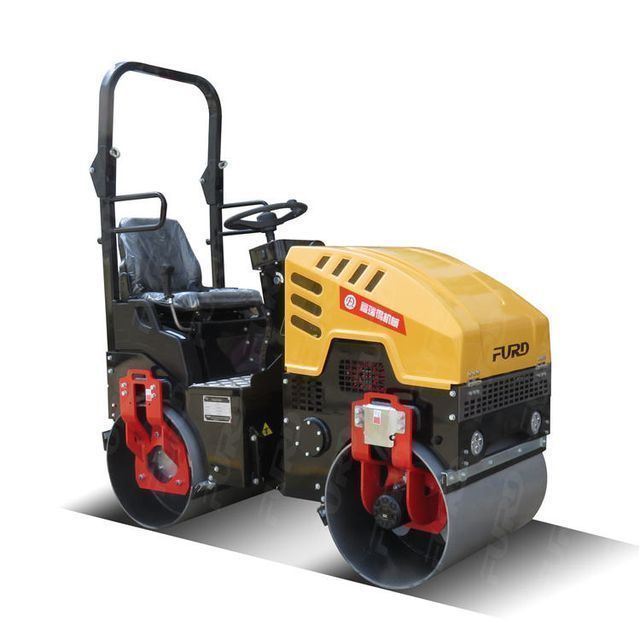

1 ton mini asphalt roller FYL-880
Model | FYL-880 | ||||
walking speed | 0-5km/h | water tank | 60L | ||
Gradeability | 30% | Hydraulic tank | 19L | ||
drive type | Hydraulic transmission | engine model | Water-cooled diesel 90N/air-cooled diesel CF186/Honda gasoline GX390 | ||
vibration control | Electromagnetic control | strength | 9HP/13HP | ||
static linear control | 20/55N/cm | Drum size | diameter 540mm, The width of the front drum is 740mm, Back drum width 800mm | ||
Nominal amplitude | 0.6mm | Package dimensions | 2100*1000*1650mm | ||
vibration frequency | 70 Hz | net weight | 1000 kg | ||
Exciting force | 25KN | start method | flashlight | ||
feature:

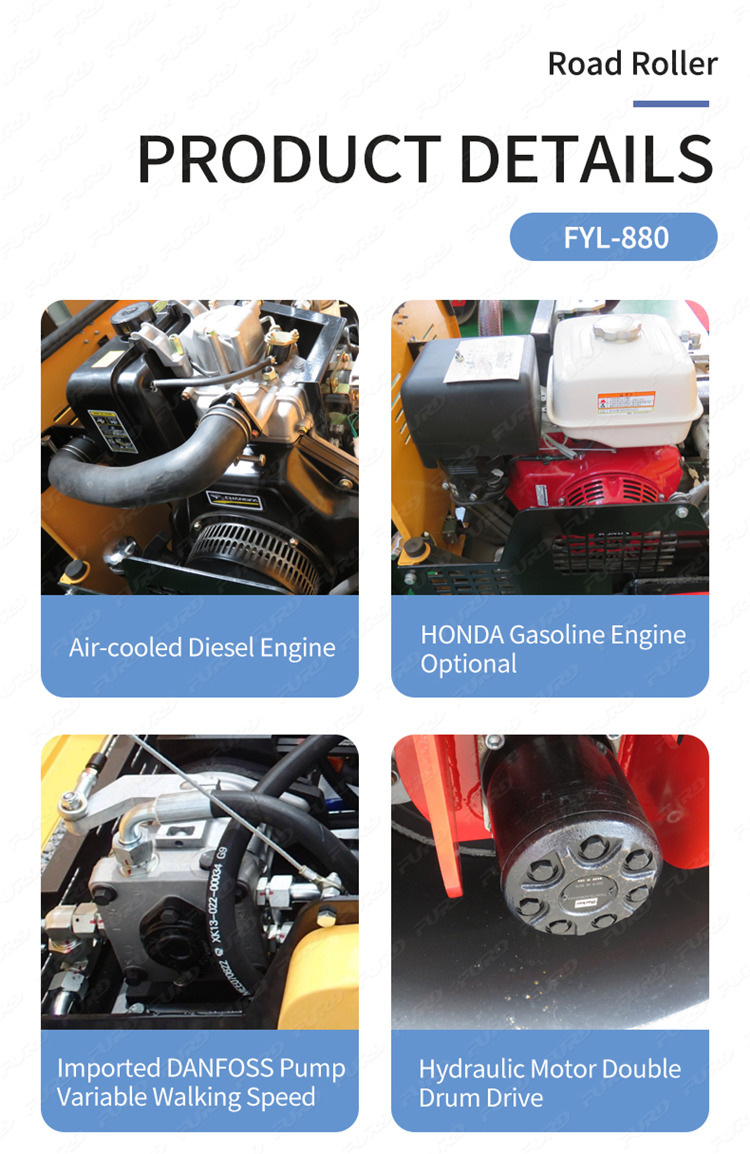

1) The imported Danfoss variable plunger pump drives the machine to move at a stepless speed;
2) Double American white hydraulic motors drive the machine to walk, and double rollers are hydraulically driven;
3) 25KN exciting force, good compaction;
4) The working radius is small, and it can work in a small area, which is suitable for trench backfilling;
5) Adopt domestic 90N water-cooled diesel engine/Honda GX390 gasoline engine/Kepler air-cooled diesel engine, with guaranteed quality and superior performance;
6) Electric start is adopted, and electromagnetic clutch is used for machine vibration control, which is more convenient to operate;
7) International NSK bearings, three star V-belts, Eaton steering gear;
8) The surface is sprayed with plastic, beautiful and rust-proof.
