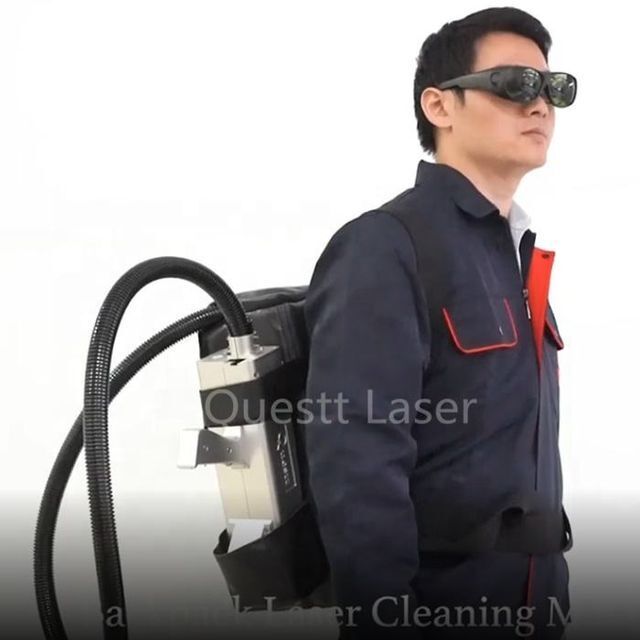

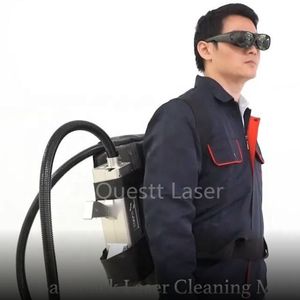

50w 100w 200w backpack bag style electric laser rust removal lazer cleaning ink graffiti paint old building machine
- $9900.00 / 1 - 1 sets
$9600.00 / 2 - 9 sets
$8900.00 / >=10 sets - 1 set
- Wuhan Questt Asia Technology Co., Ltd.
- Hubei, China
- Ms Questt Laser
Power: | 200W,100W,50W,60w; | Applicable Material: | Stainless Steel,Carbon steel,Aluminum,Wood,Stone,Metal,Paper,Rubber; |
Showroom Location: | None; | Condition: | New; |
Machinery Test Report: | Provided; | Laser Type: | Fiber Laser; |
Laser Source Brand: | Raycus/JPT/Orion; | Packaging Detail: | Wooden cases; |
Product name: | Laser rust removal; | Port: | Shanghai/Any Port; |
Package Preview: | ; | Key Selling Points: | Flexible Manufacturing; |
Marketing Type: | New Product 2020; | Laser Power: | 50/100/200; |
Warranty of core components: | 1 Year; | Service: | Online and overseas service; |
Local Service Location: | None; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Warranty: | 2 Years,1 Year; | Video outgoing-inspection: | Provided; |
Applicable Industries: | Manufacturing Plant,Hotels,Home Use,Construction works ,Machinery Repair Shops,Building Material Shops; | Application: | Laser cleaning; |
Certification: | CE, ISO; | Laser source: | Fiber laser; |
Laser wavelength: | 1064nm; | Core Components: | Engine,Motor,Laser source; |
Brand Name: | QUESTT; | Weight (KG): | 18 KG; |
Material: | Rust Oxide / Painting Coating; | Place of Origin: | China; |
Cleaning Type: | Handheld laser gun; |
50w 100w 200w backpack bag style electric laser rust removal lazer cleaning ink graffiti paint old building machine
Send an easy inquiry to Jade to get BIG coupon!! Jade'll keep it for you till you place the order. Jade is eager for your message!!

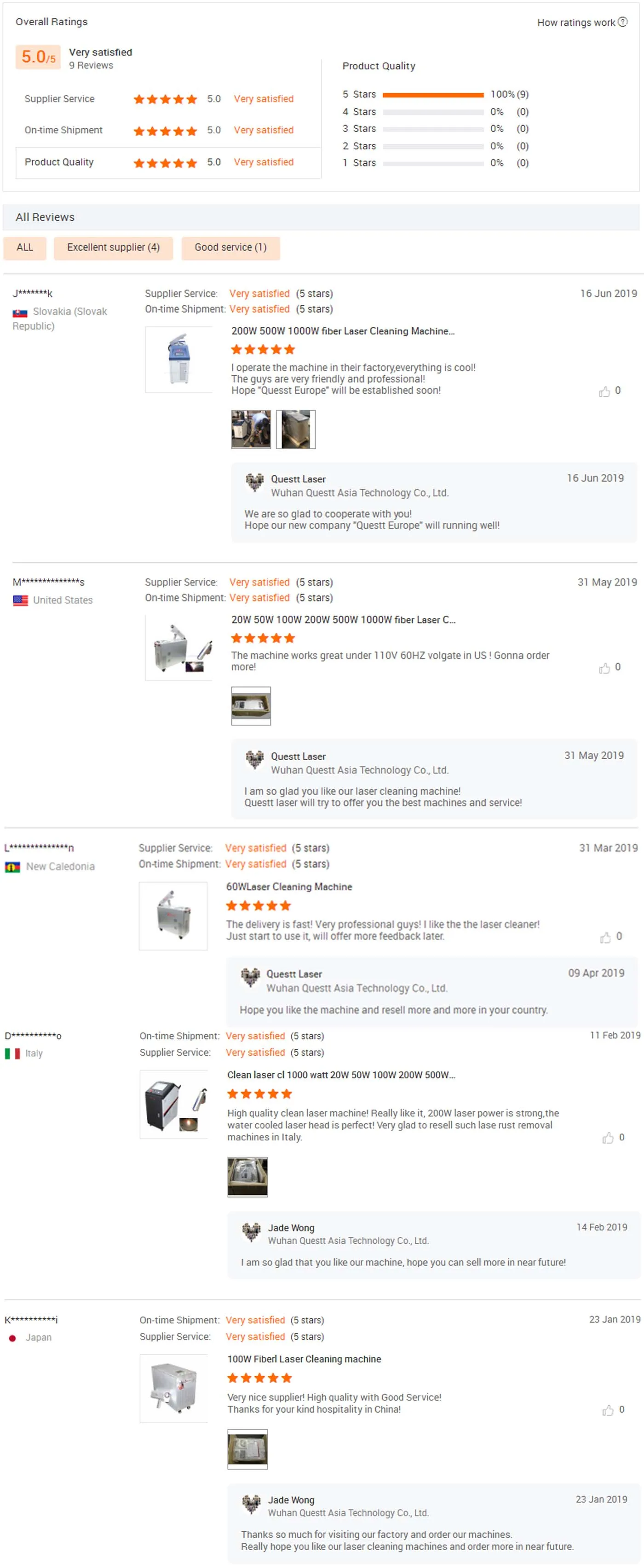

We got good reviews of online orders for laser rust removal machine:
Comparison with Traditional Clean Methods:
Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base material | None | Yes | Yes | None |
Washing Efficiency | High | Low | Low | Mid. |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Technical data of Backpack laser rust removal
Model |
QA-LC50B |
QA-LC100B |
Laser source |
Fiber |
Fiber |
Laser Power |
50W |
100W |
Fiber cable length |
2 meters |
2 meters |
Laser Wavelength |
1064nm |
1064nm |
Pulse Energy |
1 mJ |
1.5 mJ |
Pulse frequency |
1-2000KHz |
1-2000KHz |
Scanning speed |
0-7000mm/s |
0-7000mm/s |
Cooling |
Air cooling |
Air cooling |
Dimension |
390*150*485 mm |
490*150*535 mm |
Weight |
18Kg |
30Kg |
Beam width |
10-70mm |
10-100mm |
Optional |
Manual |
Manual |
Temperature |
5-40 ℃ |
5-40 ℃ |
Voltage |
Single Phase AC 220V,2.5A |
Single Phase AC 220V 4.5A |
Machine introduction of backpack laser cleaning machine
Fiber Laser rust removal Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.
Features of backpack laser rust removal
1. Fast and concentrated pulses with enormous power impact and gasification of residues on the surface;
2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material;

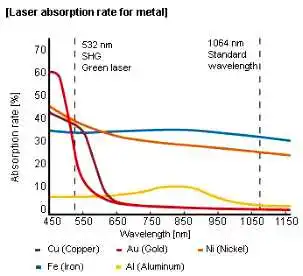

Laser absorption rate for metal
Based on the metal surface cleaning customized laser, according to the laser absorption rate of different wavelength of materias, the prior art selection of 1064 nm solid-state lasers or fiber lasers, metal absorption rate of up to 30%, with special mode spot, both can effectively clean rusty, and also protect Base metal with no damage. Considering the stability of laser, the use of cost and integration methods and other factors, the latest technology using wavelength of 1064nm fiber laser is better than solid lasers, Maxphotoncis 100W pulse laser cleaning source, is the best configuration for hand-held laser cleaning. |

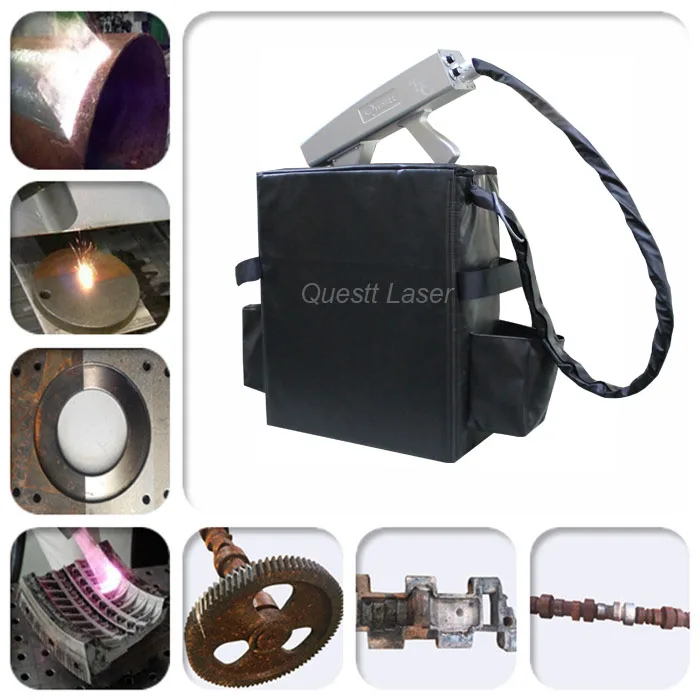

Application
industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy Rust, painting coating, oxide coating removal
Rust removal: High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formating plasma blasting, finally achieve the relativel smooth corrosive layer of boject surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust. |
Top 1 search rank of laser cleaning tool on Alibaba:
1.Q:What is the warranty of the backpack laser cleaning machine?
A:2 years.
2.Q:Are you a factory or trading company?
A:Quesstt Laser is a factory for 22 years.Got import and export License.
3.Q:How about the quality?
A:Technology is from Germany.High quality best price.
4.Q:What is your after-sale service?
A:If needed,Questt Laser offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!
5.Q:How do i get technical support after purchasing?
A:Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.
6.Q:How can i get assurance of my Payment?
A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
( Note: Please click the photos above to watch the videos ! )
