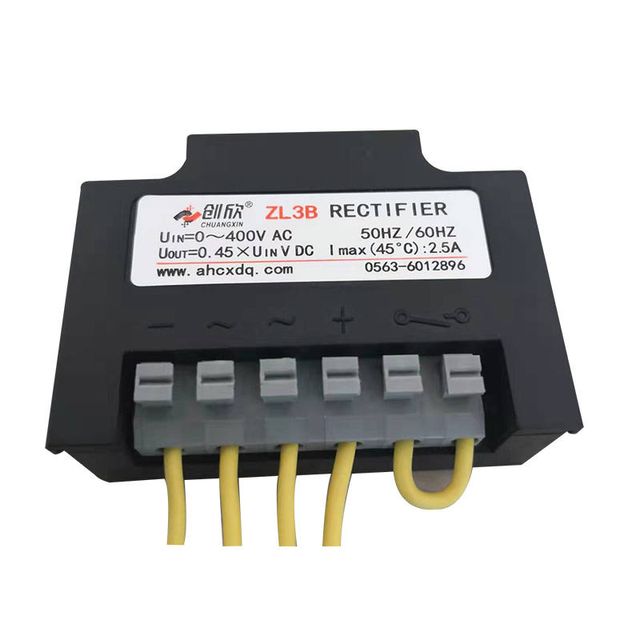

5A matching conversion AC electromagnetic brake working rectifier

PRODUCT DETAIL
Average On-State Current:Do notplace of origin; place of origin:Anhui, China
aspect:Do nottransportation:FedEx DHL UPS TNT
Certificate:ISO9001net weight:0.05kg
brand:MaxphotonicsCross reference:Do not
type of packaging:epoxy resinAvailable media:photo
Supply capacity:10000 pieces per monthport:Shanghai
Peak repetitive reverse voltage:Do notPackaging Details:carton
Supplier Type:original manufacturerMaximum operating current (A):5A
DC:Do notPeak non-repetitive reverse voltage:Do not
Pay:wire transferapplication:no, brakes
Input Voltage (V AC):220/380Model:ZL3-5A
model:ZL3(5A)type:Bridge Rectifier
Output Voltage (V DC):99/170; 198/342payment terms:letter of credit, wire transfer
Warranty:1 year
Product Description
Rectifier

The brake is a kind of DC and AC power supply, powered by the coil, if necessary, the rectifier is matched to convert the AC power, which is used for the electromagnetic brake
Work. Under normal circumstances, the braking power controlled by the rectifier AC should be used in the braking rectifier to achieve rapid braking.
Control the DC side (connect the motor and power synchronous switch in series on the DC side of the rectifier).
The rapid braking developed by our company can directly realize rectification, and can realize rapid braking after the AC power is rectified.






ordinary rectifier

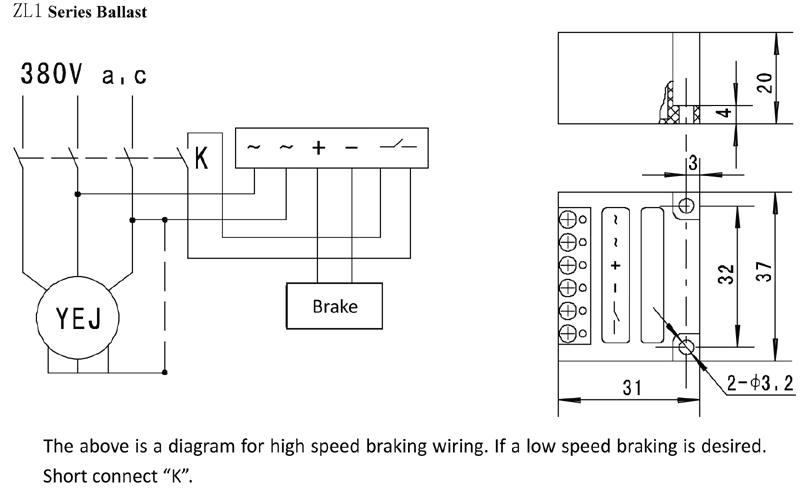

ZL1-96
220+/-10%
96+/-10%

Half wave rectifier

ZL1-170
380+/-10%
170+/-10%

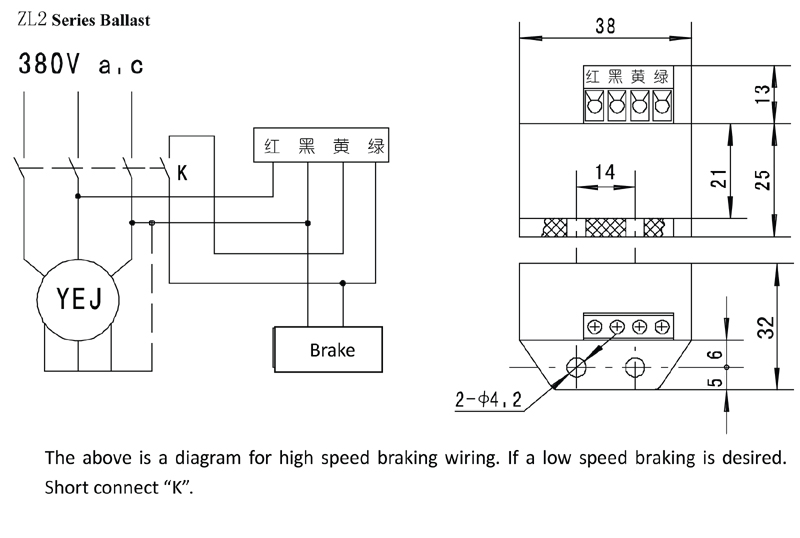

ZL2-96
220+/-10%
96+/-10%


Half wave rectifier

ZL3-170
380+/-10%
380+/-10%

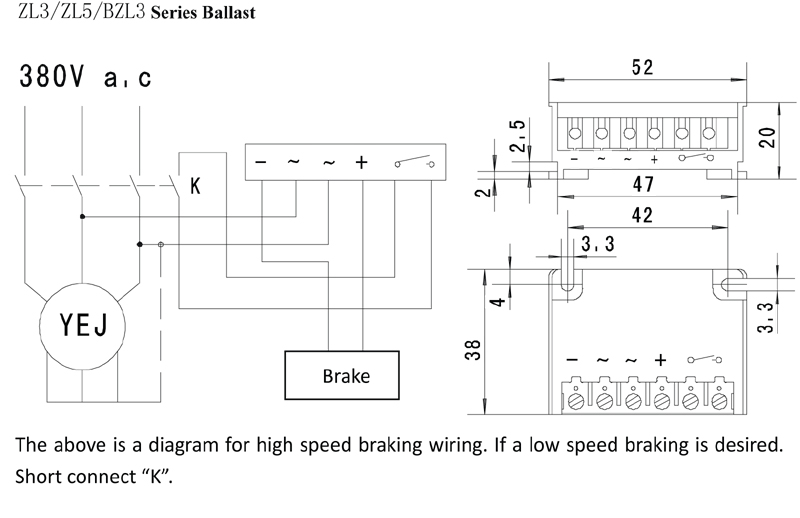

ZL3 series

220+/-10%
96+/-10%
Half-wave rectifier with built-in spark suppressor
380+/-10%
170+/-10%

ZL5 series
220+/-10%
96+/-10%
Full wave (rectifier bridge type) with built-in spark arrestor
380+/-10%
380+/-10%
working environment
Has the following characteristics:
1. Beautiful appearance, small size, convenient connection,
2. Imported electronic components, with input and output protection circuit, suitable for high frequency inductance work,
3. Good sealing, suitable for the standard working environment of (YEJ) motors, and can be directly installed on the motor junction box.
.
