72v 5000w 6000w 8000w 12000w enduro ebike frame bike conversion kit
- $455.00 /set
- 1 set
- Changzhou Able Electronic Technology Co., Ltd.
- Jiangsu, China
- Mr Otto Liu
| payment terms: | Western Union, T/T, MoneyGram, PayPal | Maximum speed: | 80-130km/h |
| Motor position: | rear hub motor | Supply capacity: | 10000 sets per month |
| frame: | steel | Per power range: | > 60 km |
| Charging time: | >3 hours | saddle: | SR leather |
| transmission: | 16T/18T single gear | Rear shock: | DNM RCP-2S / KKE BA-27RC |
| Torque: | >100 Nm | Packaging Details: | 5 boxes packing: 70*70*28cm; 70x70x23cm; 80x50x40cm; 120x40x30cm; 100x40x20cm |
| Battery Location: | Integrated battery | exhibit: | TFT UKC1 colour display |
| Wheel size: | 19/21 inch motorcycle tire | Fork: | DNM USD-8S / KKE BF-34SRC |
| throttle: | Twist/thumb throttle | gear: | single speed |
| Braking System: | Hydraulic Disc Brakes (Hydraulic Brake Pads) | Controller: | 72V 100-200A sabvoton sine wave programmable |
| Battery: | 72V 20-50Ah Li-ion battery | Packaging Preview: | |
| place of origin; place of origin: | Jiangsu, China | Voltage: | 72V |
| port: | Shanghai, Shenzhen, Ningbo, Qingdao | Frame Material: | steel |
| Brake system: | Tektro HD-E500 / E725 Hydraulic Brakes | battery capacity: | 20-50Ah |
| brand: | can ride a bike | model: | A9 |
| power supply: | lithium battery |
72v 5000w 6000w 8000w 12000w enduro ebike frame bike conversion kit

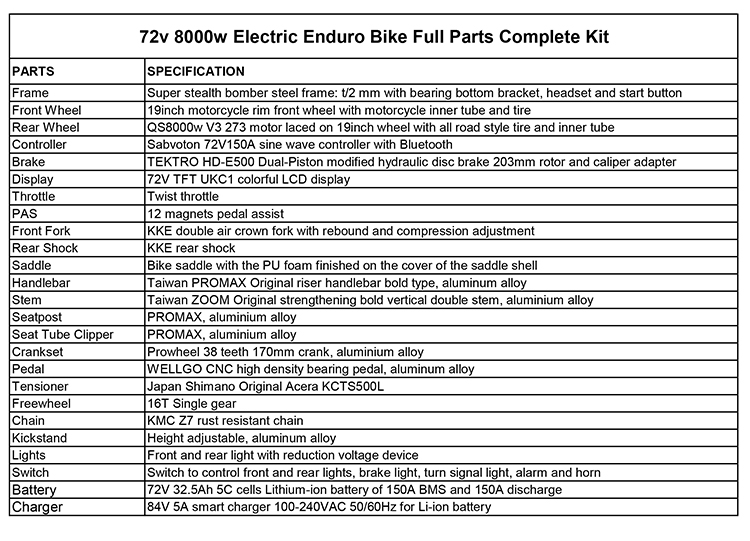

Packaged Items:

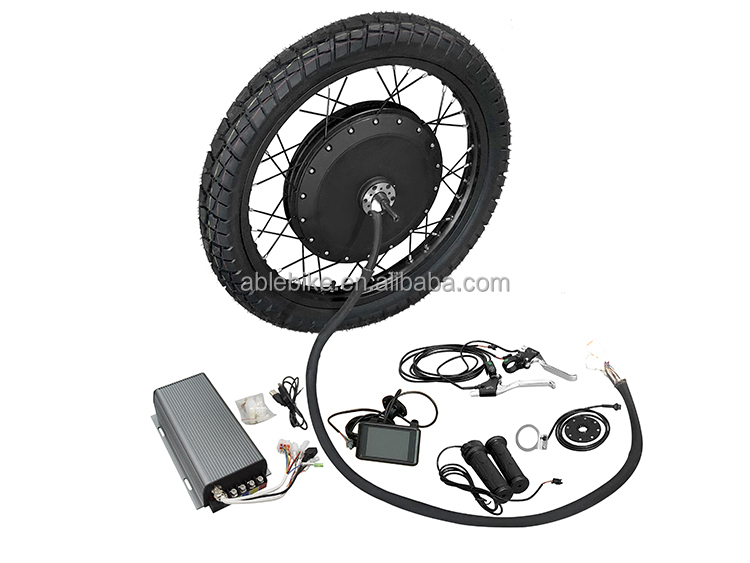

Part 1 - Rear Wheel and Electronic System
8000W Rear Drive Electric Endurance Bike Conversion Kit Package Contents:
1. 72V 8000W QS 273 V3 WP40030X rear hub motor tethered to 19 inch all-road/off-road motorcycle wheels with 80/100-19 motorcycle tires and tubes;
2. 72V 150A Sabvoton SVMC72150 24-tube sine wave controller with Bluetooth programmable function;

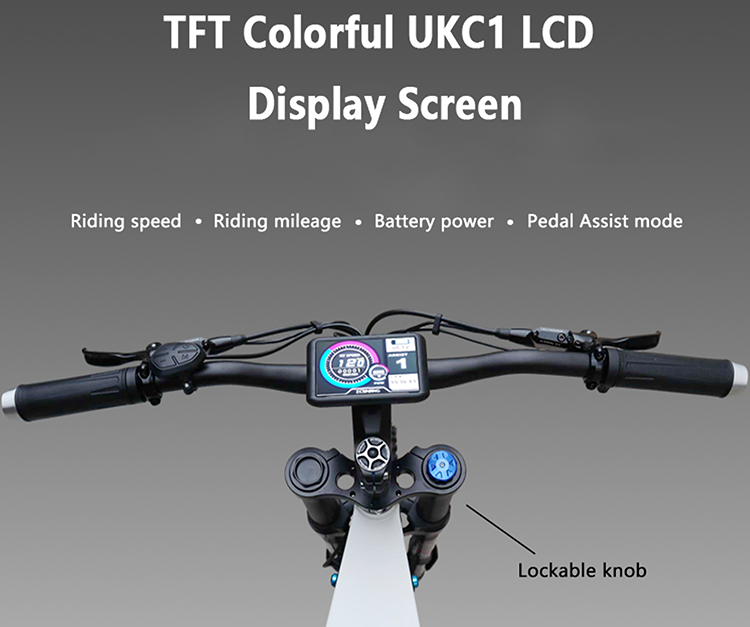

3. TFT UKC1 color display, with 3, 5, 9 pedal assist setting function;
4. 2 brake levers with power off sensor;

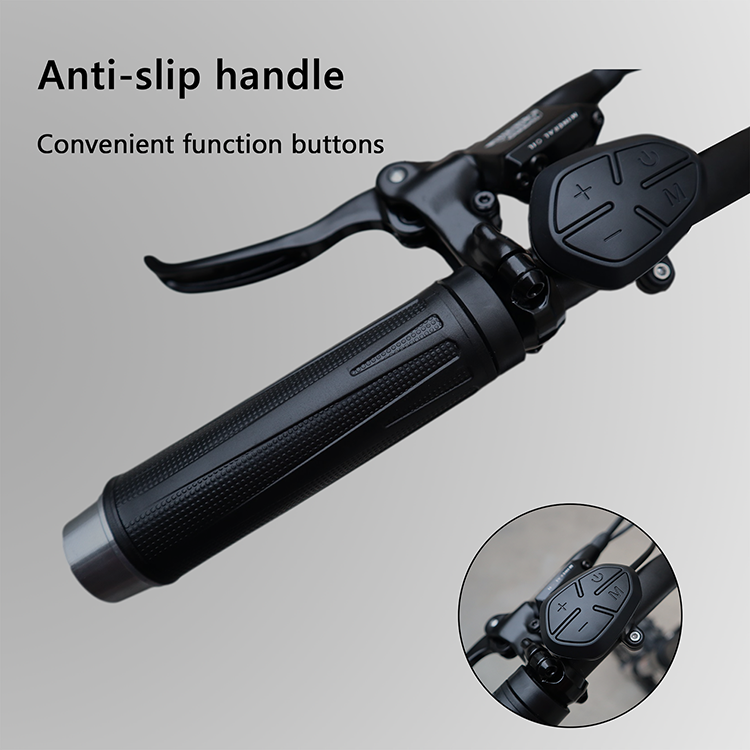

5. Twist/thumb throttle;
6. 8/12 magnet pedal assist.
Part 2 - Front Wheel

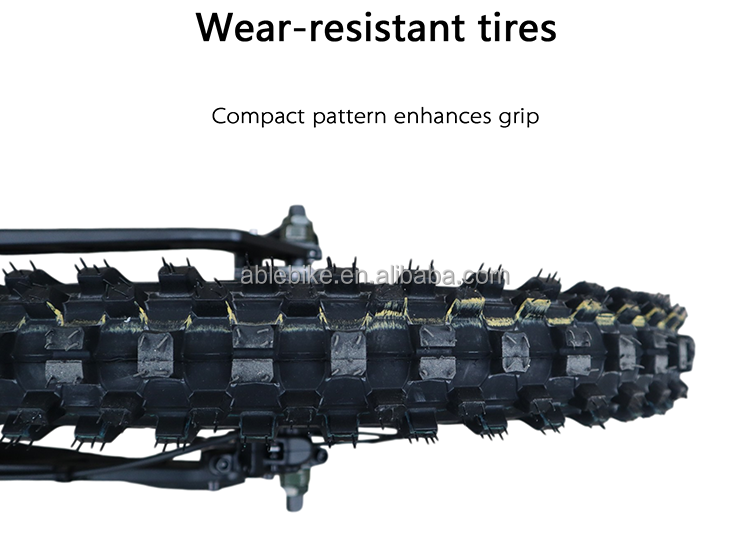

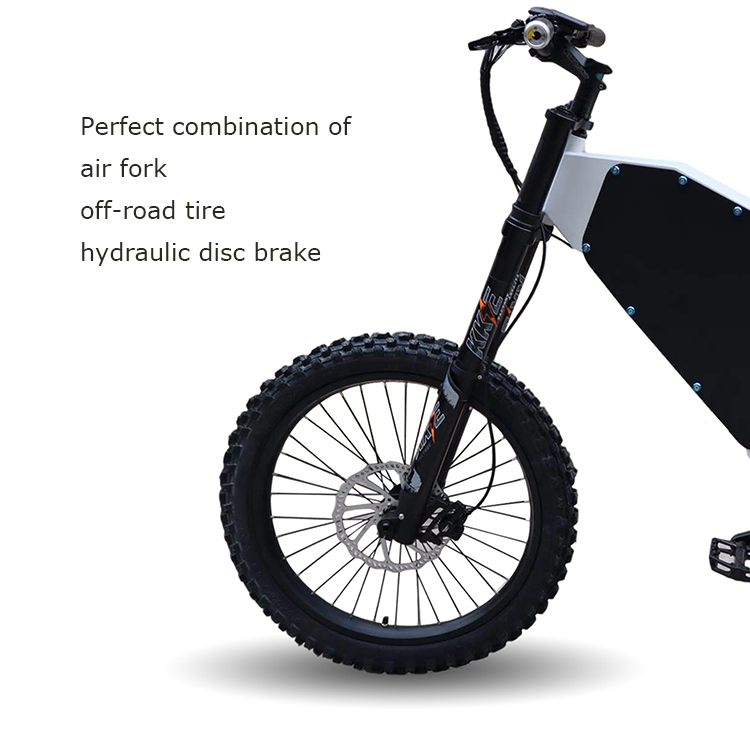

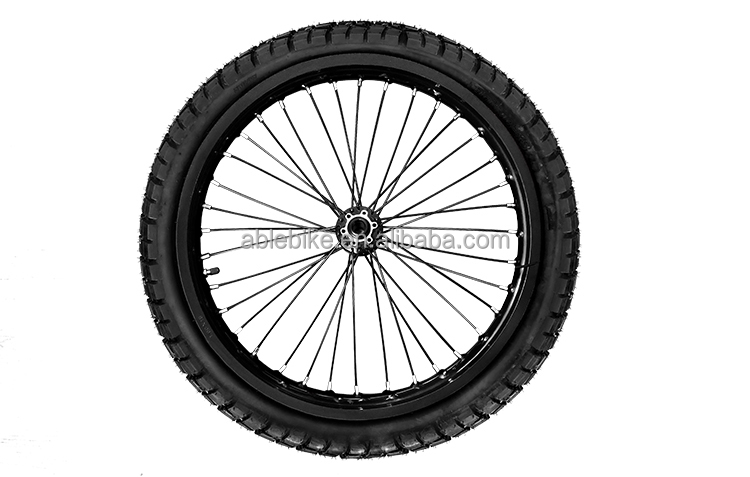

19" motorcycle rim front wheel with all road style/motocross inner tubes and tires (20mm rim width, 110mm drop off).

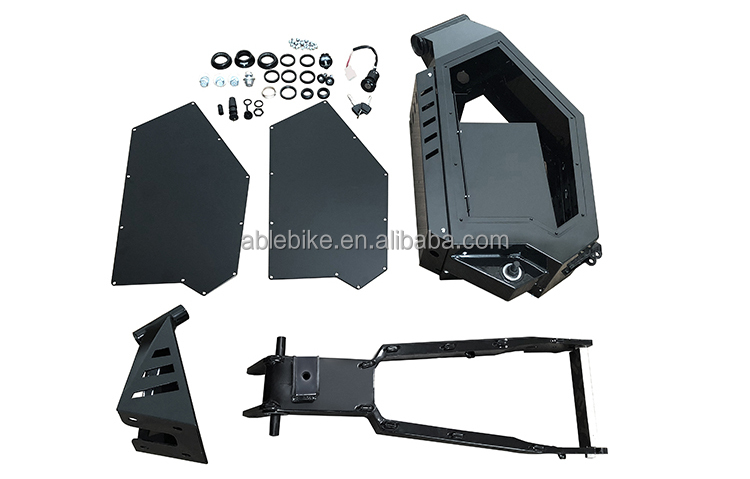

Part 3 - Bicycle Frame

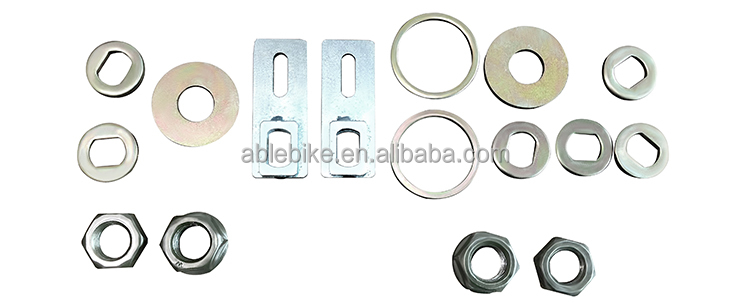

Super Bomber Steel Frame: t/2mm (black, white or red) with bearing bottom bracket, earphones, start button, bolts, washers and screws.
Part 4 - Fork and Shock

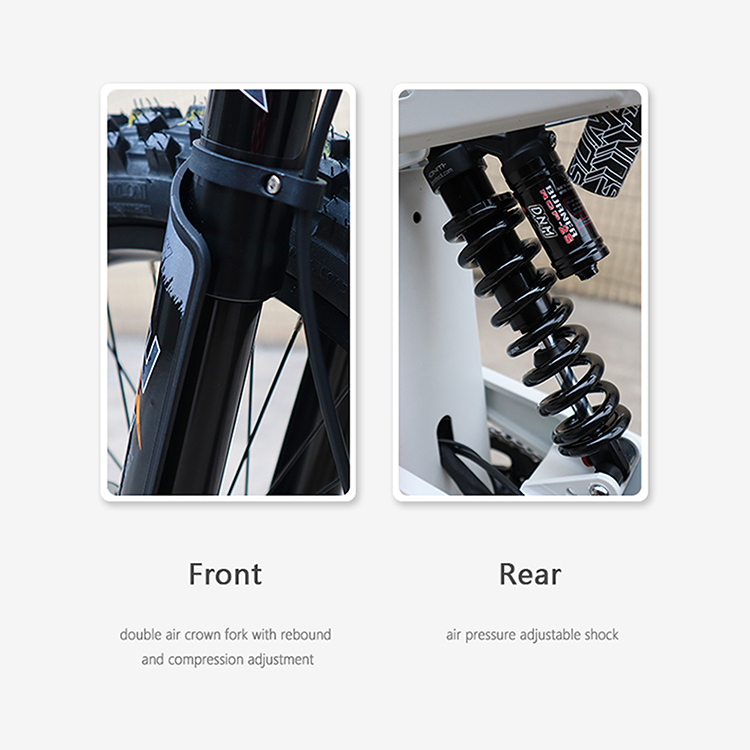

There are two combinations to choose from:
1). DNM USD-8S fork with DNM RCP-2S shock
2). KKE BF-34SRC front fork with KKE BA-27RC rear shock

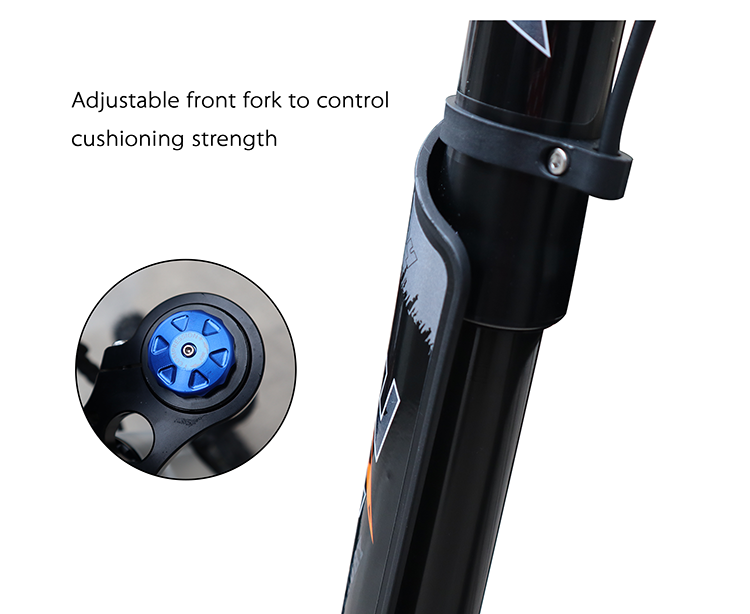

KKE BF-34SRC Dual Air Crown Fork with rebound and compression adjustment, 27.5", 20mm hub width, 110mm chainstay
| Wheel size: | 20 / 24 / 26 / 27.5 / 29 inches |
| travel: | 203mm |
| Outer tube: | φ47mm |
| Inner tube: | φ34mm |
| Crown Spacing: | 110mm |
| axle: | φ20mm |
| Internal structure: | Coil Spring Fork / Air Spring |
| Adjustment: |
External compression regulator External rebound adjuster 15 clicks of R&C tweaks |
| Buck type: | CD only (post install) |
| color: | Black |
KKE BA-27RC rear shock
| EE: | 165 to 270 mm |
| Adjustment: | Preload/Rebound and Compression |
| travel: | From 30mm to 90mm |
| Air: | 100 to 150psi nitrogen in tank |
| Available Dimensions x Travel: | 200 × 56 mm (7.87 × 2.20 inches) |

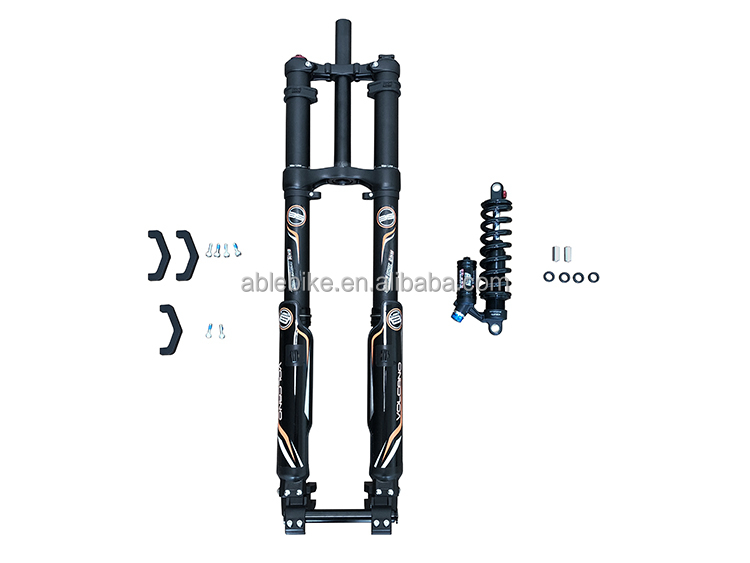

DNM USD-8S triple air fork with rebound and compression adjustment, dual disc attachment, 27.5", 20mm hub width, 110mm chainstay
| weight: | 3.8 kg (8.38 lb) |
| Wheel size: | 24 / 26 / 27.5 inches |
| travel: | 112mm (4.41") for 24"/203mm (8") |
| Steering tube: | 28.6 mm (1.13 in) (straight), 1-1/8” to 1.5” (cone) AL-7075 |
| Dropout/Crown Materials: | Forged, AL-6061 |
| Outer tube: | 42mm/AL-6061 |
| Inner tube: | 35mm / AL-7075 Hard Anodized |
| Down Tube: | 20mm (0.79") axle x 110mm, thru-axle design AL-7075 |
| feature: | inverted fork |
| Internal structure: | coil spring |
| Adjustment: | Preload/rebound/air pressure adjustable |
| Buck type: | CD only (post install) |
| Ride style: | DH |
| color: | Black |
DNM RCP-2S rear shock
| weight: | 0.41 kg (0.91 lb), 210 mm (8.27 in) |
| Adjustment: | Rebound / Compression / Preload / Air Pressure Adjustable / Big Shock |
| Damping shaft: | Hard chrome shock-absorbing Ø12 mm (0.47 in) axle. |
| Dark hard anodized AL-7075 shock body. | |
| Ride style: | AM/FR/DH |
| color: | Black |
| Available Dimensions x Travel: | 200 × 56 mm (7.87 × 2.20 inches) |

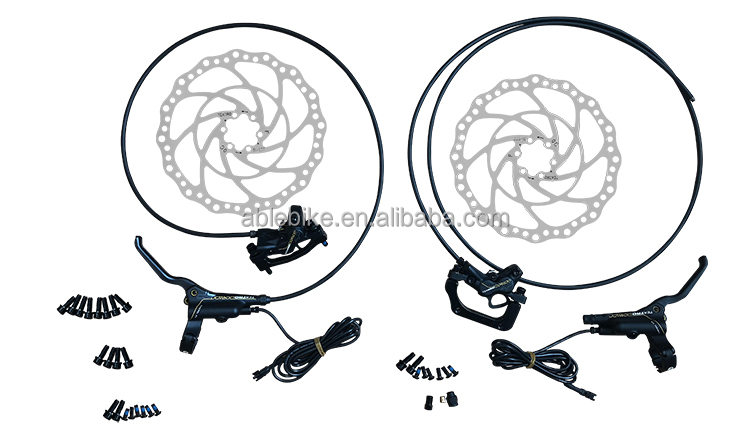

Part 5 - Braking System
Two models of TEKTRO HD-E725 and HD-E500 hydraulic disc brake systems are available.
TEKTRO HD-E725 4 PistonsImproved Hydraulic Disc Brakes (Power Out) Aluminum 203mm Rotor Disc Brake Caliper Adapter with TEKTRO 203mm Front and Rear Disc Brake Rotors.
TEKTRO HD-E500 Dual PistonImproved Hydraulic Disc Brakes (Power Out) Aluminum 203mm Rotor Disc Brake Caliper Adapter with TEKTRO 203mm Front and Rear Disc Brake Rotors.

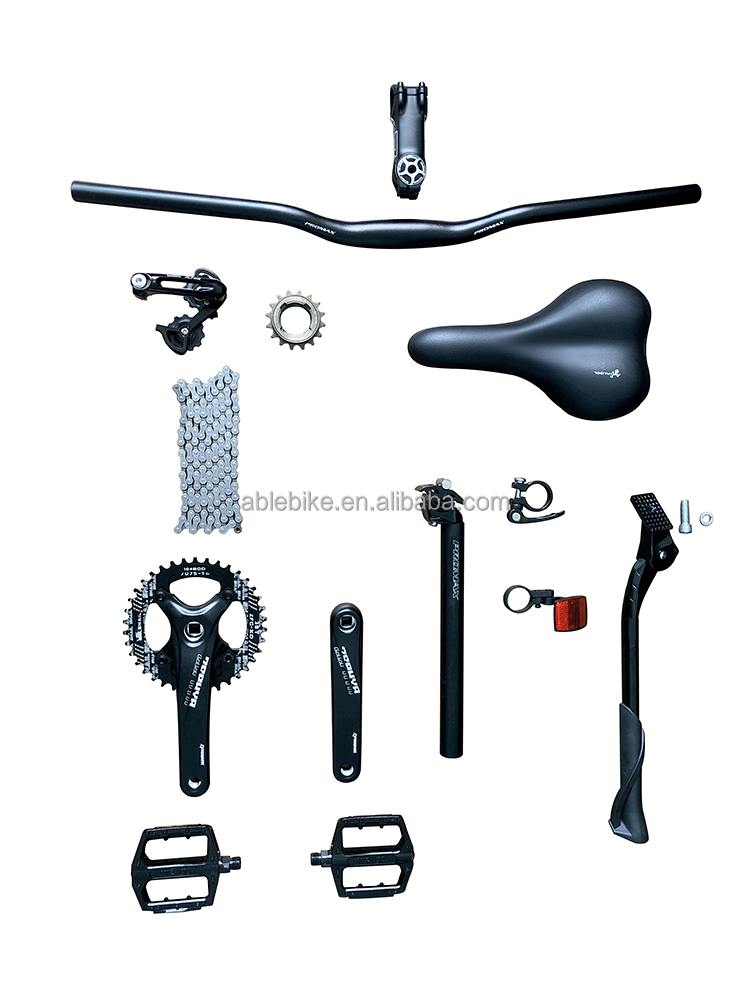

Part 6 - Mechanical Parts
1. Taiwan ZOOM original reinforced and bold vertical double stem, aluminum alloy
2. Taiwan PROMAX original riser handlebar bold type, aluminum alloy
3. Japan Shimano original Acera KCTS500L tensioner
4. 16T single gear flywheel
5. KMC Z7 Anti-rust Chain
6. Prowheel 38-tooth 170mm crank, aluminum alloy

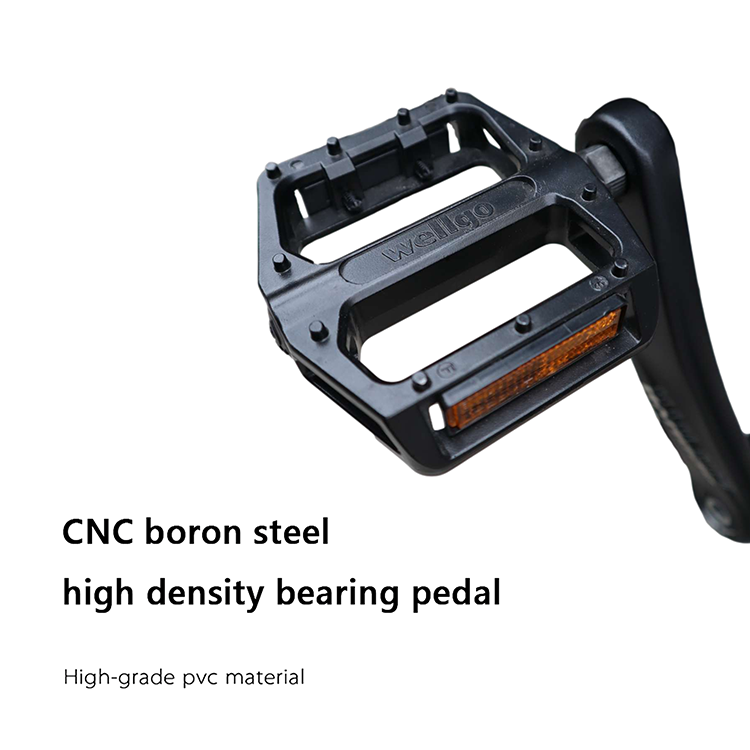

7. WELLGO CNC High Density Bearing Pedals, Aluminum Alloy
8. Height adjustable stand, aluminum alloy

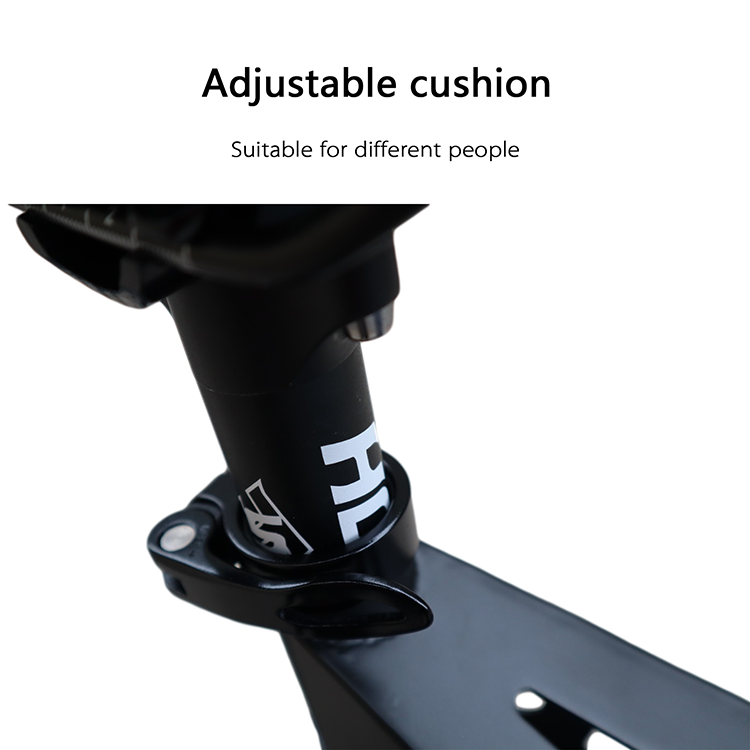

9. PROMAX Seatpost, Aluminum
10. PROMAX Seatpost Clamp, Aluminum Alloy

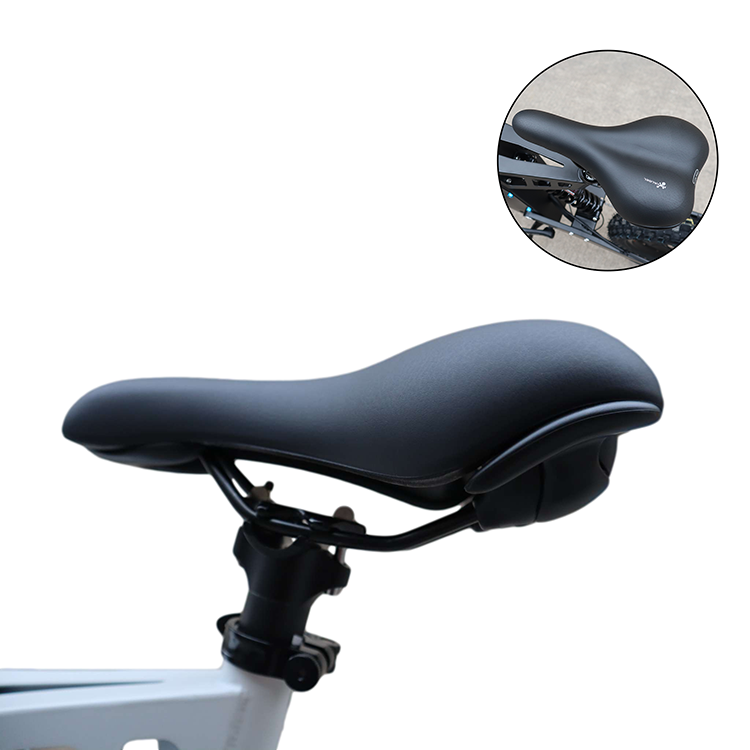

11. Bicycle saddle, PU foam is done on the saddle shell
SECTION 7 - ELECTRONIC ACCESSORIES

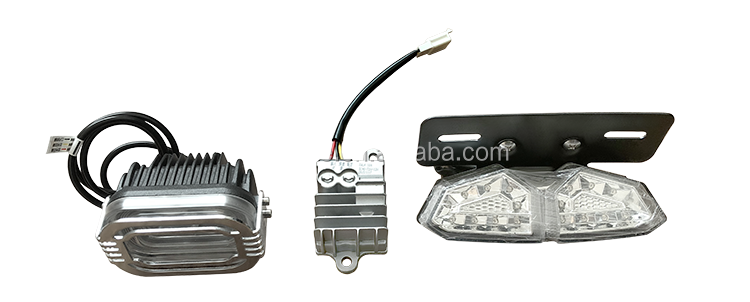

1. Front and rear lights with step-down device

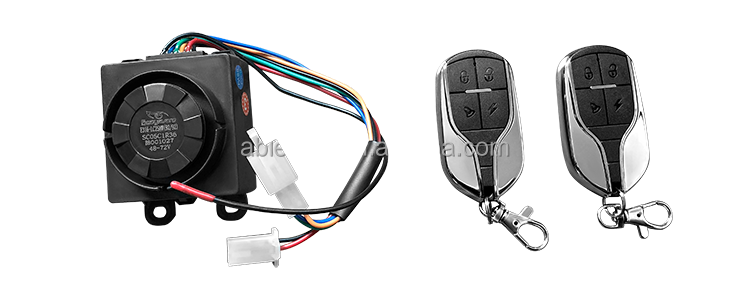

2. Alarm with electronic lock

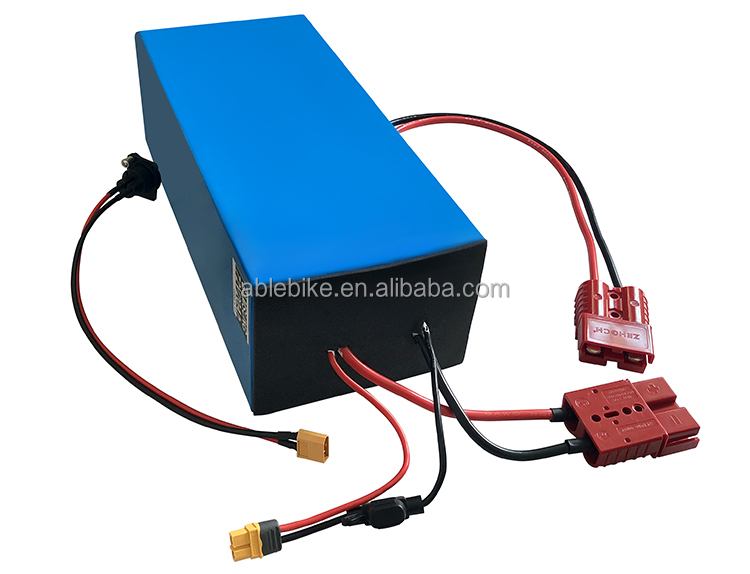

3. 72v 18650 cell lithium ion battery

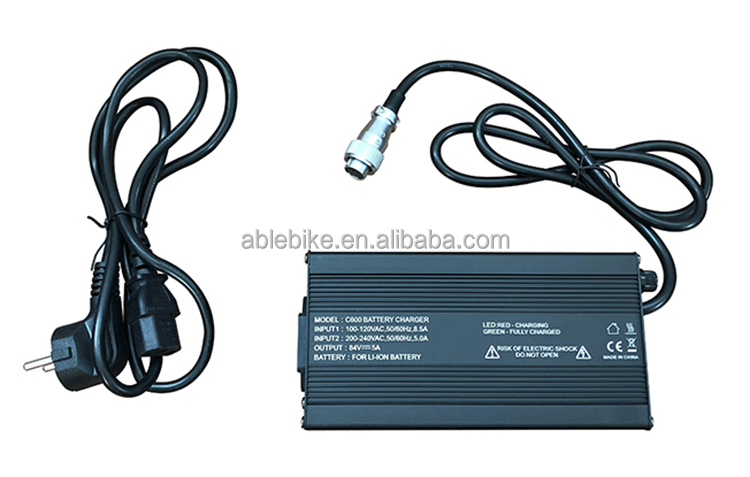

4. 84V 5A Smart Charger 100-240VAC 50/60Hz Li-ion Battery
FAQ:
Q1: This is my first time importing abroad, how can I trust your company?
A:We are Alibaba legal certified company (VIP), we provide trade assurance orders on Alibaba. We can receive payment from Alibaba only after you get the product.
Q2: How is the quality control of your factory?
A:All products are 100% tested before packaging and shipping.
Q3: Can I visit your factory?
A:certainly! Please let us know before departure.
Question 4: Do you have any certificate?
A:Our products are CE certified, if you need other types of certification, please let us know, we will be happy to meet your needs.
Question 5: What is the delivery time?
A:Depending on the specification of your order and quantity, production usually takes about 15-25 working days.
Question 6: Can you accept sample orders?
A:Yes. Sample orders are available for quality inspection and market testing.
Question 7: How to place an order?
A:You can place an order by contacting us via email, Skype, phone or Trade Manager.
Q8: What are the payment terms?
A:We accept payment by T/T, L/C, Western Union or Alibaba's Trade Assurance. 100% T/T for sample orders in advance; 30% T/T for prepayment, and the balance paid before shipment for bulk orders.
Question 9: Your prices include VAT and taxes?
A:Prices do not include tax, but we can help you pay if you want, or we can make a low value for you to reduce the tax.
touch:
If you have any questions about AbleBike 72v 5000w 6000w 8000w 12000w enduro ebike frame bike conversion kit, please contact us.
