48V 1000W foldable hidden lithium battery for mountain electric bike
- $139.00 /set
- 1 set
- Changzhou Ruijie Ebike Technology Co., Ltd.
- Jiangsu, China
- Mr Roy Dai
PRODUCT DETAIL
Packaging Details: | Please contact me in time for the actual shipping cost. | place of origin; place of origin: | China |
model: | RJ-EBF02 | Controller: | 48V 22A |
motor: | brushless | Folding: | Yes |
Frame Material: | aluminum | Packaging Preview: | |
style: | standard | chain: | KMC 7-speed chain |
power supply: | battery, lithium battery | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
Wheel size: | 16", 20" | Per power range: | > 60 km |
Watts: | > 500w | Voltage: | 48V |
Supply capacity: | 3000 pieces per month | port: | Shanghai |
Motor Power: | 48V500W, 1000w rear brushless gear motor | frame: | 20" Aluminum Alloy Frame AL6061 |
Maximum speed: | 30-50km/h,>50km/h | Certification: | ce |
brake: | disc brake |
Product Description

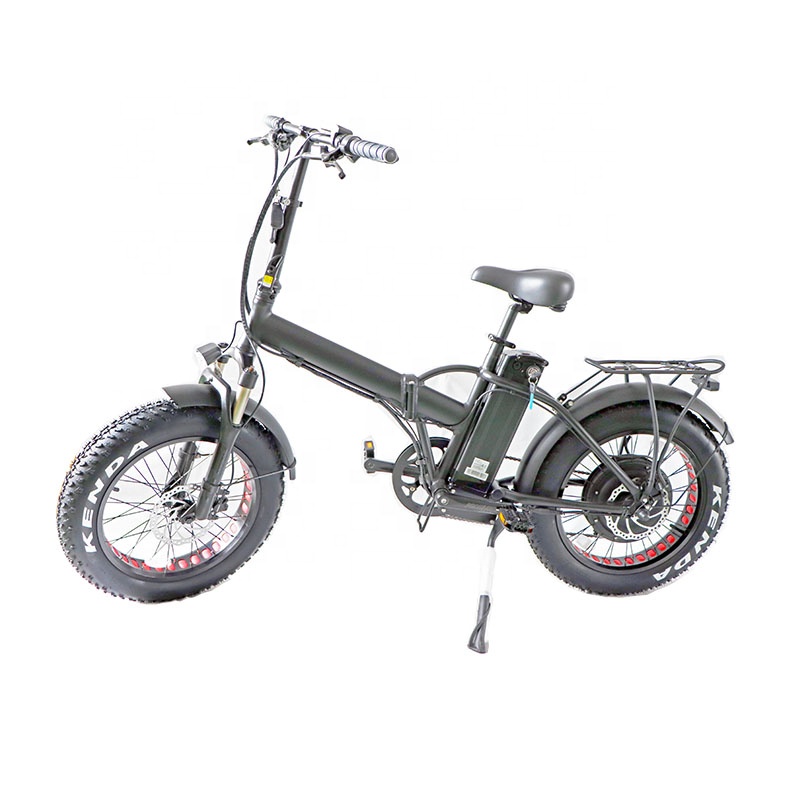

![](http://s.alicdn.com/@sc04/kf/Hf1f9d44fc3594dbf81073253c727fbefg/238835455/Hf1f9d44fc3594dbf81073253c727fbefg.jpg)
RJ-EBF02 (20 inch fat tire electric vehicle) | ||||||
frame | 20 inch aluminum alloy frame AL6061 | tire | 20×4.0 non-slip type | |||
motor | 48V500W 1000W rear brushless | sprocket | 42 teeth double cover aluminum alloy | |||
controller | 48V22A | chain | 7-speed chain KMC brand | |||
Battery | 48V10AH 48V11.6AH lithium battery | seat post | Aluminum alloy 31.8 AL6061 zoom brand | |||
charger | MAX 47--63Hz Charging time 5--7H | seat | Thickened soft seat | |||
transmission | External 6-speed Shimano brand | Dry | Foldable Aluminum Alloy AL6061 PROMAX brand | |||
exhibit | 5-speed 850 LCD screen with waterproof cable | pedal | Larger size AL-ALLOY pedals | |||
handlebar | Rugged Aluminum Alloy 31.8 AL6061 zoom brand | performance appraisal system | 1:1 6 Magnetic Smart Pedal Assist System | |||

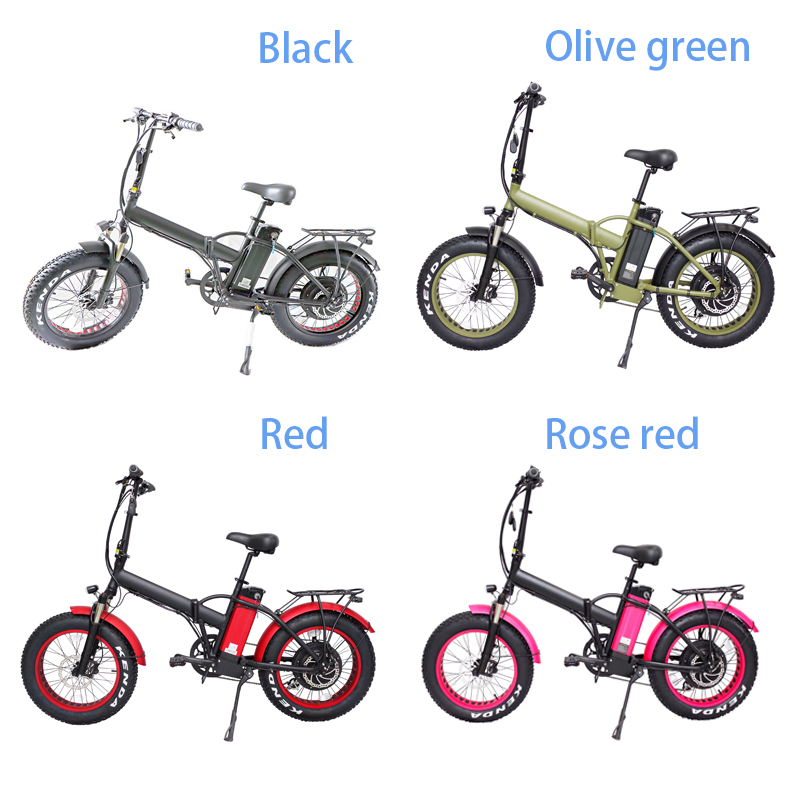

brake | Front/rear disc brakes (TEKTRO or SHIMANO brand | color | Red, white, matte black, blue, grey or customized | |||
Performance | Cruising range: 40--45Km pure electric; 50--60Km with PAS | |||||
Speed: 35--40Km/h | ||||||
Load: 120kg |

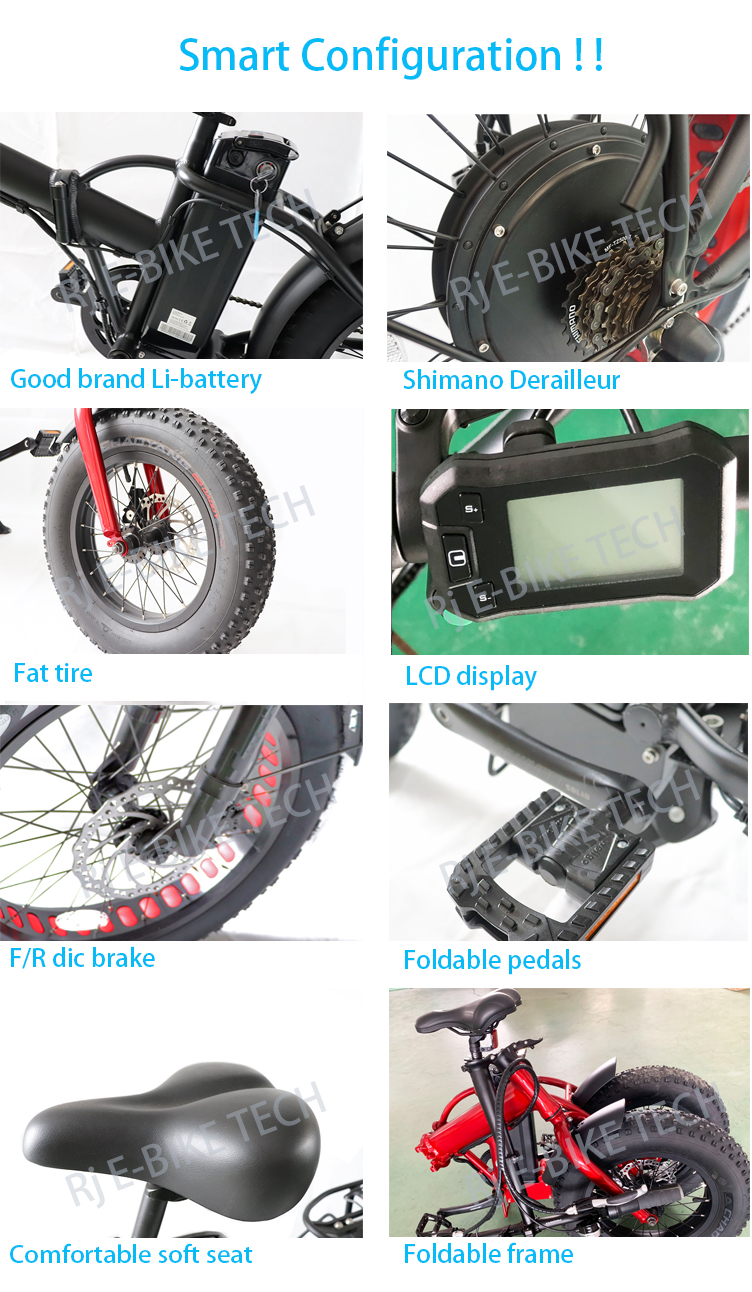

![](http://s.alicdn.com/@sc04/kf/Hca7a510a28634af7a06f9b081eae598c1/238835455/Hca7a510a28634af7a06f9b081eae598c1.jpg)
![](http://s.alicdn.com/@sc04/kf/H00e2833329b54d928511500d5f1205f3I/238835455/H00e2833329b54d928511500d5f1205f3I.jpg)
![](http://s.alicdn.com/@sc04/kf/Hf33476b1fa2843b68bca93ef635b72afU/238835455/Hf33476b1fa2843b68bca93ef635b72afU.jpg)
Product packaging
![](http://s.alicdn.com/@sc04/kf/H6f9a0764cefe46698f862fe8555f39378/238835455/H6f9a0764cefe46698f862fe8555f39378.jpg)
![](http://s.alicdn.com/@sc04/kf/Hcf9a771da80940678573bce2fa5b2388r/238835455/Hcf9a771da80940678573bce2fa5b2388r.jpg)
![](http://s.alicdn.com/@sc04/kf/Hb55291049c5940c69284654d835d871cY/238835455/Hb55291049c5940c69284654d835d871cY.jpg)
Size: 970*460*760mm
Weight: 28kg
Packaging Details:
1. White sheet sponge wraps the one-piece frame.
2. Bubble film wraps the composite frame again.
3.layer corrugated box.
