800mm wide t shirt textile tunnel dryer pretreatment machine and printing equipment china factory supplier

PRODUCT DETAIL
After-sales service provided:Provide overseas service centerWarranty:1 year
Core components:programmable logic controllerport:Yantai, Qingdao
Auto grade:automaticPackage dimensions:2.2x1.2x0.9m
Core Components Warranty:1 yearShowroom location:Vietnam, Philippines, Indonesia, Pakistan, India, Russia, Thailand, Romania, Malaysia
Mechanical test report:ifOverall length:2m
Conveyor Speed:adjustableVoltage:220V
place of origin; place of origin:Shandong Chinalength:can be customized
Packaging Details:packing wooden boxMain selling point:easy to operate
Supply capacity:20 sets per weekApplicable industries:Clothing stores, manufacturing plants, printing shops
Health status:newDimensions (L*W*H):2.0x0.8x1.2m
brand:Tomokopayment terms:letter of credit, wire transfer
Packaging Preview:Heating zone:800x1000mm
After Warranty Service:Video technical supporttype:oven
weight:200kgVideo external inspection:if
Marketing Type:Hot Products of 2019









Product Description



application:

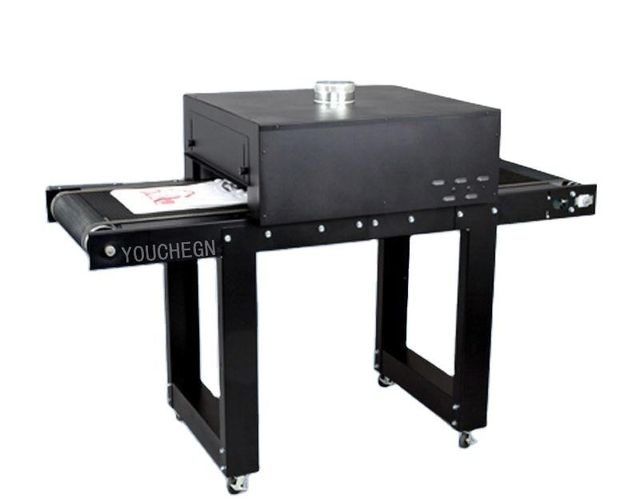

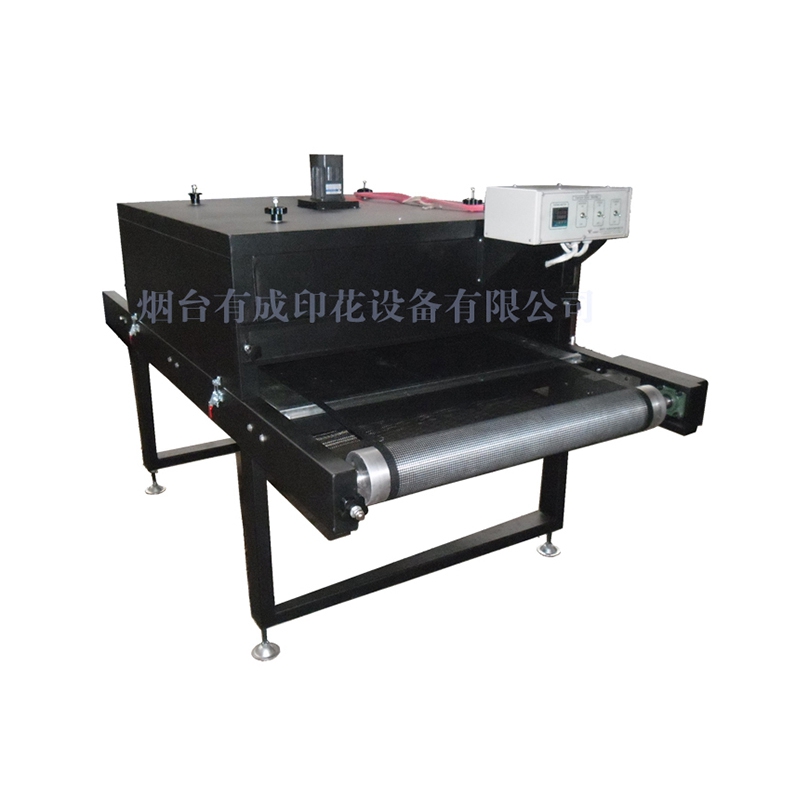

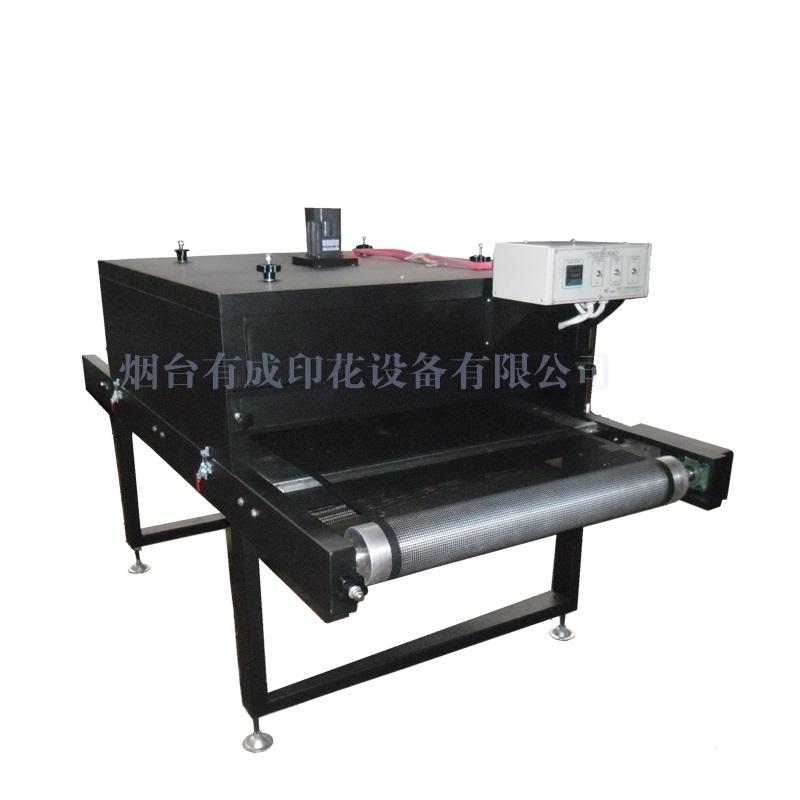

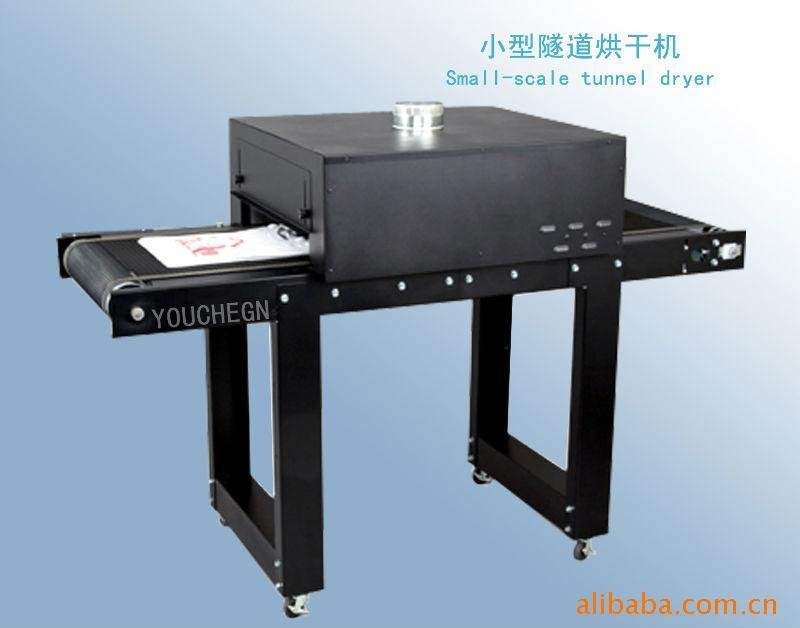

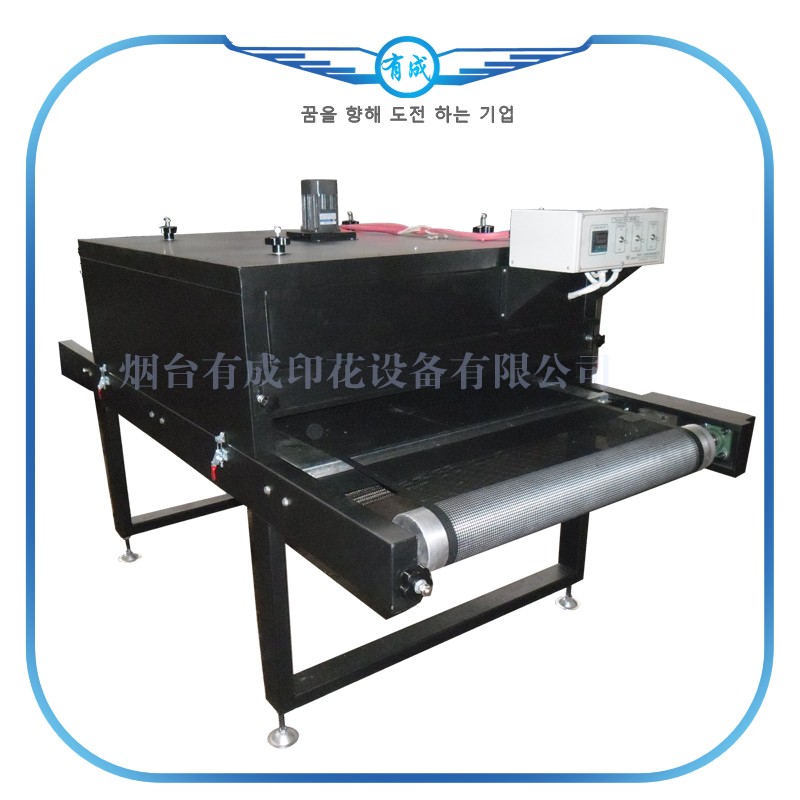

This tunnel dryer with conveyor belt is designed for laboratory and high volume production. This conveyor belt system has a silent variable speed motor, when the dryer is under various loads, the speed of the variable speed drive and the conveyor belt is uniform, the height between the belt and the light is adjustable, suitable for different sized items.

Suitable for printing, paint, thermoset, inkjet, T-shirt printing, etc.



technical parameter:

Machine size:2000*900*1300mm(includes fan cover and motor)



Drying area: 1000*1000mm



Belt width: 800mm



Maximum conveying width: 800mm



Maximum conveying height: 100mm (adjustable)



Belt material: Teflon



Speed: 1-5m/min



Light: Infrared light



Temperature: 200



Lamp power: 900w*10 pieces (Heraeus lamps can also be selected)



Power supply: 220V/380v



feature:



1. The small infrared T-shirt tunnel dryer adopts intelligent temperature control system, which is easy to operate and can effectively control temperature deviation.



2. Adopt thermal circulation system, which can save energy effectively.



3. Adjust the rollers to prevent the belt from tilting during operation.



4. Automatic cooling.



















Name

Large UV Tunnel Dryer for Textile Printing

Voltage

380V

total power

25kW

Specification

1.2mx8m/1.2mx12m/850x8m

weight

800kg

temperature

6m













our service



Warranty time Any part damaged (non-human factor) within 1 year, we can express to you for free.
After-sales service If you don't know how to operate this machine, we can teach and train you, and we can send you how-to videos.
If you want to be our agent, welcome! Love that you can take advantage of our agency rates, it's a great time!
Delivery Time: Within 7 days after receiving your order confirmation.
Payment method: L/C, T/T, Western Union, PayPal.
