UV OvenUV Dryer Cup Bottles
- $2100.00 /set
- 1 set
- Dongguan Liang Yi Machinery Company Limited
- Guangdong, China
- Mr Jericho Wang
Mechanical test report: | if | Core components: | motor, water pump |
usage: | UV ink for drying bottles, cups, cans | .Maximum product height: | :20-320mm |
Conveyor belt speed adjustment: | stepless (variable) | Working power: | :220V/380V |
brand: | Lu | After-sales service provided: | Online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support |
Bottle mouth diameter: | :12-60mm | Showroom location: | Egypt, Turkey, USA, France, Germany, Vietnam, Philippines, Peru, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Argentina, Korea, Chile, UAE, Colombia, Sri Lanka, Malaysia |
Origin: | Guangdong, China | Local service location: | Egypt, Canada, Turkey, USA, Italy, France, Germany, Vietnam, Philippines, Peru, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Malaysia, Morocco, South Korea, Chile, Colombia, Sri Lanka, South Africa |
Machine size: | L2100xW750xH1810mm | Health status: | new |
Marketing Type: | 2019 Hot Products | After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
weight: | 353Kg | Conveyor Size: | :W400xL2000mm |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, RMB | Certification: | CE certification |
Applicable industries: | Clothing store, food and beverage factory, printing factory, food and beverage store, bottles, cups, barrels and cans | Main selling points: | easy to operate |
Dimensions (L*W*H): | L2100xW750xH1810mm | Core component warranty: | 2 years |
UV lamp power: | 5Kw | Supply capacity: | 150 sets per month |
Automatic level: | semi-automatic | gross weight: | 353KG |
speed: | 1800~3000 sheets/hour | Voltage: | 220V |
Video shipment inspection: | if | Warranty: | 2 years |
describe
scope of application

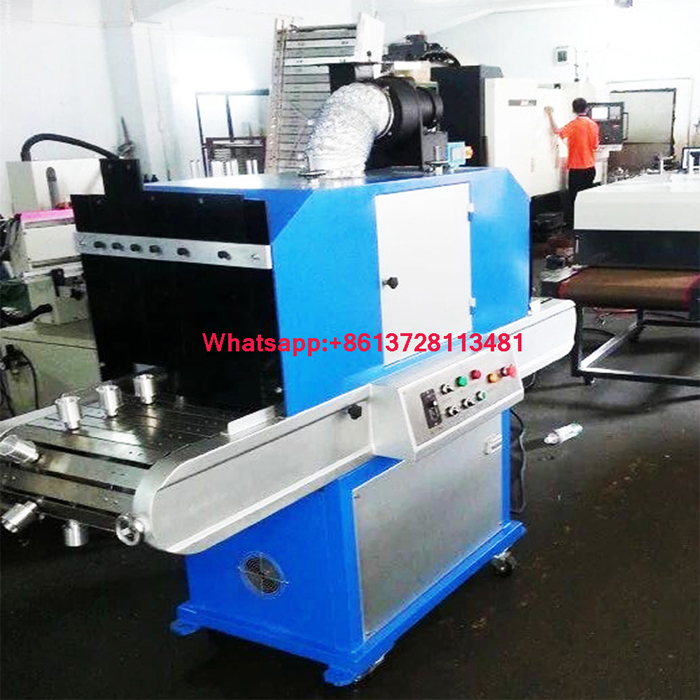

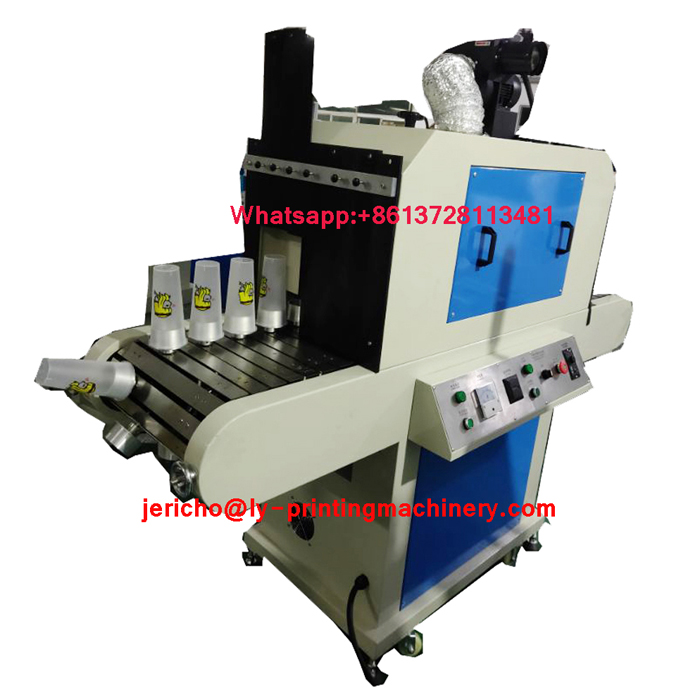

Circular Flat UV Curing Machine LY-RP4000 is suitable for UV ink drying of round products such as round, oval, flat bottles, cups, tubes, etc., and can also dry flat products. The application is very extensive. Reliable, safe and easy to operate

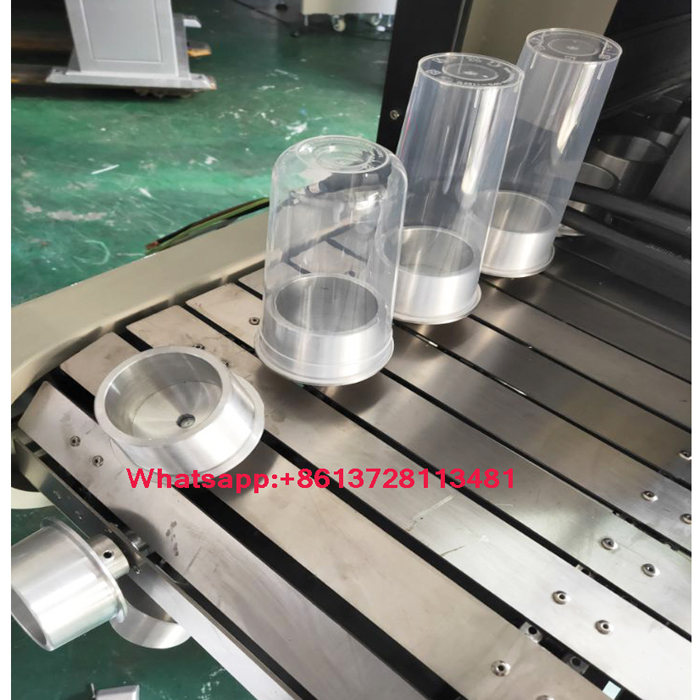

It is widely used in the final step of printing and curing of cosmetics and household product bottles. The tool holder is removable and therefore also suitable for flat product curing.
advantage:

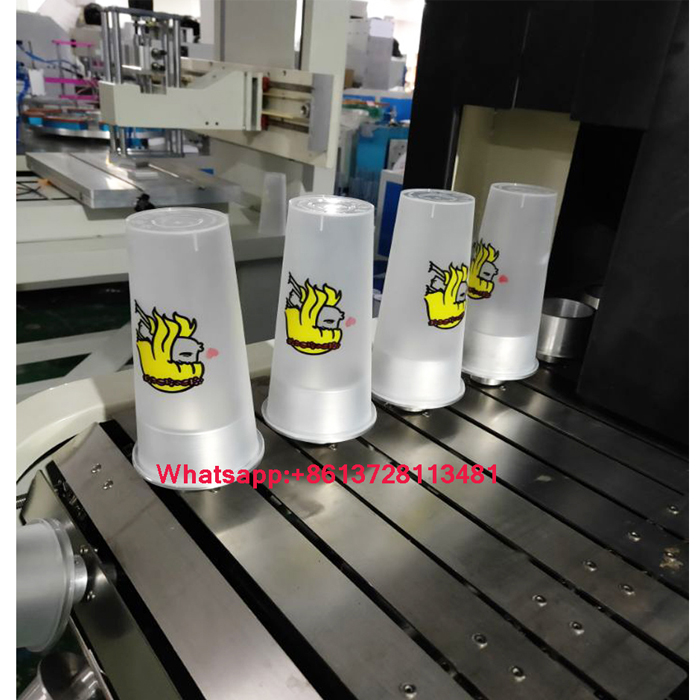

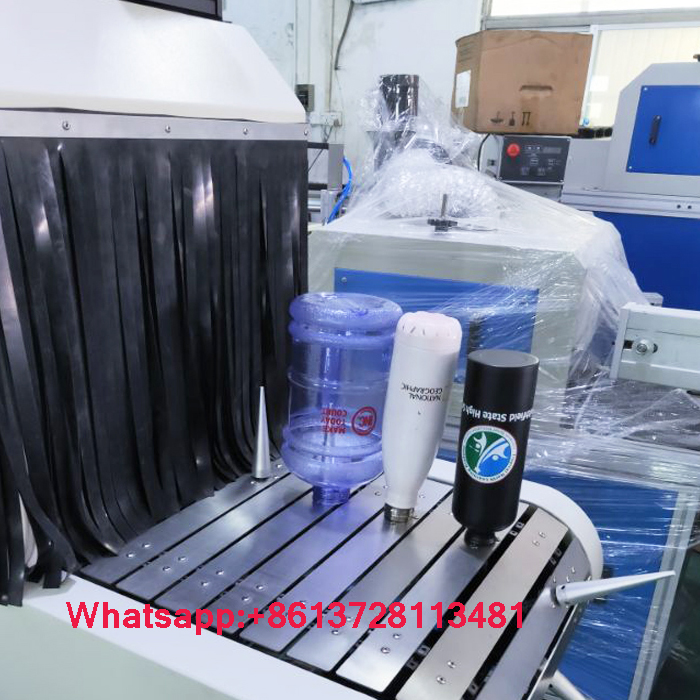

1. Suitable for UV ink printing and curing of round bottles, oval bottles, flat bottles, and cylindrical substrates.
2. By adjusting its light angle, it can also be used for UV ink printing and curing of flat or curved substrates; 3. Conveyor structure with conveyor. Suitable for semi-light (3KW) or full-light (6KW) lamps, the distance is adjustable;
4. An exhaust system is installed on the top of the machine, which can discharge the heat in the curing room.
Technical Parameters
Technical parameters of circular plane UV curing machine
1. Model LY-RP4000
2. Maximum product height: 20-320mm (customizable)
3. Maximum product width: 400mm
4. Conveyor size: W400xL2000mm (can be customized)
5. Bottle mouth diameter: Φ12-60mm (can be customized)
6. Speed: 1800~3000Pic/Hr
7. Wire speed: 0-10m/min
8.UV lamp power: 5Kw
9. Machine power: 7Kw
10. Power supply: 220/380V
11. Machine size: L2100xW750xH1810mm
12. Machine weight: 353kg
13. Packing size: 2450*830*1920mm
We can customize machines in any size, function, color and speed according to your requirements.

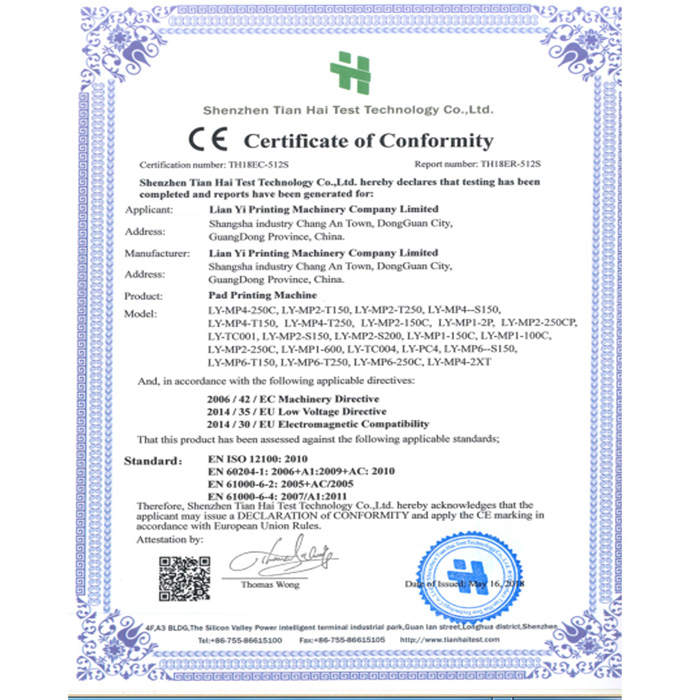

With CE certificate
