900Mbps 5.8GHz Outdoor Wi-Fi CPE 5km 10KM Long Distance Point to Point WiFi Transmitter Wireless Bridge
- $23.50 /piece
- 1 piece
- Shenzhen Sunsoont Technology Co., Ltd.
- Guangdong, China
- Mr David Zhang
PRODUCT DETAIL
port: | Shenzhen | Supplier type: | AP/Repeater/Router/Bridge Mode |
Frequency bands supported by Wi-Fi: | 2.4GHz & 5.8GHz | Supply capacity: | 10000 pieces per month |
Wired transfer rate: | 10/100Mbps LAN*2 | Wi-Fi transmission standard: | 802.11ac |
Package dimensions: | 310*95*75MM | model: | Stainless steel - CPE590 |
Transmission distance: | 5 kilometers | product name: | 900Mbps 5.8GHz Outdoor Wi-Fi CPE 5km 10KM Long Distance |
antenna: | 2* 14dBi Antennas | application: | Indoor and outdoor |
chipset: | MT7620A+7612E | maximum. LAN data rate: | 900Mbps |
Package preview: | place of origin; place of origin: | Guangdong, China | |
brand: | Shun Shun | frequency: | 4900~6100MHz |
Packaging Details: | Package Details: 1* 5.8G Hz 900M Long Distance Outdoor Wireless Bridge Outdoor CPE 1* 24V POE Power Supply 1* Hose Clamp 1* Manual 1* Certificate | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal/Credit Card |
Product Description
900Mbps 5.8GHz Outdoor Wi-Fi CPE 5km 10KM Long Distance Point to Point WiFi Transmitter Wireless Bridge

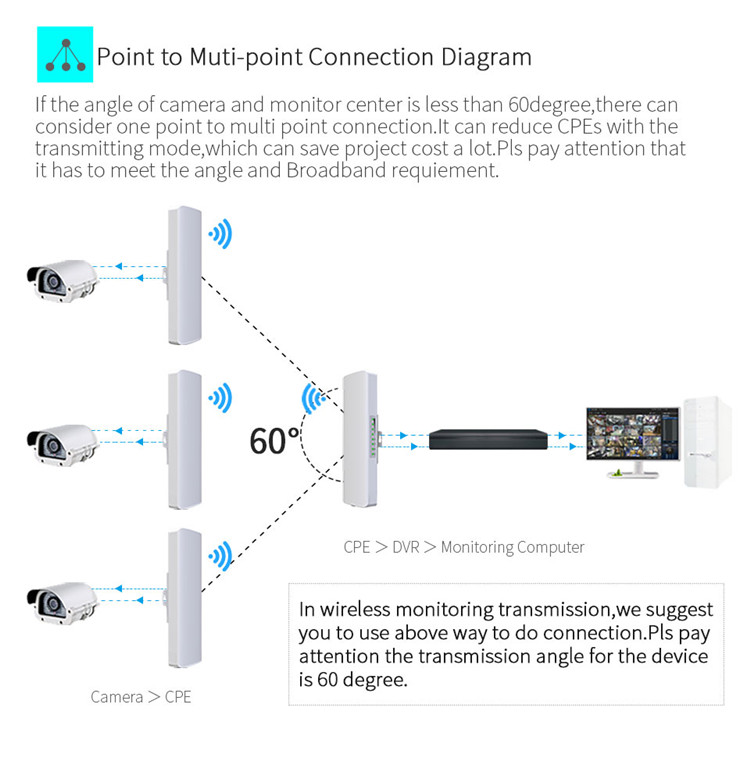

A wireless bridge extends your wireless network by taking signals from your wireless router and sending them to another wifi bridge device. The transmission distance can reach 5KM, combined with the high speed of 900Mbps under 5.8GHz. It uses air as a medium for network data transmission to realize remote point-to-point or point-to-multipoint connections.
Specification
CPU | MT7620A+7612E; RAM 64MByte, FM 8MByte | ||||||
interface | 10/100Mbps LAN*2 | ||||||
data rate | 11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps | ||||||
11n: 7.2M, 14.4M, 21.7M, 28.9M, 43.3M, 57.8M, 65M, 72.2M, 14.4M, 28.9M, 43.3M, 57.8M, 86.7M, 115.6M, 130M, 144.4Mbps 433Mbps | |||||||
transfer method | DSSS | ||||||
Modulation | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | ||||||
wireless standard | IEEE802.11ac IEEE802.11n, IEEE802.11a, IEEE802.3u | ||||||
protocol | CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3, NDIS4, NDIS5 | ||||||
frequency | 4900~6100MHz | ||||||
energy consumption | ≤3W | ||||||
strength | POE 24V 1A (default)/POE 48V 0.5A (optional) | ||||||
@25℃±2dB | 6-24Mbps | 18±2dBm | |||||
36-48Mbps | 16±2dBm | ||||||
54Mbps | 15±2dBm | ||||||
MCS 0-3 | 15±2dBm | ||||||
Master Control System 4 | 15±2dBm | ||||||
MCS 5 | 15±2dBm | ||||||
Master Control System 6 | 15±2dBm | ||||||
multitasking system 7 | 15±2dBm | ||||||
MCS 0-3 | 15±2dBm | ||||||
Master Control System 4 | 15±2dBm | ||||||
MCS 5 | 15±2dBm | ||||||
Master Control System 6 | 15±2dBm | ||||||
multitasking system 7 | 15±2dBm | ||||||
802.11a | 6Mbps≤-89; 54Mbps≤-72 | ||||||
802.11n | HT20 | MCS 0≤-86; MCS 7≤-72 | |||||
HT40 | MCS 0≤-83; MCS 7≤-65 | ||||||
802.11ac | 802.11ac (HT80): ≤-83dBm@MCS0; ≤-58dBm@MCS9 | ||||||
antenna | frequency | 4900~6100MHz | |||||
Polarization direction | Vertical (60°horizontal/30°vertical) | ||||||
DB | 14 decibels | ||||||
web management | support | ||||||
remote login | support | ||||||
serial drama | support | ||||||
MAC control | support | ||||||
encryption | WEP encryption 64/128bits, WPA, WPA2, 802.1x | ||||||
Serving | -30~65℃ | ||||||
storage | -50~80℃ | ||||||
moisture (non-condensed) | ≤95% (non-condensing) | ||||||
size | 310*95*75MM | ||||||
weight | 0.45 kg | ||||||
packing list | 1* Outdoor CPE 1* 24V POE power supply 1* Hose Clamp 1* Description 1* certificate |

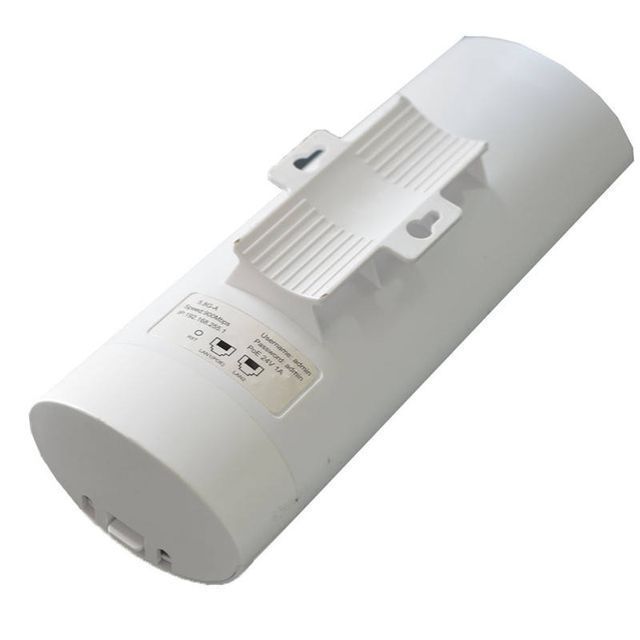

detailed drawing

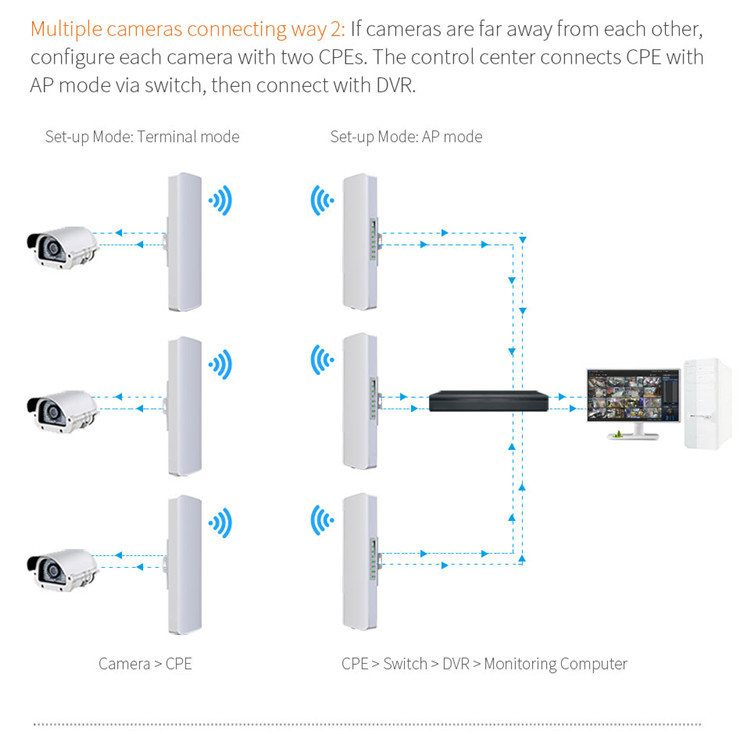

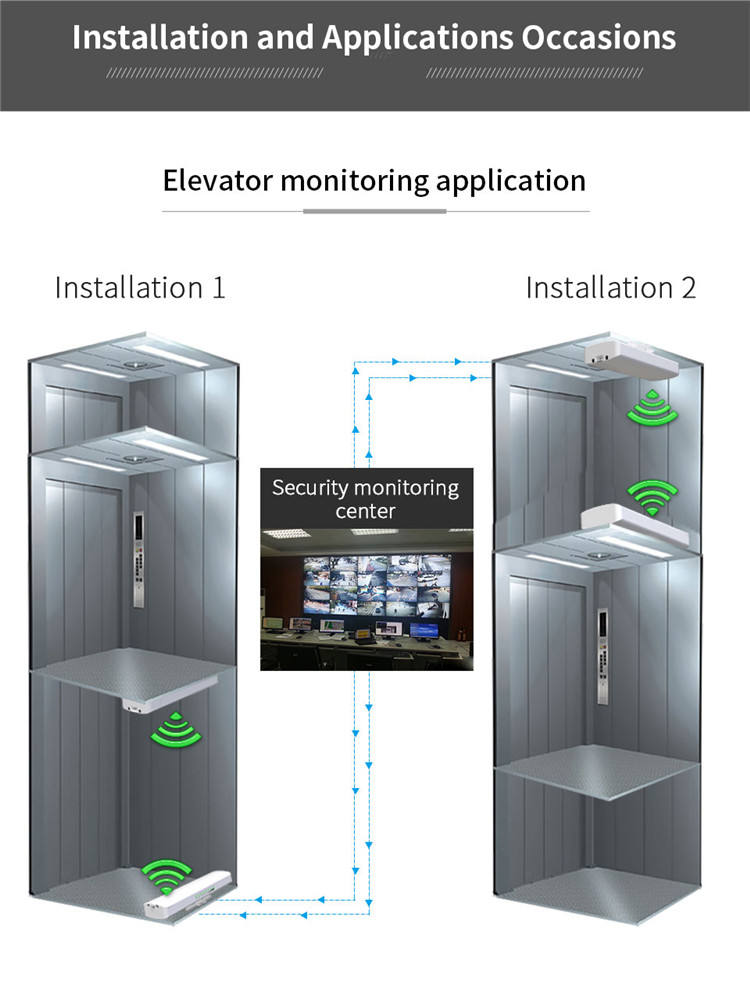

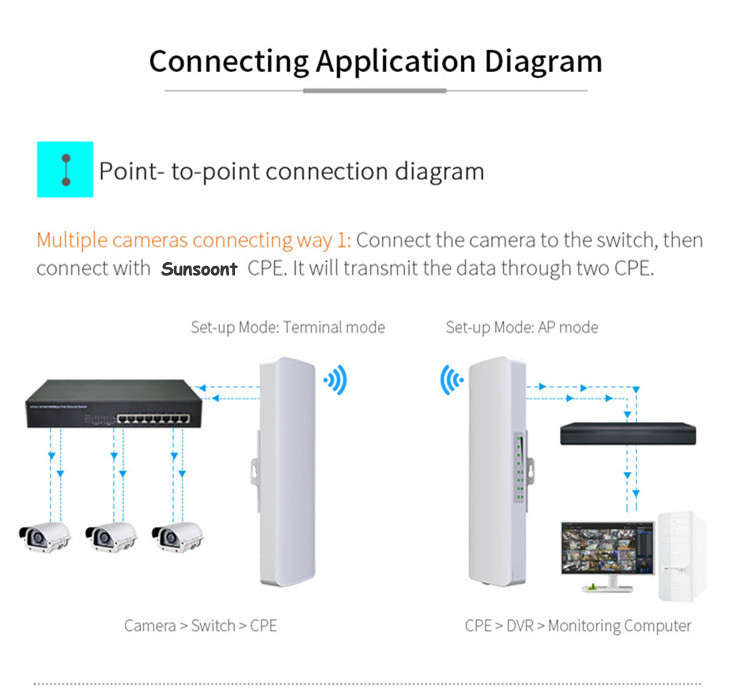

Applications
