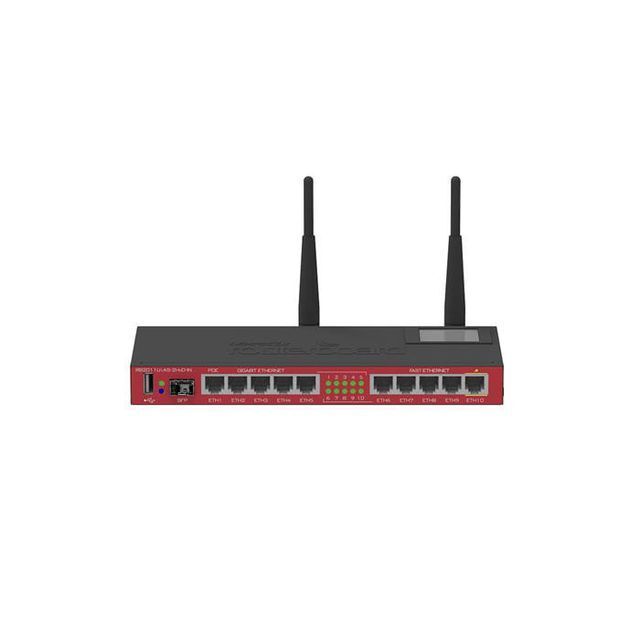

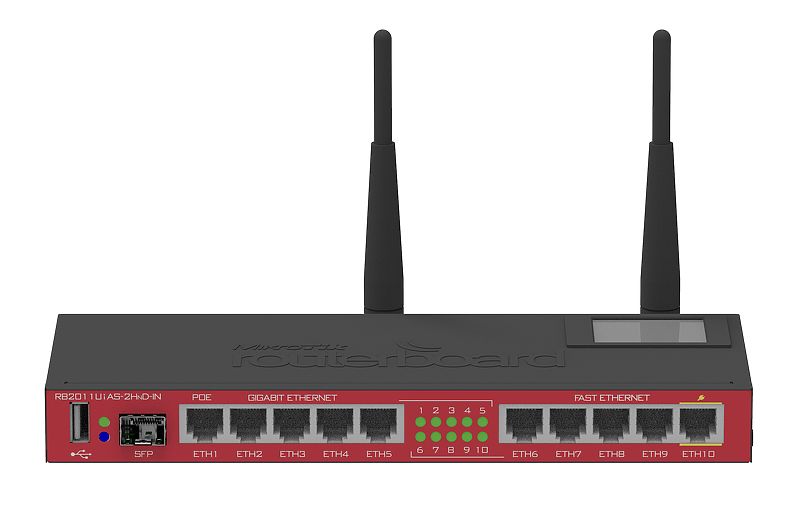

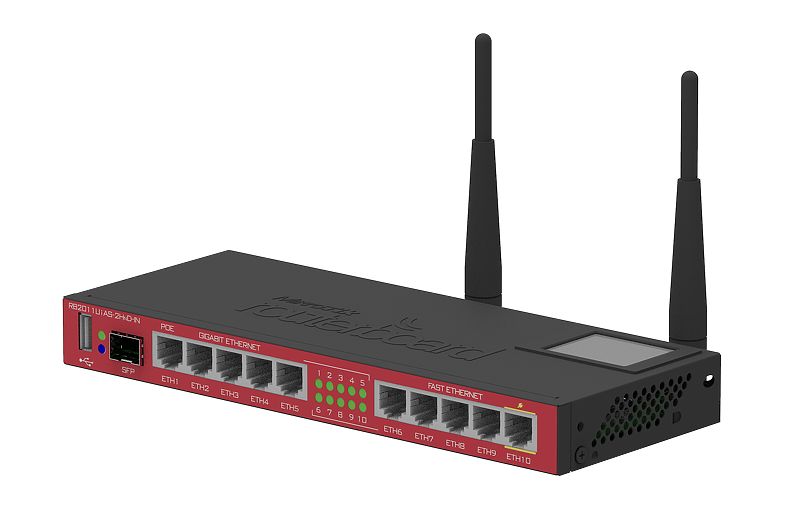

MikroTik RB2011UiAS-2HnD-IN Routerboard 2.4GHz AP Sfp Port plus 10 Port Ethernet
- $100.00 /piece
- 1 piece
- Shanghai Harmuber Technology Development Co., Ltd.
- Shanghai, China
- Ms Hellen Wu
| Size of RAM: | 128 MB; | Storage size: | 128 MB; |
| Place of Origin: | China; | Operating System: | RouterOS; |
| PoE in: | Passive PoE; | Port: | Shanghai port,China; |
| Model Number: | RB2011UiAS-2HnD-IN; | WiFi coverage: | 2.4GHz; |
| 10/100/1000 Ethernet ports: | 5; | Supply Ability: | 1000 Pieces per Week; |
| Chipset: | Other; | Brand Name: | MikroTik; |
| Packaging Detail: | standard packing, New In Sealed Box.We also pack with wrapping film before shipping.; | Storage type: | NAND; |
| Application: | Wireless Access Point; | Architecture: | MIPSBE; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,different payment methods against conutries; | License level: | 5; |
| Tested ambient temperature: | -40°C to 60°C; |
Shanghai Harmuber Technology Development Co., Ltd.
Our Mission
1. Lowest Price with High Quality.
2. Fast Delivery with Low Cost and Security.
3. Professional Technical Support.
4. Advanced Customer Service
MikroTik RB2011UiAS-2HnD-IN Routerboard 2.4GHz AP Sfp Port plus 10 Port Ethernet
The RB2011Ui is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel- all this for only $129!
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
RouterBOARD 2011UAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.
Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.
The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable
2.4GHz AP, 5x Ethernet, 5x Gigabit Ethernet, SFP cage, USB, LCD, PoE output on Eth10, 600MHz CPU, 128MB RAM
Specifications
| Details | |
|---|---|
| Product code | RB2011UiAS-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 214mm x 86mm for PCB |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 60°C |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether10 |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 8-30 V |
| Max out per port output (input < 30 V) | 510 mA |
| Max total out (A) | 510 mA |
| Max power consumption | 11 W |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 30 | -96 |
| 11MBit/s | 28 | -80 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -92 |
| MCS7 | 25 | -73 |
