96V 10KW AC Motor For Electric Vehicle Complete Conversion Supplier Electric Vehicle Traction Motor

Price:$1000.00 / 1 - 9 sets
$950.00 / >=10 sets
Min. Order:1 set
Supplier:Guangdong Shinegle New Energy Technologies Co., Ltd.
Region:Guangdong, China
Contact:Ms SHINEGLE CN

PRODUCT DETAIL

brand:	shiny	cool down:	air cooling
weight:	45kg	place of origin; place of origin:	Guangdong, China
port:	Shenzhen/Guangzhou/Foshan	Packaging Details:	Seaworthy packaging
Rated current:	108A	model:	10kW
Duty system:	S1	Protection class:	IP65
Supply capacity:	10000 sets per month	Card:	shiny
maximum. speed:	6800 rpm	rated power:	10kW
Rated voltage:	96V	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Rated speed:	3000 rpm

Product Description

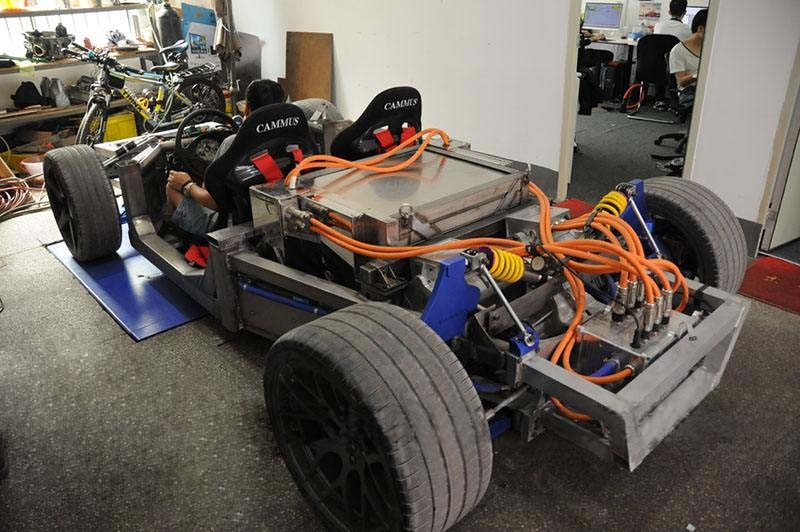

Applications

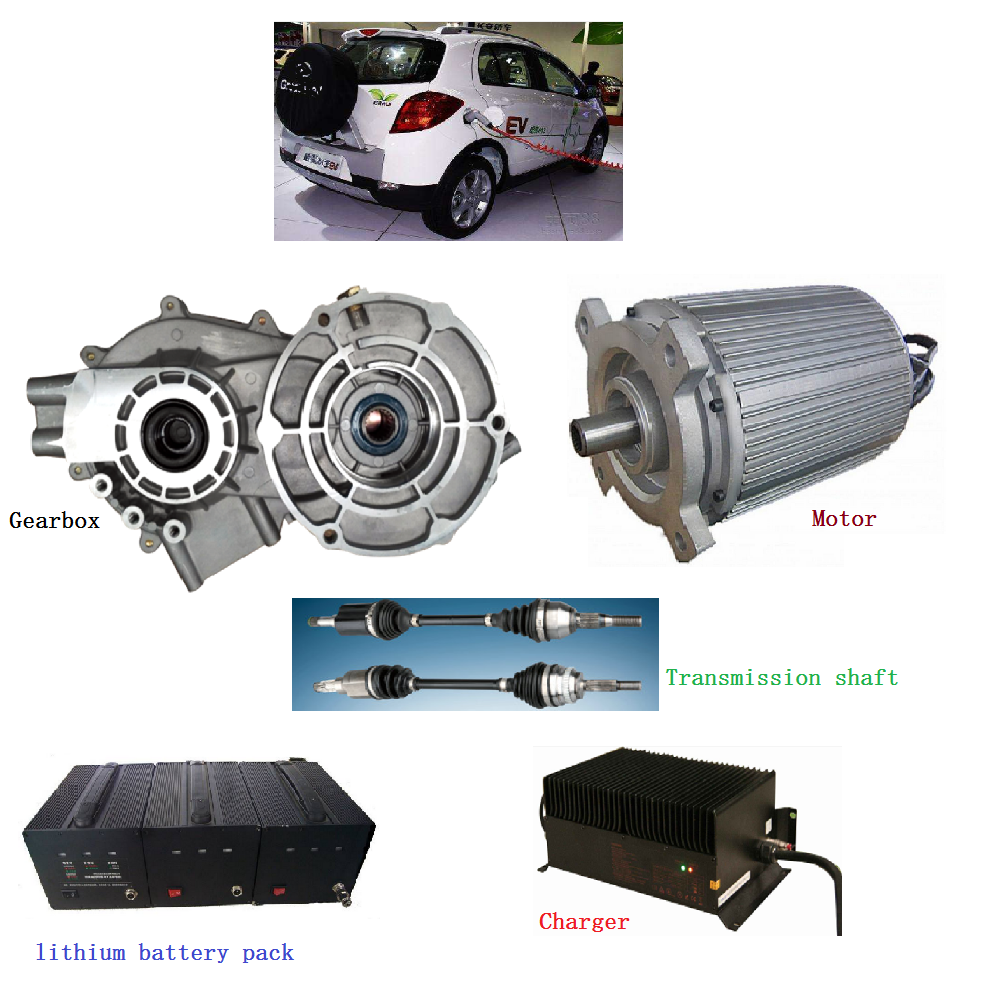

SHINEGLE motors, controllers, gearboxes, batteries, chargers, etc. are widely used in electric conversion vehicles

25 ton crawler excavator specifications
motor	Rated power: 7.5/10/15KW	Responsibilities: S1	Maximum speed: 7500 rpm
	Rated voltage: 72/96/108V	Net weight: 35~50kg	Speed sensor: 64 pulses
		Rated speed: 3000~4500rpm
controller	Rated voltage: 72/96/108V	Rated output current: 100/120	Maximum output current: 500A
	Efficiency: 98%	Protection class: IP65	Packing: wooden case
	Net weight: 5~10kg	Ambient temperature: -40～50℃	HS:8714990000
gearbox	Speed Capability: 9000 rpm	Scale: 6:1/8:1/10:1/12:1	Packing: wooden case
	Torque capacity: 180N.m	Center distance: 50~106mm	HS:7326909000
	Noise: ≤65dB	Eastern Time. Net weight: 15~30kg

main feature

1) High torque, high speed

2) Getting started, installation and use

3) Provide customers with the fastest system solution

4) Work with customers to calculate and test

5) Long-term system testing, product maturity

Certification

detailed image

Mechanical Parts

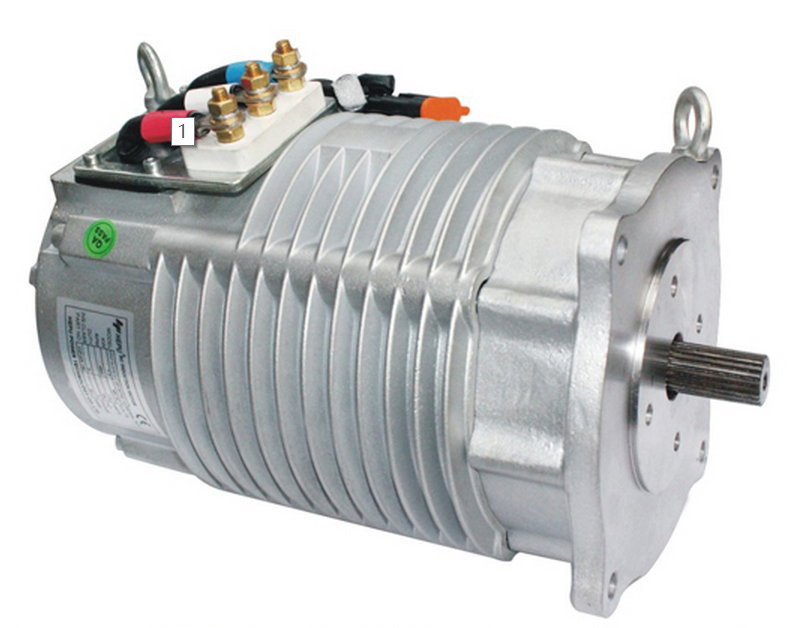

Name:motor

Card:shiny

The original:China

Maintenance free motor. It is the most promising electric vehicle motor. Compared to DC motors, AC motors have greater advantages such as greater torque.

main feature

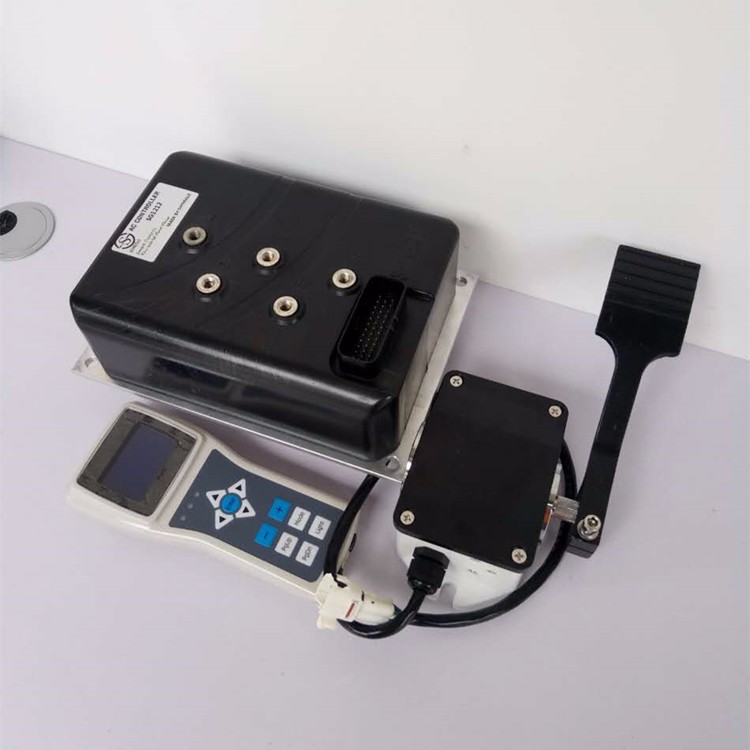

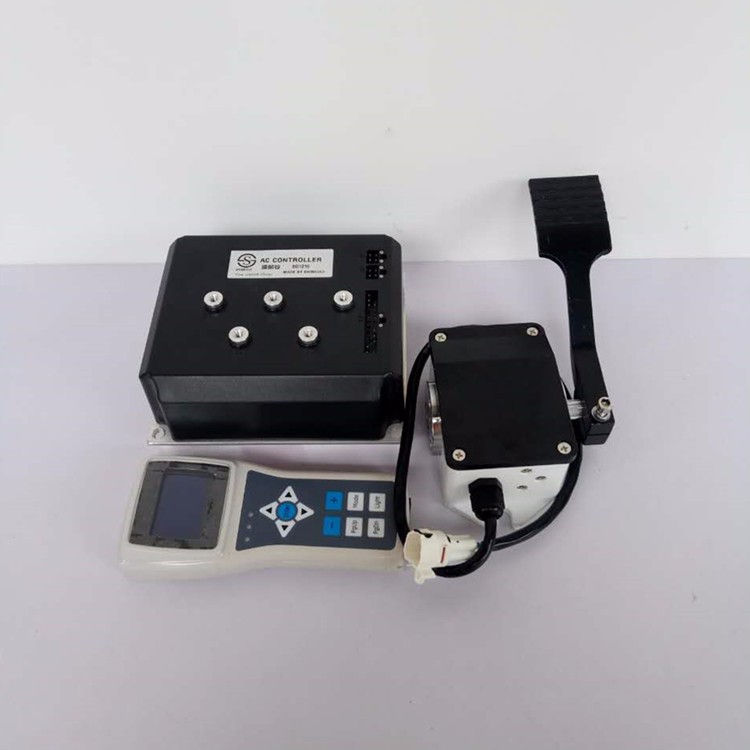

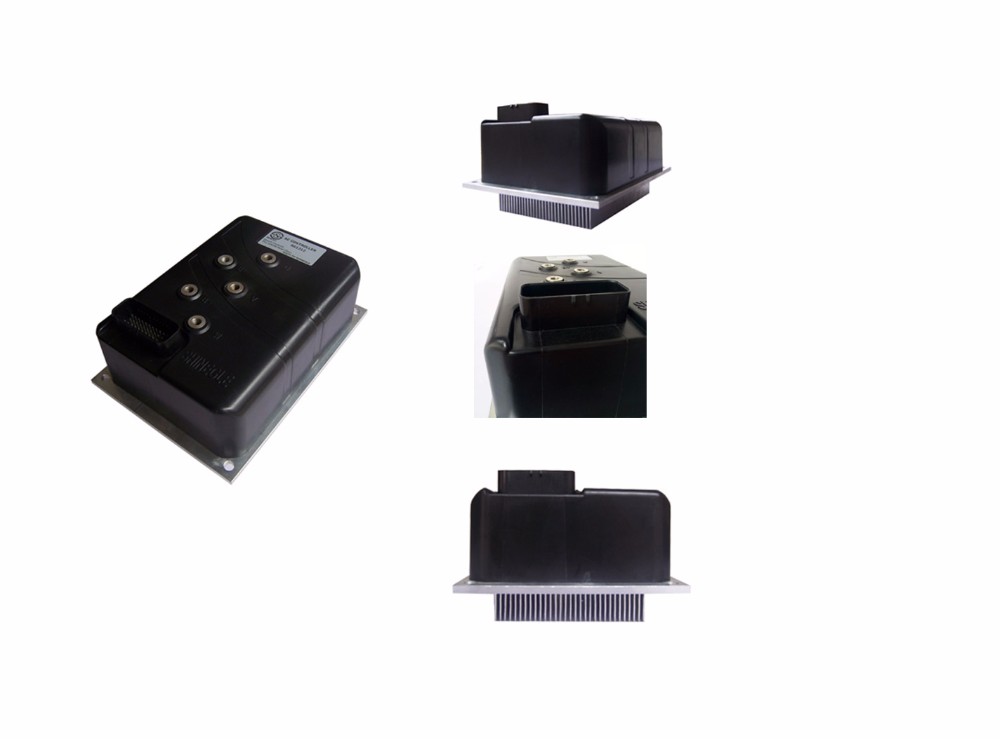

Name:controller
Card:shiny
The original:China
Vector control is one of the best ways to control a motor. We've been testing this system for over 10 years, and the current stability is very high.

Mechanical Parts

Name:gearbox
Card:shiny
The original:China
Low noise and high transmission efficiency are the two major advantages of gearboxes

main feature

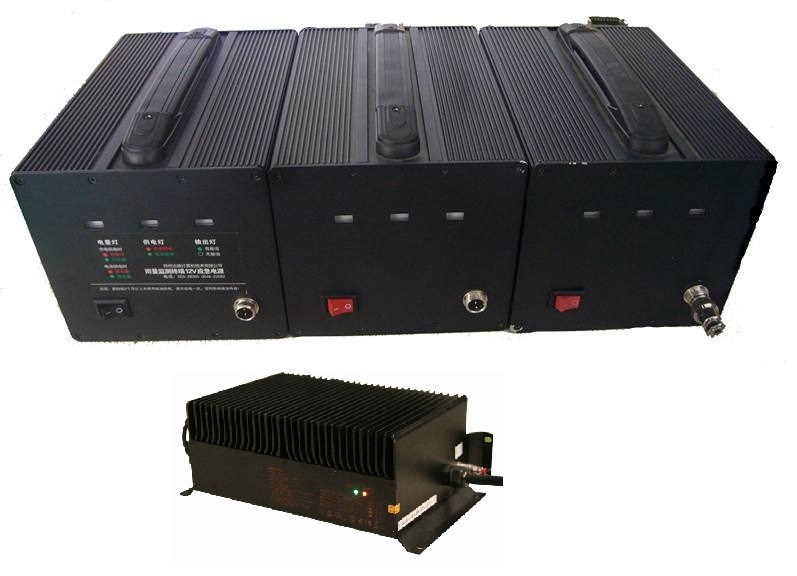

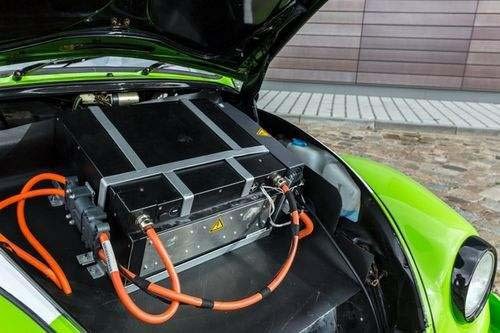

Name:Batteries and Chargers
Card:shiny
The original:China
At present, my country's lithium-ion battery cell production technology is in a leading position in the world. We can provide 100,000 km of protection for our customers.

our service

pre-sale service

* Customers send inquiry

* Customize a suitable system

* Sample testing support.

After-sales service

* Timely technical communication

* Results feedback and improvement

Packaging and Delivery

Package
size	1280(L)456(W)789(D)
weight	1.2 tons
Packaging Details	The normal packing is wooden box (size: LWH). If you go to European countries, the wooden box will be fumigated. If the container is too high, we will use PE film for packaging or according to customer's special requirements.

Bale
size	123(L)456(W)789(D)
weight	100kg
Packaging Details	The normal packing is wooden box (size: LWH). Sometimes we choose carton when shipping by air
