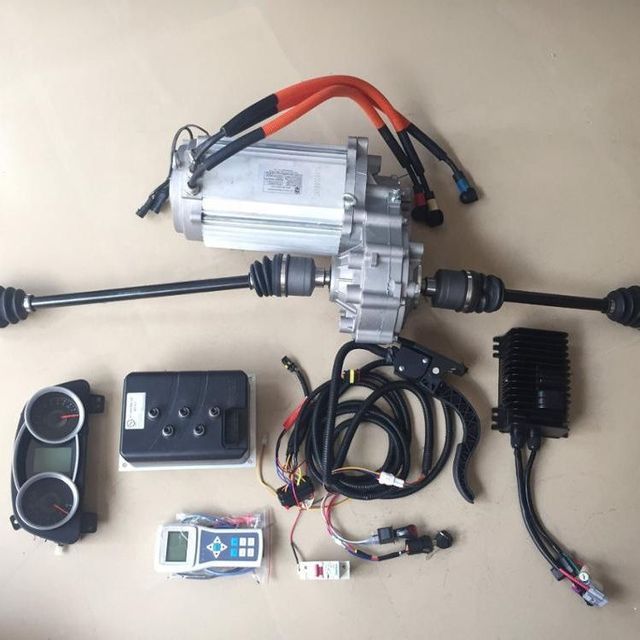

EV Electric Vehicle Refit Kit Drive and Transmission Parts Assembly Auto Parts Axle Axle Gearbox Dashboard Converter

PRODUCT DETAIL
Supply capacity:1000 sets per monthOption 8:transmission shaft
Option 10:Vacuum pump brakeOrigin:Guangdong, China
Option 5:battery management systemOption 1:Dashboard
Option 3:programmerOption 7:gearbox
Option 6:chargerPackage preview:
Option 9:rear axlePackaging Details:Seaworthy packaging
Option 4:Batterypayment terms:Western Union, T/T
model:ShenguangOption 2:DC-DC Converter
brand:shinyport:Shenzhen, Foshan or Guangzhou
product description

Applications

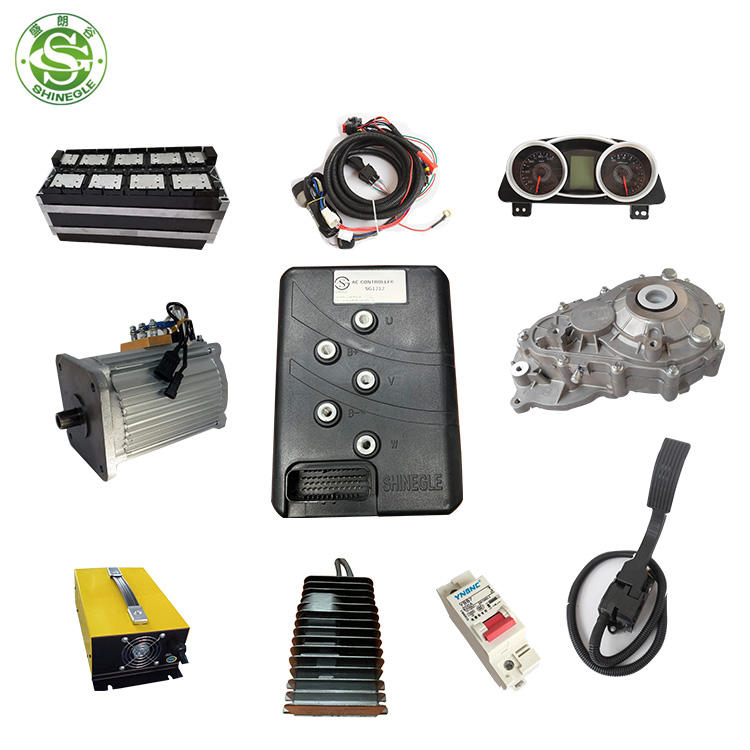

SHINEGLE motors, controllers, gearboxes, batteries, chargers, etc. are widely used in electric modified vehicles

Controller model
SG1201
SG1210
SG1211
Voltage
26-60V
72V
72V
Input voltage (battery) (DC/V)
20-60
56-80
56-80
maximum. Output current (AC/A)
200
250
300
Rated output current (AC/A)
60
80
120
maximum. Output power(kw)
12
20
25
Working temperature
-30℃~55℃
degree of protection
IP65


insulation

DC 1000V input and output shell,
Leakage current: 0.05mA,
Insulation resistance: 20MΩ

storage ambient temperature
-40℃~80℃
efficiency
97%
cool down
Self-cooling
Vibration Standard
GB/T2423
control method
Advanced vector control with speed sensor
communicate
SCI or CAN (optional) communication
weight
2.5 kg
cooling requirements
The controller must be installed in a ventilated place, otherwise a fan is required for cooling.
