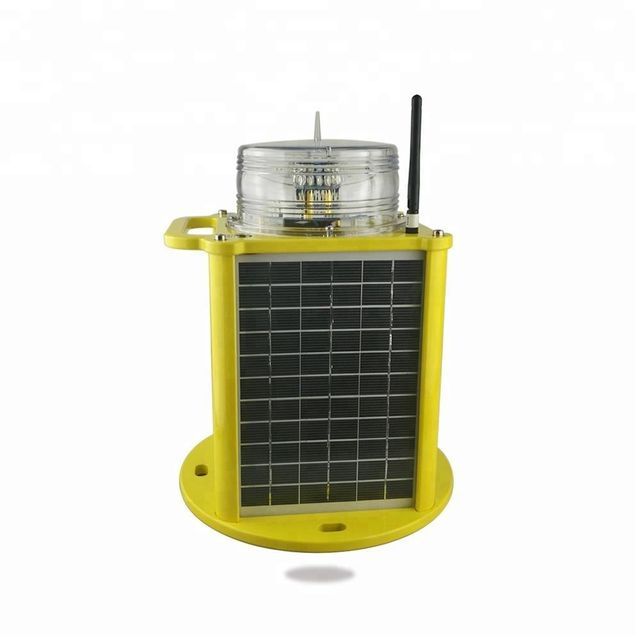

AH-LS/C-6-1 LED solar marine navigation light/marine warning light/buoy light
- $318.00 /piece
- 1 piece
- Shenzhen Anhang Technology Co., Ltd.
- Guangdong, China
- Ms Alice Hou
| Ambient temperature: | -55℃~+60℃ | Verticality: | >8° |
| Protection level: | IP68 | control method: | Photocell. Automatically illuminates at night through photocells. |
| Lamp luminous flux (lm): | 100 | Input voltage (V): | DC12V (solar power supply mode) |
| Packaging details: | Carton 1 piece/box 3-15 days | Lighting Solutions Services: | Lighting and circuit design |
| brightness: | 15cd (3NM), 35cd (4NM), 75cd (5NM), 150cd (6NM) | standard: | IALA E-200-1 |
| Place of origin: | Guangdong, China | total measurement: | 260×260×440 |
| Beam angle (°): | 360 horizontal beam angle | brand: | Anxing |
| payment terms: | Wire transfer, Western Union | Elective: | 256 dimmable characters |
| port: | Hong Kong, Shenzhen | Certification: | CE,RoHS |
| Color rendering index (Ra): | 100 | Supply capacity: | 1000 pieces per month |
| light source: | lead | Light source service life: | ≥100,000 hours |
| type: | Aviation obstruction lights | Glow color: | red, green, yellow (amber), blue or white, red |
| Color temperature (correlated color temperature): | Red, green, yellow (amber), blue or white | Base type: | other |
| Lamp luminous efficiency (lm/w): | 120 | product name: | LED solar boat lantern |
| Lamp body material: | Aluminum alloy |
LED solar boat lantern
solar navigation lights,
solar boat lantern,
Self-contained navigation light, IALA.
AH-LS/C-6-1 navigation light is suitable for ocean buoys, river buoys, aquaculture, offshore oil platforms, ports or other fixed and floating navigation aids.
advantage
1. Up to 6 nautical miles (Tc =0.74)
2. Based on LED technology, its color complies with IALA recommendation E-200-1.
3. Bird sting against bird fall.
4. Comprehensive protection against short circuit, overvoltage, float charge and temperature.
5. Internationally advanced cold light special LED, with low power consumption, high brightness, and light source life of 100,000 hours.
6. Strong corrosion resistance, rain and snow resistance, impact and vibration resistance, and UV protection.
7. Clean, renewable, green and reliable energy.
8. Dusk to dawn operation: Photocell. Automatically illuminates at night through photocells.
9. Can work independently for at least 5 days without sunlight (optional 20 days).
10. The lightest and most environmentally friendly recyclable battery.
11. IP68 protection standard, fully sealed structure.
The main parameters
| describe | scope |
| model | AH-LS/C-6-1 |
| standard | yala |
| Visible distance | up to 6 nautical miles |
| Operating mode | Flashing mode or constant light mode |
| light source | lead |
| light intensity | 15cd (3NM), 35cd (4NM), 75cd (5NM), 150cd (6NM) |
| Verticality | >9° |
| levelness | 360° |
| LED service life | 100,000 hours |
| Operating Voltage | DC12V, the lightest, environmentally friendly, long-life recyclable battery |
| battery capacity | 12V |
| autonomy | At least 5 days (optional 20 days) |

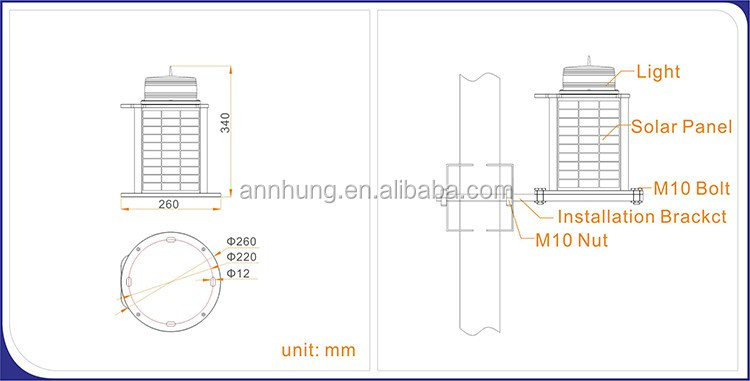

| Overall dimensions (mm) | 260×260×440 |
| Installation dimensions | 220 × 220 via M10 |
| weight | 5.8kg |
| Glow color | Red, green, yellow (amber), blue or white |
| ambient temperature | -55℃~+60℃ |
| wind load | 80 meters/second |
| control method | Photocell. Automatically illuminates at night through photocells. |
| Elective | 256 dimmable characters |
