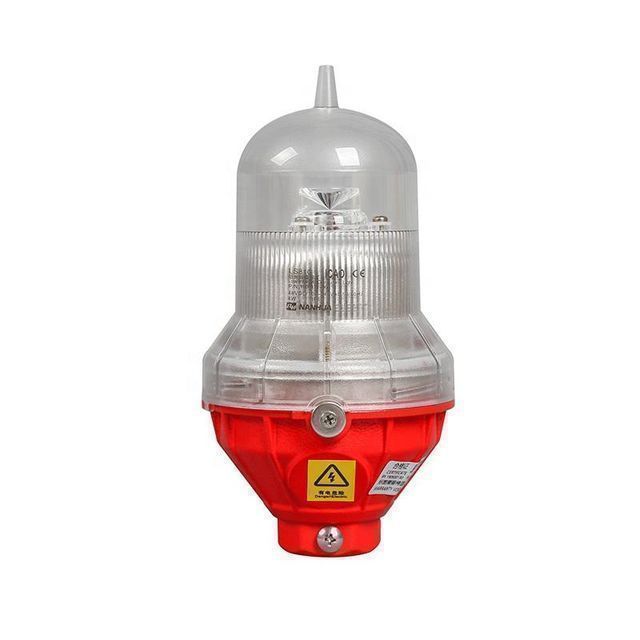

LS810 aircraft warning light

PRODUCT DETAIL
Warranty Period (Years):3 yearsweight:0.3kg
payment terms:letter of credit, wire transferstrength:Type A: ≥10cd; Type B: ≥32.5cd
Intellectual Property Rate:IP66base type:Invalid
Dimmers supported:YesSupply capacity:3000 pieces per month
Beam angle (°):Verticality: ≥10°; Horizontality: 360°Color Rendering Index (Ra):30
Lifetime (hours):100000LED life:≥100,000 hours
Working hours (hours):100000Certification:ce, EMC, VDE
Lighting Solutions Services:Lighting and Circuit Designproduct name:LS810 Aircraft Warning Light
Lamp luminous flux (lm):InvalidOperating mode:Steady burning or flashing
brand:South ChinaInput voltage (V):AC 100~240V/ DC 12~48V
LED Color:red (other colors can be customized)Product weight (kg):0.3
light source:leadPackaging Details:Carton or wooden case as required
Intellectual property level:IP66place of origin; place of origin:China Shanghai
port:Shanghai PortLuminous color:Red
Lamp luminous efficiency (lm/w):InvalidColor Temperature (CCT):Invalid
Material:Base: Die-cast aluminum Housing: PCtype:Aviation obstruction lights
Lamp body material:Aluminum alloy





  LS810 aircraft warning light

Product Description
  • ICAO Low Intensity A&B&E Obstruction Lights
  • FAA L-810 & L-810(F) Steady Red Obstruction Lights and Flashing Red Obstruction Lights
  • Applications: Telecom towers, chimneys, high-rise buildings, large bridges, port machinery and wind turbines

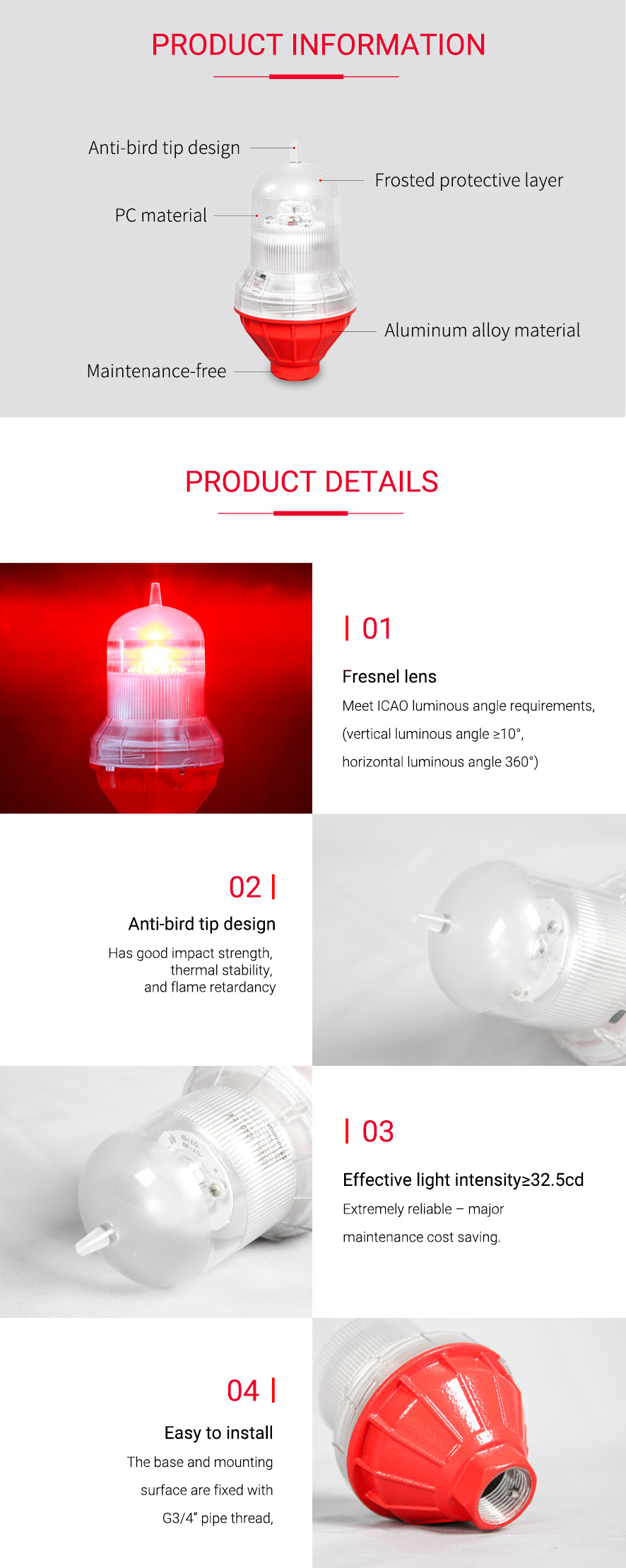

Main functions and features

  • Professional metering lens design to effectively keep the beam within the desired range.
  • Based on the latest LED technology, extremely low power consumption and high efficiency.
  • Outdoor use, waterproof, windproof and corrosion resistant.
  • No electromagnetic or audio interference.
  • G3/4" threaded pipe installation, easy installation.
  • EMC compliance. Extend LED life with constant current drivers.
  • Built-in photocell (can be customized) and fault alarm signal output.
  • Equipped with fall arrest device.
  • Steady burning or flickering type is optional, flickering rate is adjustable.
  • Two external M20X1.5 waterproof glands can be customized.

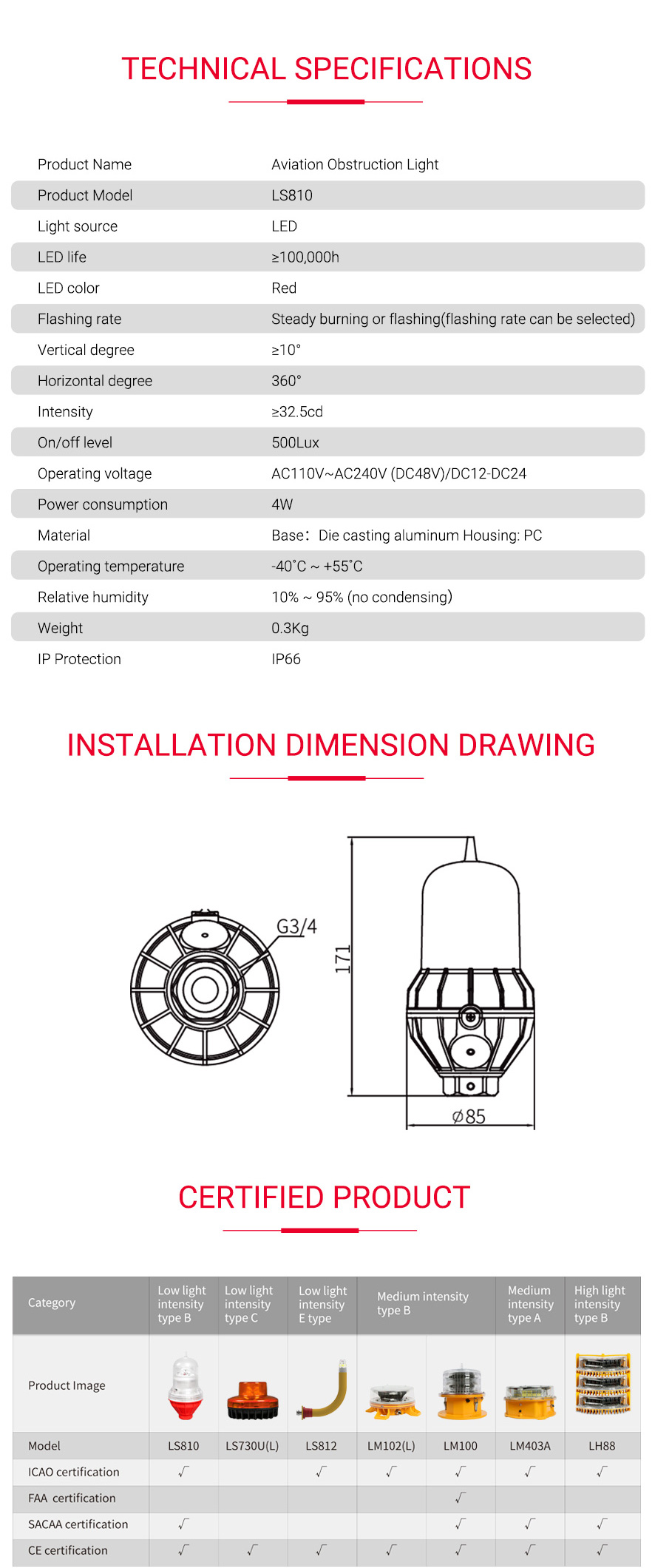

Specification



standard

Compliant with ICAO (Airport Annex 14) and FAA-L810

Verticality

≥10°

light source

lead

level

360°

LED color

aviation red

flicker rate

Solid or flashing (blink rate can be selected)

Operating Voltage

AC110V~AC240V (DC48V)

DC12-DC24

LED life

≥100,000 hours

energy consumption

4W

on/off level

500Lux

strength

Type A: ≥10cd; Type B: ≥32.5cd







Operating temperature

-40°C ~ +55°C

Intellectual Property Protection

IP66

Relative humidity

10% ~ 95% (non-condensing)

weight

0.3kg

Material

Base: Die-cast aluminum Housing: PC



installation and operation

  • Check that the mains voltage matches the rated voltage of the luminaire.
  • Insert the power cords from the bottom of the base and connect them to the terminals on the base.
  • Set up the working model according to the connection diagram. (Note: DIP switch ON---1, picture---0).
  • Tighten the screws between the lamp housing and the base.
  • Screw the luminaire on the mounting bracket, which should be fixed on a smooth surface with sufficient mechanical strength. Or you can choose our mounting brackets: PJ024, PJ028 and PJ030 (mounting diagram), special brackets can be customized.
  • Turn on the power, then the light comes on.

Notice

  • The material part of the product is PC (such as lampshade, lamp housing), and cannot be directly or indirectly contacted with organic solvents, such as industrial alcohol, banana oil, isopropanol, carbon tetrachloride, cyclohexanone, etc., otherwise, the product will corrode.
