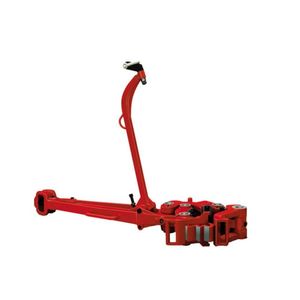

API 7K Q3-3/8~12-3/4-75 B-type manual clamp

PRODUCT DETAIL
Applicable industries:Manufacturing plants, mechanical repair shops, construction engineering, energy and mining, oil and gas;Core Components Warranty:6 months;
Core components:pump, engine;payment terms:T/T, Western Union;
Certificate:API;brand:Lake Petro;
Warranty:6 months;Local service location:not any;
standard:API 7K;product name:Manual clamp;
color:all;Marketing Type:New products in 2020;
Mechanical test report:if;Showroom location:not any;
Video external inspection:if;Supply capacity:10,000 pieces per month;
Packaging Preview:;Health status:new;
port:China Seaport;Package:standard;
Product Description

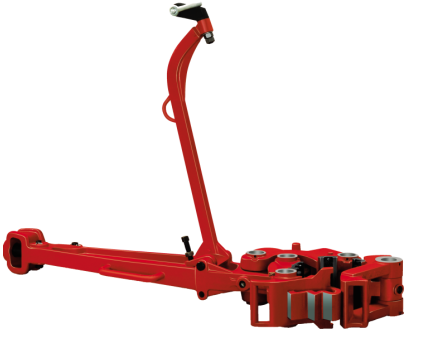

API 7K Q3-3/8~12-3/4-75 B-type manual clamp
Manual clamps are useful tools for loading and unloading drill pipes, drill pipe couplings, joints, casings, casing collars, etc. when the drilling tool is up and down. The handle size of the tongs can be adjusted by changing the jaws and handling the shoulders or holes. Clamps with different torques can be selected according to the requirements of use.
product description
Manual clamp
high quality
API 7K
Product parameters
Hand pliers are an essential tool for loading and unloading pipes. Replacing the lug jaws and locking steps allows adjustment of different handle sizes of the pliers. They are designed and manufactured according to API Spec 7K specification for drilling and workover equipment.
Manual tongs are essential tools for making and breaking various pipe strings and tools in drilling and workover operations. By changing the clips on the pliers and the shoulders, the loading and unloading needs of different pipe diameters can be met.
It is an essential tool for loading and unloading drill pipes and casing joints or connecting threads in oil drilling operations. The thread size can be changed by changing the clamping clip and changing the clamping shoulder.
Snap pliers
Number of jaws
Buckle shoulder
lockstep
Buckle diameter size range
Typically
Rated torque (kN.m)
exist
mm
5a
1
3 3/8~4 1/8
85.7~104.8
55
2
4 1/8~5 1/4
104.8~133.3
75
5b
1
4 1/4~5 1/4
107.9~133.3
2
5~5 3/4
127~146
3
6~6 3/4
152.4~171.4
5b1
1
5 1/4~5 3/4
133.3~146
2
6~6 5/8
152.4~168.3
3
6 3/4~8
171.4~203.2
55
5c
1
6 5/8~7 3/8
168.3~187.3
75
2
7 3/8~8
187.3~203.2
3
8 1/2~8 5/8
215.9~219
55
5 days
1
8 1/2~9 5/8
215.9~244.5
2
10 5/8~10 3/4
269.9~273
5e
1
11 3/4
298.5
2
12 3/4
323.8
5e1
1
10 3/4
273
2
11 3/4
298.5
5e3
1
13~13 3/8
330.2~339.7
