API TQ508 Hydraulic Casing Power Clamp with Back Clamp and Jaw Plate Size: 9 5/8-20

PRODUCT DETAIL
brand:Dee QXProcessing type:forging
use:drillingGross weight of single piece:28.000kg
Package preview:model:TQ508、DYQX
type:Power tongs, drill pipeMaterial:Carbon steel
Jaw plate size:9 5/8-20Certification:application programming interface
Type of machine:drilling toolsSingle piece packaging size:15X18X18cm
Packaging details:Standard export packaging or according to your requirementsPlace of origin:Chinese mainland)
Applicable industries:Machine repair shops, energy and miningSales unit:Single product

our service

Our main products:

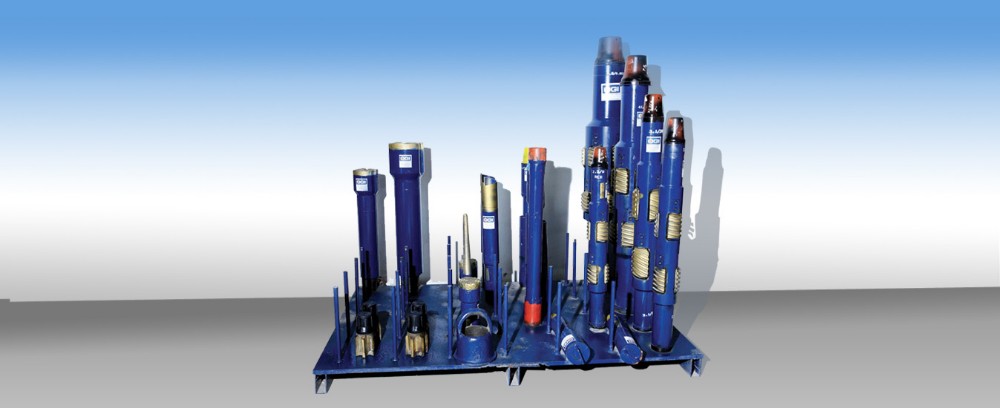

Drilling equipment, well control systems, OCTG, wellhead tools, camps, drill bits and nozzles, drilling instruments, well cementing, oil extraction equipment, water well drilling rigs and petrochemical products, electric submersible pump units, QYYEQ submersible power cables and soon.



company information

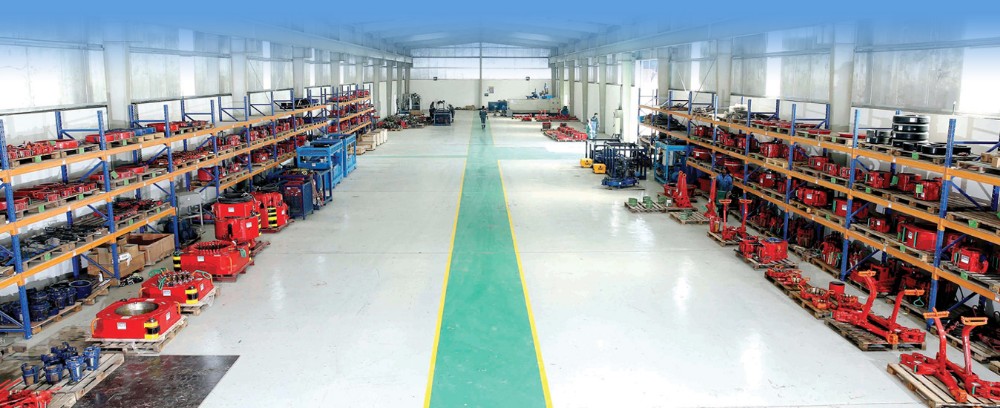

Dongying Qixiang Import and Export Co., Ltd. (DYQX Petroleum Company)The company follows the principle of "quality first, scientific and technological innovation, people-oriented", with convenient operation, high efficiency, quick response, experienced experts and advanced management. At the same time, we have about 50 cooperative subcontractors across the country, and we always adhere to honest, rigorous, professional, innovative and satisfactory services. Products have been exported to the United States, South America, Africa, the Middle East, Russia and other countries (regions).



Our service purpose:People-oriented, quality first, service first.



Welcome to DYQX petro.

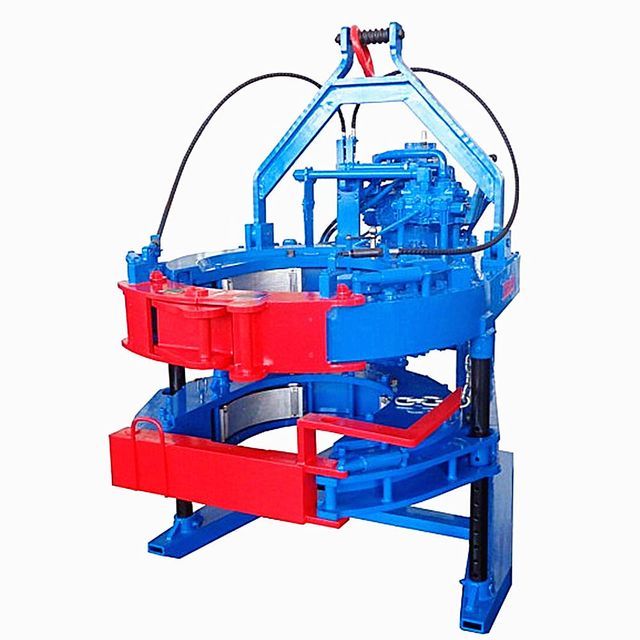

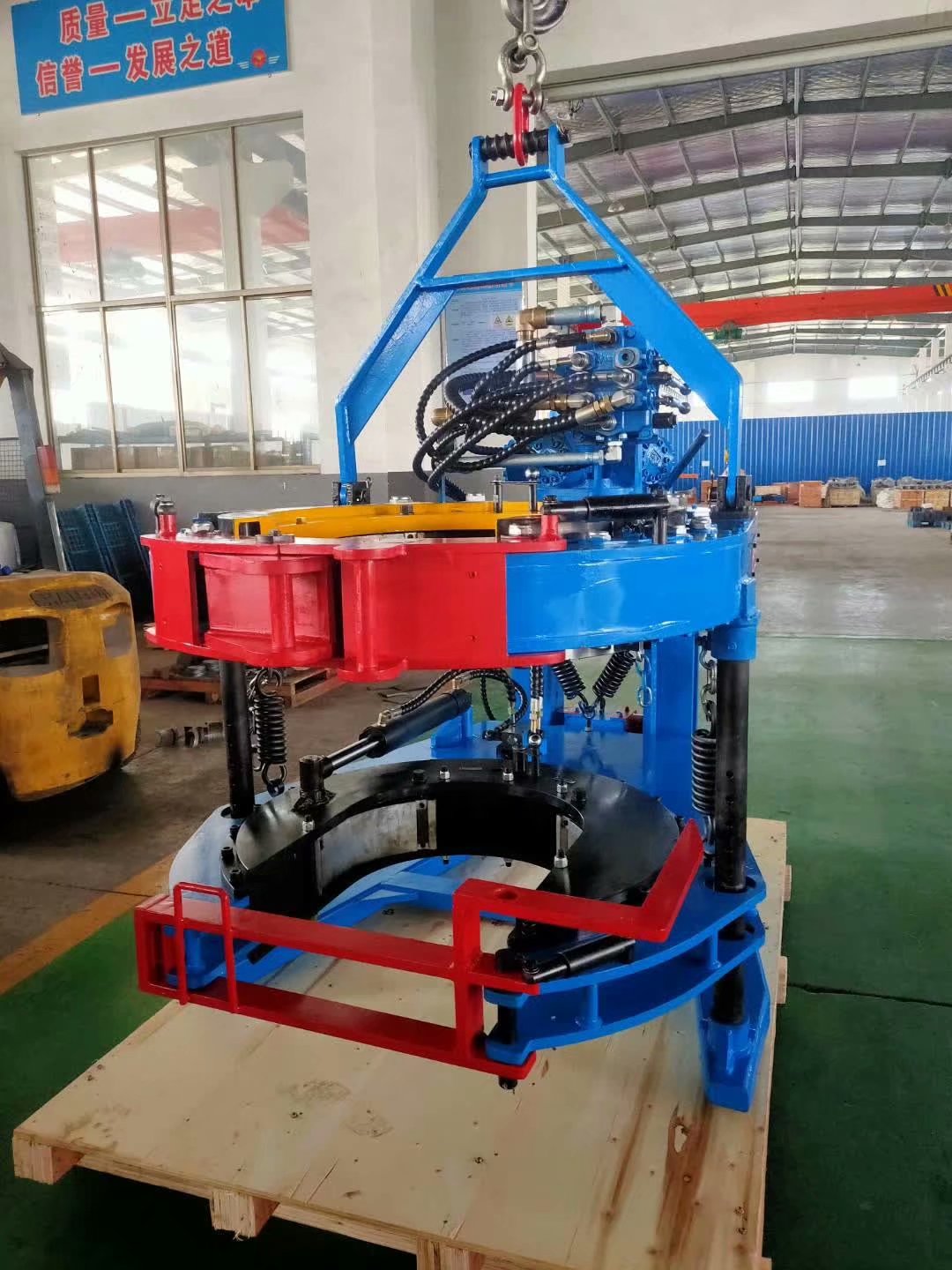

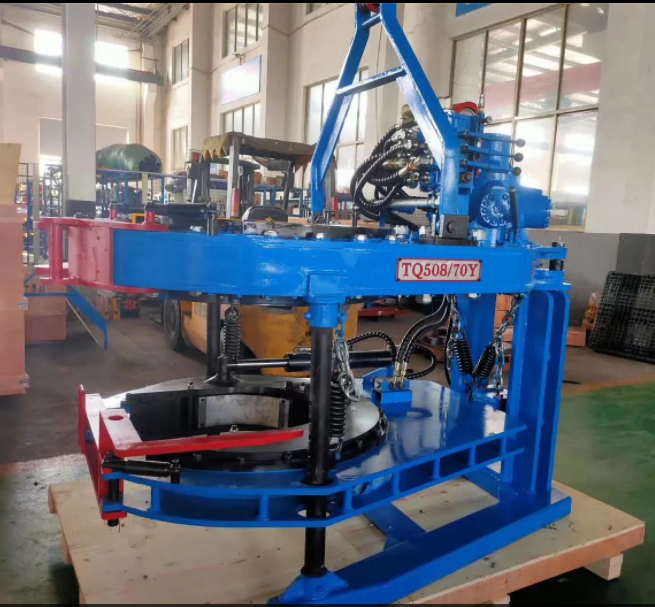

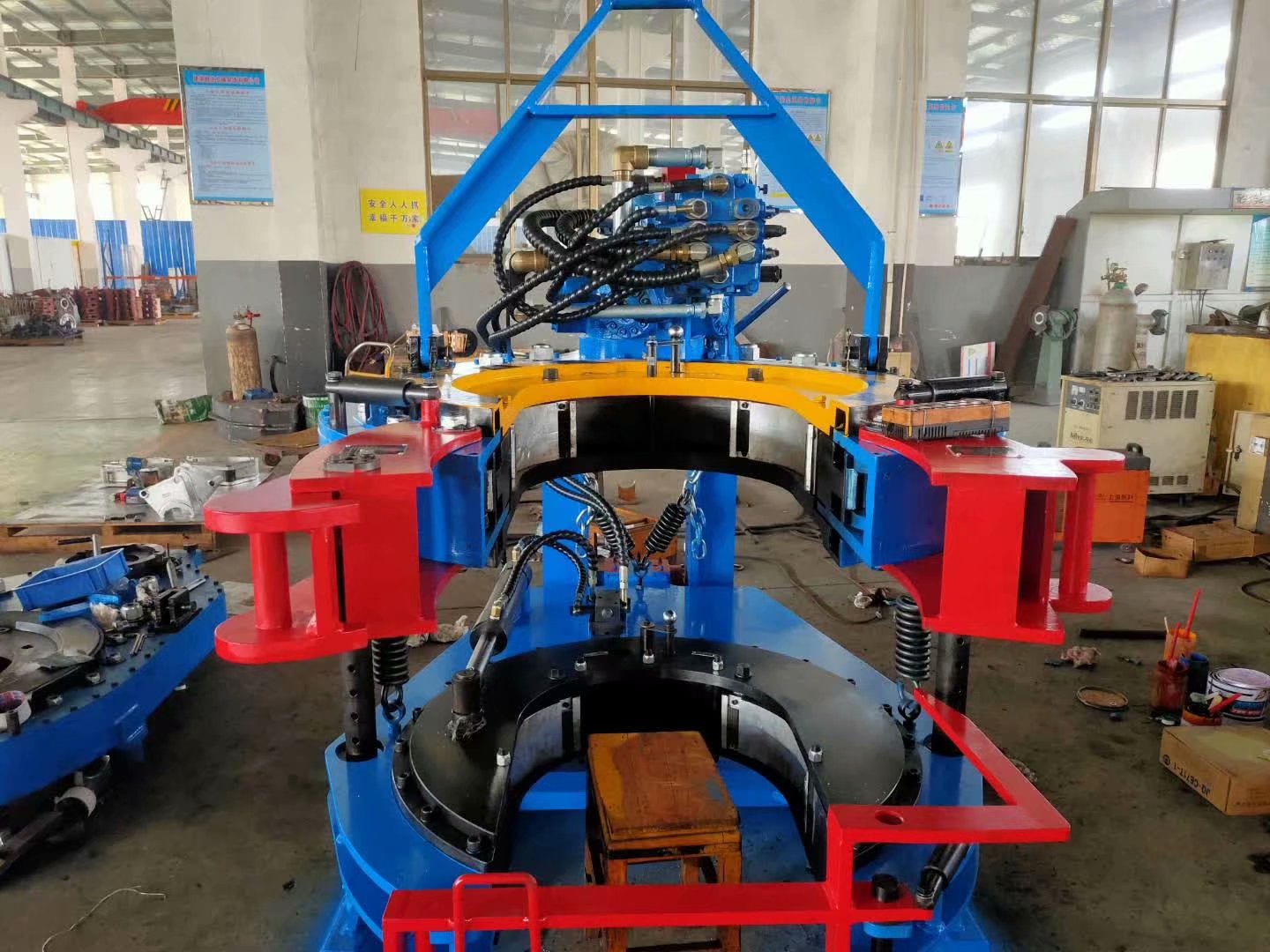

TQ508 hydraulic casing power clamp with back clamp

Product Description



TQ508/70 casing power clamp is used for shackles during oilfield casing operations. it
Greatly reduces the labor intensity of workers, improves the quality of threaded connections, and reduces
Accidents caused by improper casing operation. Power pliers also have the following features:
1) Open type, easy and fast to enter and slide out of the working position, with
Integral clamp head, high strength and good rigidity.
2) Double swing head jaws, easy to assemble and disassemble.
3) The brake band assembly is simple to operate and easy to maintain and replace.
4) Open gear support structure to improve strength and rigidity.
5) Full hydraulic mode, mechanical shifting.
6) The jaws are cast with precision technology and have strong aesthetics.
7) Optional torque control system can display, record and control the make-up torque.
8) Adopt safety hydraulic safety device with good safety performance;
9) The torque range is large and can meet the requirements of large torque.





2. Specifications
1. Jaw plate size: 9 5/8″-20″
Main jaw plate: 9
5
/8″,10
3
/4″,11
3
/4″,13
3
/8″,16″,18
5
/8″,20″
Support jaw plate: 9
5
/8″,10
3
/4″,11
3
/4″,13
3
/8″,16″,18
5
/8″,20″,21″
2. Opening size 520mm
3. High-end clamp head speed 23 rpm
Low gear 3 rpm
4. Low gear maximum torque 10 kN.m
Low grade 70 kN.m
5. Rated pressure 18MPa
6. Working flow 132L/min
7. Main clamp rod 1311mm/51.6″
Combination clamp bar 1200 mm/47.2"
8. Hydraulic power station flow rate 160L/min
Pressure 20 MPa
Motor power 37 kW
9. Overall machine width (length × width × height) 2100 × 1300 × 2030 mm
10. Weight 3000 kg (including spring lifter assembly)
