API Standard Casing Eccentric Reamer Shoe Helps Casing to Total Depth
- $100.00 /set
- 1 set
- Puyang Zhongshi Group Co., Ltd.
- Henan, China
- Mr Charley Liu
| Supply capacity: | 300 sets per month | Health status: | new |
| Shipping Details: | depends on quantity | Packaging Details: | Standard export packaging |
| payment terms: | T/T, Western Union | Certification: | API |
| port: | any china port | Origin: | Hainan, China |

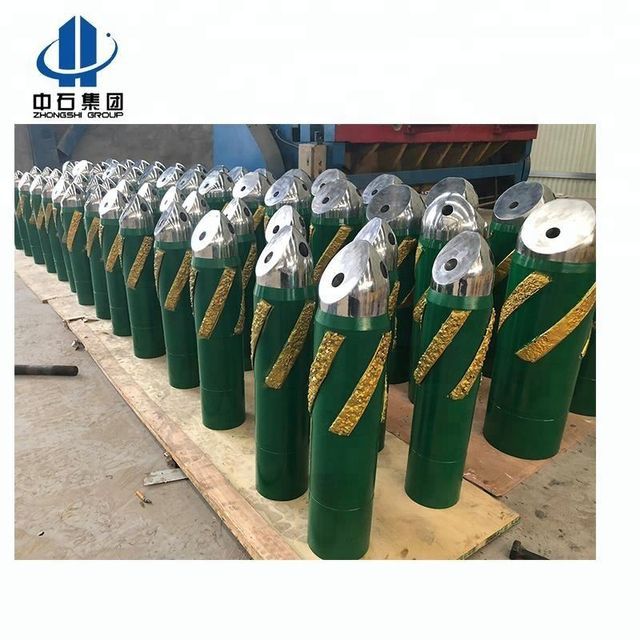

API cementing reamer shoe
The reamer shoe system is a casing shoe that overcomes wellbore obstructions and guides the casing or liner to total depth (TD). The eccentric pilot nose climbs ledges and over obstacles while cutting through narrow spots or obstacles in structurally reamed boreholes. Compatible with all casing and liner hanger assemblies, our reamer shoes provide highly effective protection - against unexpected or anticipated casing and liner run problems, and are specifically designed for potentially difficult wellbore conditions, such as expanded Shales, ledges and washouts.
Description of Reamer Boots
Specifications (mm) | Outer diameter (mm) | Length (mm) | threaded connection |
127.0 | 141.3 | 445 | API casing thread |
139.7 | 153.7 | 460 | API casing thread |
177.8 | 194.5 | 500 | API casing thread |
244.5 | 269.9 | 560 | API casing thread |

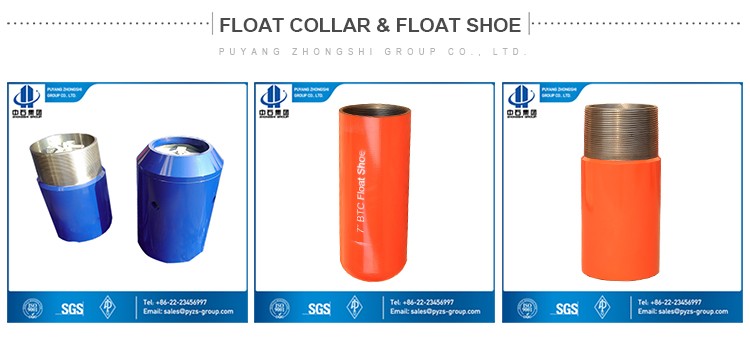

Floating Collar Specifications
Specifications (mm) | Outer diameter (mm) | Length (mm) | threaded connection |
127.0 | 141.3 | 445 | API casing thread |
139.7 | 153.7 | 460 | API casing thread |
177.8 | 194.5 | 500 | API casing thread |
244.5 | 269.9 | 560 | API casing thread |
Advanced Floaters
Strong and durable special-shaped cement nose
Equipped with a high flow phenolic float valve tested by API testing procedures
5,000 and 10,000psi valves available
Dual valve option available
Autofill option available
New and Improved Cementing Process for Valve Retention
Cement tested to withstand 5000 and 10,000psi
Premium floating collar
Equipped with a high flow phenolic float valve tested by API testing procedures
5,000 and 10,000psi valves available
Dual valve option available
Autofill option available
New and Improved Cementing Process for Valve Retention
Cement tested to withstand 5000 and 10,000psi
Material:P-110, K55, J55, N80
thread type:BTC, STC, LTC, new VAM or blank thread
Available Sizes:5 1/2", 6 5/8", 7", 8 5/8", 9 5/8", 10 3/4", 11 3/4", 13 3/8", 16", 18 5 /8", 20"
