Automatic Pipe and Elbow Welding Machine for TIG Welding Station on Pipe Spool Fabrication Line
- $100000.00 /set
- 1 set
- Nanjing Auto Electric Co., Ltd.
- Jiangsu, China
- Ms Karen Peng
| Brand Name: | NAEC; | Marketing Type: | Ordinary Product; |
| Machinery Test Report: | Not Available; | Condition: | New; |
| Showroom Location: | Malaysia; | Payment Terms: | L/C,T/T; |
| Local Service Location: | Malaysia; | Warranty of core components: | 1 Year; |
| Place of Origin: | Jiangsu, China; | Port: | Nanjing; |
| Applicable Industries: | Construction works ,Energy & Mining; | Supply Ability: | 200 Sets per Year; |
| Video outgoing-inspection: | Not Available; | Core Components: | Motor; |
| Key Selling Points: | High Productivity; | After-sales Service Provided: | Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service; |
| Warranty: | 1 Year; |

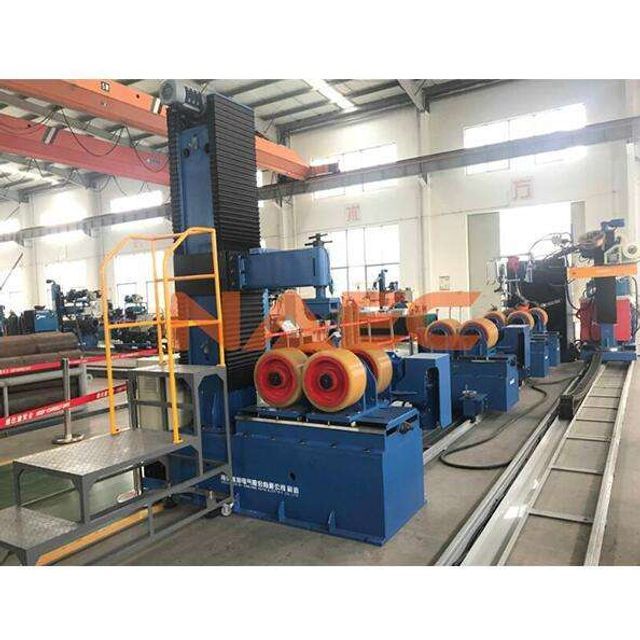

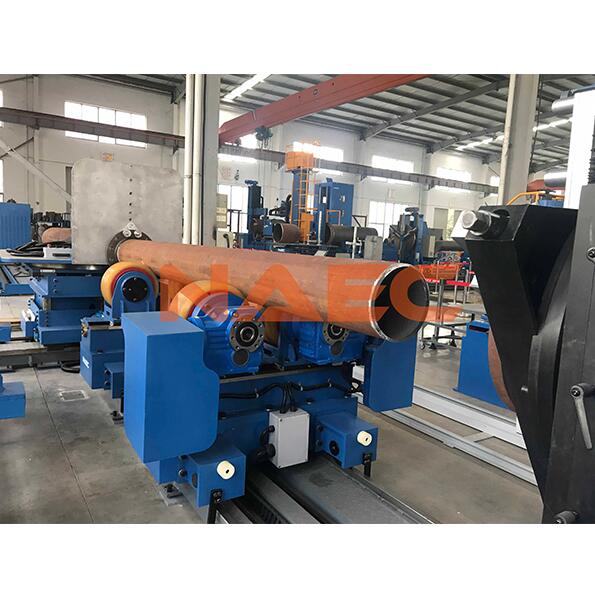

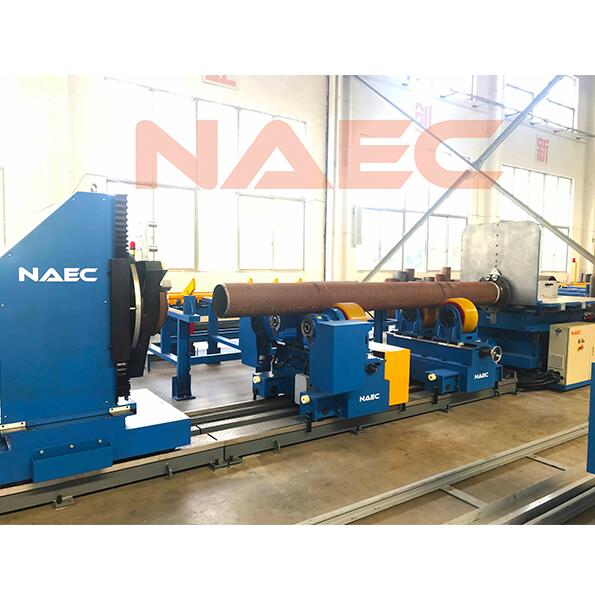

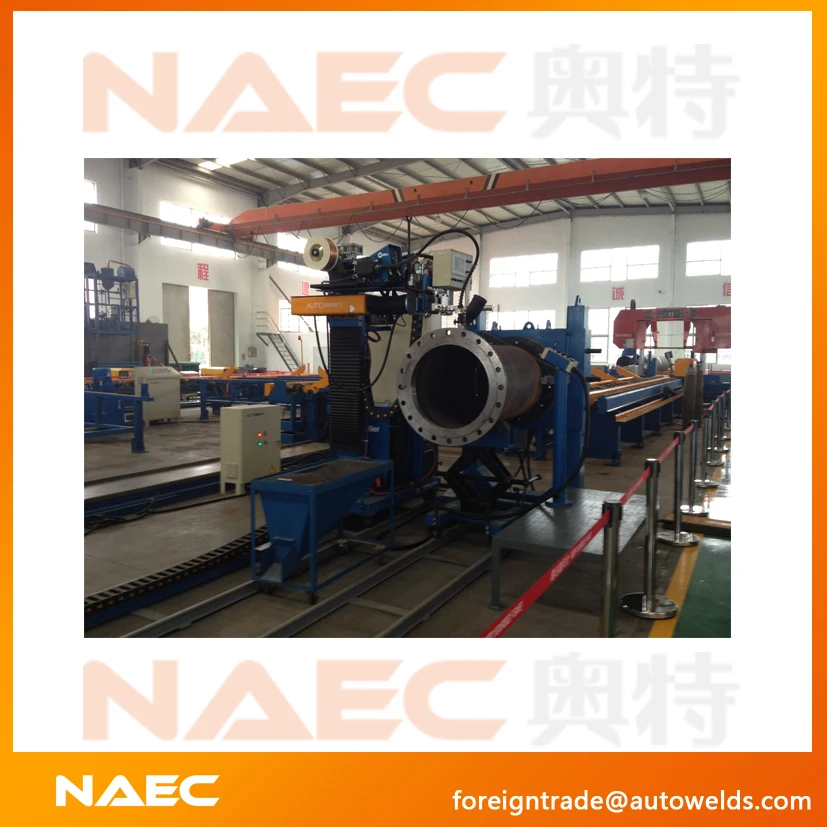

Carbon Steel Pipe Spool Fabrication Solution 4-32"
Carbon Steel Pipe Spool Fabrication Solution 4-32" is designed for big pipe spool/piping fabrication.
Applicable Industries: Oil & Gas Plants, Oil Refinery &Petrochemical Facilities, Onshore & Offshore Facilities, Power Plants, etc.
l realize 80% automated fabrication rate
l matched with pipe spool lean fabrication software management system realize 0.25manhour/DI productivity
l reduce client's fabrication cost
l guarantee client's fabrication quality
l improve client's competitiveness
Technical Description
|
Production Line Type: |
Fixed in workshop |
|
Suit for Pipe Diameter: |
4 to 32inch |
|
Suit for Pipe Material: |
CS |
|
Suit for Pipe Wall Thickness: |
2-70mm |
|
Suit for Pipe Length: |
12M |
|
Cutting & Beveling Speed: |
6 mins to finish 2 bevels |
|
Cutting Precision: |
1mm |
|
Cutting Self Measuring Function |
Included |
|
Conveying Speed: |
2-20 m/min |
|
Fitting-up Mode: |
Motorized fitting up |
|
Welding Type: |
Automatic root pass, fill and cap pass |
|
Welding Process: |
TIG/MIG/SAW are available in one station |
|
Management software: |
Pipe Spool Lean Fabrication Software Management System |
|
Average Productivity: |
0.25manhour/DI |

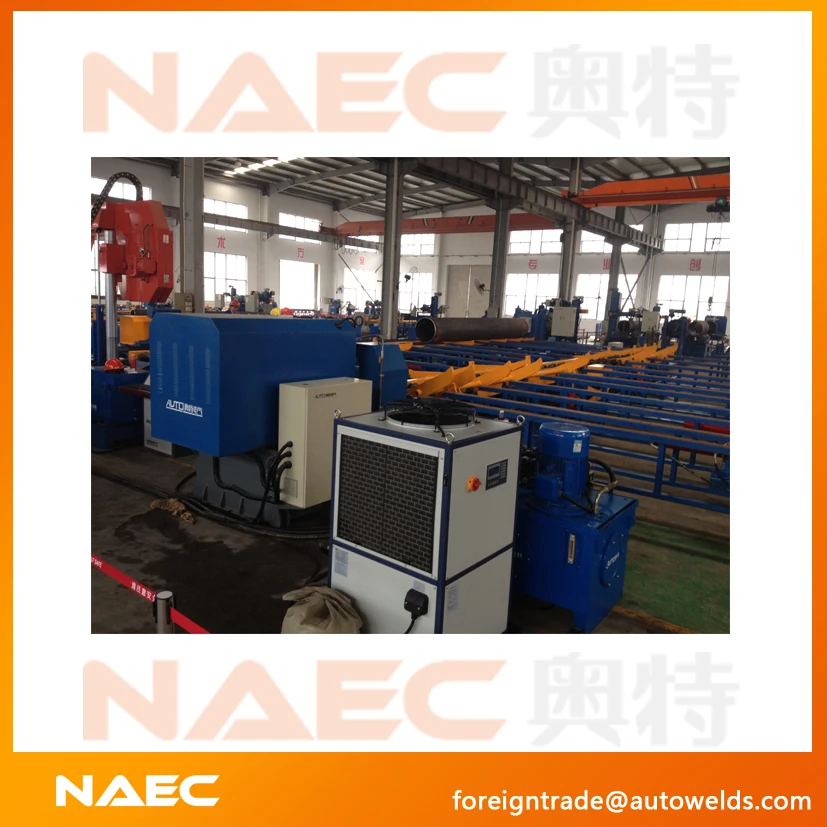

System Configuration:
|
Fabrication Procedure |
Machines/stations |
|
Cutting: |
5-axis flame/plasma cutting machine |
|
Beveling: |
Pipe end beveling machine |
|
Conveying: |
Pipe moving machine & Conveying system |
|
Pipe/fittings storage: |
Pipes rack/ fittings rack |
|
Pipe hoist: |
Jib crane/ overhead crane |
|
Fitting-up |
Multi-function fitting up station |
|
Welding |
Automatic pipe welding station (heavy-duty) |
Q&A:
Q:Can this system process compound V bevel?
A: Yes, it can process single V, compound V and U type bevel.
Q: How to control the misalignment?
A: Several steps can control the misalignment and get good welding quality.
1.Precise cutting & beveling prepare better welding condition.
2.Control misalignment during fitting-up.
3. Our automatic welding station can allow 0-3mm misalignment and get good welding quality.
Q: How to do preheating?
A: We have inductive preheating device.
Q: What's the root pass method?
A: Usually we recommend automatic TIG or RMD-MIG for root pass. While RMD-MIG is not acceptable by some users, we can support client to do PQR for different welding methods.
Q:What's the welding power brand?
A: It's USA MILLER.
Q: How to control welding quality?
A: Except to control every step processing quality before welding, we have programmed 40 sets WPS in our welding station for operate choose suitable WPS.
