API11B Suction Rod Polycentralizer with Clamp
- $2.00 / >=100 pieces
- 100 pieces
- Puyang Renhe Industry Co., Ltd.
- Henan, China
- Ms Lowen Liu
| Core components: | guide | Mechanical test report: | if |
| Warranty: | 1 year | weight: | 0.25kg |
| Applicable industries: | Energy and Mining | Dimensions (L*W*H): | 19*58*175mm |
| Video shipment inspection: | if | Core component warranty: | 6 months |
| After-sales service provided: | Engineers available to service machinery overseas | Origin: | Henan, China |
| Package preview: | Showroom location: | not any | |
| application: | -- | Marketing Type: | 2019 Hot Products |

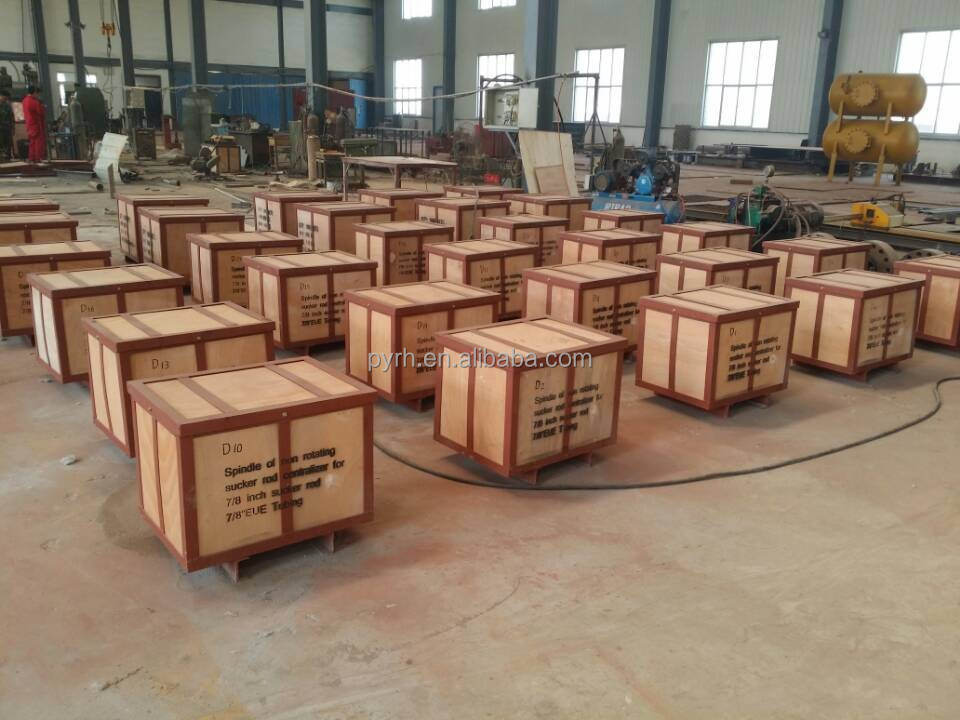

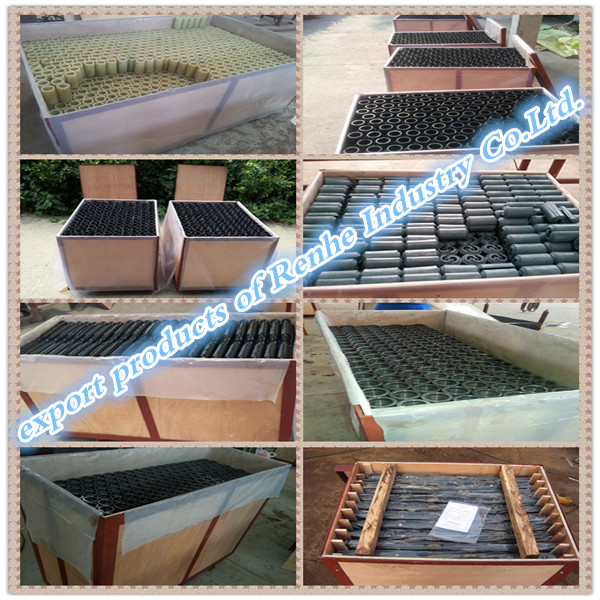

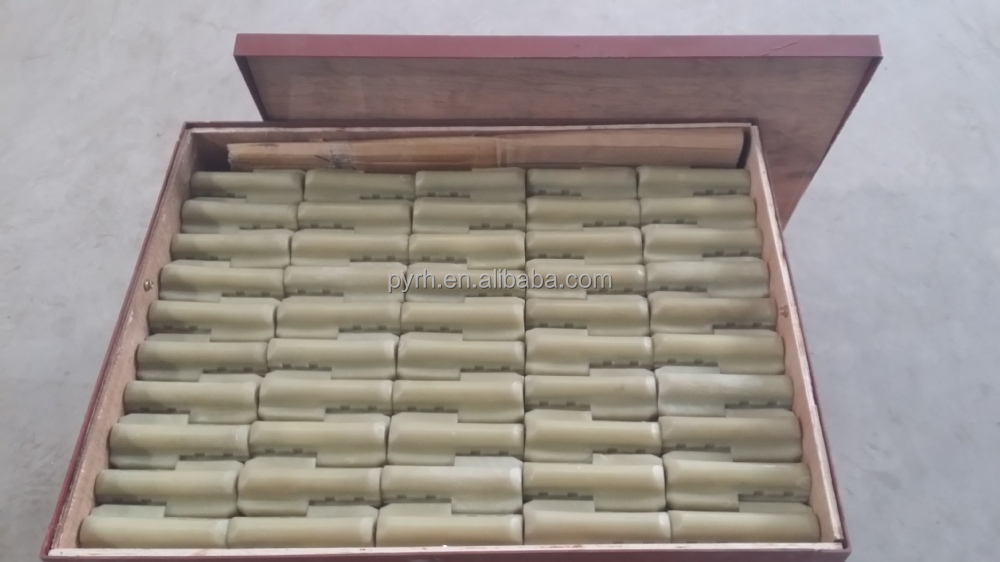

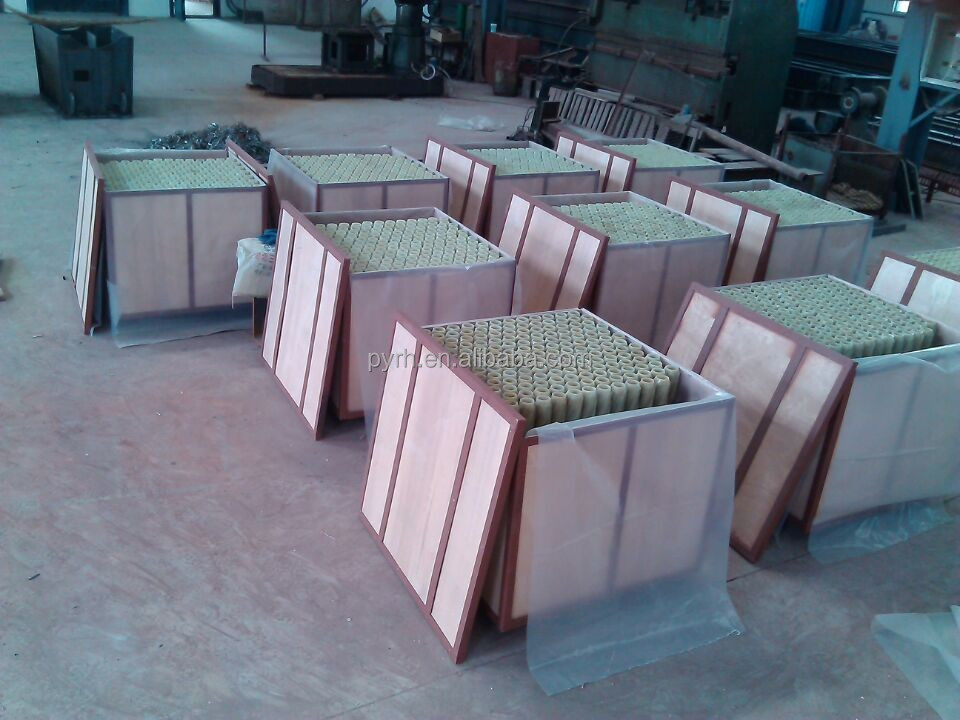

| port: | Tianjin Qingdao | Packaging Details: | According to customer requirements |
| brand: | Renhe | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Voltage: | -- | Supply capacity: | 5000 pieces per week |
| model: | 3/4 | Health status: | new |
| color: | white or black or blue |

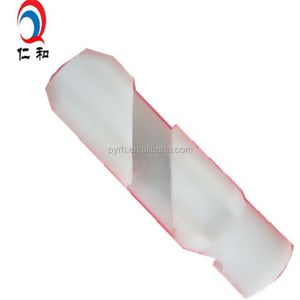

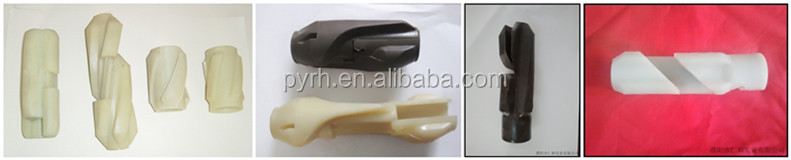

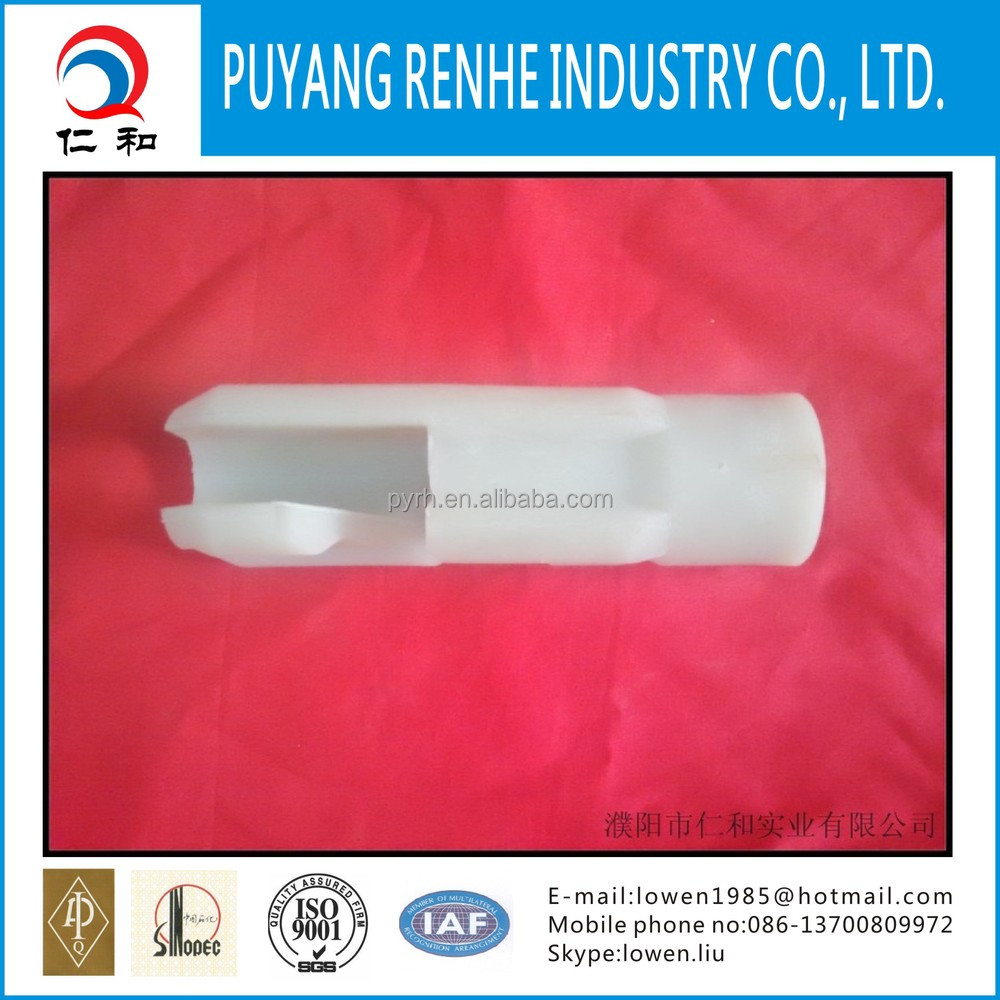

API11B snap-on sucker rod poly centralizer
Characteristics and parameters of sucker rod centralizer
| size | Rail outer diameter (mm) | Rail Length(mm) | Tubing inner diameter (mm) | Operating temperature (°C) |
| FZ46×15/16QG | 46 | 80 130 150 |
2(50) | 75-140 |
| FZ46×1-1/16QG | ||||
| FZ58×15/16QG | 58 | 2-1/2(62) | ||
| FZ58×1-1/16QG | ||||
| FZ58×1-3/16QG | ||||
| FZ70×15/16QG | 70 | 2-7/8(73) | ||
| FZ70×1-1/16QG | ||||
| FZ70×1-3/16QG | ||||
| FZ70×1-3/8QG | ||||
| FZ70×1-9/16QG |
2. Main technical indicators
Rockwell hardness (HRC): M85-M114
Compressive strength: 60 - 90 MPa
Impact strength: 3.5 - 4.8 kJ/m2
Scope of application: 16mm, 19mm, 22mm, 25mm sucker rod
Maximum outer diameter: 46mm, 58mm, 72mm
Length: 135mm
Medium temperature: 0-120℃
3. Principles of use
a. If it is a small eccentric wear section, install a set of this product in the middle of each sucker rod.
b. If the local wear of the well section is not serious, install two sets of this product in the middle and one end of each sucker rod.
c. If it is a well section with serious eccentric wear, install three sets of this product at the middle and end of each sucker rod.
