Ex-factory price of oilfield tubing anchor in 2019

PRODUCT DETAIL
model:APIPackaging Details:According to the needs of consumers
Connection thread:2 7/8 EUE B*PApplicable industries:Energy and Mining
port:Tianjin Port/Qingdao Porttype:new
Material:Carbon steeluse:Oil
Package preview:payment terms:wire transfer
Supply capacity:1000 pieces per month

2019 Oilfield Tubing Anchor Factory Price



1. Introduction



Our tubing anchors anchor tubing strings in rod pumped wells. Tubing anchor effectively reduces rod, tubing and

Sleeve worn. This reduces operating costs. Elimination of string breathing and bending also increases production

Increases volumetric efficiency by extending the effective stroke of the pump. Based on proven technology, the Anchor uses hydraulically activated compression slips to provide an anchor point for tiebacks or work strings during stimulation operations. these tubing anchors

The most cost-effective insurance against premature repairs and downtime you can buy.



2. Technical specifications



Model

length

(mm)

Maximum outer diameter

(mm)

Minimum inner diameter (mm)

Pressure (MPa)

The maximum outer diameter of the tooth when it is opened

set pressure

(MPa)

cable

The casing ID to use

51/2"

580

115

62

25

128

8-12

2-7/8 TBG

121-124

7"

660

150

76

25

168

8-12

3 1/2 TBG

155-166

9 5/8"

970

208

76

25

245

8-12

3 1/2 TBG

218-240

9 5/8"

970

208

98

25

245

8-12

4 1/2 TBG

218-240

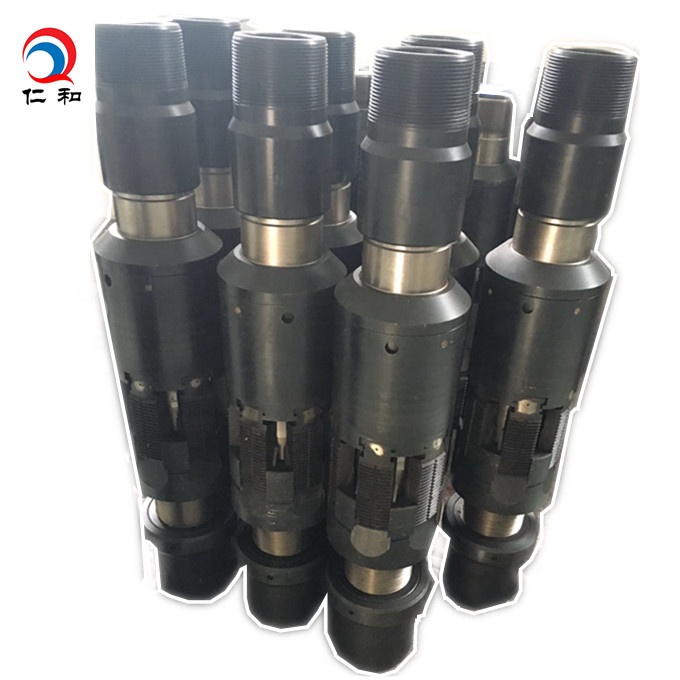

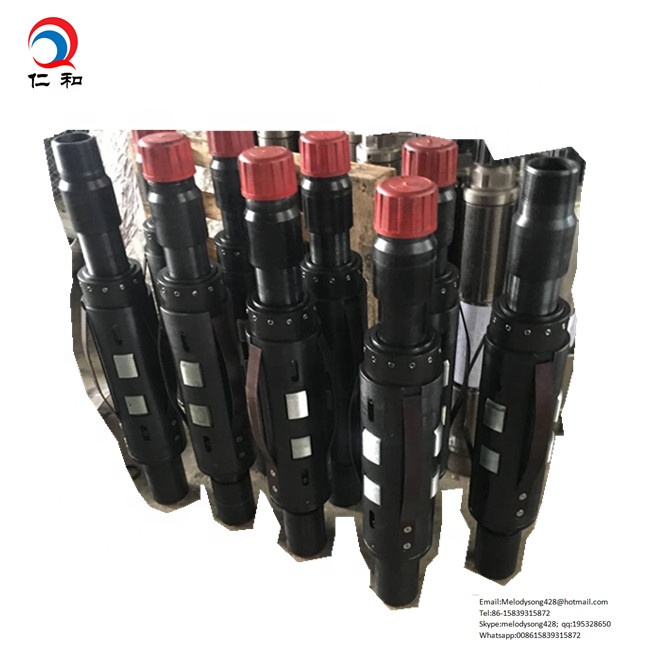

3 product display





4 Our Certifications

High quality petroleum machinery, OEM in China with competitive price! Welcome Inquiry!
