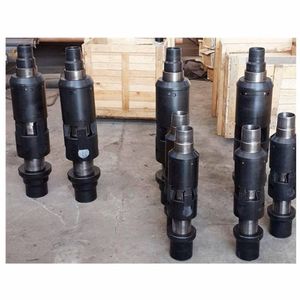

API Torque Tubing Anchor

PRODUCT DETAIL
size:5-1/2" - 9-5/8"Core components:Tubing anchor
color:black, silver grayMinimum path:48-98mm
After-sales service provided:Video technical support, online supportShowroom location:not any
Video outbound inspection:ifTorque:≥5000N·m
Mechanical test report:ifpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, T/T, VISA, e-Checking, Paypal
Supply capacity:1200 sets per weekThread type:European Union, European Union
Packaging Details:Packed in wooden case or other standard packingTool type:Downhole Tools
Overall length:610-711mmport:Tianjin Xingang or other Chinese ports
Unlocking force:80-120KNHealth status:new
Marketing Type:normal productApplicable industries:oil equipment
brand:SRDWarranty:1 year
Body diameter:114-190mmtype:PC pump pipe anchor
Core component warranty:1 yearPackage preview:
model:5-1/2" - 9-5/8"

API Torque Tubing Anchor



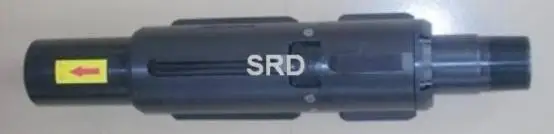

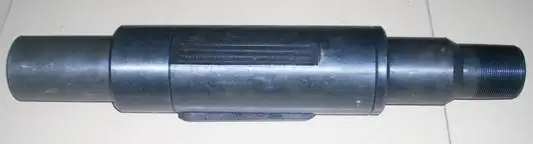

1. Introduction of torsion anchor

Torque anchors are special anchors for PC pumps. The centering performance is good, and there is no need to lift when anchoring into the well. Simple operation and good stability. The anchor block is anchored on the inner wall of the casing at the same time, and exerts the same pressure on the casing from three points to avoid damage to the casing. In order to prevent the tubing thread from being tripped, the anchoring force of the anchor bolt should be greater than the reverse torque. Torque ≥ 5000N·m. Alloy anchor bolts are suitable for corroding oil and gas wells. The anchor has very good anchoring performance, convenient operation and good centering performance.

Torque anchors are mainly exported to Peru, Venezuela, Kazakhstan, Russia, Sudan, Chad, Algeria and other countries.



2. Material

2.1. Valve body: 42CrMo hardness: HB277--311

2.2. Block: 20CrMnTi Hardness: HRC52--60



3. Specifications

size

en

(mm)

minimum path

(mm)

overall length

(mm)

The scope of work

(mm)

Wire

side

(European Union, European Union)

the other side

(European Union, European Union)

51/2"

Φ114

Φ48

610

116-130

2-3/8" pin 2-7/8" pin 3-/12" pin 4-1/2" pin

2-3/8” boxed

2-7/8" box 3-/12" box 4-1/2" box

65/8"

Φ137

Φ60

610

140-156

7 inches

Φ137

Φ60

610

150-168

95/8"

Φ190

Φ98

711

208-232



4. How to use

4.1 Select the anchor bolt according to the casing size.

4.2 Connect the anchor bolts under the PC pump.

4.3 Check whether the module works normally.

4.4 Put the anchor bolt into the casing.

4.5 After reaching the required depth, turn the tubing string clockwise with a torque of 400N.m, and at the same time the anchor has been anchored on the casing.

4.6 Fix the tubing string to the wellhead and complete the anchor loading.

4.7 Turn the pipe string 1-5 circles, unload the anchor.

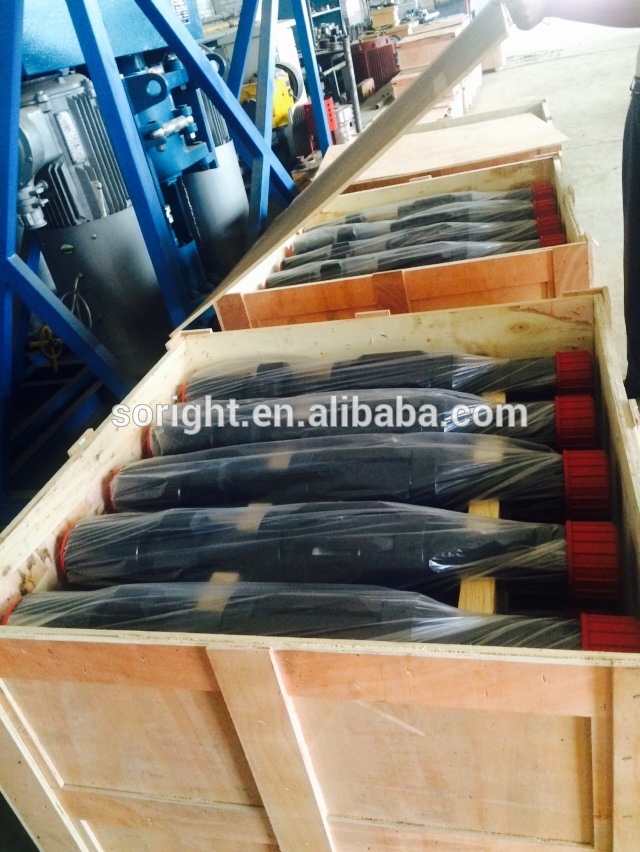

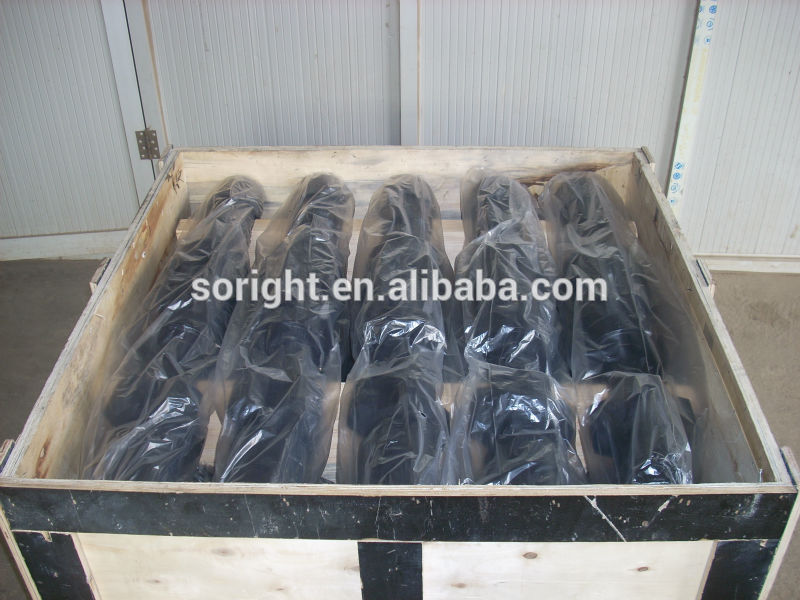

5. Packaging of torsion anchors













6. Company Profile



Tianjin Soruit Technology Development Co., Ltd. (hereinafter referred to as Soruit Technology) is one of China's petroleum machinery export windows. It is a comprehensive enterprise integrating research and development, mechanical processing, technical services, petroleum machinery products and services.



Solite Technology mainly provides customers with production equipment, tools, spare parts and accessories produced by high-quality petroleum equipment manufacturers of China National Petroleum Corporation. Our main products are: sucker rod pumps, sucker rods, tubing jumpers, tubing and casing joints, stuffing boxes, thread protectors, packing, floating shoes, floating rings, etc.



The company always insists on quality first. All products are designed and processed in compliance with API specifications. A quality management system has been established to ensure that the entire process is properly controlled.



7. Our certificates

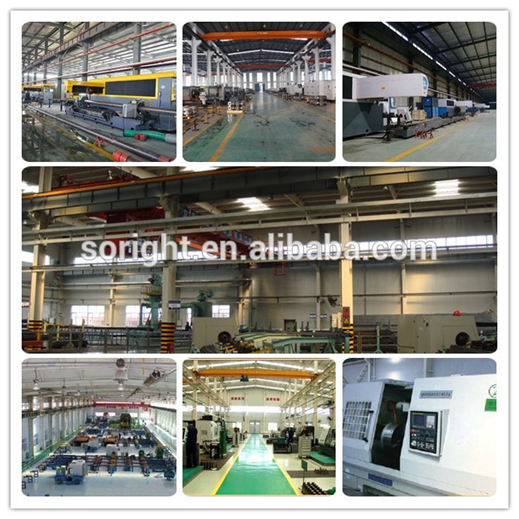

8. Our factory

9. Hot selling products
