API Downhole Equipment Anchor Pipe / Pipe Catcher

PRODUCT DETAIL
Tool Type:Downhole toolsport:Tianjin Xingang or other Chinese ports
Unlock Power:80-120KNHealth status:new
brand:SRDlength:790mm
Core components:Tubing AnchorThread Type:European Union, NUE
Warranty:1 yearapplication:for oil wells
model:5-1/2" - 9-5/8"Packaging Preview:
Packaging Details:Packed in wooden case or other standard packagingAfter-sales service provided:Video technical support, online support
Showroom location:not anyApplicable industries:oil equipment
Supply capacity:1000 pieces per weekWorking pressure:35MPa
Connection line:2-3/8", 2-7/8", 3-1/2", 4-1/2"size:5-1/2"- 9-5/8"
Core Components Warranty:1 yearcolor:Black, silver grey etc.
Marketing Type:normal productVideo external inspection:if
Local service location:not anypayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,T/T, VISA, e-Checking, Paypal
type:PC Pump Tubing Anchorstandard:API standard
Mechanical test report:if

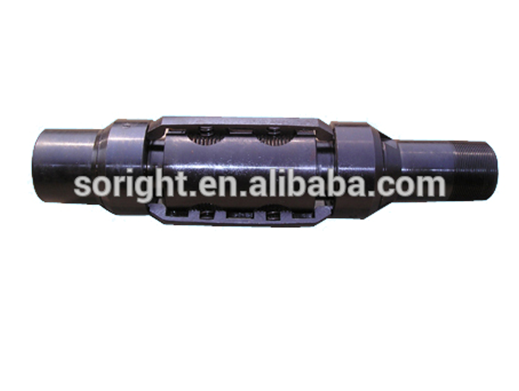

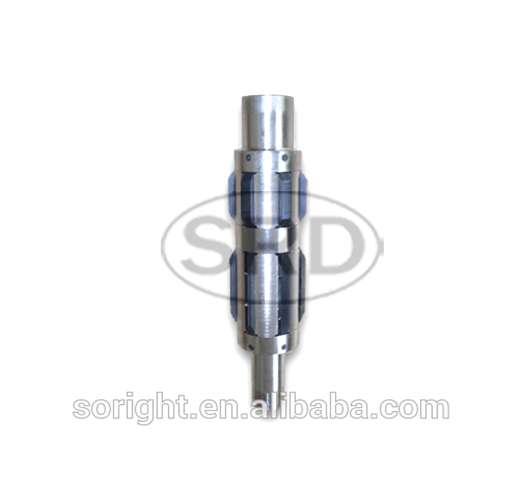

API Downhole Equipment Tubing Anchor / Tubing Catcher



Tubing Anchor Introduction:

A tubing anchor is a downhole, packer-like device that runs in a tubing string and is clamped to the casing wall. Tubing anchors prevent the "breathing" of the tubing, the periodic up and down movement of the lower part of the tubing as the well is pumped by a rod pump.

1. Features:

(1) Effectively anchor the tubing string on the well wall during the operation of the PC pump;

(2) When anchoring is not required, it is easy to release the anchored state.
2. Specifications: API 5CT 5-1/2" - 9-5/8"
3. Connection thread type: 2-3/8” to 4-1/2” EUE, NUE



Tubing Anchor Specifications:



Specification

Maximum outer diameter (mm)

Drift diameter (mm)

Anti-skid outer diameter (mm)

Maximum sliding outside diameter (mm)

Working pressure (Mpa)

Pulling force (KN)

Set pressure (Mpa)

Release force (KN)

Lifting load (KN)

Applicable casing diameter (mm)

Tubing Anchor

114

62

112

132

35

≤60

8~10

90~100

≤400

121.4~124.3





feature:

1. Secures securely in all types of casing, including high quality casing.

2. Two-way sliding anchoring improves the ability to resist upper and lower pressure difference

3. Static water setting, straight pull and release, suitable for all kinds of wells (vertical wells, inclined wells, horizontal wells)

4. The aperture can meet the requirements of different well types.

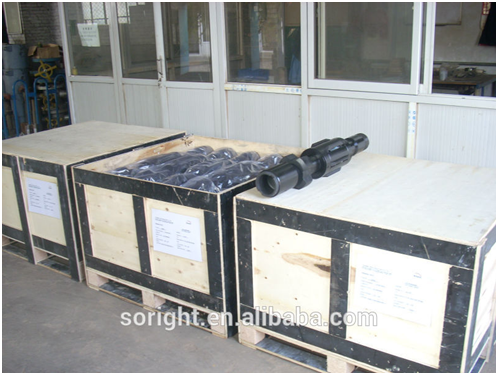

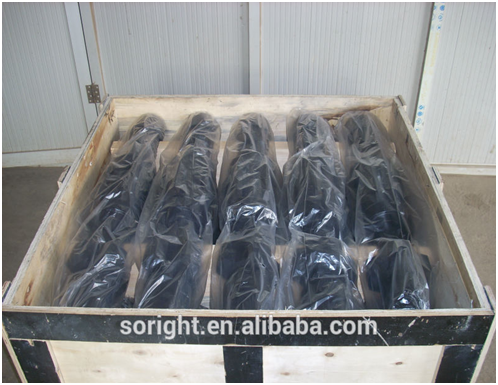

Packaging of the tubing anchor:







Our company profile:

Tianjin Solite Technology Development Co., Ltd. (hereinafter referred to as Solite Technology) is one of the export windows of China's petroleum machinery. It is a complex of petroleum machinery products and services integrating R&D, machining and technical services.



Solette mainly provides customers with production equipment, tools, spare parts and accessories produced by CNPC (China National Petroleum Corporation), a high-quality petroleum equipment manufacturer. The main products are: downhole sucker rod pump, sucker rod, tubing tap, tubing joint, stuffing box, thread protector, packing, floating shoe, floating hoop, etc.



The company insists on quality first. All products are designed and processed to API specifications. A quality management system has been established to ensure that the entire process is properly controlled.



Our certificates:



Our factory:
