set hydraulic tubing anchor clamp pipe anchor

PRODUCT DETAIL
length:580-970Supply capacity:1000 pieces per month
Warranty:1.5 yearstype:Tubing anchor
Core component warranty:1 yearApplicable shell:5-1/2,,7,9-5/8
Packaging Details:International standard wooden box or according to customer requirementspayment terms:L/C, D/P, T/T
Local service locations:not anyAfter-sales service provided:free spare parts
model:9-5/8Applicable industries:Energy and Mining
brand:zxMarketing Type:normal product
Health status:newShowroom location:not any
Core components:engineWork pressure:6 MPa
Video outbound inspection:ifport:Qingdao/Tianjin
Connection thread:2-7/8EUPackage preview:
size:114,152,198Mechanical test report:if
Operating temperature:180 degrees CelsiusMaterial:4140

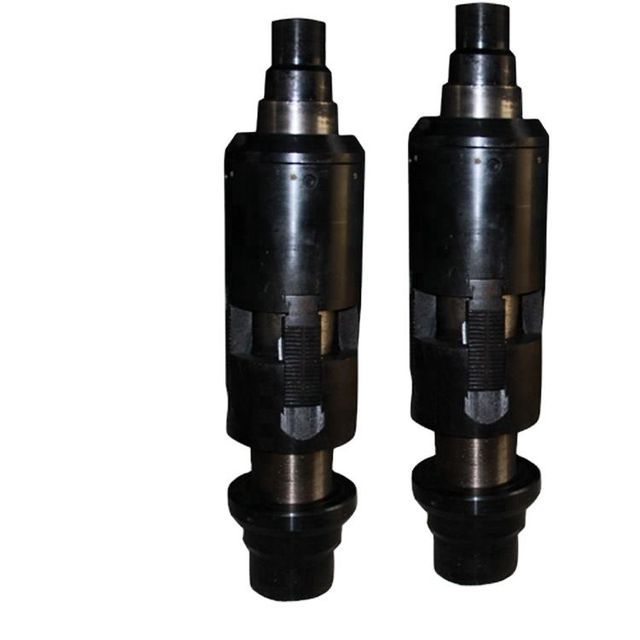

  Hydraulic Fixed Tubing Anchor

Product Description

Hydraulic fixed tubing anchors hold tubing strings in tension or compression to prevent movement in rod pump installations.

retrievableTubing anchoris set by the temporary plug that the pipe pressure runs beneath it. Setting the tubing anchor requires no manipulation of the tubing.

Straight-pull shears release trap for easy retrieval.



Technical Parameters



Model

length

(mm)

Maximum outer diameter

(mm)

Minimum inner diameter (mm)

Pressure (MPa)

The maximum outer diameter of the tooth when it is opened

set pressure

(MPa)

Connection thread

Shell ID to use

51/2"

Chapter 580

115

62

25

128

8-12

2-7/8 TBG

121-124

7 inches

660

150

76

25

168

8-12

3 1/2 TBG

155-166

9 5/8 inches

970

208

76

25

245

8-12

3 1/2 TBG

218-240

9 5/8 inches

970

208

98

25

245

8-12

4 1/2 TBG

218-240

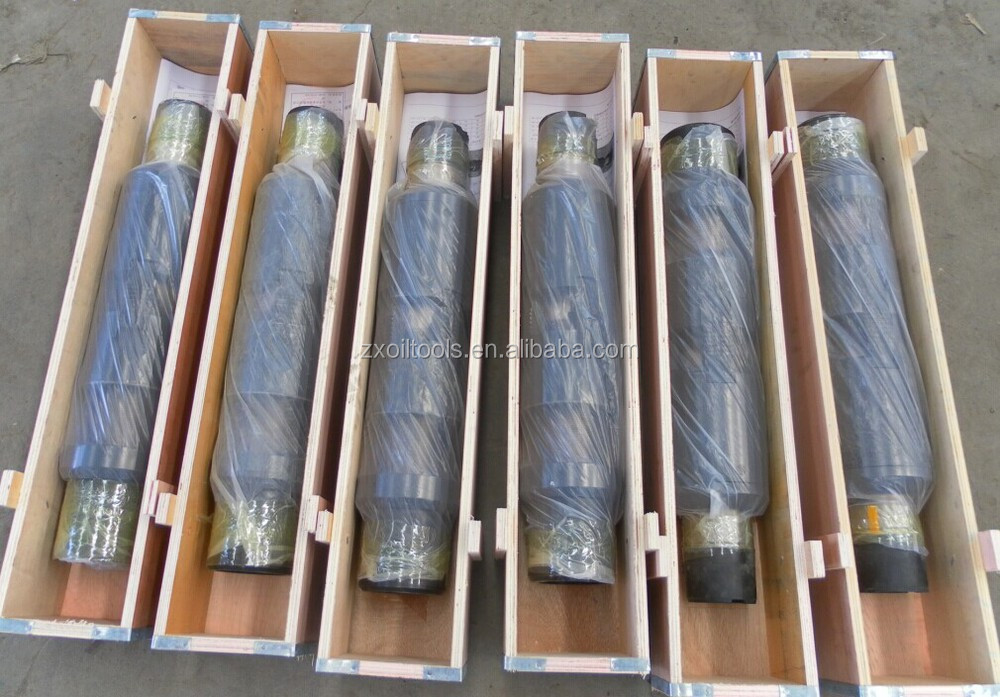

Packaging and Shipping
