API 5CT Alloy Steel Tubing Anchor Catcher
- $199.00 / 10 - 49 pieces
$179.00 / 50 - 99 pieces
$159.00 / 100 - 499 pieces
$129.00 / >=500 pieces - 10 pieces
- Tianjin Soright Technology Development Co., Ltd.
- Tianjin, China
- Ms Peggy Lee
| Port: | Tianjin Xingang or other Chinese Ports; | Working Pressure: | 35MPa; |
| Condition: | New; | Thread type: | EUE, NUE; |
| Local Service Location: | None; | Applicable Industries: | Petroleum Equipment; |
| Unlock Force: | 80-120KN; | Showroom Location: | None; |
| Core Components: | Tubing Anchor; | Video outgoing-inspection: | Provided; |
| Machinery Test Report: | Provided; | Tool Type: | Downhole Tool; |
| Supply Ability: | 1000 Sets per Week; | Packaging Detail: | Packed in wooden cases or other standard packages; |
| Type: | Tubing Anchor for PC Pump; | Warranty of core components: | 1 Year; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,T/T, VISA, e-Checking, Paypal; | After-sales Service Provided: | Video technical support,Online support; |
| Length: | 790mm; | Model Number: | 5-1/2" - 9-5/8"; |
| Marketing Type: | Ordinary Product; | Package Preview: | ; |
| Brand Name: | SRD; | Warranty: | 1 Year; |

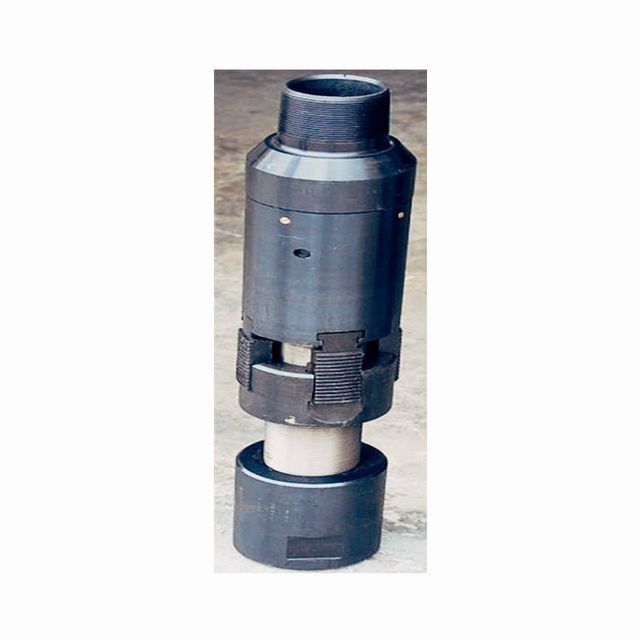

API 5CT Alloy Steel Tubing Anchor Catcher
Tubing Anchor Introduction:
Tubing anchor is a downhole, packer-like device run in a string of tubing that clamps against the wall of the casing. The tubing anchor prevents the "breathing" of the tubing, the cyclic up and down movement of the lower section of tubing as the well is pumped by a rod pump.
1. Characteristics:
(1) effectively anchoring the tubing string on the wall of well during the PC pump operation;
(2)When the anchoring is no need it is easy release the anchoring condition.
2. Specification: API 5CT 2-3/8” to 4-1/2”
3.Connecting thread type: EUE, NUE

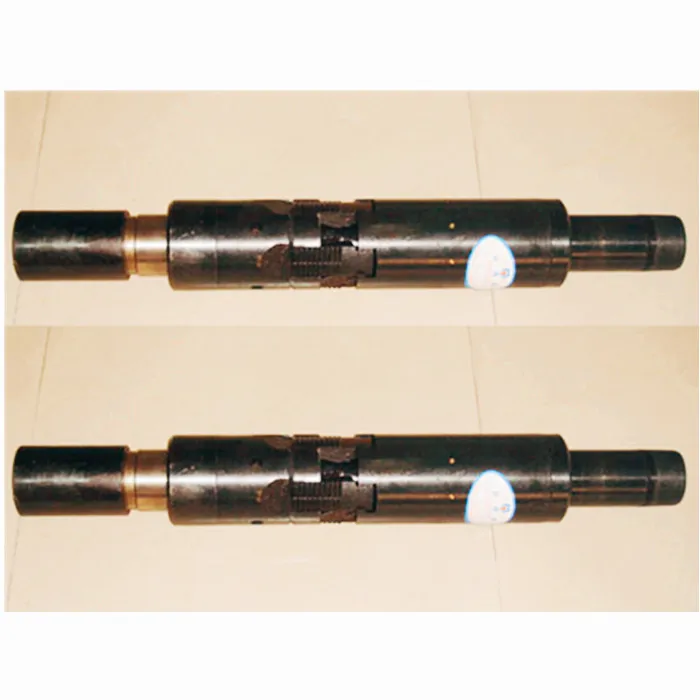

Specification of the Tubing Anchor
|
Specification |
Max OD (mm) |
Drift diameter (mm) |
Slip free OD(mm) |
Slip open max OD (mm) |
Working pressure(Mpa) |
Pulling tension (KN) |
Setting pressure (Mpa) |
Release force (KN) |
Lift Load (KN) |
Suitable casing diameter (mm) |
|
Tubing Anchor |
114 |
62 |
112 |
132 |
35 |
≤60 |
8~10 |
90~100 |
≤400 |
121.4~124.3 |
Features:
1. Safely and firmly set in all type of casing, including premium grades.
2. Bi-directional slip anchoring, which improved the ability of pressure difference resistance between upper and lower pressure
3. Hydrostatic setting, straight pull releasing, suitable for all kinds wells (vertical Wells, deviated well and horizontal well)
4. Bore diameter could satisfy the requirements of different kind wells.
Packages of the Tubing Anchor:
Our Company Brief Introduction:
Tianjin Soright Technology & Development Co.,Ltd (hereafter called Soright Tech) is one of exporting windows of China Petroleum Machinery. It is an integrity combined with R&D, machinery and processing, technical services on petroleum machinery products and services.
Soright Tech primarily provides clients with the production equipments, tools, spare parts and accessories that been manufactured by high quality petroleum equipments manufacturers of CNPC (China National Petroleum Corporation). Our main products are as follows: subsurface sucker rod pump, sucker rod, tubing crossover, tubing/casing couplings, stuffing box, thread protector, packings, float shoe and float collar etc.
The company keeps on the Quality is the first. All of products are designed and processed meeting API Specifications. Quality Management System has been set up to ensure the whole process being properly controlled.
